Bazyar P. , Jafari A. , Alimardani R. , Mohammadi V. 2019. SMALL-SCALE HEAD OF COMBINE FOR HARVESTING SESAME
DOI:10.30825/5.ejpau.178.2019.22.4, EJPAU 22(4), #02.
Available Online: http://www.ejpau.media.pl/volume22/issue4/art-02.html

SMALL-SCALE HEAD OF COMBINE FOR HARVESTING SESAME
DOI:10.30825/5.EJPAU.178.2019.22.4

Pourya Bazyar1, Ali Jafari1, Reza Alimardani1, Valiollah Mohammadi2
1 Department of Agricultural Machinery Engineering, Faculty of Agricultural Engineering and Technology, University of Tehran, Karaj, Iran
2 Department of Agronomy and Plant Breeding, College of Agriculture, University of Tehran, Karaj, Iran



ABSTRACT

Sesame plants are harvested manually and mechanized. As the cultivation area of this product is increasing in the world, due to the excessive grain loss in the head of combine harvester and the toxic spray called Regelon, which is a human health hazard, the need to make a special head of combine for harvesting sesame has been the manufacturers focus of attention. In this research, a special small-scale head of combine harvesting for sesame made up bowl fingers and stair frame has been fabricated and evaluated. As the results have showed farm capacity of the machine with a working width of 60 cm and a speed of 1.3 m/s is 217 m2/hr. Also, the results of the SolidWorks analysis indicate a maximum displacement of 0.057 mm, a maximum strain of 0.0000407, and a maximum von Mises Stress of 8929 KN/m2, in triangular bowl fingers under load 26 N by a stem of Sesame. moreover, the head loss of this special head is about 16 percent.

Key words: head of combine, harvesting, sesame.

INTRODUCTION

The sesame is thermophilic and basically, a particular product for tropical and subtropical regions and is sensitive to low temperatures [2], but by implementing a breeding program, it is possible to extend its cultivation to temperate regions. Sesame seed is from 40 degrees of north latitude to 40 degrees south latitude, it is usually cultivated at a height of 1200 meters above the sea level. This plant needs warm weather and an abundant amount of light and shows low sensitivity to the heat [12]. Some physical properties of sesame at the moisture of 3.4% with average dimensions of length, width, and thickness of  2.80, 1.69 and 0.82 mm, and the mean geometric diameter, spherical, area, and density were 56.1 mm, 56/0, 80/7 mm and 1224 kg /m2. The average friction coefficient ranged from 0.39 on the glass to 0.54 on the plywood, while the repose angle was 32 ± 0° [14]. Sesame is harvested when the seeds are ripe in the lower capsule. Capsules usually come up from the bottom of the stem, and the left loss begins, but the capsules are still green and they must be removed before they dry [6]. Sesame is a strategic product with high nutritional and medical value, that the daily increase in number of the lands under cultivation due to sesames high consumption in the world and to make some reductions in harmful effects of spraying in order to increase plant resistance to seed loss, are the reasons which necessitate the mechanized harvesting of this product [3]. As the cultivation area of this product is increasing in the world, there are numerous industrial and pharmaceutical properties for sesame. Nowadays, the consumption of sesame oil in the world is increasing, but because of the high head of combine loss in common combines, it is often taken manually in some countries, which is, costly and time-consuming and in some other countries it is carried out by combine harvesters which is a special head of combine harvester for fine-grained products, In this case, the losses rate is too high [9]. According to the research on the physical and mechanical properties of some fine-grained products and the need for the use of special heads of combine harvesters and machines for their harvesting. In this research, the activities carried out in the field of construction and design of these hedges and harvest machines have been studied. In 2015, Wu Yingbing invented a single saw reaper for harvesting sesame. Which provided the farmer a mechanical sesame harvest. One of its advantages is the moving sheet for the collection of lost grain, and its disadvantage is the lack of a lost grain transferring system into a grain collection tank [16]. In 2017, Dai Jin, et al. invented a simple and easy-to-use machine for harvesting small blocks of sesame. Its advantage is its property for small-scale, and its disadvantage is that the machines just reap the product and there is not any system to reduce sesame seed loss. Also, this reaper cannot be used for large sesame fields [1]. In 2028, Li Fawang, et al. invented a reaper for sesame seeds. This reaper includes the frame, the shear shaft, a Valve, transfer position, and the cylinder. The advantage of this reaper is the existence of a rotary system to ease the entry of plants stems into the cutting chamber. And its disadvantage is the lack of a system for collecting lost grain in the cutter section of the reaper [10]. In 2018, Wang Yuan invented the semi-automatic harvesting machine for sesame. This machine includes a handwheel, a battery, a collecting tank, transport vehicles, a cutting unit and a group of levers located at the rear end of the battery on a moving carrier. Its advantage is the easy entrance of the product into the cutting chamber, and its disadvantages can be the lack of a system for collecting lost seeds and also a cutting edge ahead of the levers and feed rollers and the consequent seed loss increase [15].

In this research, a small-scale head of combine harvester for harvesting sesame was manufactured and evaluated in order to achieve the following objectives:

Making the machine low cost and affordable for farmers.

MATERIALS AND METHODS

In this research, several designs have been evaluated and simulated. Then, the best plan is chosen. After that, it is examined by harvesting canola this is due to the fact that there is no sesame in Karaj in this period.

Design assumptions

  1. Using the overlapped bowl fingers will reduce the grain loss in the head of the combine and will result in their collection inside the fingers.
  2. Using tall separators with covered sheets will reduce the grain throwing to the sides.
  3. The sloping design of the bowl fingers will cause the seeds to fall from the inside of the bowl fingers into the tank.
  4. Using a Hedge trimmer to cut the product reduces the intensity of the stem cutting and, consequently, reduces the throwing of grain on the ground.

Design specification
In the design of the desired harvest head of combine (Fig. 1), consist of the four sloping triangular bowl fingers and a stair frame, which was 20 degrees angular to the horizon to aid in the collection of lost seeds in the tank, because according to a test carried out by slope gauge (Fig. 2), the sesame starts to fall on a ferrous plate with a slope of 20°. A hedge trimmer is also used to cut the plant stem. Other specifications of the machine and specifications of the hedge trimmer are also given in Table 1 and Table 2 respectively.

Table 1. Machine Specifications
working width  [cm] 60 Dimensions of the blade  [cm] 20*30
Machine weight  [kg] 38 Dimensions of the profile  [cm] 2*2
Machine volume  [m] 0.04 Sheet thickness  [cm] 2
Center of gravity  [m] X = 0.65, Y = 0.75, Z = 1.02 Angle between two blades  [degrees] 108
tank volume [m3] 0.216 Machine height [m] 1/3

Fig. 1. Harvesting canola

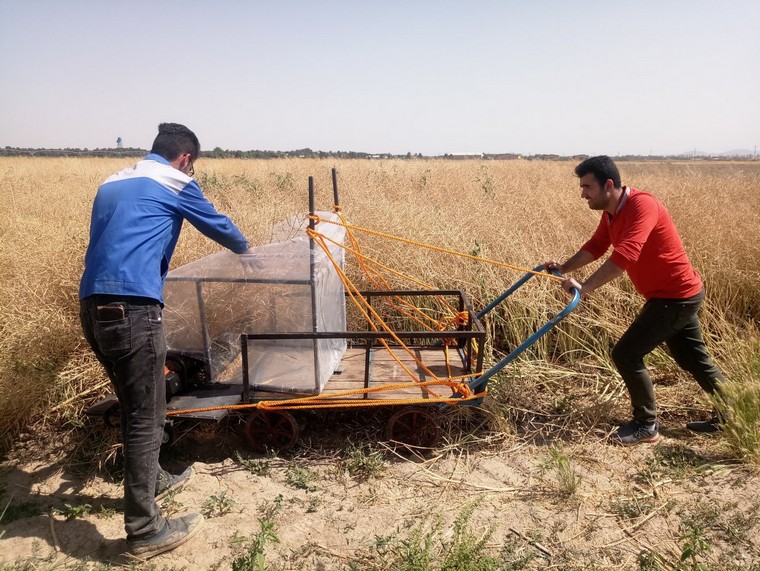

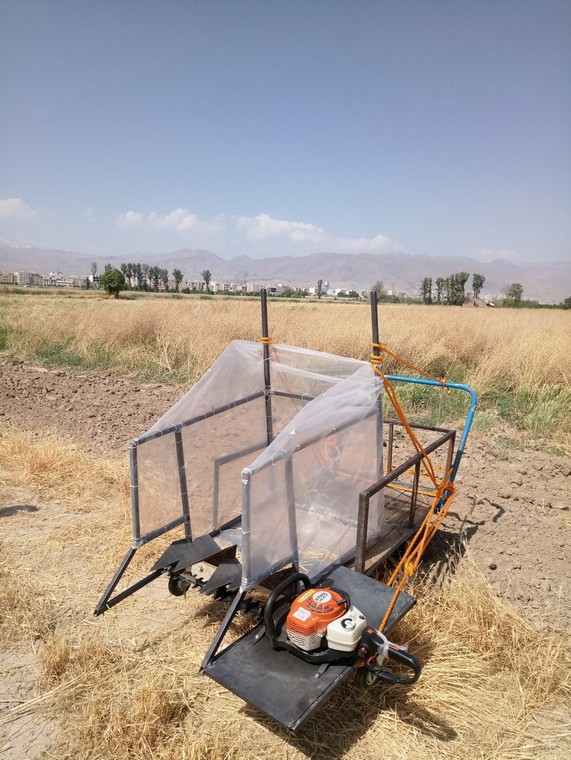

Fig. 2. Connecting the small-scale head of combine harvester to carriage

In this head of combine harvester, the hedge trimmer made in Germany used for cutting the product has the Specifications (Tab. 2) below [4]:

Table 2. Specifications of the hedge trimmer
Model Hedge Trimmer Stihl HS82-R
Motor specifications Power: 1.1 horsepower / displacement capacity 22.7 cc Two-stroke / Gasoline / Cool Air Handley
Fuel tank capacity   600 Milliliters
machine performance Fuel system: Gasoline with  oil mixture • Cutting blade length: 60 cm Double side • Overall length: 120 cm • The volume of the device in a distance of 7 meters: 94 to 107 decibels (DB)
Weight  [kg] 5/4

Due to the total mass of the machine (m) is obtained from the sum of the mass of the chassis (mh) and the hedge trimmer mass (mht), then for moving the machine in the worst ground conditions (ground with a slope of 30 degrees) to a worker with 639 Newtons tensile force is required by Equation 1. The forward speed is also 0.2 m/s. According to Equation 2 [11], its tensile power will be 128 watts.

(1)

(2)

The required power to cut the stems of the sesame plant is obtained by Equation 3, in which Pcut (Cutting power in kW), Fxmax (Maximum cutting force per KN), Xbu (Material depth at the beginning of blade contact), fcut (Cut number per minute), CF (Average force to maximum force ratio (0 < CF  < 1)) [13].

(3)

Harvesting rapeseed with small scale head of the combine
Canola harvesting was done at the Seed Breeding Research Institute field. The height of the head of combine from the ground was set to 35 cm (Fig. 4). After plotting (Fig. 5), a number of stems and the number of spikes in each plot were calculated (Fig. 5) and then harvesting was done (Fig. 3). After harvesting, the machine was pulled back. The stems harvested were collected in the tank (Fig. 6). Then the number of spikes harvested was counted (Fig. 7) and the number of spikes inside the tank was collected and the spikes inside the bowl fingers were also counted (Fig. 8). The total number of spikes harvested by the apparatus was calculated from the sum of the spikes counted inside the tank, and the bowl fingers and spikes harvested by the apparatus were obtained. After calculating the total number of harvested spikes per plot, the same operation was performed for the other species. After calculating the number of spikes harvested per plot, the number of grains harvested per spike was counted (Fig. 9). For this purpose, ten spikes were selected randomly and their number of grains was calculated. After calculating the number of grains often spikes, their average grains were calculated that were 20 grains. After calculating the average number of grains per spike, the number of grains harvested by the machine per plot was obtained from the Equation 12. Then the total number of grains per plot was calculated. To calculate the total number of grains per plot, we obtained Equation 12.

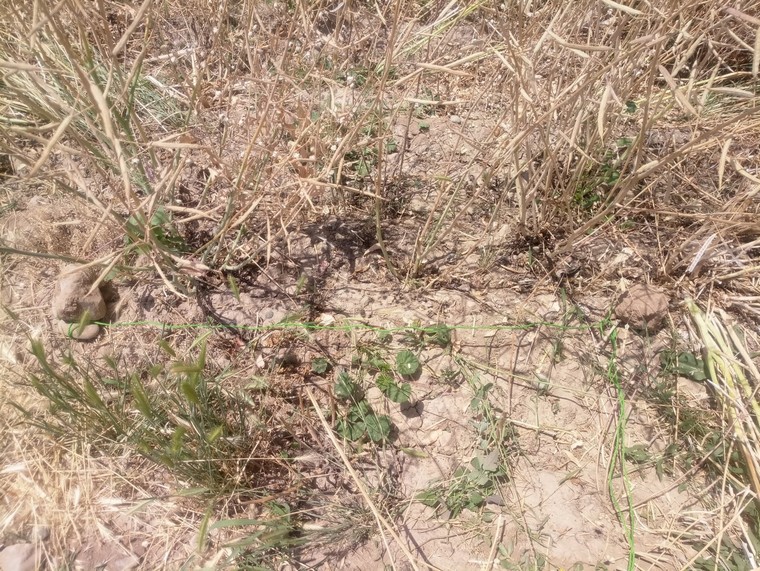

Fig. 3. Separating plots with rope

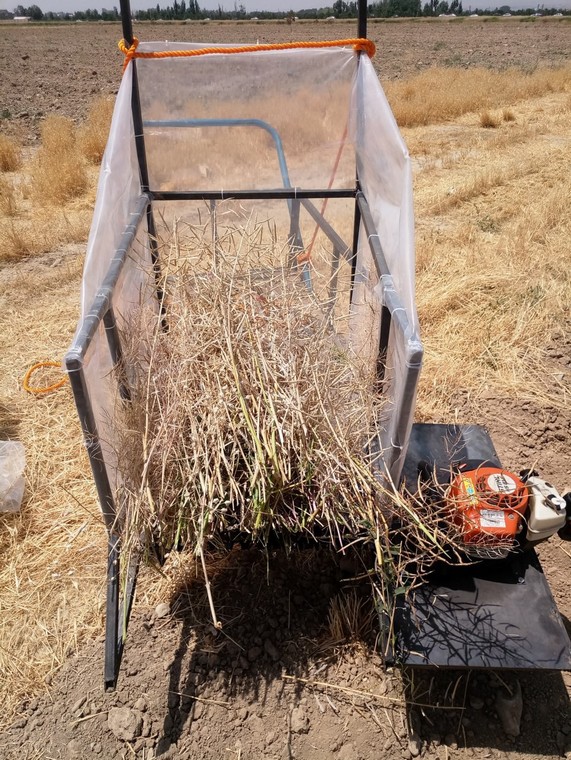

Fig. 4. Stems which are collected in the tank

Fig. 5. Counting harvested spikes on nylone

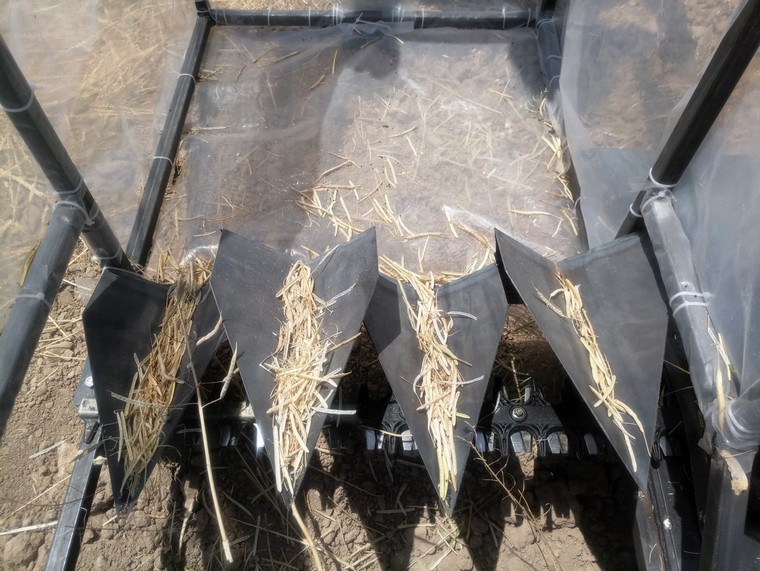

Fig. 6. Stakes which are gathered in bowl fingers and tank

Fig. 7. Counting seeds of each stake

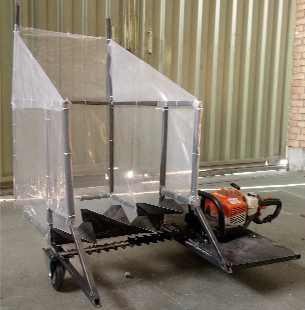

Fig. 8. Small-scale head of combine for harvesting sesame

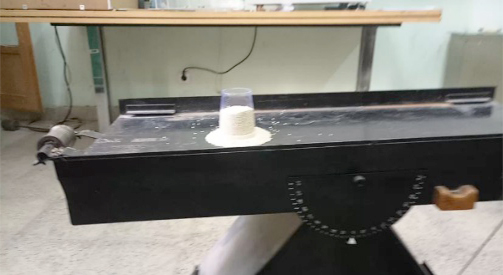

Fig. 9. Sesame slope gauging test

C = A × B Eq. 12

In this equation, "C" the number of grains harvested by machine per plot, "A" the number of spikes harvested by machine per plot, and "B" the average number of calculated grains.

In Equation 13, "Z" the total number of grains per plot, "X" the total numbers of spikes per Solidworks and "Y" the average calculated grains.

Z = X × Y Eq. 13

Determination of loss in the head of the combine harvester in Canola harvesting
Initially, ten rape seeds were selected and the number of available seeds was calculated after knocking them. Then their averages were obtained. The level of the harvest was considered and the number of plants was counted. By multiplying the number of plants by the mean number of grains, the total number of grains was obtained. The plants harvested were then crushed and the number of harvested grains was calculated. As the total area of the four plots is 2.4 square meters, the average total grain yield was harvested in this area and then, using a thousand seed weight of rapeseed which equals 4 g [8]. Seeds function were harvested in kg/ha. Then, the percentage of the small-scale head of combine losses was calculated using Equation 14.

Percentage of head loss =
              = (Function of total grain – Function of harvested grain) / Function of total grain × 100
Eq. 14

RESULTS AND DISCUSSIONS

Considering the topics mentioned in different sections of the research, the results of this study are analyzed in two parts of practical results and simulation results

Practical Results
According to the topics discussed in this research, this machine has advantages over other designs, such as bowl fingers and stair frame mechanism existence that reduces the grain loss amount to the lowest possible level, in addition, the design of these fingers like bowls helps the lost grains collection. Also, their sloping installation leads the grains to the tank. In this head of combine harvester, there are also long separators with a nylon cover to reduce the throwing of the seeds to the sides of the head of combine harvester. The head of combine harvester in this study has a lower weight than other designs that were mentioned. As a result, this head has high portability and maneuverability. This head has the lowest power consumption and due to the use of the simplest mechanisms, its production is economic.

Field test of the machine
Table 1 shows the results of canola harvesting in Plot one, whereby the number of harvested grains was 29 694. Table 2 shows the results of canola harvesting in Plot Two, whereby the number of harvested seeds was 62 520. Table 3 shows the results of the canola harvest in Plot Three, whereby the number of harvested seeds was 42 476. Table 4 shows the results of canola harvesting in Plot Four, whereby the number of harvested seeds was 41 580. Table 5 shows the results of canola harvesting in Plot Two, whereby the number of harvested seeds was 49 200. Table 6 shows the results of canola harvesting in Plot Two, whereby the number of harvested seeds was 36 100.

According to the rapeseed yield in the area of study in harvesting time by the manufactured head of combine, total grain yield was 5200.66 and harvested grain yield was 4359.53 kg/ha. The results show the loss rate in the head of combine in Table 10. According to the calculation of casualties in this head of combine, an average of 16% was estimated. The casualty results of conventional combines calculated by Izadinia et al. [2005] are shown in Table 11, which averages 17% of the average casualties. The head of combine loss in this study was lower than the conventional combines for seed products [5].

Table 3. Harvested quantities in plot 1
Title Value (number)
Number of shoots 40
The total number of spikes 2016
Number of spikes harvested 1323
Total number of grains 40320
Number of grains harvested 29540
Number of grains inside the tank and bowl 154

Table 5. Quantities harvested in Plot 3
Title Value (number)
Number of shoots 50
The total number of spikes 2520
Number of spikes harvested 1920
Total number of grains 50400
Number of grains harvested 42280
Number of grains inside the tank and bowl 196

Table 6. Harvested quantities in Plot 4
Title Value (number)
Number of shoots 54
The total number of spikes 2722
Number of spikes harvested 1856
Total number of grains 54440
Number of grains harvested 41370
Number of grains inside the tank and bowl 210

Table 7. Harvested quantities in Plot 5
Title Value (number)
Number of shoots 54
The total number of spikes 3033
Number of spikes harvested 2460
Total number of grains 60660
Number of grains harvested 48974
Number of grains inside the tank and bowl 226

Table 8. Harvested quantities in Plot 6
Title Value (number)
Number of shoots 54
The total number of spikes 2136
Number of spikes harvested 1805
Total number of grains 42720
Number of grains harvested 35958
Number of grains inside the tank and bowl 142

Table 9. Loss Quantities in the manufactured machine
Losses Value (number)
Crete 1 10626
Crete 2 978
Crete 3 7924
Crete 4 12860
Crete 5 11470
Crete 6 6620
Percentage of casualties 16

Table 10. Shedding values in combines commonly used in rapeseed harvest [Izadinia et al., 2005]
Decrease amount [kg/ha] Platform type
Total shedding Horizontal cutting shoulder center Horizontal cutting shoulder Lateral cut shoulder
599.35 106.46 492.89 0 conventional grain platform
17 Average percentage
of casualties

Simulation results

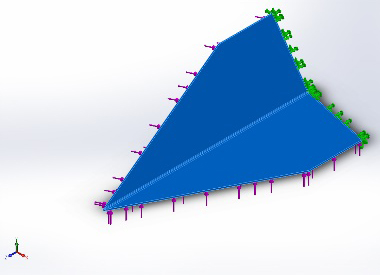

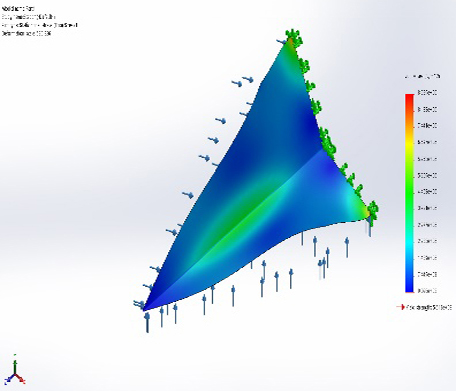

The following results were obtained from Solidworks 2018 software analyzing the bowl finger. According to the results of simulation in the software, the middle part of the bowl finger (node 413) under the force of 26 N [7] has the most displacement, and the blade damage possibility is high in this part. However, because the tension is less than the yield stress, there is no need for modifying the construction. The amount of strain and von Mises Stress also occur at the corners of this head are also in element 197 and node 78, which is modified by using the finger's welding connection to the stair frame.

Table 11. Material Properties
Model Reference Properties
Name: Ductile Iron
Model type: Linear Elastic Isotropic
Default failure: Max von Mises Stress
Yield strength: 5.51485e+08 N/m^2
Tensile strength: 8.61695e+08 N/m^2
Elastic modulus: 1.2e+11 N/m^2
Poisson's ratio: 0.31
Mass density: 7100 kg/m^3
Shear modulus: 7.7e+10 N/m^2
Thermal: 1.1e-05 /Kelvin
Force: 26 N

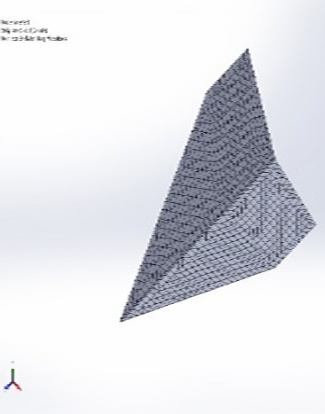

Table 12. Mesh Information
Model Information
Mesh type: Shell Mesh Using Mid-surfaces
Mesher Used: Standard mesh
Jacobian points: 4 Points
Element Size: 7.86215 mm
Tolerance: 0.393108 mm
Mesh Quality: High

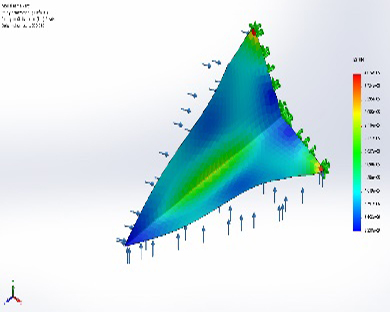

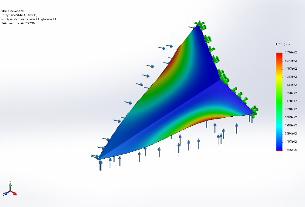

Table 13. Study results
Model Reference Type Min Max
Displacement 0.000e+00 mm
Node: 1
5.756e-02 mm
Node: 413
Strain 9.238e-09
Element: 626
4.074e-05
Element: 197
von Mises Stress 9.028e+02 N/m^2
Node: 360
8.929e+06 N/m^2
Node: 78

CONCLUSIONS

This research has done based on studies on the harvest of sesame plants. After present studies on fabrication designs and their advantages and disadvantages; it has been attempted that in addition to decreasing the amount of seed loss in the head of the combine harvester, the disadvantages of other mentioned machines such as transferring grain to the tank, collecting lost grains, reducing the grain throwing to sides have  been resolved. Researchers can also make future studies on the generalization of this system or the ways of connecting the head of combine harvester to the combine harvester and also ways of optimizing this design. In the end, it is better to harvest other fine-grained products by this machine in order to ensure its efficiency.

Acknowledgements

Thanks to the Authorities at the workshop of the Department of Biosystem Engineering at the University of Tehran who helped us with this research.

REFERENCES

  1. Dai J., Zhang X., Zheng L., Wu H., Liu M., 2015. Simple and easy harvester of a little block of sesame. Application number: CN206389772U, 1–2.
  2. Gharibzahedi S.M.T., Mousavi S.M., Razavi S.H., 2009. Evaluation of Physical, Mechanical and Nutritional Properties of Sesame Seed (Sesamum Indicum L.) in Different Moisture Contents for the Optimization of the Processing Operation, Electronic Journal of Food Processing and Maintenance, 3–5.
  3. Grichar W.J., Rose J.J., Dotray P.A., Baughman T.A., Langham D., Werner K.,  Bagavathiannan M., 2018. The response of Sesame to Selected Herbicides Applied Early in the Growing Season. International Journal of Agronomy, 2–3.
  4. https://www.stihl.com/STIHL-power-tools-A-great-range/Hedge-trimmers-and-long-reach-hedge-trimmers/Hedge-trimmers/235322-610/HS-82-R-Bar-length-60-cm.aspx.
  5. Izadinia Y., Asudar M.A., Shafeinia A.S., 2005. Evaluation of rapeseed mortality in direct harvesting by three types of combine platforms. National Conference on Agricultural Waste Disposal. 51–59.
  6. Ishpekov S., Petrov P., Triffonov A., Dimitrov I., Mihaylova Z., Aleksandrov D., Stamatov S., Deshev M., Kolev B., 2014. Investigation of the indices for mechanized picking sesame capsules. Bulgarian Journal of Agricultural Science, 18, 628–633.
  7. Khak Rangin R., Shamsi H., Ranji A., Pour Ali Eshkelak M., 2013. Determination of agricultural parameters influencing design and production of sesame harvesting combine, 8th National Congress on Biosystem Engineering and Mechanization of the Ferdowsi University of Mashhad, 2–4.
  8. Lajevardi S., 1980. Oilseeds. University of Tehran Publications. No. 1773, 50–60.
  9. Langham D.R., Riney J., Smith G., Wiemers T., 2008. Sesame harvest guide. American Sesame Growers Association. Accessed November, 7, p. 2014.
  10. Li F., Li G., Liu B., 2018. Sesame reaping apparatus of preventing lodging. Application number: CN206895234U, p. 1–2.
  11. Mansouri Rad Davood, 2013. Tractors and Agricultural Machinery (Vol. I), Publisher: Bu-Ali Sina University, Hamadan, Seventeenth Edition, 100–200.
  12. Najeeb U., Mirza M.Y., Jilani G., Mubashir A.K., Zhou W.J., 2012. Sesame [in:] Technological Innovations in Major World Oil Crops, Springer, New York, NY, 1, 131–145.
  13. Srivastava A.K., Goering C.E., Rohrbach R.P., Buckmaster D.R., 1993. Engineering principles of agricultural machines (No. 631.3/S774). St. Joseph, Michigan: American society of agricultural engineers.
  14. Tunde-Akintunde T.Y., Akintunde B.O., 2004. Some physical properties of a sesame seed. Biosystems Engineering, 88(1), 127–129.
  15. Wang Y., 2008. Semi-Automated harvester sesame (patent). Application number: CN 107980335 A, p. 1–2.
  16. Wu Yibing, 2015. Single-saw sesame reaping machine (patent). Application number: CN104272920A, p. 1–2.

Received: 9.07.2019
Reviewed: 15.08.2019
Accepted: 16.12.2019
