FUNCTIONAL PROPERTIES OF CORN EXTRUDATES ENRICHED WITH SESAME SEED
Nooshin Nikmaram1, Mohammad Hassan Kamani2
1 Department of Food Science and Technology, Faculty of Agricultural Engineering, Islamic Azad University of Sabzevar, Sabzevar, Iran
2 Young Researchers and Elite Club, Sabzevar Branch, Islamic Azad University, Sabzevar, Iran
The aim of this manuscript was to study the effects of extrusion variables
(screw speed and barrel temperature) on the functional properties of corn-sesame
extruded products. Extrudates products were obtained with the addition of sesame
seed at the levels of 0–30% to the mixture of corn grits and flour using
a twin-screw extruder. Box–Behnken design-response surface methodology
(BBD-RSM) was applied to optimize the effects of formulation and extrusion parameters.
We found that sesame seed level factor had an effect on water absorption index
(WAI). WAI was reduced up to 15% increase in sesame seed. However, a higher level
of sesame seed resulted in raising WAI. The water solubility index of extrudate
decreased significantly (p<0.05) with sesame seed level and increased
with screw speed. The oil absorption index also reduced as sesame seed increased
but increased with the increment of screw speed. In general, the incorporation
of a sesame seed to corn extrudate resulted in the lower functional properties
The aim of this manuscript was to study the effects of extrusion variables (screw speed and barrel temperature) on the functional properties of corn-sesame extruded products. Extrudates products were obtained with the addition of sesame seed at the levels of 0–30% to the mixture of corn grits and flour using a twin-screw extruder. Box–Behnken design-response surface methodology (BBD-RSM) was applied to optimize the effects of formulation and extrusion parameters. We found that sesame seed level factor had an effect on water absorption index (WAI). WAI was reduced up to 15% increase in sesame seed. However, a higher level of sesame seed resulted in raising WAI. The water solubility index of extrudate decreased significantly (p<0.05) with sesame seed level and increased with screw speed. The oil absorption index also reduced as sesame seed increased but increased with the increment of screw speed. In general, the incorporation of a sesame seed to corn extrudate resulted in the lower functional properties
Key words: Extrusion cooking, oil absorption, water absorption, water solubility.
Human is the center of economic, social, cultural development and nutrition needs of all living creatures. Suitable nutrition has found a high position during the last decades due to changes in disease patterns. An appropriate nutrition pattern is a significant factor in the prevention of some diseases such as diabetes, cardiovascular disease, obesity and lipid disorders and this is effective from birth to death. Research results indicate that the cardiovascular diseases within the middle-aged people are rooted in their childhood nutrition .
Extrudate snack is one of the refreshments that in kids who are in need of nutritious food elements for their growth can cause pseudo-satiation. Despite their low nutritional value, due to their ease of use and maintenance have been strongly attractive for people especially children and adolescents. On the other hand, sesame seed is an invaluable food rich in manganese, copper, calcium, magnesium, iron, phosphorus, vitamin B1, zinc and dietary fiber . So the enrichment of this product with sesame seed to produce a functional food may increase its nutritional value.
Functional food science and technology in today's concept have been proposed from 1980 for enriched products in Japan and have been developed to the present time [12, 15, 25]. Functional foods are products derived from foods that in addition to their nutritional values, promote normal physiological conditions or mental functioning and they are effective in the prevention of disorders that can lead to various diseases [4, 23, 28]. Extruded products enriched with sesame seed is also a functional product because sesame seed is rich in protein, essential fatty acids, phenolic compounds and antioxidants, vitamins and minerals that can improve the nutritional properties of snacks.
Extrusion technology is one the largest food processing technologies that is used since the mid-1930s to produce breakfast cereals, ready-to-eat snacks, protein food processing and pet feeds . The advantages of extrusion process include gelatinization of starch, increased soluble dietary fibres, destruction of anti-nutritional factors, it also retains natural colours and flavours of foods and leads to a reduction of lipid oxidation and contaminating microorganisms .
The aim of this research was to study the effect of extrusion conditions (screw speed and extrusion temperature) and sesame seed level on some functional properties including water absorption, water solubility and oil absorption indices of corn and corn–sesame based extrudates.
MATERIALS AND METHODS
Sesame seed, variety Dezful was purchased from Karaj’s seed and plant improvement Institute (Karaj, Iran) and yellow corn grits and yellow corn flour were purchased from Gold Cluster Company (Mashhad, Iran).
For mixtures preparation, whole sesame seed was mixed with corn grits and corn flour at levels of 0, 15 and 30%. The percentages of added sesame seed were chosen based on several pre-testes that were done before starting main examination and total evaluation on recent research. The blended samples were adjusted to the desired moisture content by spraying calculated amounts of distilled water and mixing thoroughly for 15 min. The samples were packed in polyethylene bags and kept in the refrigerator overnight to equilibrate the moisture. The samples were brought to room temperature before extrusion cooking .
Extrusion was performed in a twin-screw laboratory extruder, (DS56-III, Jinan Saixin Food Machinery, China) with three independent temperature control zones. The barrel diameter and L/D ratio were 64 mm and 12:1, respectively and died diameter was 3.6 cm. Constant feeding rate was kept throughout the experiments. Steady-state conditions were reached after 20 min, after which samples were collected. The cylindrical extrudates were dried at 50°C for 24h until the final moisture of 5% (±1%) using a hot air dryer (101-1EBS, SJIA LAB, China). The extrudates were cooled to room temperature and sealed in polyethylene bags until analyzed.
Water absorption and solubility indices
The water absorption index (WAI) and the water solubility index (WSI) were determined using the procedures described by Lazou and Krokida . A 0.5 g ground extrudate was dispersed in 5 mL distilled water in a weighed 15 mL glass centrifuge tube (Sorvall Model RC-2, Norwalk, Conn, USA) and then agitated on a Vortex mixer for 2 min. The dispersion was centrifuged at 700 g for 20 min. The supernatant was poured into an evaporating dish of known weight. The supernatant was poured into an evaporating dish of known weight for determination of its solid content. After carefully removing the supernatant, sediment was weighed. WAI and WSI were calculated as:
The results presented are the mean values of three replications.
Oil absorption index
Oil absorption index (OAI) was determined according to Lazou and Krokida . Refined corn oil (3 mL) was added to the sample (0.5 g) in a graduated 15 mL glass centrifuge tube. The tube was agitated on a Vortex mixer for 1 min, left for 30 min and centrifuge for 20 min at 700 g; the volume of the free oil was read andOAI calculated as follows:
Statistical analyses were conducted using a Box–Behnken design extrudate in 17 runs of which were for the centre point, and eleven were for a non-centre point. The five independent variables considered were sesame seed content (0, 15 and 30%), screw speed (140, 180 and 220 rpm) and barrel temperature (120, 140 and 160°C). The independent variables are shown in Table 1.
Table 1. Process variables used in the Box–Behnken design for three independent variables
RESULTS AND DISCUSSION
Water absorption index (WAI)
The WAI determines the amount of water absorbed by the granule or starch polymer after swelling in excess water. In other words, WSI can be used as an indicator for the gelatinization [2, 16, 24]. Sesame level was found to be the only factor that had a significant effect (p< 0.05) on WAI. Stojceska et al.  reported a similar result, they incorporated brewer’s spent grain (BSG) by-products into extrudates and found that only WAI was related to the level of BSG. In this study, in the range of 0 to 30%, WAI decreased with increasing sesame up to 15%, it increased after 15%as illustrated in Figure 1. The WAI experimental values for corn–sesame extrudates ranged from 2.92 to 5.3 g/g sample. Adding brewer’s spent grain by-products decreased WAI due to an increase in dietary fiber levels . The addition of cauliflower to the cereal based ready-to-eat expanded snacks had similar results , where WAI showed a high correlation with the level of cauliflower as a result of increasing fiber content. Filli et al.  explained the decreased WAI with an increase in the level of soybean flour due to oil in soybean which interfered with water uptake. Dilution of starch in rice pea blends is another reason described by Singh et al. [21, 22] for a decrease in WAI with the addition of pea grits in the extrusion of rice. Lazou and Krokida  reported that WAI value of corn–lentil extrudates decreased as the legume proportion increased.

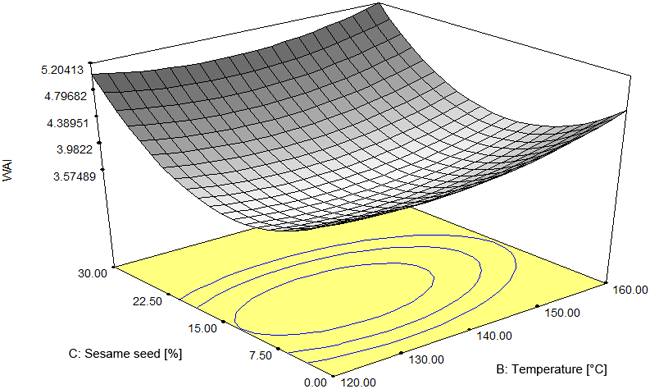

Fig. 1. Response surface plot for WAI as a function of sesame seed level and temperature at 180 rpm screw speed
On the other hand, increase in WAI after 15% was probably due to an increment of protein and fiber content. As proposed by Chang et al. , protein denaturation and swelling of fibers can be responsible for increased WAI of extrudate products. Similar findings were quoted by Pelembe et al. ; they stated that WAI rose with an increase in the percentage of cowpea in sorghum extrudates because of higher water solubility of cowpea proteins compared with sorghum proteins. Deshpande and Poshadri  reported that WAI of the extrudates is increased as chickpea and cowpea flours in the composite flour increased. Sacchetti et al.  observed high values of WAI in products with large chestnut flour (CF) that was probably due to the sucrose content of chestnuts.
Water solubility index (WSI)
The WSI measures a number of soluble molecules, which is related to the degree of starch conversion during extrusion. As described by Sriburi and Hill , WSI determines the quantity of free polysaccharide or polysaccharide released from the granule after addition of excess water, and it can be used as an indicator for the dextrinization.
The results indicated that linear effects of both sesame seed level and screw speed were significant. The effect of sesame seed level and screw speed on WSI of extrudates is shown in Figure 2. The WSI reduced significantly (p < 0.005) with increasing sesame seed level that can be related to the incorporation of proteins in extrudates, as proposed by Lazou and Krokida . They explained that during extrusion cooking, loss in protein solubility occurs due to denaturation process resulting in structural changes that enable hydrophilic groups such as – OH, –NH2, –COOH and –SH to form cross-links with starch so that WSI would decrease because of the increment of protein content. Zazueta-Morales et al.  observed that the WSI decreased when the Ca(OH)2 concentration increased. The lowering of WSI seems to be as a result of the formation of complexes between starch and Ca(OH)2 which caused swelling of the starch granules, along with WSI decrease.

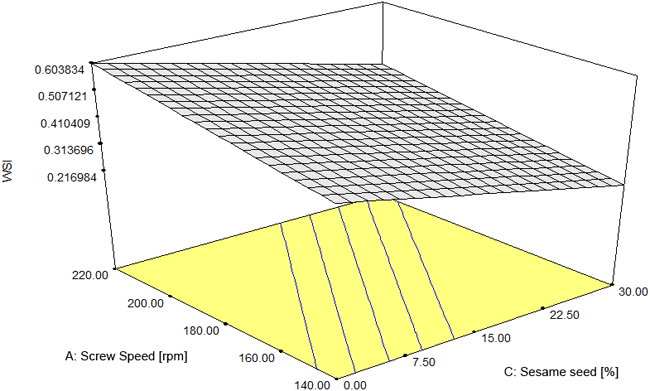

Fig. 2. Response surface plot for WSI as a function of sesame seed level and screw speed at 140°C
A number of studies have shown that WSI increased after food by-products were added to extrudate snacks. Altan et al. [2, 3] reported that WSI increased as the percentage of tomato pomace increased that could be attributed to the modification of fiber presence in pomace. Sacchetti et al.  obtained similar findings as an increment of chestnut flour.
The WSI raised screw speed increased, and this increase was more pronounced especially at high sesame seed levels (p<0.05). The values of WSI ranged from 0.2 to 0.56 g/100 g sample for corn–sesame extrudates. It was stated that increase in screw speed can lead to higher SME, and accordingly more degradation of macromolecules is caused. Therefore small molecules with higher solubility were produced and resulted in an increase in WSI . Gujral et al.  also speculated similar effects for screw speed on WSI among sweet corn and flint corn grits extrudates in the range of 100 to 150 rpm. Jin et al. , Altan et al. , Mezreb et al. , Ainsworth et al.  quoted similar phenomena.
Oil absorption index (OAI)
Statistical analyses showed that the oil absorption index of extrudates was mostly dependent on sesame seed level (p<0.05). Screw speed also has significant effects (p<0.05) on OAI. The impact of these two variables on OAI is shown in Figure 3. Increasing the level of sesame seed resulted in lowering the OAI, but increased with increase in screw speed. Maximum OAI values occurred at highest screw speed value for the 0% sesame seed content. Lower absorption of oil by the addition of sesame seed that is rich in fat may be due to the high-fat content of final extrudate product as described by Deshpande and Poshadri . Our result is in agreement with Lazou's and Krokida's study , who incorporated lentil to corn extrudates and observed lower OAI. They concluded that addition of protein resulted in OAI reduction. Similar effects have been noted by Gujska and Khan  for bean extrudates.

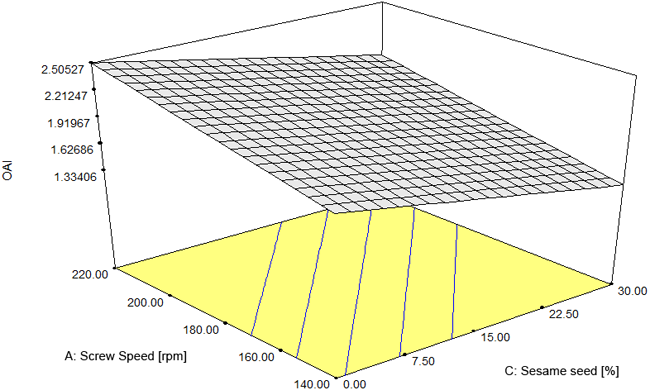

Fig. 3. Response surface plot for OAI as a function of sesame seed level and screw speed at 140°C
As proposed by Gujral et al.  increment of screw speed led to the severity of thermal treatment. The higher the extrusion temperature, the more degree of cooking of extrudates , resulted in the formation of smaller molecules because of starch dextrinization. The presence of these molecules can be responsible for the increase in OAI .
The idea to incorporate sesame seed to corn extrudate was motivated by the need to improve nutritional value and functional properties of corn extrudate products. The results showed that functional properties were found to be most dependent on sesame seed level and screw speed. Screw speed had no significant effect on WAI while increased WSI and OAI. The addition of sesame seed resulted in a reduction in WSI and OAI and also WAI up to 15%, however, for more percentage of sesame WAI increased. Barrel temperature had no significant effect on these indices. The effect of increasing sesame seed content was greater than the effect of screw speed on functional properties. Comparatively, extrudates from corn alone had higher values of functional properties than those with sesame content.
The funding and support were provided by Iranian Academic Center for Education, Culture and Research (ACECR), Mashhad, Iran. Authors would like to special thanks to Mr. Gaurav Kumar Pal (a recognized reviewer of Elsevier and Wiley publication group) Meat and Marine Sciences Department, CSIR-Central Food Technological Research Institute, Mysuru-570020, Karnataka, India, for manuscript editing.
- Ainsworth P., Ibanog˘lu S., Plunkett A., Ibanog˘lu E., Stojceska V., 2007. Effect of brewers spent grain addition and screw speed on the selected physical and nutritional properties of an extruded snack. J. Food Eng., 81, 702–709.
- Altan A., Mccarthy K.L., Maskan M., 2009. Effect of screw configuration and raw material on some properties of barley extrudates. J. Food Eng., 92, 377–382.
- Altan A., Mccarthy K.L., Maskan M., 2008. Evaluation of snack foods from barley-tomato pomace blends by extrusion processing. J. Food Eng., 89, 231–242.
- Bech-Larsen T., Grunert K.G., 2003 The perceived healthiness of functional foods – A conjoint study of Danish, Finnish and American consumers’ perception of functional foods. Appetite, 40, 9–14.
- Chang Y., Martinez-Bustos F., Lara H., 1998. Effect of some extrusion variables on rheological properties and physicochemical changes of cornmeal extruded by twin screw extruder. Braz. J. Chem. Eng., 15, 370–381.
- Deshpande H.W., Poshadri A., 2011. Physical and sensory characteristics of extruded snacks prepared from Foxtail millet based composite flours. Int. Food Res J., 18, 751–756.
- Drago S., Velasco-González O., Torres R., González R., Valencia M., 2007. Effect of the extrusion on functional properties and mineral dialyzability from Phaseolus vulgaris bean flour. Plant Food Hum. Nutr., 62, 43–48.
- Filli K.B., Nkama I., Abubakar U. M., Jideani V.A., 2010. Influence of of extrusion variables on some functional properties of extruded millet-soybean for the manufacture of ‘fura’: A Nigerian traditional food. Afr. J. Food Sci., 4, 342–352.
- Gujral H.S., Singh N., Singh B., 2001. Extrusion behaviour of grits from flint and sweet corn. Food Chem., 74, 303–308.
- Gujska E., Khan K., 1991. Functional properties of extrudates from high starch fractions of navy and pinto beans and corn meal blended with legume high protein fractions. J. Food Sci., 56, 431–435.
- Guy R., 2001. Extrusion cooking, technologies and application. Woodhead Publication. Florida.
- Hardy G., 2000. Nutraceuticals and functional foods: Introduction and meaning. Nutrition., 16, 688–697.
- Jin Z., Hsieh F., Huff H., 1995. Effects of soya fiber, salt, sugar and screw speed on physical properties and microstructure of corn meal extrudate. J. Cereal Sci., 22, 185–194.
- Kanu P.J., Zhu K., Kanu J.B., Zhou H., Qian H., Zhu K., 2007. Biologically active components and nutraceuticals in sesame and related products: a review and prospect. Trends Food Sci. Tech., 18, 599–608.
- Kwak N.S., Jukes D.J., 2001. Functional foods. Part 1. The development of a regulatory concept. Food Control., 12, 99–107.
- Lazou A., Krokida M., 2010. Functional properties of corn and corn–lentil extrudates. Food Res. Int., 43, 609–616.
- Lo´pez-Miranda J., Pe´rez-Jime´nez F., Ros E., Decaterina R., Badimo´n L., Covas M.I., 2010. Olive oil and health: Summary of the II international conference on olive oil and health consensus report, Jae´n and Co´rdoba (Spain) 2008. Nutr. Metab. Cardiovasc Dis., 20, 284–294.
- Mezreb K., Goullieux A., Ralainirina R., Queneudec M., 2003. Application of image analysis to measure screw speed influence on physical properties of corn and wheat extrudates. Journal of Food Eng., 57, 145–152.
- Pelembe L.A.M., Erasmus C., Taylor J.R.N., 2002. Development of a protein-rich composite sorghum-cowpea instant porridge by extrusion cooking process. LWT-Food Sci. Technol., 35, 120–127.
- Sacchetti G., Pinnavaia G.G., Guidolin E., Dalla Rosa M., 2004. Effects of extrusion temperature and feed composition on the functional, physical and sensory properties of chestnut and rice flour-based snack-like products. Food Res. Int., 37, 527–534.
- Singh B., Sekhon K.S., Singh N., 2007. Effects of moisture, temperature and level of pea grits on extrusion behaviour and product characteristics of rice. Food Chem., 100, 198–202.
- Singh S., Gamlath S., Wakeling L., 2007. Nutritional aspects of food extrusion: a review. International J. Food Sci. Tech., 42, 916–929.
- Siro I., Ka´polna E., Ka´polna B., Lugasi, A., 2008. Functional food. Product development, marketing and consumer acceptance – A review. Appetite., 51, 456–467.
- Sriburi P., Hill S.E., 2000. Extrusion of cassava starch with either variations in ascorbic acid concentration or pH. Int. J. Food Sci. Tech., 35, 141–154.
- Stanton C., Ross R.P., Fitzgerald G.F., Van Sinderen, D., 2005. Fermented functional foods based on probiotics and their biogenic metabolites. Curr. Opin. Chem. Biol., 16, 198–203.
- Stojceska V., Ainsworth P., Plunkett A., Ibanog˘lu E.I., Banog˘lu S., 2008. Cauliflower by-products as a new source of dietary fibre, antioxidants and proteins in cereal based ready-to-eat expanded snacks. J. Food Eng., 87, 554–563.
- Stojceska V., Ainsworth P., Plunkett A., Ibanog˘lu S., 2008. The recycling of brewer’s processing by-product into ready-to-eat snacks using extrusion technology. J. Cereal. Sci., 47, 469–479.
- Vatankhah M., Garavand F., Elhamirad A., Yaghbani M., 2014. Influence of sugar replacement by stevioside on physicochemical and sensory properties of biscuit. Qual Assur Saf Crop., 1-8. http://dx.doi.org/10.3920/QAS2014.0396
- Zazueta-Morales J., Martinez-Bustos F., Jacobo-Valenzuela N., Ordorica-Falomir C., Paredes-Lopez O., 2002. Effects of Calcium Hydroxide and Screw Speed on Physicochemical Characteristics of Extruded Blue Maize. J. Food Sci., 67, 3350–3358.
