Electronic Journal of Polish Agricultural Universities (EJPAU) founded by all Polish Agriculture Universities presents original papers and review articles relevant to all aspects of agricultural sciences. It is target for persons working both in science and industry,regulatory agencies or teaching in agricultural sector. Covered by IFIS Publishing (Food Science and Technology Abstracts), ELSEVIER Science - Food Science and Technology Program, CAS USA (Chemical Abstracts), CABI Publishing UK and ALPSP (Association of Learned and Professional Society Publisher - full membership). Presented in the Master List of Thomson ISI.
Volume 17
Issue 2
Available Online: http://www.ejpau.media.pl/volume17/issue2/art-06.html


Michał Piegza, Karolina Szlączka, Wojciech Łaba, Danuta Witkowska
Department of Biotechnology and Food Microbiology, Wrocław University of Environmental and Life Sciences, Poland



The aim of this study was to evaluate the effect of cell wall biopolymers present in biomass of different types of filamentous fungi, yeasts and in biomass of insects on the expression of lytic enzymes in selected representatives of filamentous fungi: Trichoderma harzianum T33 and Trichoderma citrinoviride C1. Dried biomass of filamentous fungi, yeast and insect cells constituted a carbon source and also acted as an inductor of evaluated enzymes biosynthesis. The biosynthesis dynamics of chitinases, proteases and laminarinases depending on the type of inductor introduced into the culture were characterized and compared to the control cultures, not complemented with the cell wall biopolymers. The differences in the kinds and level of enzymatic activity, due to the addition of carbon source were demonstrated. The addition of insect biomass (1%) was the most preferred for expression of laminarinases and proteases in both Trichoderma strains (with a little predominance in the C1 strain). Geotrichum and Botrytis biomass was most effective in the induction of expressed chitinases (with a little predominance in T33 strain).

Key words: Trichoderma, chitinases, beta-1,3-glucanases, Musca.


The genus Trichoderma is one of the asexually reproducing filamentous fungi found in large quantities in almost all types of soils in moderate and tropical climate [12]. They have the ability to colonize the roots of plants (cultivated and wild) and the wooden parts of plants [12, 21]. Fungi of the genus Trichoderma  have been known for 70 years to protect plants against phytopatogenic  fungi such as: Rhizoctonia, Sclerotinia, Sclerotium, Alternaria or Fusarium, which is connected with the production of antibiotics against these microorganisms as well as the secretion of lytic enzymes (CWDE – cell wall degrading enzymes) and other factors. Therefore they are included in the category of BCAs (Biological Control Agents) [11]. Their rapid metabolism, the ability to produce an anti-microbial substances are key factors which contribute to the antagonism of these fungi against many pathogens [2]. Fungi of Trichoderma genus exhibit high capability to the production of hydrolases, such as chitinases, beta-glucanases and proteases which enable them to degradation the proteins and polysaccharides constituting the cell walls of filamentous fungi, especially pathogens. Lytic enzymes of Trichoderma  also play an important role in their development, controlling physiological processes such as spore germination, growth ferns, hyphae growth, cell division, autolysis, nutrition [1, 8, 10]. Correlated effects of all factors, particularly on the enzymatic potential, significantly increase the antifungal activity of Trichoderma [7].

Chitinolytic enzymes produced by Trichoderma are members of family 18 including chitinases of bacterial, viral, animal and vegetable origin [13]. The attention needs to be drawn to endo-chitinase (E.C. – cutting random bonds within the chain of chitin and produce low molecular weight: chitosan tetroses, chitosan trioses, diacetyl chitobioses to chitobiosidases (E.C. – removing fragments of diacetylochitobioses from the non-reducing end of the chain and to beta-(1,4)-N-acetylo-glucosaminidases (E.C. – consuming the products of endochitinases and chitobiosidases activity realizing monomers (N-acetylo-D-glucosamine) [5].  Among beta-1,3-glucanases produced by Trichoderma the two groups are distinguished: endo-beta-1,3-glucanases (EC and egzo-beta-1,3-glucanases (glucanohydrolases EC and EC [6, 20, 26].

In addition to the chitinases and beta-1,3-glucanases in the process of fungal cell wall degradation proteases are also involved, spreading matrix proteins and liberate –  immersed beta-glucan and chitin [24].

Trichoderma lytic enzymes are induced by the appropriate substrates, which are a carbon and energy source.

Numerous studies have showed that not only laminarin or chitin, which are a good carbon source for the production of beta-1,3-glucanases and chitinases, but also purified cell walls of microorganisms or biomass containing these components induced enzymes biosynthesis [3, 4, 182]. Dry matter of cell wall of filamentous fungi and yeast contains 23–28% of beta-glucan and 8–11% of chitin [14]. In the insect biomass the chitin level could reach even 45% [14].  Therefore they could serve as an excellent source of carbon and energy as well as an inductor  of biosynthesis  of lytic enzymes in the cultures of Trichoderma fungi.

The presented research was based on the  sterilized biomass of different filamentous fungi, particularly plant pathogens (Alternaria, Aspergillus, Mucor, Rhizopus, Absidia and Botrytis) and yeast (Geotrichum), as well as biomass from armor of insects (musca) in cultures of Trichoderma fungi. The influence of different biomasses on the process of beta-1,3-glucanases,  chitinases and proteases biosynthesis was investigated. Such a procedure may be useful for the production of  enzyme-based bio-against plant pathogens.


Biological material. The study involved two strains of Trichoderma harzianum T33 and T. citrinoviride C1 from the collection of the Department of Biotechnology and Food Microbiology (DBFM), Wrocław University of Environmental and Life Sciences. Those strains were cultivated  in the presence of different inductors and the level of extracellular chitinases, beta-1,3-glucanases, and proteases was evaluated.

The inductors biomass. The dried biomass of the following strains  Alternaria G0 (Alternaria), Aspergillus niger XP (A. niger XP), Aspergillus niger KB (A. niger KB), Mucor hiemalis (M. hiem.), Rhizopus nigricans 500 (Rn500),  Absidia glauca 148 (Abs. glauca), Botrytis cinerea (B. cinerea), Geotrichum candidum OL (G. cand.) were used as carbon and energy sources and as inductor of lytic enzymes biosynthesis. All the strains were obtained from the DBFM collection. The strains were cultured in PBD (Potato Dextrose Broth) medium by shaking method (160 rpm.) at 25ºC for a period of 7 days, centrifuged, dried at 60ºC and milled.

Trichoderma culture conditions. T. harzianum T33 and T. citrinoviride C1 cultures were carried out in Erlenmayer’s flasks containing 50 ml of liquid PDB (Potato Dextrose Broth) medium (Difco) with the addition of carbon source (Tab. 1), by shaking method (160 rpm) at 25–28ºC for a period of 6 days. From each culture 2.0 ml of post-culture medium was obtained on the 2nd, 4th  and 6th  day of culture in order to analyze enzyme activities and carry out pH adjustment to 5.5.

Complemented cultures of both biomass of filamentous fungi (dry, milled) and musca biomass (dry, milled) as a supplement to the base PDB medium, where biomass biopolymers were also a source of carbon and inducer of lytic enzymes (glucanases, chitinases) were performed (Tab. 1). In order to evaluate the effects of inducing agents the culture with the addition of pure chitin was conducted as well as the control culture without additional inducer.

Table 1. The culture variants
Type of inducer
Inducers biomass
Induction culture
Cell wall biopolymers
Alternaria G0 (0.27%)
Aspergillus niger XP (0.27%)
A. niger XP
Aspergillus niger KB (0.27%)
Mucor hiemalis (0.27%)
M. hiem.
Rhizopus nigricans 500 (0.27%)
Geotrichum candidum OL (0.27%)
G. cand.
Absidia glauca 148 (0.27%)
Ab. gl
Botrytis cinerea (0.27%)
B. cin
Musca (0.27%)
m 0.27%
Musca (1.0%)
m 1.0%
Chitin (0.27%)
ch 0.27%
Chitin (1.0%)
ch 1.0%
Control culture
Without inducer

Analytical methods. Activity of beta-1,3-glucanases (or chitinases) were expressed in nKat / ml of glucose released (or glucosamine) from laminarin substrate (or colloidal chitin), performing the reaction at 50C at pH 4.8 for 30 min (beta-1,3-glucanases) or 1h (chitinases). Reducing sugars released in the reactions were determined by the DNS method [27].

The proteolytic activity was measurement by a modified Anson method, using casein as substrate at pH=6,0 and 30ºC. One unit (JP) of proteolytic activity was expressed as 0.1 increase in absorbance at 280 nm per minute [16].


In the presented research, a number of culture efforts was conducted to demonstrate the effects of biomass of fungi and insects rich in chitin and beta-glucan on chitinases, beta-1,3-glucanases  and proteases synthesized by two species of filamentous fungi T. harzianum T33 and T. citrinoviride C1. The  chitin and beta-glucan contained in the biomass of fungi, and insects, were used as the carbon source and inductor of enzyme biosynthesis. The results were compared with control cultures without inductors addition.

The strain T. harzianum T33 was generally characterized by much higher efficiency in the biosynthesis of extracellular chitinases (0.5–2.4 nKat/ml) as compared to strain C1 (0.1–0.5 nKat/ml) (Figs 1 and 2) on all tested carbon sources. However, in the medium with the addition of an insect biomass or powdered chitin, laminarinases were produced more efficiently by the T. citrinoviride C1 strain rather than T. harzianum T33 strain (Figs 3 and 4).

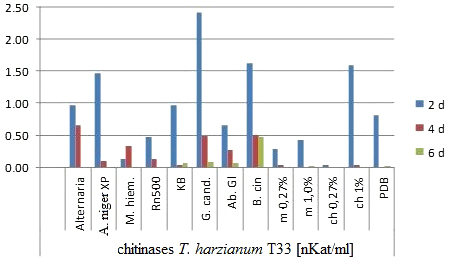

Fig. 1. The dynamics of the chitinases biosynthesis by Trichoderma harzianum T33

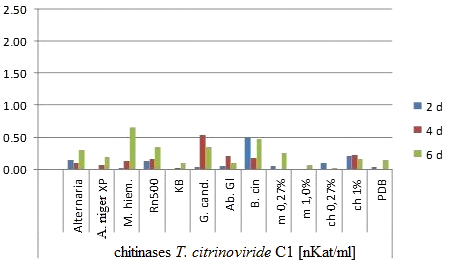

Fig. 2. The dynamics of the chitinases biosynthesis by Trichoderma citrinoviride C1

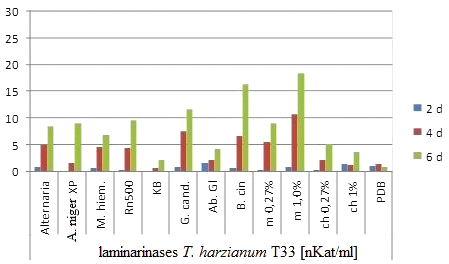

Fig. 3. The dynamics of the β-1,3-glucanases biosynthesis by Trichoderma harzianum T33

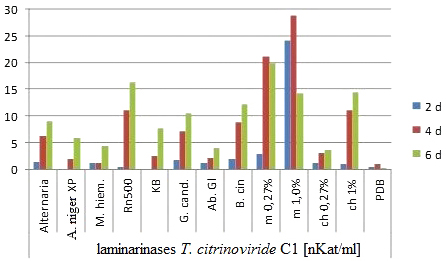

Fig. 4. The dynamics of the β-1,3-glucanases biosynthesis by Trichoderma citrinoviride C1

The most effective inducer of chitinases in cultures of strain T33 turned out to be  the biomass biopolymers from Geotrichum candidum, which was revealed by the presence of the highest enzymatic activity (2.41 nKat/mL). In the presence of powdered chitin activity was 1.5 nKat/ml only, but in control (PDB) – 0.75 nKat/ml. This effect might have been caused not only by a more condensed structure of the substrates but also other components present within fungi and yeasts biomass.

Biosynthesis of laminarinases by both tested strains was characterized to be of up 10 times higher levels of activity (up to 28 U/ml) than chitinases (Figs 3 and 4). Both strains released the extracellular enzymes throughout the whole culture, in most cases reaching the maximum activity on the 6th or the 4th day, as in the case of T. citrinoviride C1 culture in the presence of insect biomass.

Insect biomass biopolymers were the most effective inducers of the biosynthesis of laminarinases for both strains: T. citrinoviride C1 (28 nKat/mL) and for T. harzianum T33 strain (18 nKat/mL). The greater level of laminarinases activity in the presence of various inducers for the control culture (PDB) may indicate an inducible enzyme biosynthesis in both strains. Stimulation of these strains for the laminarinases synthesis proceeded much more efficiently under the influence of insect biomass than under the influence of the filamentous fungi or yeast biomass, suggesting a positive impact of other components of the insect biomass on the laminarinases biosynthesis.

In the performed cultures the activity of extracellular proteases, as enzymes often associated with chitinases and beta-glucanases was evaluated. High diversity of their activity, depending not only on the strain but also on the overall composition of the medium was revealed (Figs 5 and 6). Generally of T. citrinoviride C1 strain synthesized proteases at a higher level (range 2.0 to 11.4 JP) than T. harzianum T33 (from 2.2 to 9.8 JP), but in the case of the control cultures of both strains determined activity of these enzymes was at the same level, which may be indicative of their constitutive synthesis mechanism.

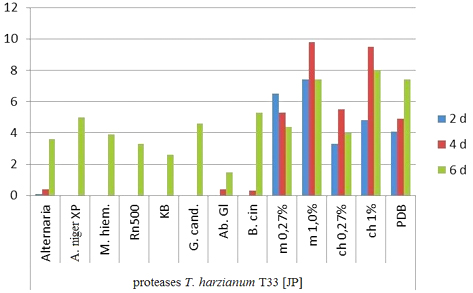

Fig. 5. The dynamics of the proteases biosynthesis by Trichoderma harzianum T33

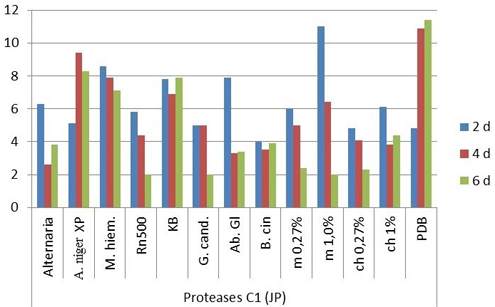

Fig. 6. The dynamics of the proteases biosynthesis by Trichoderma citrinoviride C1

The scientific interest in Trichoderma genus is mainly the result of their ability to produce numerous lytic enzymes (such as chitinases, beta-glucanases or proteases), and the extraordinary adaptability to adverse environmental conditions combined with the utilization of a wide variety of compounds used as the source of carbon [2, 21]. The focus of this study was to determine the effect of inactivated microbial or insect biomass containing chitin and beta-glucans in the induction of chitinases and beta-glucanases expression in the cultures of the two strains of the genus Trichoderma: T. harzianum T33 and T. citrinoviride C1.

Selection of these two strains of Trichoderma was associated with the results of earlier studies [23]. The interactions between strains of Trichoderma (e.g. T. harzianum T33, T. citrinoviride C1) and pathogenic strains of filamentous fungi (such as Botrytis cinerea, Fusarium oxysporum, Fusarium poae) were investigated by performing two-strains biotic tests. The obtained results allowed to establish that the strain with the strongest antagonistic properties was T. harzianum T33, a slightly lower percentage in inhibiting the growth of phytopathogens showed T. citrinoviride C1. The Trichoderma sp. moulds are known for its antagonistic properties with respect to the above-mentioned pathogens [12].

This effect may be due to their ability to produce over 100 metabolites with antibiotic activity, but also by biosynthesis of enzymes capable of degrading chitin and beta-glucans, i.e. compounds which are a part of the fungal cell wall. In consideration of the above characteristics of filamentous fungi of this genus intensive studies are carried out on their application in agro-ecological (biocontrol) [http://trichoderma.iwarz.pl], [6, 7] and industry [21].

The research focused on assessing the effective production of the lytic enzymes in shake flasks. The differences in ability of tested strains for the production of extracellular hydrolases were demonstrated and depended on the type of added carbon source, acting also as inducers, as well as on the strain-producer of these enzymes.

In the literature, it is noted that there is a significant influence of the complementary of culture compounds inducing the synthesis of a specific group of enzymes,  such as a positive effect of chitin to synthetize chitinases and laminarin to synthesize beta-1,3-glucanases [28]. There is also pointed out that the addition of pathogen biomass in Trichoderma cultures, resulted in the achievement of comparable activity on a culture with addition chitin or laminarin. According to Noronha et al. [20], the source of biomass is also important, as beta-glucanases activity obtained in the presence of Pythium sp. were even two times higher than in the presence of S. rolfsii biomass and laminarin. In the studies of Witkowska et al. [28] a positive effect of Fusarium biomass on the production of chitinases and beta-glucanases in cultures of T. citrinoviride strain C1 was shown. Chitinases and glucanases reached levels of 1.17 nKat / ml and 28 nKat / ml respectively, whereas in the present study T. citrinoviride C1 strain chitinases activity level  of 0.75 nKat / ml were reached in the culture of the M. hiemalis biomass. According to the research of Vazquez-Garciduenas et al. [26] the cell walls biomass of various pathogens added to the medium as the carbon source and enzyme inducer also may have varying effects on the level of expression of enzymes (particularly laminarinases) even due to the small differences in the construction of these walls.

The research performed by Nampoothiri et al. [19] showed that the technical chitin flakes only slightly affected the increase in the biosynthesis of chitinases in comparison to the control (no additives). They obtained better results when added to cultures the same quantity of chitin, but in a colloidal form. It might be associated with the availability of chitin, which was in the form of colloid is easily absorbed and degraded. In our study, the addition of 1.0% of native fragmented chitin in Trichoderma cultures, had a positive effect on the level of expression not only of chitinases, but also laminarinases and proteases in examined strains. Studies on the structure of chitin shells of insects present in the example of chitin isolated from bumblebee (Bombus terrestris) were carried out by Majtán et al. [17]. They compared the structure and chemical composition of the chitin obtained from the armor of bumblebee and chitin armor isolated from marine shrimp, reaching the conclusion that the insect chitin with a better organized structure, a lower degree of acetylation and containing less minerals in comparison to the chitin of shellfish armor is more accessible enzyme-substrate. In our study, in cultures of Trichoderma sp., biopolymers shell insects of the genus Musca proved to be the best inducer of laminarinases and proteases expression.

The relationships resulting from the difference between the strains as well as medium supplementation with various source of carbon were demonstrated by Shakeri and Foster [24]. They performed a number of cultures of two strains of Trichoderma harzianum in minimal medium complemented with interchangeably carbon sources such as glucose, chitin, biomass B. cinerea or casein towards the biosynthesis of chitinases and proteases. They discovered that the biomass of pathogenic fungus B. cinerea was an excellent inducer of the biosynthesis of both chitinases and proteases of Trichoderma strains. In our study the ability of test strains of filamentous fungi to synthesize the extracellular proteases in the presence of biomass of fungi, yeast, insect biomass as well and in shacked cultures was also demonstrated.

Fellow researchers emphasize  the fact that the lytic enzymes produced by the fungi of the Trichoderma genus are more active and exhibit more effectiveness against pathogens than enzymes produced by other microorganisms and plants [15]. For this reason, they are widely used in industry, agriculture, and environmental protection (bio-control, food and fodder production, Single Cell Protein degradation of chitin-rich waste [22]. Such a wide range of applications bears the need to develop effective and economic methods of obtaining the above-mentioned enzymes. One such method may be a culture of microorganisms (inter alia, filamentous fungi of the genus Trichoderma) able to produce them in the presence of biomass of plant pathogens, as a carbon source. This method could be obtained of biopreparation on the basis of Trichoderma lytic enzymes useful as antagonists against plant pathogens.


Strain T. harzianum T33  was more effective in the biosynthesis of chitinases, than  strain T. citrinoviride C1 in  laminarinases and protease biosynthesis.

The complementation of the culture by musca biomass was more effective in the expression of the biosynthesis laminarinases as well as protease in case of both tested strains with a predominance of C1 on the T33.

The addition of fungi biomass (Botritis) or yeast  (Geotrichum) to the culture particularly favored  chitinases biosynthesis of both strains, with predominance of the T33 strain on the C1.


  1. Adams D.J., 2004. Fungal cell wall chitinases and glucanases. Microbiology, 150, 2029–2035.
  2. Benitez T., Rincon A.M., Codon A.C., 2004. Biocontrol mechanisms of Trichoderma strains. Intern. Microbiol., 7, 249–260.
  3. Bhushan B., 1998. Isolation, purification, characterization and scale-up production of a thermostable chitinase from an alkalophilic microorganism. Doctoral thesis, Chandigarh.
  4. Bradford M., 1976. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein–dye binding. Anal. Biochem., 72, 248–254.
  5. Dahiya N., Tewari R., Hoondal R.S., 2006. Biotechnological aspects of chitinolytic enzymes: a review. App. Microb. Biotech., 71, 773–782.
  6. De La Cruz J., Pintor-Toro J.A., Benitez T., 1995. A novel endo-beta-1,3-glucanase, BGN13.1, involved in the mycoparasitism of Trichoderma harzianum. J. Bacteriol., 177, 23, 6937–6945.
  7. Duo-Chuan L., 2006. Review of fungal chitinases. Mycopathologia, 161, 345–360.
  8. Gooday G.W., 1986. Chitinase activities in animals, fungi and bacteria. Chitin in nature and technology, Muzzarelli J.C. and Gooday G.W., New York, 241–261
  9. Gooday G.W., 1991.  Chitinases: in enzymes in biomass conversion. ACS Symposium Series, 460, 478–485.
  10. Haran S., Schickler H., Chet I., 1996. Molecular mechanisms of lytic enzymes involved in the biocontrol activity of Trichoderma harzianum. Microbiology, 142, 2321–2331.
  11. Harman G.E., 2000. Myths and dogmas of biocontrol. Changes in perceptions derived from research on Trichoderma harzianum T22. Plant Dis., 84, 377–393.
  12. Harman G.E., Howell Ch.R., Viterbo A., Chet I., Lorito M., 2004. Trichoderma species – opportunistic, avirulent plant symbionts. Nat. Relieves. Microbial., 2, 43–56.
  13. Hart P.J., Pfluger H.D., Monzingo A.F., Hoihi T., Robertus J.D.,  1995. The refined crystal structure of an endochitinase from Hordeum vulgare L. seeds at 1.8 Å resolution. J. Molec. Biol., 248, 402–413.
  14. Kramer K.J., Hopkins T.L., Schaefer J., 1995. Applications od solid NMR to the analysis of insect sclerotized structure. Insect. Biochem. Molec. Biol., 25, 10, 10667–1080
  15. Lorito M., Harman G.E., Hayes C.K., Broadway R.M., Tronsmo A., Woo S.L., Di Pietro A., 1993. Chitinolytic enzymes produced by Trichoderma harzianum: antifungal activityof purified endochitinase and chitobiosidase. Phytopathology, 83, 302–307.
  16. Łaba W., Rodziewicz A., 2010. Keratynolytic potential of feather-degrading Bacillus polymyxa and Bacillus cereus. Pol. J. Envir. Stud.,  19, 2.
  17. Májtan J., Biliková K., Markovič O., Gróf J., Kogan G., Šimúth J., 2007. Isolation and characterisation of chitin from bumblebee (Bombus terrestris). Int. J. Biolog. Macromol., 40, 237–241.
  18. Markovich N.A., Kononova G.L., 2003. Lytic enzymes of Trichoderma and their role in plant defense from fungal diseases: a review. Appl. Biochem. Microb., 39, 4, 341–351.
  19. Nampoothiri K.M., Baiju T.V., Sandhya C., Sabu A., Szakacs G., Pandey A., 2004. Process optimization for antifungal chitinase production by Trichoderma harzianum. Proc. Biochem., 39, 1583–1590.
  20. Noronha E.F., Ulhoa C.J., 1996. Purification and characterization of an endo- beta-1,3-glucanase from Trichoderma harzianum. Can. J. Microbiol., 42, 10, 1039–1044.
  21. Papavizas G.C., 1985. Trichoderma and Gliocliadum. Biology ecology and potential for biocontrol. Ann. Rev. Phytopathol., 23, 23–54.
  22. Patil R.S., Gormade V., Deshpande M.V., 2000. Chitynolytic enzymes: an exploration. Enz. Microb. Technol., 26, 473–483.
  23. Piegza M., Stolaś J., Kancelista A., Witkowska D., 2009. Wpływ grzybów rodzaju Trichoderma na wzrost patogennych grzybów strzępkowych w testach biotycznych na nietypowych źródłach węgla. [Influence of Trichoderma strains on the growth of pathogenic moulds in biotic test on untypical carbon source]. Acta Sci. Pol. Biotechnologia, 8, 1, 3–14 [in Polish].
  24. Shakeri J, Foster H.A., 2007. Proteolytic activity and antibiotic production by Trichoderma harzianum in relation to pathogenic to insects. Enz. Microb. Technol., 40, 4, 961–968
  25. Shigemasa Y., Saito K., Sashiwa H., Saimoto H., 1994. Enzymatic degradation of chitins and partially deacetylated chitins. Int. J. Biol. Macromol., 16, 43–49.
  26. Vázquez-Gercidueñaz S., Leal-Morales C.A., Herrera-Estrella A., 1998. Analysis of the beta-1,3-glucanolytic system of the Biocontrol Agent Trichoderma harzianum. Environ. Microbiol., 64, 4, 1442–1446.
  27. Witkowska D.,  Maj A., 2002. Production of lytic enzymes by Trichoderma ssp. and their effect on the growth of phytopathogenic fungi. Folia Microbiol.,47, 279–282.
  28. Witkowska D., Stolaś J., Kancelista A., Piegza M., 2009. Uzdolnienia lityczne grzybów z rodzaju Trichoderma w obecności biomasy fitopatogenów. [Lytic capability of Trichoderma moulds in the presence of phytopathogenic biomass]. Acta Sci. Pol. Biotechnologia, 8, 2, 17–25 [in Polish].

Accepted for print: 5.05.2014

Michał Piegza
Department of Biotechnology and Food Microbiology,
Wrocław University of Environmental and Life Sciences, Poland
Chełmońskiego 37/41
phone +48 71 320 7737
fax +48 71 320 7794
51-630 Wrocław
email: michal.piegza@upwr.edu.pl

Karolina Szlączka
Department of Biotechnology and Food Microbiology,
Wrocław University of Environmental and Life Sciences, Poland

Wojciech Łaba
Department of Biotechnology and Food Microbiology,
Wrocław University of Environmental and Life Sciences, Poland
Chełmońskiego 37/41
51-630 Wrocław

Danuta Witkowska
Department of Biotechnology and Food Microbiology,
Wrocław University of Environmental and Life Sciences, Poland
Chełmońskiego 37/41
51-630 Wrocław
email: wit@ozi.ar.wroc.pl
