Kot I. , Kmieś K. 2013. GALLS INDUCED BY INSECTS ON OAKS AND ELMS IN THE LUBLIN REGION, POLAND, EJPAU 16(3), #04.
Available Online: http://www.ejpau.media.pl/volume16/issue3/art-04.html

GALLS INDUCED BY INSECTS ON OAKS AND ELMS IN THE LUBLIN REGION, POLAND

Izabela Kot, Katarzyna Kmieś
Department of Entomology, University of Life Sciences in Lublin, Poland



ABSTRACT

The aim of the present study was to evaluate, qualitatively and quantitatively, the galls forming by wasps (Hymenoptera, Cynipidae) on oaks and aphids (Hemiptera, Aphididae, Eriosomatinae) on elms in the Lublin region. Besides, a state of knowledge on galls formation as an effect of insect feeding and their effect on host plants are presented. The studies were carried out during three vegetation seasons in 2009–2011 in the habitats of different anthropopressure. As a result of the study the occurrence of galls induced by 11 cynipid species on oaks and 2 aphid species on elms was examined. On oaks high intensity of occurrence was in the case of galls caused by both generations of Neuroterus quercusbaccarum (L.) and by asexual generation of N. numismalis (Fourc.) as well as Cynips quercusfolii (L.). Relatively medium intensity of occurrence was observed for galls of the sexual generation of A.inflator (Hartig) on Q. robur ‘Fastigiata’. So far this gall-forming wasp has not been observed in the Lublin region. On elms high abundance of Tetraneuraulmi (L.) galls was noted.

Key words: galls, Cynipidae, Aphididae, gall formation, elm, oak.

INTRODUCTION

Elm (Ulmus spp.) and oak (Quercus spp.) trees constitute an important element of the landscape. In natural stands of Poland three elm species and five oak species occur. On the other hand, the assortment of tree nurseries comprise a lot of cultivars of the aforementioned plants which are used in urban planting and in private gardens. In the course of the last 200 years changes in the healthiness of these plants have taken place. It was caused by a number of biotic, abiotic and antropogenic factors [24]. In the 18th and 19th centuries elms belonged to the most popular ornamental alley trees in Europe. However, the outbreak of World War I and then the fast spreading Dutch elm disease (DED) caused that within a short time more than half of the European elm population disappeared [18]. However, cultivation of the resistant to DED varieties and the so-called Habitats Directive (Council Directive 97/62/WE) contributed to a systematic increase in the elm population. The first observations on the decreased health condition of oak stands were noticed in the 18th century. Since the 1980’s this process has been increasingly deeper, comprising all European countries. Oaks are very important forest and field trees representing high natural and economic values [24]. They constitute pure stands (oak forests), they are an element in riparian and dry-ground forests as well as being a part of landscape plantings [2, 12]. Elm trees, on the other hand, do not make pure stands, growing singly or in small groups in riparian forests, on the edges of mixed and leafy forests, on the banks of streams and rivers and in landscape plantings [12].

The feeding of phytophagous species is one of the biotic factors affecting the condition of plants. In this context, gall forming insects that numerously colonize oak and elm trees, are of particular interest. Cecidogenesis, considered to be the most complex system in the world of nature, is a unique group of interactions between the insect and the host plant. The insect changes the plant’s normal development, causing the formation of a new organ by this plant where the growing offspring find shelter and food [22]. The formation of galls is stimulated by arthropods from various orders. Nevertheless, the plant’s response to the attack by a phytophagous species is similar, namely the formation of a gall. Their morphological and anatomical structure is characteristic of a given species of the gall-maker even on the same host plant. However, the factors stimulating the plant’s response to the attack by a phytophagous species are not known [5].

The purpose of the present paper was to evaluate, qualitatively and quantitatively, the galls induced by wasps (Hymenoptera, Cynipidae) on oaks and aphids (Hemiptera, Aphididae, Eriosomatinae) on elms in the Lublin region. Such an analysis would make it possible to verify and update the data in this field. Studies of this type were conducted in a fragmentary manner several dozen years ago. Besides, the paper presents the knowledge on the gall formation as an effect of insect feeding and their influence on host plants.

MATERIALS AND METHODS

The studies were carried out during three vegetation seasons in 2009–2011 in habitats of different anthropopressure. Observations comprised elm (Ulmus spp.) and oak (Quercus spp.) trees growing in natural stands and in the urbanized environment of Lublin and its vicinity. Forest stands were situated in the area of the forests division of Świdnik, Puławy and Lubartów. In addition, observations were conducted in the field plantings in the vicinity of Lublin and in an urban trees in Lublin and Świdnik. In each type of stand, weekly, throughout the vegetation period 10 elm and 10 oak trees were monitored. The qualitative and quantitative evaluation of 200 leaves and 100 shoots randomly taken from each plant (one sample) was made. In the laboratory (Department of Entomology, University of Life Science in Lublin) the collected material was subjected to determine the percentage of leaves and shoots with galls of particular insect species as well as the number of galls on the leaf blades and on the shoots. Three abundance classes were defined as: high intensity (in one sample more than 60% of leaves and shoots with galls of the given insect species), medium intensity (in one sample 30–60% of leaves and shoots with galls of the given insect species) and small intensity (in one sample less than 30% of leaves and shoots with galls of the given insect species).

RESULTS AND DISCUSSION

The presence of 112 cynipid species (Hymenoptera, Cynipidae) in Poland was found. Most of them (47%) colonize oaks, their main host plant (Figure 1). They can also feed on different plant species, mainly from the Asteraceae and Rosaceae family (Figure 2) [8]. Aphids causing galls belong first of all to Erisomatinae subfamily. Among 23 species forming galls, 7 are trophic related to elms [1, 23].

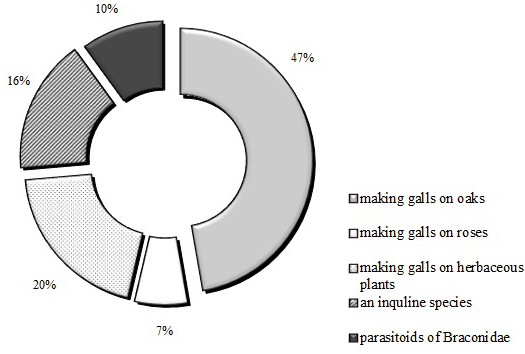

Fig. 1. The trophic relation of Cynipidae species in Poland

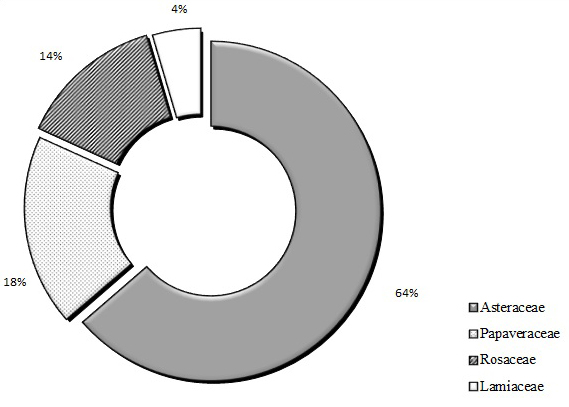

Fig. 2. The percentage of herbaceous-plant families inhabited by gall-forming wasps (Hymenoptera, Cynipidae) in Poland

Study on galls induced by aphids and cynipids in the 20th century mainly concerned their distribution in the country [7, 8, 15, 23]. In recent years these observations have been extended to include some elements of selected species’ bionomy and to estimate the number of galls on plants [9, 10, 19, 20, 26]. The Authors’ own research conducted in 2009-2011 in different types of habitats proved the occurrence of galls formed by 11 cynipid species on oaks and 2 aphid species on elms (Table 1). High intensity of occurrence was in the case of galls caused by both generations of Neuroterus quercusbaccarum (L.) and by asexual generation of N. numismalis (Fourc.) and Cynips quercusfolii (L.) on oaks, while on elms high abundance of galls induced by Tetraneuraulmi (L.) was noted.

Table 1. List of the galls collected from oaks and elms in different habitats of the Lublin region in 2009–2011
Gall-making species
Habitat
Term of occurrence
Intensity of occurrence
Location of gall formation
Comments
Hymenoptera, Cynipidae
Neuroterus quercusbaccarum (L.)
Forest (Dąbrowa)
May
+
leaves and petioles of Quercus spp.
caused by sexual generation
Urban trees (Lublin – Czechów estate)
+++
Forest (Dąbrowa, Kaniwola, near Puławy, Świdnik, Uścimów)
August–September
+++
leaves of Quercus spp.
caused by asexual generation
Field plantings (Motycz)
+++
Urban park (Lublin’s Saxon Park)
+++
Urban trees (Lublin – Czeczów estate, Świdnik)
+++
Neuroterus numismalis (Fourc.)
Forest (Dąbrowa, near Puławy, Świdnik)
August–September
+++
leaves of Quercus spp.
caused by asexual generation
Field plantings (Motycz)
+++
Urban park (Lublin’s Saxon Park)
+++
Urban trees (Lublin- Czechów estate, Świdnik)
+++
Neuroterus tricolor (Hartig)
Forest (near Puławy)
August
+
leaves of Quercus spp.
caused by asexual generation
Neuroterus albipes Schenck
Forest (Kaniwola, near Puławy)
August
+
leaves of Quercus spp.
caused by asexual generation
Cynips quercusfolii (L.)
Forest (Dąbrowa, Świdnik, Uścimów)
August–September
+++
leaves of Quercus spp.
caused by asexual generation
Nursery of ornamental plants (near Puławy)
+++
Cynips longiventris (Hartig)
Forest (Dąbrowa, Kaniwola, near Puławy Uścimów)
August–September
++
leaves of Quercus spp.
caused by asexual generation
Cynips divisa (Hartig)
Forest (near Puławy)
August
+
leaves of Quercus spp.
caused by asexual generation
Andricus fecundatrix (Hartig)
Forest (Dąbrowa)
August–September
+++
in the lateral and peak buds of Quercus spp.
caused by asexual generation
Field plantings (Motycz)
++
Urban trees (Lublin- Czechów estate)
+
Andricus inflator (Hartig)
Urban trees (Lublin- Czechów estate)
May
++
in the lateral and peak buds of Quercus spp. shoots
caused by sexual generation
Andricus anthracina (Curtis)
Field plantings (Motycz)
August–September
+
on the mid-rib of Quercus spp. leaves
caused by asexual generation
Urban trees (Lublin- Czechów estate)
+++
Biorrhiza pallida (Ol.)
Forest (Dąbrowa)
June
+
in the lateral and peak buds of Quercus spp.
caused by sexual generation
Hemiptera, Aphididae, Eriosomatinae
Tetraneura ulmi (L.)
Urban park (Lublin’s Saxon Park, Bronowice Park in Lublin)
May–June
+++
leaves of Ulmus minor
on elms as primary host
Urban trees (Lublin – al. Warszawska)
+++
Colopha compressa (Koch)
Urban trees (Lublin – LSM estate)
May–June
++
on the mid-rib of Ulmus laevis leaves
on elms as primary host

The galls of the sexual generation of N. quercusbaccarum are spherical, juicy, with a smooth surface and they were observed on the leaves and flower petioles between May and June. On the other hand, the lentoid-shaped galls of the asexual generation situated on the underside of the leaf blades were picked up from August till autumn. The galls caused by the asexual generation of this species occurred in a comparable and very high intensity on oak trees growing in the forest and city environments as well as in the field plantings. The galls of the sexual generation were found in high intensity only on oaks growing in the city area.

The asexual generation’s galls of N. numismalis were button-shaped with a characteristic concavity of the upper surface and covered with silky hairs. They were observed on the underside of the leaves in all stands, in August and September. In the same period, big, spherical galls of the asexual generation of C. quercusfolii were also noticed (Table 1). However, those galls were found only on oaks in forest stands. Very high intensity of occurrence of this species galls were also observed on Quercus robur ‘Fastigiata’ in the ornamental plants nursery. It was localized in direct neighborhood of a mixed forest near Puławy.

In the examined forest communities no presence of Andricusinflator (Hartig), Andricus anthracina (Curtis), T. ulmi and Colopha compressa (Koch) galls was observed (Table 1). The galls caused by the aforementioned species were found only in the city environment. Relatively numerous galls of the sexual generation of A.inflator, in the form of dilated shoots, were observed on Q. robur ‘Fastigiata’ in spring. So far this gall-forming wasp has not been observed in the Lublin region [8].

Bean-shaped galls of T. ulmi were found on the upper side of the leaf. Galls appeared on elm trees at the beginning of May, and their maturation and opening fell on the second part of June. High intensity of occurrence of C. compressa galls were observed on Ulmus laevis Pall. Galls in the form of so-called rooster combs situated on the upper side of the leaf blade were observed in May and June. Data on the occurrence of this species on elm trees in the Lublin region come from the 1930’s [14, 23].

The insect-plant interactions, considering the species causing closed galls, have not been studied in Poland. The stimuli triggering the formation of galls vary, depending on the group of insects causing them. In the case of aphids, it is saliva introduced into the tissues in the course of feeding by fundatrix, while for Cynipidae these are the larvae exudates of unknown origin. The character and manner in which these exudates act as well as the plants’ reaction to them remain unclear [21]. It has not been established, either, in what degree the insect controls the development of the host plant [5, 6] and in what way the feeding of these insects affects the utility value of trees.

Views on the formation of galls underwent changes. Earlier, it was thought that they appeared as a defensive reaction of plants to insect feeding. According to the majority of the present theories, galls are formed as a result of the manipulation of a gall insect in the host plant [27]. Galls are the unique pattern of tissues differentiation that are not found in the normal morphogenesis of organs [16]. They are treated as sinks of assimilation products (carbohydrates, aminoacids) and they are compared to such plant organs as young leaves, flowers and seeds, which compete for them [13].

Information on the species found during the Authors’ own studies is dispersed. In the case of T.ulmi, a detailed analysis on bionomy and infestation degree of elm trees were conducted [9, 10, 25]. As for C. compressa, the effect of insects’ presence on the photosynthesis intensity was examined [17]. Observations on gall cynipids were performed in reference to their distribution in Europe [3]. The total content of carbohydrates, nitrogen and phenols in gall tissue of N. quercusbaccarum [5] and cytological changes in gall tissues of the sexual generation of N. quercusbaccarum [11] and the asexual generation of C. quercusfolii [4] were also examined.

CONCLUSIONS

  1. The occurrence of galls formed by 11 cynipid species (Hymenoptera, Cynipidae) on oaks and 2 aphid species (Hemiptera, Aphididae, Eriosomatinae) on elms was stated.
  2. The galls of Neuroterus quercusbaccarum (L.), N. numismalis (Fourc.) and Cynips quercusfolii (L.) on oaks and Tetraneuraulmi (L.) on elms were the most numerous.
  3. The presence of the sexual generation galls of Andricusinflator (Hartig) was found first time in the Lublin region.
  4. Numerous occurrence of certain species indicate a need to carry out complex studies determining the effect of the feeding of these insects on the condition and utility value of trees.

REFERENCES

  1. Bogdanowicz W., Chudzicka E., Pilipiuk I., Skibińska E., 2004. Fauna Polski. Charakterystyka i wykaz gatunków [Fauna of Poland. Characteristics and checklist of species]. MiIZ PAN, Warszawa, T.1, Vol. 1 (in Polish).
  2. Ceitel J., 2006. Lasy dębowe w Polsce [Oak forests in Poland]. [In:] Nasze drzewa leśne. Monografie popularnonaukowe. Dęby. T. 11. PAN ID Poznań – Kórnik, 114–145 (in Polish).
  3. Csóka G., Stone G.N., Melika G., 2005. The biology, ecology and evolution of gall wasps. [In:] A. Raman, C. W. Schaefer, T. M. Withers (Eds.), Biology, ecology and evolution of gall-inducing arthropods, Enfield New Hampshire, 573–642.
  4. Harper L.J., Schönrogge K., Lim K.Y., Francis P., Lichtenstein C.P., 2004. Cynipid galls: insect-induced modifications of plant development create novel plant organs. Plant, Cell and Environment, 27, 327–335.
  5. Hartley S.E., 1998. The chemical composition of plant galls: are levels of nutrients and secondary compounds controlled by the gall-former? Oecologia, 113, 492–501.
  6. Inbar M., Izhaki I., Koplovich A., Lupo I., Silanikove N., Glasser T., Gerchman Y., Perevolotsky A., Lev-Yadun S., 2010. Why do many galls have conspicuous colors? A new hypothesis. Arthropod-Plant Interactions, 4, 1–6.
  7. Kapuściński S., 1947. Materiały do zoocecidologii Mazowsza [Materials for the zoocecidology of Mazovia region]. Fragm. Faun., 5, 37–95 (in Polish).
  8. Kierych E., 1979. Galasówkowate – Cynipoidea. Katalog fauny Polski [Cynipoidea. Catalogue of Polish fauna]. PWN, Warszawa, Cz. XXVI, z. 2 (in Polish).
  9. Kmieć K., Kot I., 2007. Tetraneura ulmi (L.) (Hemiptera, Eriosomatinae) on elm as its primary host. Aphids and Other Hemipterous Insects, Vol. 13, 121–127.
  10. Kmieć K., Kot I., 2010. Występowanie mszyc z podrodziny Eriosomatinae na wiązach w parkach Lublina (The occurrence of aphids from Eriosomatinae sub-family on elms in city parks of Lublin). Annales UMCS Sec. EEE, Vol. XX (1), 7–13 (in Polish).
  11. Koncz N.K., Szabó L.J., Máthe C., Jámbrik K., M-Hamvas M., 2011. Histological study of quercus galls of Neuroterus quercusbaccarum (Linnaeus, 1758) (Hymenoptera: Cynipidae). Acta Biologica Szegediensis, Vol. 55 (2), 247–253.
  12. Kremer B., 1996. Drzewa [Trees]. Leksykon przyrodniczy. GeoCenter, Warszawa (in Polish).
  13. Larson K.C., Whitham T.G., 1997. Competition between gall aphids and natural plant sinks: plant architecture affects resistance to galling. Oecologia, 109, 575–582.
  14. Osiadacz B., Hałaj R., 2009. The Aphids (Hemiptera: Sternorrhyncha: Aphidinea) of Poland. A Distributional Checklist. Polish Entomological Monographs, 6, 1–96.
  15. Pogorzelska-Lipnicka I., 1958. Materiały do znajomości wyrośli z okolic Lublina [Materials for knowledge of galls in the vicinity of Lublin]. Ann. UMCS, C, Lublin, 12, 45–56 (in Polish).
  16. Raman A., 2007. Insect-induced plant galls of India: unresolved questions. Current Sci., Vol. 92, No 6, 748–757.
  17. Samsone I., Andersone U., Vikmane M., Ieviņa B., Pakarna G., Ievinsh G., 2007. Nondestructive methods in plant biology: an accurate measurement of chlorophyll content by a chlorophyll meter. Acta Univ. Latviensis, Biology, Vol. 723, 145–154.
  18. Seneta W., Dolatowski J., 2006. Dendrologia [Dendrology]. PWN, Warszawa (in Polish).
  19. Skrzypczyńska M., 2001. Studies on insects causing galls on the leaves of pedunculate oak Quercus robur in Southern Poland. J. Pest Science, 74, 40–42.
  20. Skrzypczyńska M., 2002. Studies on insects and mites causing galls on the leaves of elm Ulmus laevis Pall. in the Mogilski Forest in sourthen Poland. J. Pest Science, 75, 150–151.
  21. Stone G.N., Schönrogge K., 2003. The adaptive significance of insect gall morphology. Trends in Ecology & Evolution, 18, 512–522.
  22. Stone G.N., Schönrogge K., Atkinson R.J., Bellido D., Pujade-Villar J., 2002. The population biology of oak gall wasps (Hymenoptera: Cynipidae). Annual Review of Entomology, 47, 633–668.
  23. Szelegiewicz H., 1968. Mszyce – Aphidodea. Katalog fauny Polski [Aphids – Aphidodea. Catalogue of Polish fauna]. PWN, Warszawa, XXI, 4 (in Polish).
  24. Szewczyk W., Dudek M., Baranowska M., 2011. Evaluation of oak tree conditions on the basis of losses in the assimilation aparatus of selected oak stands in Sulęcin forest district. Acta Sci. Pol. Silv. Colendar. Rat. Ind. Lignar., 10 (3), 37–47.
  25. Urban J., 2003. Bionomics and harmfulness of Tetraneura ulmi (L.) (Aphidinea, Pemphigidae) in elms. Journal of Forest Science, 49, 4, 159–181.
  26. Wrzesińska D., Wawrzyniak M., 2008. Bawełnice Aphidinea zasiedlające wiąz polny Ulmus minor na terenie Bydgoszczy (Eriosomatinae aphids Aphidinea inhabiting elm trees Ulmus minor in Bydgoszcz). [In:] Fauna Miast, Ochronić różnorodność biotyczną w miastach, Indykiewicz P., Jerzak L., Barczak T. (red.), SAR, Pomorze, 405–408 (in Polish).
  27. http://www.colostate.edu/Depts/Entomology/courses/en570/papers_2010/mcewen.pdf
