A METHOD OF ESTIMATION OF THE TOTAL DENSITY OF INFESTATION OF SCOTS PINE STEMS BY THE LESSER PINE SHOOT BEETLE (TOMICUS MINOR)
Andrzej Borkowski
Department of Ecology and Environment Protection,
Institute of Biology, Jan Kochanowski University of Kielce, Poland
Results of studies on colonization of Pinus sylvestris trap trees by Tomicus minor are presented. The scheme of spatial distribution of density of this bark beetle nests agrees with spatial distribution of colonization frequency in individual sections of the bole. Beetles most frequently colonized the middle parts of the bole, occurring most frequently (59.5%) and reaching the greatest density of nests (14.8%) in the eighth onemeter section of the trap tree bole. The linear relationships between nest numbers in distinguished onemeter sections of the bole and the total density of the bole colonization are determined. In the case of the eighth section, counting from the butt, the correlation was strongest (R^{2} = 0.5877, P < 0.0001), and the mean relative error of estimation was smallest (49.46%).
Key words: Pinus sylvestris, Tomicus minor, attack pattern, stem infestation.
INTRODUCTION
The lesser pine shoot beetle Tomicus minor (Hart.) (Col., Curculionidae, Scolytinae) is a species widely distributed in the Palearctic region developing mainly on Scots pine (Pinus sylvestris L.) within its natural range [9,17,22]. This bark beetle breeds in the bole sections with thin bark of felled or strongly weakened trees, and according to Långström and Hellqvist [16] colonized earlier by Tomicus piniperda (L.). In addition, the harmfulness of this species is heightened by introduction to wood by parent beetles of stain fungi (Ophiostoma canum) consumed by larvae [24]. In Europe, feeding of adults of Tomicus minor and T. piniperda in pine shoots causes significant losses in tree increments [1,2,3,4,14,15,18,19,21].
In spite of many papers devoted to pine shoot beetles, only few discuss directly the biology and ecology of T. minor [9,10,11,13,23]. So far no method of population density estimation was worked out for this insect species. The estimation of the population size with methods based on collection of pruned and fallen shoots is of a relative value, and does not reflect the actual numerical relations of both species of pine shoot beetles. The problems with synthesis of synthetic pheromones, most likely resulting from a small attraction force of aggregation pheromones produced by beetles [12] cause, that the only method of estimation of the population size of this bark beetle is the estimation of its density on trap trees or felled sample trees.
The estimation of population density of the lesser pine shoot beetle and investigations on its population dynamics may be useful for the theory as well as practice of forestry. The presence of nests of pine shoot beetles in every Scots pine stand makes the studies on their numbers easier. Such studies are very important from the theoretical (e.g. permit to recognize in forest ecosystems the mechanisms connected with functioning of the interactions parasitehost and predatorprey) as well as practical (providing additional data helping to estimate more exactly the degree of threat to Scots pine stands) point of view.
The exact determination of the number of pine shoot beetle nests is very laborconsuming because the whole bole needs to be debarked precisely.
The purpose of this study was to work out the method of estimation of the total density of colonization of pine boles based on the relationship between the number of beetle nests in selected bole sections and the total density of bole colonization.
STUDY AREA AND METHODS
The studies were carried out during 1991–2005 in Scots pine stands of age classes IV–V (61–100 years) with a moderate crown closure, growing on sites of the following types: fresh coniferous forest, fresh mixed coniferous forest, and upland mixed broadleaved forest (Table 1).
Table 1. Characteristics and colonization of trap trees felled in stands under investigations
Forest district
Year
Age
No.
The number of colonized stems
Diameter outside bark at thicker end
No. of egg galleries/dm^{2}
Zagnańsk
1991
85
20
18
28.3; 17.0–38.0
0.036 ± 0.043
1991
75
10
6
22.7; 20.0 – 27.0
0.008±0.010

1993
85
10
6
24.7; 16.0–34.0
0.034±0.035

2005
75
5
5
22.9; 21.0–29.0
0.029±0.023

Przedbórz
1992
70
20
16
15.7; 12.0–27.0
0.020±0.006
1993
70
20
14
15.2; 11.0–26.0
0.022±0.007

Dynów
1996
70
10
9
15.9; 13.0–21.0
0.021±0.013
1997
70
15
12
15.2; 10.0–25.0
0.031±0.017

Jędrzejów
1998
70
10
7
16.4; 12.0–20.0
0.016±0.008
1999
75
15
13
22.2; 10.0–35.0
0.007±0.008

Koniecpol
2000
75
15
15
22.2; 17.0–28.0
0.019±0.010
2001
75
15
15
21.7; 15.0–26.0
0.015±0.004

Łążek Ordynacki
2005
70
10
9
16.5; 13.5–21.0
0.062±0.115
In total 175 trees were felled. The following bole elements of each tree were measured:
diameter outside bark at the thicker end;
diameter outside bark of the successive onemeter sections beginning from the butt;
length.
After debarking, the colonized boles were divided into onemeter sections and nests of the lesser pine shoot beetle were counted on their upper and lower parts (after turning them over). Then, the bole surface area and the total density of the bole colonization were computed.
In order to determine the relationship between the number of nests in selected onemeter sections and the total density of colonization of boles the analyses of regression and correlation were used. Four (n = 4) onemeter bole sections were distinguished: (1) situated between 6^{th} and 7^{th} meter, (2) between 7^{th} and 8^{th} meter, (3) between 8^{th} and 9^{th} meter, and (4) between 10^{th} and 11^{th} meter. The following linear functions of regression were used:
y = a_{0n} + a_{1n}x_{n} (1)
where y is the total density of infestation [m^{2}], x_{n} is the number of nests in distinguished onemeter stem sections (n = 1, 2, 3, 4) and a_{0n}, a_{1n} parameters of linear functions.
The parameters of linear functions of regression were estimated using the least squares method. The coefficients of rectilinear correlation (r_{n}), determination (R^{2}), mean relative errors of estimation (sw_{n}) were computed, and zero hypotheses H_{0} were checked, according to which [5]:
slopes a_{0n}, a_{1n} are equal to zero;
differences between coefficients of correlation (r_{n}) are equal to zero.
The analyses were carried out using packet Statistica 6.1 [25]. The comparison of differences between coefficients of correlation computed for more than one pair required taking into account the error of first kind of the higher order (α_{n1n2}), arising during multiple comparisons [8]. To calculate the error of first kind the formula derived from Bonferroni inequality was used [20]:
(2)
where α_{n1n2} is the adjusted significance level for the compared pair of coefficients of correlation (r_{n),} α is the total significance level for all comparisons and n number of coefficients of correlation analyzed (n = 4).
For four coefficients of correlation tested in this study and for the total significance level α = 0.2 the adjusted significance level α_{n1n2} was equal to 0.05.
RESULTS AND DISCUSSION
In stands under investigations the lesser pine shoot beetle colonized most of felled trap trees (Table 1). The mean density of colonization was from 0.007 nests/dm^{2} in 1999 in the Jędrzejów Forest District to 0.062 nests/dm^{2} in the Łążek Ordynacki Forest District (Table 1). This bark beetle occurred in the entire bole length of trap trees. The scheme of the spatial distribution of density of nests agreed with the spatial distribution of colonization frequency in individual bole sections. Beetles most frequently colonized middle parts of the bole, occurring most frequently (59.5%) and reaching the greatest density of nests (14.81%) in the eighth (between 7^{th} and 8^{th} meter) onemeter bole section (Fig. 1).

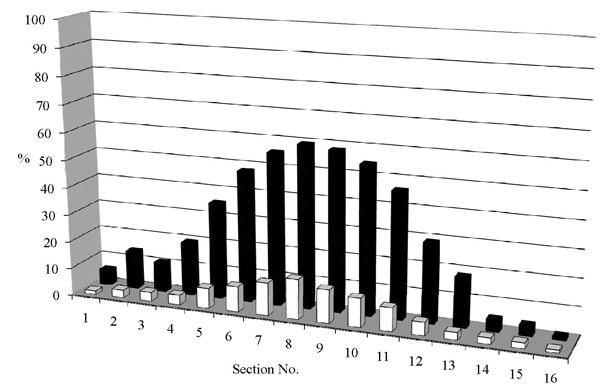

Fig. 1. Percentage of nests in individual sections of the bole of trap trees (white bars) and sections colonized on trap trees (black bars)
The analyses of regression and correlation showed that there were statistically significant linear relationships between the number of nests in distinguished onemeter bole sections and the total density of bole colonization (Table 2). Coefficients of determination were significant and their value ranged from 0.3085 to 0.5877. The mean error of estimation for the eighth bole section did not exceed 50% (Table 2). Slopes of a straight line were different from zero assuming positive values. At the assumed levels of significance α = 0.2 and α = 0.05 the coefficient of correlation r_{2}, computed for the relationship between the number of nests occurring between 7^{th} and 8^{th} m of the bole and the total density of colonization was significantly greater than coefficients r_{1} and r_{3}. The remaining coefficients of correlation did not differ significantly between one another (Table 3). The results presented in this paper showed the highest usefulness of regression function computed for the eighth onemeter bole section (n = 8).
Table 2. Characteristics of the relationship between the number of nests of the pine shoot beetle in onemeterlong trunk sections (x_{n}) and the total density of infestation of pine trunks (y) (see formula 1)
Stem sections
Parameters of linear functions
Coefficients of
Significance test for
Mean relative

from to
section No.
a_{0n}
a_{1n}
R^{2}
P
P
sw_{n}
6.0–7.0
7
0.0123
0.0071
0.3085
< 0.001
< 0.001
72.69
7.0–8.0
8
0.0077
0.0080
0.5877
< 0.001
< 0.001
49.46
8.0–9.0
9
0.0094
0.0086
0.4253
< 0.001
< 0.001
62.60
9.0–10.0
10
0.0134
0.0074
0.4461
< 0.001
< 0.001
66.81
Table 3. Comparison of significance of differences between the investigated coefficients of correlation for α = 0.2 and α_{n}_{1n2 }= 0.05 (see formula 2)
Coefficients of correlation
Significance test

r_{1}
r_{2}
0.0008
r_{1}
r_{3}
0.1856
r_{1}
r_{4}
0.1176
r_{2}
r_{3}
0.0425
r_{2}
r_{4}
0.0680
r_{3}
r_{4}
0.8085
The method of estimation of the total density of colonization of Scots pine boles by the lesser pine shoot beetle, presented above, is little laborconsuming, and therefore may be used in studies on insect ecology as well as in the forestry practice. The proposed method is little invasive because only a onemeterlong bole section needs to be debarked, and therefore it may also be used in ecological studies conducted in zones of partial protection, and even in zones of strict protection. In national parks no trap trees should be felled, but there is a possibility to utilize for example Scots pine windfalls.
A complex estimation of the colonization of Scots pine boles in area under investigations should be carried out in the following three basic stages:
sample selection, i.e. the number and distribution of sample boles;
estimation of the total density of bole colonization of individual felled and colonized trees;
estimation of the mean total density of colonization for the area under investigations (computation of the mean and confidence intervals).
To carry out the complex estimation of the density of colonization of Scots pine boles according to the scheme presented above the representative method (stages one and three) should be combined with the method proposed in
this paper (stage two). The representative method makes the objective sample selection and estimation of colonization density possible, and for this reason, among other reasons, it is more and more commonly used in forestry sciences [6,7].
SUMMARY OF RESULTS AND CONCLUSIONS
When analyzing linear relationships between the numbers of nests of the lesser pine shoot beetle in distinguished onemeter bole sections and the total density of colonization of the Scots pine bole the strongest correlation (R^{2} = 0.5877, P < 0.0001) and the smallest mean relative error of estimation (49.46%) were found for the eighths onemeter section of the bole, counting from the butt.
The method presented in this paper permits to make a very quick estimation of the density of colonization of Scots pine boles by the lesser pine shoot beetle. In this estimation, the simple regressions computed for the eighth bole section should be used.
Results of this study suggest the undertaking of further investigations on elaboration of relationships of this type for Scots pine stands in various regions of Poland.
The estimation of the total colonization of Scots pine boles by the pine shoot beetles, carried out using the method presented in this paper, is little invasive because it requires debarking of only a onemeterlong bole section. For this reason this method could also be used in zones of partial protection and even in zones of strict protection in national parks, where there is a possibility to utilize for example the windfalls for estimation of population density of the pine shoot beetles.
ACKNOWLEDGMENTS
I thanks

for translation of this paper into English.
REFERENCES
Bilański P., 2004. The range of crown damage caused by the pine shoot beetles Tomicus spp. (Col., Scolytidae) in Scots pine stands situated in the neighborhood of stacked wood yards in southeastern Poland. EJPAU 9(4), #16, http://www.ejpau.media.pl/volume9/issue4/art16.html.
Borkowski A., 2001. Threats to pine stands by the pine shoot beetles Tomicus piniperda (L.) and T. minor (Hart.) around a sawmill in southern Poland. Journal of Applied Entomology, 125, 489–492.
Borkowski A., 2006a. Spatial distribution of losses in growth of trees caused by the feeding of pine shoot beetles Tomicus piniperda and T. minor (Col., Scolytidae) in Scots pine stands growing within range of the influence of a timber yard in southern Poland. Journal of Forest Science, 52, 130–135.
Borkowski A., 2006b. Shoot damage and radial increment of trees in Scots pine (Pinus sylvestris) stands affected by a oneyear's outbreak of pine shoot beetles Tomicus piniperda and T. minor (Col., Scolytidae) in southern Poland. EJPAU 9(2), #13, http://www.ejpau.media.pl/volume9/issue2/art13.html.
Bruchwald A., 1989. Statystyka matematyczna dla leśników [Statistics mathematical for foresters]. Wydawnictwo SGGW, Warszawa [in Polish].
Bruchwald A., Wójcik R., Zajączkowski S., 2003. Analiza dokładności obrębowej metody inwentaryzacji lasu opartej na losowaniu warstwowym [The accuracy of a novel forest inventory method based on stratified sampling]. Sylwan, 5, 13–20 [in Polish].
Bruchwald A., Zajączkowski S., 2002. Obrębowa metoda inwentaryzacji lasu oparta na losowaniu warstwowym [A novel method of forest inventory based on stratified sampling]. Sylwan, 10, 13–23 [in Polish].
Cochran W. G., 1977. Sampling techniques. Wiley, New York.
Fernandez M., Pajares A. J., Salgado C. J., 1999a. Oviposition and development of the immature stages of Tomicus minor (Coleoptera, Scolytidae). Agricultural and Forest Entomology, 1, 97–102.
Fernandez M., Pajares A. J., Salgado C. J., 1999b. Shoot feeding and overwintering in the lesser pine shoot beetle Tomicus minor (Col., Scolytidae) in northwesth Spain. Journal of Applied Entomology, 123, 321–327.
Gidaszewski A., 1974. Analiza występowania i zdrowotności cetyńców Tomicus piniperda (L.) i T. minor (Htg) w drzewostanach Wielkopolskiego Parku Narodowego w cyklu rocznym 19691970 [An analysis of the occurence and salubrity of Tomicus piniperda (L.) and T. minor (Htg) in forest stands of Wielkopolski National Park during the years 19691970]. Polskie Pismo Entomologiczne, 44, 789–815 [in Polish].
Lanne B., Schlyter F., Byers J., Löfqvist J., Leufvén A., Bergström G., Van Der Pers J., 1987. Differences in attraction to semiochemicals present in sympatric pine shoot beetles Tomicus minor and T. piniperda. Journal of Chemical Ecology, 13, 1045–1067.
Långström B., 1983. Life cycles and shoot feeding of the pine shoot beetles. Studia Forestalia Suecia, 163, 1–30.
Långström B., Hellqvist C., 1990. Spatial distribution of crown damage and growth losses caused by recurrent attacks of pine shoot beetles in pine stands surrounding a pulp mill in southern Sweden. Journal of Applied Entomology, 110, 261–269.
Långström B., Hellqvist C., 1991. Shoot damage and growth losses following three years of Tomicusattacks in Scots pine stand close to a timber storage site. Silva Fennica, 3, 133–145.
Långström B., Hellqvist C., 1993. Induced and spontaneous attacks by Tomicus piniperda and T. minor on young Scots pine trees: tree mortality and beetle performance. Journal of Applied Entomology, 115, 25–36.
Lekander B., BejerPetersen B., Kangas E., Bakke A., 1977. The distribution of bark beetles in the Nordic countries. Acta Entomologica Fennica, 32, 1–36.
Michalski J., Witkowski Z., 1959. Obserwacje nad szkodliwością żeru uzupełniającego i regeneracyjnego Blastophagus piniperda L. (Coleoptera, Scolytidae) w drzewostanie sosnowym I klasy wieku [Observations on damage caused by the feed of Blastophagus piniperda L. (Coleoptera, Scolytidae) in pine stand of ageclass I. Sylwan, 2, 45–59 [in Polish].
Michalski J., Witkowski Z., 1960. Dalsze obserwacje nad szkodliwością żeru uzupełniającego i regeneracyjnego Blastophagus piniperda L. (Coleoptera, Scolytidae) w drzewostanie sosnowym I klasy wieku [Futher observations of harmfulness of complementary and regeneration feeds by Blastophagus piniperda L. (Coleoptera, Scolytidae) in pine stand of ageclass I. Sylwan, 12, 21–31 [in Polish].
Miller R. G., 1981. Simultaneous Statistical Inference. SpringerVerlag, New York.
Nilsson S., 1974. Increment losses caused by Blastophagus piniperda on Scots pine. Royal College of Forestry, Department of Operational Efficiency, Research Notes, 78, 1–64.
Nunberg M., 1947. Cetyńce [Pineshoot beetles]. Prace IBL, Seria C, Nr 17 [in Polish].
Ritchie W., 1917. The structure, bionomics and forest importance of Myelophilus minor Hart. Transactions of the Royal Society of Edinburgh, 53, 213–234.
Solheim H., Krokene P., Långström B., 2001. Effect of growth and virulence of associated bluestain fungi on host coclonization behaviour of pine shoot beetles T. minor and T. piniperda. Plant Pathology, 50, 111–116.
StatSoft, Inc., 2004. Statistica for Windows (computer program manual). StatSoft, Tulsa, Okla.
