EFFECT OF THE SOWING DIRECTION ON THE YIELDING OF SUGAR AND FODDER BEET
Aleksander Szmigiel, Marek Kołodziejczyk
Department of Plant Production,
Agricultural University of Cracow, Poland
The paper presents the results of field studies conducted
over 2001-2003 at the Experimental Unit located at Prusy near Krakow to determine
the effect of the sowing direction on yielding of sugar and fodder beet and the
contents of dry matter, sugar and protein in roots. The experiment was set up
on a degraded chernozem developed from loess and classified as very good wheat
complex. The factors investigated comprised sowing directions (north-south and
east-west) and beet root cultivars: Arosa and Vectra (sugar beet) and Goliat
and Krakus (fodder beet). The average root yield of the sugar beet cultivars
studied was 77 t per ha, whereas fodder beet – 105 t per ha. The investigations
revealed no significant effect of the sowing direction on the beet root yield.
However, such relationship was registered for the yield of leaves and the contents
of dry matter and sugar in roots. A bigger yield of leaves, by an average of
4.7% and higher concentrations of dry matter and sugar in roots, by 0.8 and 1.0%,
respectively, were registered when sowing was performed in the north-southern
direction. The average content of dry matter in sugar beet roots was 23% and
sugar 17.8%, whereas for fodder beets – 13.9% and 10.6%, respectively.
Key words: sugar beet, fodder beet, sowing direction, root yield, sugar content .
INTRODUCTION
The plant productivity or the amount of biomass produced during the process of photosynthesis depends on the interaction between the genotype, weather and agronomic conditions over the vegetation period. In order to produce a potential yield, i.e. the one which can be actually obtained, plants need an adequate supply of water and minerals, eliminating all negative factors, such as diseases, pests or weeds, but, above all, a definite amount of solar energy. Therefore the proper plant habit, plant density and the spatial leaf positioning to ensure the maximum utilization of solar energy are very important. The direction of sowing is a non-agronomic factor unconnected with the outlays but significantly determining the amount of solar radiation absorbed by the crop stand and thus affecting the quality and quantity of yield. Baker and Meyer [1] revealed that the north-south oriented rows are better insolated than those of east-west orientation. The results of investigations into the effect of the direction of sowing on crop yields are not unanimous. Clarke et al. [2] obtained a higher level of wheat yield with east-west row orientation. On the other hand, Szmigiel [7,8] demonstrated that north-south is a more advantageous direction of sowing. Cereals sown in this direction yield better than those from the east-west row orientation and the grain is more abundant in protein. Also in sugar beet cultivation a larger yield of roots and leaves, higher dry matter and sucrose content were found in the roots of plants sown in the north-southern direction [11]. In spite of their characteristic large area, the beet root leaves develop relatively late, which especially in dry years cause higher soil heating and unproductive water evaporation, which, in turn, may affect the amount and quality of the root yield.
The investigations aimed at determining the effect of north-southern and east-western directions of sowing on the amount of root yield, leaf mass and the contents of dry matter, sugar and protein in sugar and fodder beet roots. It was assumed that the level of yielding and the chemical composition of roots would diversify the positioning of beet rows with reference to the quarters of the world.
MATERIAL AND METHODS
The field experiments were conducted over 2001–2003 at an experimental unit at Prusy near Krakow on a degraded chernozem classified as very good wheat complex. The soil was characterized as medium-to-high phosphorus content, low-to-medium abundance in potassium and slightly acid reaction. The experiment was set up following the split plot method and the plot area was 15 m2. The factors analyzed comprised: sowing directions (north-south and east-west) and beet root cultivars: two sugar beet cultivars (Arosa and Vectra) and two fodder beets (Goliat and Krakus). Winter wheat constituted the forecrop. Mineral fertilization was applied at the following doses: 120 kg N·ha-1 (80 + 40), 80 kg P2O5·ha-1 and 120 kg K2O·ha-1. Beet seeds were sown each year in the third decade of April. Single-grained sowing was used to sow sugar beet and fodder beet, Krakus at 45 x 18 cm spacing, whereas seeds of fodder beet, Goliat, at the amount of 18 kg·ha-1 were sown by means of seed drilling. The destined plant density was 80000 plants. Weeds were controlled using Betanal Progress 274 OF chemical preparation at the dose divided into 1.3 and 1.6 l·ha-1. The plants were harvested in the second decade of October. The yield of roots and fresh leaf weight were assessed. Subsequently root samples were collected from each plot to determine their chemical composition. The contents of dry weight were defined (applying the gravimetric method), sugar (the polarimetric method) and protein (total N – following the modified Kjeldahl method and converted into total protein with the use of 6.25 coefficient value). The results were statistically verified using the analysis of variance. The significance of differences was assessed with Tukey's test at the significance level α = 0.05.
Climatic conditions during the period of investigations were diversified. The growing season in 2001 was marked by a particularly great amount of rainfall in April, July and September, but relatively small amount in October. The average air temperature in April and September was slightly lower and in October slightly higher than the average for the last decade (1994–2003). The total precipitation measured during the period of April-October 2002 approximated to the multi-annual average. The mean air temperature during this period was also at the level of the average temperature for the last decade, however May was warmer but September and October were cooler. The growing period in 2003 belonged to the dry ones (with rainfall amount almost 200 mm lower than the average) and warm (particularly in summer months). Over the three-year period of the investigations the least average value of daily solar radiation 15.2 MJ·m-2 was recorded in the beet vegetation period in 2001. In the other years of the studies, i.e. 2002 and 2003, the quantity of total solar radiation was on average 16.1 MJ·m-2·d-1.
RESULTS AND DISCUSSION
The effect of precipitation, temperature and insolation on the root yield and sugar content in the roots has been relatively well recognized, however the present results are not always in agreement. As reported by Nowak [4], sugar beet and fodder beet cultivated in very good wheat complex conditions produced the largest yields when exposed to the precipitation between 400 and 500 mm. On the other hand, Rudnicki et al. [6] claim that the highest root yields may be obtained at the total precipitation of 340 mm and the mean daily temperature of 14.5°C, whereas the leaf yields at the precipitation over 400 mm and the temperature of 13.6°C, which suggests that the effect of precipitation and temperature on the root yield is different than on the leaf yield. The present results only partially confirm the above dependence since the largest root and leaf weight was produced by beet root plants in the 2001 growing season characterized by the highest total precipitation and the lowest mean air temperature during the three year period of investigations. On the other hand, the lowest beet root and leaf yield (particularly in fodder beets) was recorded in 2003, which was warmer and drier than the average.
The present experiments revealed no significant effect of the sowing direction on the beetroot yield (Table 1). Such significance was found for the leaf yield. The plants produced as a result of the north-southern sowing developed, on average, 4.7% higher weight (Table 2). The increase in the yield of both beet leaves and roots (respectively by 2.0 and 3.4 t·ha-1) between the north-southern and east-western sowing directions were reported by Ziółek [11]. On the other hand, Szmigiel [7,8] and Śniady and Ziobrowski [10], who investigated the effect of the sowing direction upon winter and spring cereal yielding, demonstrated no significant effect but only a tendency for increased grain yields for the north-southern sowing, as compared with the east-western direction.
Table 1. Beetroot yield, t·ha-1 |
Cultivar |
Seeding direction |
Year |
Mean |
||
2001 |
2002 |
2003 |
|||
Arosa |
North-south |
79.2 |
72.5 |
74.3 |
75.3 |
East-west |
77.9 |
73.6 |
72.3 |
74.6 |
|
mean |
78.6 |
73.1 |
73.3 |
75.0 |
|
Vectra |
North-south |
82.4 |
78.7 |
78.0 |
79.7 |
East-west |
81.4 |
76.2 |
79.6 |
79.1 |
|
mean |
81.9 |
77.5 |
78.8 |
79.4 |
|
Krakus |
North-south |
102.0 |
108.9 |
100.1 |
103.7 |
East-west |
100.9 |
111.5 |
97.4 |
103.3 |
|
mean |
101.5 |
110.2 |
98.7 |
103.5 |
|
Goliat |
North-south |
108.4 |
108.4 |
100.7 |
105.8 |
East-west |
108.5 |
108.0 |
99.2 |
105.3 |
|
mean |
108.5 |
108.2 |
100.0 |
105.6 |
|
Mean for seeding direction |
North-south |
93.0 |
92.1 |
88.3 |
91.1 |
East-west |
92.2 |
92.3 |
87.1 |
90.5 |
|
Mean |
92.6 |
92.2 |
87.7 |
90.8 |
|
LSD0.05 for: seeding direction ns cultivar 2.52 year of study 2.38 |
ns – non significant difference |
Table 2. Beet leaf yield, t·ha-1 |
Cultivar |
Seeding direction |
Year |
Mean |
||
2001 |
2002 |
2003 |
|||
Arosa |
North-south |
36.1 |
31.7 |
31.7 |
33.2 |
East-west |
34.7 |
30.2 |
27.6 |
30.9 |
|
mean |
35.4 |
31.0 |
29.7 |
32.0 |
|
Vectra |
North-south |
37.0 |
28.4 |
32.1 |
32.5 |
East-west |
35.8 |
27.6 |
29.7 |
31.1 |
|
mean |
36.4 |
28.0 |
30.9 |
31.8 |
|
Krakus |
North-south |
36.6 |
38.4 |
28.1 |
34.4 |
East-west |
35.3 |
40.0 |
25.2 |
33.5 |
|
mean |
35.9 |
39.2 |
26.6 |
33.9 |
|
Goliat |
North-south |
34.5 |
33.2 |
28.5 |
32.1 |
East-west |
34.5 |
31.8 |
25.4 |
30.6 |
|
mean |
34.5 |
32.5 |
26.9 |
31.3 |
|
Mean for seeding direction |
North-south |
36.0 |
32.9 |
30.1 |
33.0 |
East-west |
35.1 |
32.4 |
27.0 |
31.5 |
|
Mean |
35.6 |
32.7 |
28.5 |
32.3 |
|
LSD0.05 for: |
The fresh weight yield of beet roots and leaves were significantly diversified by the cultivar factor. Of the sugar beet cultivars, a larger root yield, on average 79.4 t·ha-1, was produced by Vectra than by Arosa, which yielded at the level of 75 t. As reported by Malec [3], the quantity of sugar beet root yield only to a slight degree, i.e. in 5%, depends on the cultivar factor. In the fodder beet group, Goliat plants produced a higher yield, on average 105.6 t·ha-1, whereas Krakus beets yielded by 2 t lower. The yield of sugar beet leaves was at the level of 32 t per ha, while in fodder beets – on average 31.3 t for Goliat and 33.9 t·ha-1 for Krakus. The foliage coefficient of sugar beets was on average 0.41, whereas in fodder beets – 0.31 (Fig. 1). Beetroot sowing in the north-southern direction caused a slight increase in the coefficient value.

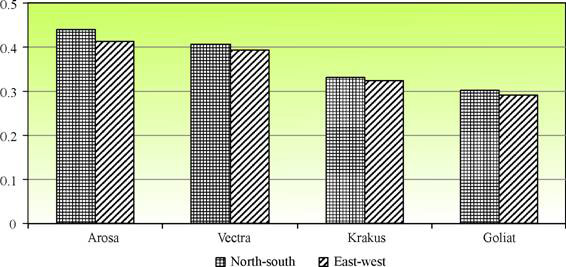

Fig. 1. Foliage coefficient in beet |
![]() |
The direction of sowing had a significant influence on the dry weight and sugar content in beet roots (Tables 3 and 4). A higher content of dry matter and sugar in roots, respectively by 0.8 and 1.0%, were found in sowing in the north-southern direction. Ziółek [11] reported on similar results and provided an explanation of the increase in the dry matter and sugar contents in sugar beet roots for the north-south rows arrangement thanks to a more intensive photosynthesis due to a higher plant insolation.
Table 3. Dry matter content in beet roots, % |
Cultivar |
Seeding direction |
Year |
Mean |
||
2001 |
2002 |
2003 |
|||
Arosa |
North-south |
24.2 |
22.3 |
27.5 |
24.7 |
East-west |
23.4 |
20.6 |
27.4 |
23.8 |
|
mean |
23.8 |
21.4 |
27.4 |
24.2 |
|
Vectra |
North-south |
21.8 |
21.7 |
25.8 |
23.1 |
East-west |
21.4 |
20.1 |
25.3 |
22.3 |
|
mean |
21.6 |
20.9 |
25.6 |
22.7 |
|
Krakus |
North-south |
13.7 |
12.3 |
18.8 |
14.9 |
East-west |
12.3 |
12.5 |
17.2 |
14.0 |
|
mean |
13.0 |
12.4 |
18.0 |
14.5 |
|
Goliat |
North-south |
12.2 |
12.0 |
16.9 |
13.7 |
East-west |
12.1 |
11.4 |
15.8 |
13.1 |
|
mean |
12.2 |
11.7 |
16.3 |
13.4 |
|
Mean for seeding direction |
North-south |
18.0 |
17.1 |
22.2 |
19.1 |
East-west |
17.3 |
16.1 |
21.4 |
18.3 |
|
Mean |
17.7 |
16.6 |
21.8 |
18.7 |
|
LSD0.05 for: |
Table 4. Content of sugar in beet roots, % f.w. |
Cultivar |
Seeding direction |
Year |
Mean |
||
2001 |
2002 |
2003 |
|||
Arosa |
North-south |
17.7 |
18.8 |
19.8 |
18.7 |
East-west |
17.0 |
17.7 |
19.2 |
18.0 |
|
mean |
17.4 |
18.2 |
19.5 |
18.4 |
|
Vectra |
North-south |
16.6 |
17.7 |
18.2 |
17.5 |
East-west |
16.0 |
16.4 |
17.8 |
16.7 |
|
mean |
16.3 |
17.0 |
18.0 |
17.1 |
|
Krakus |
North-south |
12.6 |
11.5 |
13.9 |
12.7 |
East-west |
9.4 |
10.9 |
13.1 |
11.1 |
|
mean |
11.0 |
11.2 |
13.5 |
11.9 |
|
Goliat |
North-south |
8.1 |
9.8 |
11.3 |
9.7 |
East-west |
7.5 |
9.2 |
10.2 |
8.9 |
|
mean |
7.8 |
9.5 |
10.8 |
9.3 |
|
Mean for seeding direction |
North-south |
13.7 |
14.4 |
15.8 |
14.7 |
East-west |
12.5 |
13.5 |
15.1 |
13.7 |
|
Mean |
13.1 |
14.0 |
15.4 |
14.2 |
|
LSD0.05 for: |
The present research did not demonstrate any significant dependency between the direction of sowing and the protein content in beet root, however a tendency for higher content of this component was recorded for the east-west rows arrangement (Table 5). Szmigiel [7,8,9] investigated the effect of the sowing direction on the protein content in cereal grain and found its significantly higher content for sowing in the north-southern direction, whereas Ziółek [11] did not reveal any significant relationship between the nitrogen content in sugar beet roots and the direction of sowing.
Table 5. Protein content in beet root, % d.m. |
Cultivar |
Seeding direction |
Year |
Mean |
||
2001 |
2002 |
2003 |
|||
Arosa |
North-south |
4.39 |
4.63 |
4.17 |
4.40 |
East-west |
4.28 |
5.67 |
4.60 |
4.85 |
|
Mean |
4.34 |
5.15 |
4.38 |
4.62 |
|
Vectra |
North-south |
4.65 |
4.89 |
4.05 |
4.53 |
East-west |
4.35 |
5.67 |
4.76 |
4.93 |
|
Mean |
4.50 |
5.28 |
4.40 |
4.73 |
|
Krakus |
North-south |
7.41 |
8.41 |
6.24 |
7.35 |
East-west |
7.05 |
7.78 |
6.66 |
7.16 |
|
Mean |
7.23 |
8.09 |
6.45 |
7.26 |
|
Goliat |
North-south |
7.42 |
8.35 |
5.91 |
7.23 |
East-west |
7.63 |
8.69 |
7.02 |
7.78 |
|
Mean |
7.53 |
8.52 |
6.47 |
7.50 |
|
Mean for seeding direction |
North-south |
5.97 |
6.57 |
5.09 |
5.88 |
East-west |
5.83 |
6.95 |
5.76 |
6.18 |
|
Mean |
5.90 |
6.76 |
5.43 |
6.03 |
|
LSD0.05 for: |
ns – non significant difference |
The contents of dry matter, sugar
and protein in the beet roots were also markedly modified by the cultivar factor
and weather conditions pattern during the plant growing season. The average content
of dry matter in the roots of the sugar beet cultivars researched was at the
level of 23.5% and sugar – 17.8%, while in fodder beets the values were, respectively,
13.9% and 10.6%. In sugar beets group Arosa revealed higher contents of both
dry matter and sugar, while Krakus among fodder beets. According to Malec [3],
of the natural and agronomic factors, the effect of the cultivar factor on the
sugar content in beet roots is small (3%). Weather conditions have a greater
influence (10%) on its content. Under conditions of low or moderate temperature
(to 14.5°C), usually combined with a considerable amount of precipitation,
the sugar content in beet roots clearly diminishes, whereas at higher temperature
and moderate precipitation its content increases [6]. A significant technological
dependence of the root quality on air temperature, particularly in the final
period of sugar beet development, was reported also by Pačuta et al. [5]. In
the present investigations the growing season in 2003 proved the most beneficial
for sugar accumulation, irrespective of the beetroot usable form or cultivar
as it was characterized by a moderate amount of rainfall and mean air temperature
higher than the average. The year 2001 was the least favorable because it was
cooler, with total precipitation from April to October over 650 mm. The average
protein content in the dry matter of sugar beet root for cultivars was 4.68%,
while in fodder beet it was, respectively, 7.38%. During the three-year period
of research the highest protein content in beet roots, on average, 6.76% was
recorded in 2002 and the lowest, 5.43%, in 2003.
CONCLUSIONS
The sowing direction did not determine the beet root yield but affected the leaf yield. Beetroot plants from the north-south oriented rows formed a greater leaf weight than those sown in the east-western direction.
The dry matter content in sugar beet and fodder beet roots sown in the north-southern direction was, on average, 0.8% higher and the sugar content 1.0% higher than in the plants in the east-west oriented rows.
The row orientation did not significantly affect the protein content in roots. On the other hand, a tendency for its higher content was observed in beet roots cultivated in the east-west orientation.
REFERENCES
Baker D.N., Meyer R.E., 1966. Influence of stand geometry on light interception and
net photosynthesis in cotton. Crop Sci. 6, 15–19. Clarke F.R., Baker R.J., DePauw R.M., 1998. Interplot interference distorts yield estimates
in spring wheat. Crop Sci. 38, 62–66. Malec J., 2004. Wymagania jakościowe do buraków cukrowych – surowca dla przemysłu cukrowniczego
[Quality requirements of sugar beets – as the raw material for sugar industry].
Mat. Konf. Jakość towarowych surowców roślinnych wyzwaniem dla nauki i praktyki
rolniczej, Puławy, 65–66 [in Polish]. Nowak L., 1987. Plonowanie roślin okopowych zależnie od kompleksu glebowego i ilości
opadów w okresie wegetacji [Yielding of root crops depending on soil complex
and rainfall amount during the growing season]. Zesz. Probl. Post. Nauk. Rol. 314, 105–117 [in Polish]. Pačuta V., Černy I., Karabinová M., 2000. Vplyv vybraných faktorov na úrodu a kvalitu cukrovej repy [Effect of selected factors on sugar beets and quality]. Rostl. Výr. 46, 371–378 [in Czech]. Rudnicki F., Wasilewski O., Kotwica K., 1993. Wzrost i plonowanie buraka cukrowego w zależności od warunków wodno-termicznych [Growth and yielding of sugar beets depending on water and thermal conditions]. Fragm. Agron. 2, 63–75 [in Polish]. Szmigiel A., 1997. Wpływ kierunku siewu na plonowanie zbóż jarych i zawartość białka w
ziarnie [Effect of the direction of sowing on yielding of spring cereals and
protein content in grain]. Zesz. Post. Nauk. Rol. 439, 329–332 [in Polish]. Szmigiel A., 1998. Wpływ kierunku siewu względem stron świata na powierzchnię liści i plonowanie zbóż ozimych [Effect of the direction of sowing in relation to the quarters of the globe on the leaf area and yielding of winter cereals]. Biul. IHAR 205/206, 87–94 [in Polish]. Szmigiel A., 2000. Wpływ kierunku rzędów oraz gęstości siewu na plon i zawartość białka Śniady A., Ziobrowski Ł., 2004. Wpływ gęstości i kierunku siewu na plonowanie owsa nagiego
(Avena sativa var. nuda) w ekologicznym gospodarstwie rolnym [Effect
of the sowing density and direction on naked oat (Avena sativa var. nuda)
yielding on organic farm]. Mat. Konf. Przyszłość rolnictwa ekologicznego w Europie po przystąpieniu krajów Europy Środkowo-Wschodniej do Unii Europejskiej, Wrocław, 105–111 [in Polish]. Ziółek E., 1962. Wpływ kierunku rzędów względem stron świata na plon buraków cukrowych i jego jakość [Effect of the direction of rows in relation to the quarters of the globe on sugar beet yield and its quality]. Zesz. Nauk. WSR w Krakowie, Rolnictwo 9, 87–96 [in Polish].
w ziarnie kukurydzy [Effect of the direction of rows and sowing density on yield
and protein content in maize grain]. Rocz. Nauk Rol. A 114(1–2), 195–204 [in Polish].
