VARIABILITY OF RHEOLOGICAL PARAMETERS IN FUNCTION OF GRAVIMETRIC CONCENTRATION OF SLUDGE
Beata Malczewska
Institute of Environmental Engineering,
Wrocław University of Environmental and Life Sciences, Poland
The paper presents results of rheological measurements conducted on sewage sludge from settling tanks of several municipal sewage treatment plants. The basic purpose was to define rheological properties of the sludge. The experiments were conducted by using coaxial cylinder with a rotating torque. The sludges had solid concentrations in the range of 1.04% to 6.56%. The approximation was made after transforming pseudocurve obtained from the measurements into the true flow curve, made according to the equation provided by Krieger, Elrod, Maron and Svec. In order to describe rheological characteristics, HerschelBulkleys' model was applied. The correlation between rheological parameters (tau_{o}, k, n) and gravimetric concentration (C_{s}) was calculated. The research has allowed the dimensioning of the main transport installations for pumping sludge. Optimisation of the pump discharge pressure, when transporting viscous sludge in pipelines is of the main interest in wastewater industry. The determination of rheological parameters, especially yield stress (tau_{o}), is important in sludge management, including designed parameters in transporting, storing, spreading.
Key words: sewage sludge, rheology, apparent flow curve, rheological model.
INTRODUCTION
All techniques involved in the purification of wastewater are connected with sludge nascenting. Sludge disposal represents the major operating costs for wastewater treatment plants (WWTPs). WWTPs operations must also be considered according to the optimisation of sludge circumstances. The sludge characteristics may affect the hydraulic conditions of sludge as well as handling units, such as sludge thickening, dewatering and settling. A decrease in water content and therefore an increase in solid concentration which raises the overall unit cost in slurry pipelines technologies. Many studies have demonstrated that an increase in the solid slurries concentration leads to an increase in the frictional pressure loss. Some aspects of sludge hydraulic conditions are connected with reducing pipe friction and have been investigated by Heywood, Honey and Pretorius, Slatter, Klinksieg et. all, Chaari et. all [3,8,9,12,15]. The settling of solids inside pipelines and thus clogging is related with sewage concentration and flow velocity.
Among the characteristics of the sludge that can be used for design and operation, the particle size, the distribution of water and the flow properties have been extensively investigated recently [4,5,7,16,19]. Highly viscous sludge exhibits high shear. Therefore, sludge handling and management at wastewater treatment plants also depend on its rheological properties. The rheology describes the deformation of a body under the influence of stress. Rheological behaviour is often presented graphically by plotting the shear stress (tau) against shear rate (Gp) (often called rheogram or flow curve). Sewage sludge is a nonNewtonian fluid because its flow behaviour does not obey the Newtonian flow law. The law identifies the viscosity as a constant physical property, whereas the shear stress is nonlinearly linked to the shear rate in nonNewtonians fluid. A nonNewtonian fluid like sewage sludge, cannot be based on Newtonians' model because of not a constant value in sludge viscosity under certain pressure and temperature conditions [10].
Several research groups studying the rheology of the sewage sludge have indicated the thixotropic nature of the sludge [8,20]. Many papers were devoted to exploring the correlation between sludge characteristics with solid concentrations, the temperature, the pHvalue and chemical conditioning [1,6,17,18].
The main purpose of this investigation was to evaluate sensitivity of the rheological parameters according to the solid concentration of sewage sludge in connection with sludge quality variation (different chemical constitution).
MATERIAL AND METHODS
The measurements were carried out using VT550 viscometer (manufactured by Haake) with inner rotating coaxial cylinder, under a constant temperature of 20^{o}C ±1^{o}C. The viscometer enabled measurement of the flow curves for a wide range of deformation velocity and shear stress. The device ensured the uniform stress distribution in the measuring gap and enabled continuous measurements of shear stress (tau) at defined shear rate Gp. The measurement system MV1 with measuring gap width 0.96 mm was used. The experiments were performed according to a method described in previous paper [10,11,13]. Measurements were carried out in steady flow so that laminar shear flow condition could be respected which means that the value Gp=300s^{1} was not exceeded. Measuring conditions are summarised in the following procedure: stirring at a shear rate of 300s^{1}, decreasing shear rate to 0 and then increasing to 300s^{1} which was repeated twice.
Several WWTPs were selected for this study. Five of them are situated in Poland, operated by different municipalities, and one is in Germany. All of the WWTPs used activated sludge processing. The samples of the sludge were collected from the secondary settling tank. The different solid contents were obtained by diluting the sludge with supernatant. The gravimetric concentration C_{s} was designated for each of the investigated samples and described as the mass ratio of dry component (m_{s}) to the mass of a mixture (m_{m}).
Pseudocurves obtained from experimental data also depends on employed measuring systems therefore the transformation of a pseudocurve into the true flow was calculated.
The transformation of a pseudocurve into the true flow curve was calculated using the equation provided by Krieger, Maron, Elrod and Svec. Selection of the rheological model was performed on the basis of determined true flow curves, according to the method described by Czaban [2,11,13]. The pseudocurves and correlation coefficient were used as a criterion in selecting the rheological model. The three most commonly adopted models were tested to select the one which fitted the experimental data best. The rheological parameters were extracted for each rheogram using least squares regression.
In order to describe rheological characteristics the 3pararameter HerschelBulkley model was applied as follows:
tau = tau_{0} +kG^{n} for tau>tau_{0} (1)
G = 0 for tau<tau_{0}
where: tau = shear stresses [Pa]
tau_{0} = yield stress [Pa]
n = flow behaviour index (dimensionless)
k = fluid consistency coefficient [Pa·m^{2}]
G = shear rate [s^{1}]
RHEOLOGICAL CHARACTERISTIC OF THE SLUDGE
To investigate the rheological behaviour of the sludge, the following calculations were made:
defining the rheological properties of the sludge by taking measurements of pseudocurves, tau (Gp),
devising the optimal rheological model,
estimating the parameter values for rheological model,
determining the influence of gravimetric concentration C_{s} on the rheological parameters,
defining the critical concentration C_{s,gr} which delimitates Newtonian and nonNewtonian behaviour of the sludge,
formulating an empirical equation illustrating the influence of concentration on the rheological parameters (statistical analysis of the established relationship of the rheological parameters for a variety of concentrations C_{s}).
RESULTS
The objective of this work was to characterise secondary sewage sludges treated aerobically. In order to investigate the rheological behaviour of sewage sludge at different concentrations C_{s }the shear stress vs. shear rate rheograms were plotted. Several authors have published works on the rheological properties of sludges and they have established that sewage sludge belongs to nonNewtonian fluids [4,5,6,15,18,19,20]. The rheograms indicate that the shear stress is nonlinearly proportional to the shear rate and viscosity changes with the stress rate which is a typical for a nonNewtonian fluid. A correlation between rheological parameters and gravimetric concentrations C_{s} was made for each WWTPs investigated. Figs. 1, 2 shows an example for WWT5.

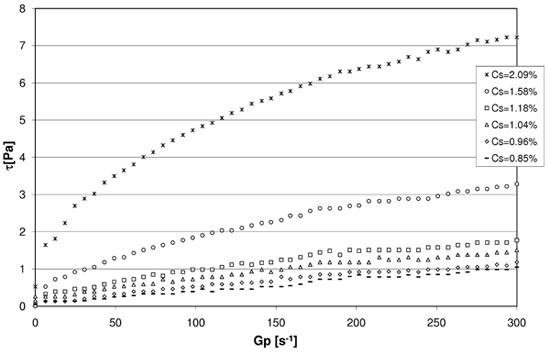

Fig. 1. Measured pseudocurves of flow for various concentrations of sludge originating from WWT5

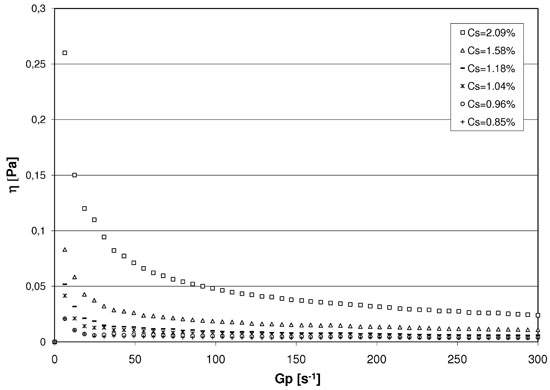

Fig. 2. Dependence of apparent viscosity on shear rate
A nonlinear correlation between shear rate and apparent viscosity was found. There were variations of sludge viscosity with shear stress and concentration of sludge. These results were in a good agreement with Slatter, Dentel and Stain [4,16,18]. Various rheological models were suggested to interpret the observed rheological characteristics. [4,9,16,18]. The presence of yield stress in Bingham and HerschelBulkleys' models is due to resistance of sludge to deformation until sufficient stress is applied to exceed the yield stress of solid phase. This two rheological models were used to explain rheological characteristic of sludge. The rheological measurements showed that the best statistical approximations to the measured values are obtained with HerschelBulkley model. Correlation coefficient (0.970.99) indicated that the flow of sludge could be fitted best by the pseudoplastic model. Sludges exhibit a yield stress and the viscosity varired with the shear rate (Gp).
The viscometric research for various gravimetric concentrations
of sludge allowed to describe dependence of gravimetric concentration on rheological
parameters. Results are presented as diagrams of dependencies tau_{0} = f(C_{s}),
k = f(C_{s}), and n =
f(C_{s}).
The same calculation procedure was used to investigate each WWTPs. The graphical example of the relationship between rheological parameters and gravimetric concentration for sludge was taken from WWTPs is illustrated in Figs. 3, 4, 5.

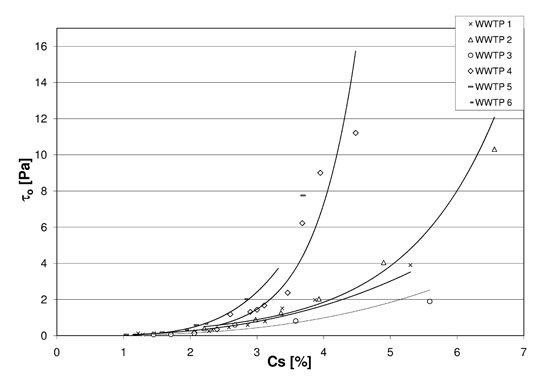

Fig. 3. Dependence of flow yield stress on concentration for HerschelBulkley model

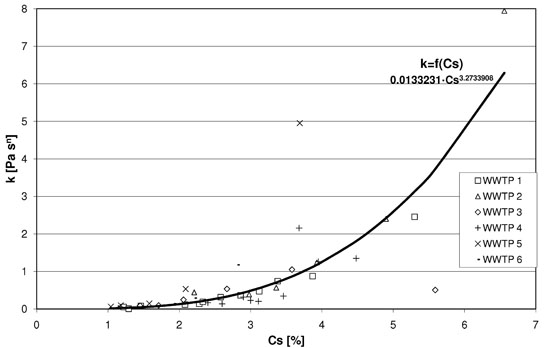

Fig. 4. Dependence of rigidity coefficient on concentration for HerschelBulkley model

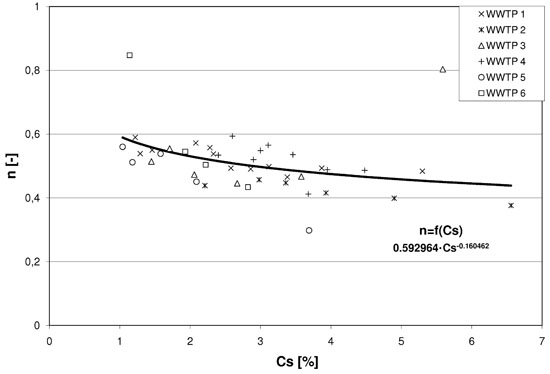

Fig. 5. Dependence of structural number on concentration for HerschelBulkley model
Results indicated that the yield stress was present in a range of analysed gravimetric concentrations. The yield stress is described as a stress to be exceeded to form fluid flow. This means the knowledge of the yield point is crucial in designing the pumping pipeline installations. The research also indicated that the sludge exhibited pseudoplastic behaviour, what supports others discovering [5,16].
According to the viscosymetry method, rheological parameters for HerschelBulkley model (tau_{0}, k, n), used in the gravimetric concentration function, were calculated for each treatment plant. The relationship between rheological parameters tau_{o}, k, n and gravimetric concentration C_{s} were established and are as follows: yield stress and rigidity coefficient of HerschelBulkley model increase, while the structural number demonstrates the decreasing tendency with rising gravimetric concentration (C_{s}).
As it is shown in Figs. (3, 4, 5) presented above the rheological parameters are significantly dependent on the gravimetric concentration (C_{s}). Results confirmed that solid concentration is the main parameter affecting the sludge rheology, as stated in previous studies [5,13,16,19].
The critical concentration C_{s,gr} between Newtonian and nonNewtonian behaviour of the sludge was determined by depending on the function tau_{o}(C_{s}), for tau_{o} = 0 and was calculated using the least squares and power function [2,11,14]. The method is justified by the conversion of the generalised HerschelBulkley rheological model to the Newton model. The critical concentration C_{s,gr} for illustrated series of measurements is from 0.58% (WWTP 6) to 2.41% (WWTP 4).
Table 1. Dependence of gravimetric concentration (C_{s}) and critical concentration (C_{s,gr.})
Lp.
C_{smin}
C_{smin}
C_{s,gr1}
[%]
[%]
[%]

WWTP1
5.30
1.22
1.25
WWTP2
6.56
2.21
1.64
WWTP3
5.59
1.45
1.17
WWTP4
4.48
2.40
2.41
WWTP5
3.69
1.04
0.96
WWTP6
2.82
1.14
0.58
Table 1. Dependence of gravimetric concentration (C_{s})
and critical concentration (C_{s,gr.}) The sludge with gravimetric concentration C_{s} < C_{s},_{gr} behaves like Newtonian fluid, whereas with the concentration of solid constituent C_{s} > C_{s,gr} appears
as nonNewtonian fluid. After exceeding critical concentration the sludge behaves
a the HerschelBulkley substance. The variability of sludge concentrations allowed
the sludge to be described with the 3parameter generalized HerschelBulkley
model, which gets simplified to 2 or 1parameter model, as the gravimetric concentrations
C_{s} reduces.
DISCUSSION OF RESULTS
In order to find an empirical equation illustrating the influence of concentration on the rheological parameters and evaluating the sensitivity of rheological parameters with sludge quality variation, the cumulative analysis was performed.
The cumulative diagram illustrated above presents the dependence of rheological parameters on gravimetric concentration for sludge. The dependency of the yield stress (tau_{0}) increased with an increase in gravimetric concentration (C_{s}). The measured points clearly demonstrated dissipation tendency, especially in the range of higher gravimetric concentrations. Moreover the research allowed the assumption that the yield stress was unique, and timedependent, therefore it should be measured individually for each treatment plant and sludge batch.
In case of the relationship of rigidity coefficient (k) along with structural number (n) for HerschelBulkley model on gravimetric concentration (C_{s}) there was an exponential correlation [13]. This correlation was calculated using least square method and it can be described by exponential function as follows:
for k = f(C_{s}):  k = 0.013332C_{s}^{3.273391} (2)
for n = f(C_{s}):  n = 0.592964C_{s}^{0.160462} (3)
Knowledge of these mathematical formulas can be used
in order to evaluate rheological parameters, such as rigidity coefficient and
structural number, for sewage sludge derived from similar WWTPs and sludge batches
(assuming the similar range of gravimetric concentrations).
CONCLUSIONS
Sewage sludge behaves like nonNewtonian fluids. It is also found to behave as a pseudoplastic fluid in this study. The gravimetric concentration of sludge has the most significant effect on the rheological properties of sludge. With increasing gravimetric concentration, pseudoplastic viscosity increased sharply at high concentration. Sludge samples exhibited yield stress. Therefore, to describe rheological behaviour the 3parameter HerschelBulkley model was applied. The relationship between rheological parameters tau_{o}, k, n and gravimetric concentration C_{s} was established and is as follows: the yield stress and rigidity coefficient of HerschelBulkleys' model increases, while the structural number decreases with rising gravimetric concentration C_{s}.
The rigidity coefficient and structural number of HerschelBulkleys' model can be estimated with the proposed model although the yield stress should be measured individually for each sewage treatment plant and sludge batch. The mathematical models obtained by analysis of the experimental data predicted results reasonably well under experimental condition. Furthermore, it would be possible to evaluate mathematical model of rheological characteristic of sludge, which in turn could allow optimising pump discharge pressure.
The critical concentration C_{s,gr} between Newtonian and nonNewtonian behaviour of the sludge was determined by depending on the function tau_{o}(C_{s}), for tau_{o} = 0 and it is strongly depended on gravimetric concentration of sludge. For the concentration C_{s} < C_{s,gr} it behaves as Newtonian, whereas with the concentration of solid constituent C_{s} > C_{s,gr} it appears nonNewtonian fluid. The critical concentration C_{s,gr} which delimitates Newtonian and nonNewtonian fluid behaviour of sludge is C_{s,gr}.
Units and nomenclature
C_{s}
[%]
gravimetric concentration
C_{s},_{gr}
[%]
critical concentration
G
[s^{1}]
shear rate
G_{p}
[s^{1}]
apparent shear rate, deformation rate
n
[]
structural number
k
[Pa∙s^{n}]
rigidity coefficient for HershelBulkley model
tau_{ }
[Pa]
shear stress
tau_{o}
[Pa]
yield stress
REFERENCES
Bień J.B., MatysiakBień B., Bień J.D., 2004. Charakterystyki reologiczne osadów ściekowych kondycjonowanych polielektrolitami [The rheological characteristics of sewage sludge being conditioned with polyelectrolytes and ultrasonic field]. Inżynieria i Ochrona Środowiska, T. 7, (3/4), 327339 [in Polish].
Czaban S., 1987. Wyznaczanie parametrów hydrotransportu rurowego reostabilnych mieszanin dwufazowych [Determination of parameters of hydraulic transport in pipelines for rheostable diphase mixtures]. Zeszyt Naukowy AR, Rozprawy, 60, Wrocław [in Polish].
Chaari F., Racineux G, Poitou A., Chaouche M., 2003. Rheological behaviour of sewage sludge and straininduced dewatering, Rheologica Acta, 42,3.
Dentel S.K., 1997. Evaluation and role of rheological properties in sludge management, Water Science and Technology, 36(11), 18.
Forster C.F., 2002. The rheological and physicochemical characteristics of sewage sludges , Enzyme and Microbial Technology, 30, 340345.
FryźlewiczKozak B., Trzop M., Wróbel M., 2007. Rheological properties of wastewater sludge http://www.lwr.kth.se/Forskningsprojekt/Polishproject/Krylowetal81.pdf , 21.01.2008.
Giordano C., Pollice A., Laera G, Saturno D, Mininni G., 2007. Influence of solid retention time on the rheology of MBR sludge. Water Sci Technol., 56(8), 1519.
Heywood N., 2003. How to Reduce Pipe Friction in Slurry Flows, Proc. Hydraulic Conveying Association of South Africa, 4th One day seminar on Hydraulic Transport in the mining Industry 7, Indaba Conference Centre, April.
Honey H.C, Pretorius W.A., 2000. Laminar flow pipe hydraulics of pseudoplasticthixotropic sewage sludge, Water Science, 26.
Kempiński J., Malczewska B., 2005. The rheological model of sludge, Acta Scientiarum Polonorum, Formatio Circumiectus 4(1), 99107.
Kempiński J., Malczewska B., 2004. The influence of temperature on rheological properties on sludge'', Proc. ''12th International Conference Transport and Sedimentation of Solid Particles (T&S)'', Prague.
Klinksieg K., Moshage U., Dichtl N., 2007. Rheology and dewaterability of Municipal Sewage Sludge, www.cepis.ops oms.org/bvsaar/cdlodos/pdf/rheologyanddewaterability149.pdf, 21.01.2008.
Malczewska B., 2008. Badanie wybranych własności osadów ściekowych świetle możliwości ich utylizacji [Assessment of utilisation ability in agricultural area of activated sludge from municipal wastewater treatment plant]. Wydawnictwo Uniwersytetu Przyrodniczego we Wrocławiu [in Polish].
Parzonka W., 1977. Basis of hydraulic of diphase mixtures transport in pipelines. Wydawnictwo Naukowe AR, Wrocław.
Slatter P.T., 1999. The hydraulic transportation of thickened sludges, Water SA, 30(5), 6668.
Slatter P.T., 1997. The rheological characterisation of sludges, Water Science and Technology, 36(11), 18.
Soboniak E., Bień B., 2007. The impact of polyelectrolyte dose and sonification time on thixotropic properties of industrial sludge, Environmental protection into the future, 269279, Częstochowa.
Stain F.D., 2002. Effect of solution physical chemistry on rheological properties of activated sludge, Water SA, 28, 2.
Wichemann K., Riehl A., 1997. Mechanical properties of waterworks sludges – shear strength, Water Science and Technology, 36(11), 4350.
Yen PeiShan Y., Chen L.C., Chien C.Y., WU RomeMing, Lee D.J., 2002. Network strength and dewaterability of flocculated activated sludge, Water research 36. 539550.
