EFFECT OF CURING BY INJECTION METHOD, MASSAGING AND PASTEURIZATION ON HISTOLOGICAL CHANGES OF BOVINE MUSCLES

Mirosława Krzywdzińska-Bartkowiak, Hanna Gajewska-Szczerbal
Institute of Meat Technology, The August Cieszkowski Agricultural University of Poznan, Poland

ABSTRACT

The objective of the investigations was to compare changes in the structure elements of selected cattle muscles taking place under the influence of the injection with curing brine, massaging and pasteurization with the assistance of the computer image analysis. The experimental material comprised: the semi-membranous muscle (musculus semimembranosus) and the lumbar part of the longest muscle of the back (musculus longissimus lumborum) which derived from carcasses of mature cows 5 years old. The analysis of the muscle structure was conducted on the basis of the following parameters of muscle fibres: the surface and circumference, Feret’s H and V diameter, percentage proportion of muscle fibres and their quantity in the analysed field of view. The fibre shape was determined on the basis of the H/V ratio. It was found that the closer its value was to one, the more regular was the shape of fibres. The performed analysis of the elements of the examined cattle muscle structure: musculus semimembranosus and musculus longissimus lumborum showed that they depended on the type of muscles. The brine injection processes and massaging increased the cell volume in the semi-membranous muscle. The cells of the longest muscle of the back underwent contraction following the injection with the curing brine, whereas the plasticisation process increased their surface in relation to the untreated muscles.

Key words: muscle structure, curing, plasticization, pasteurization, computer image analysis.

INTRODUCTION

The basic principle of production of food articles is the alteration of the raw material structure affecting the sensory and rheological properties of the finished product. That is why knowledge about the origin and course of structural changes is of crucial importance for the development of new technologies and products [25]. Individual operations that take place during the technological processes of food production cause not only the development of the structure or texture expected by the consumer but, equally importantly, they also cause significant changes in chemical constituents. That is why it is essential to combine all research disciplines of food analytics with the microscopic analysis, since only such combination provides wide and comprehensive basis for the development of new products and modem production processes. The main task of food microscopy is to apply the obtained information in food technology, in other words, it provides a bridge between food science and technology. This role requires a complete mastery over the microscope and good knowledge of the technological processes with the aim to recognise and explain the significance of microscopic observations to food technologists [7].

The knowledge of the effect of individual technological parameters on the course of the process allows its further improvement. It requires ever more accurate information about the value of the produced raw materials in order to obtain from them the best food articles using modern production technologies. From among many methods which are employed to achieve this goal, histological and histochemical methods adopted to light and electron microscopy find increasingly wide application. Histological methods allow indicating structural properties of the examined raw material, tracing changes and responses generated in the tissues and cells by pathological stimuli, effect of the action of the employed technological processes as well as indicating interrelationships between structural and biochemical properties taking place in plant and animal tissues [11].

One of the visual systems is the computer image analysis which is becoming increasingly common in the food industry [1, 14, 15, 19, 20].

Product texture is one of the most important properties of meat products affecting their quality. It is understood as a set of traits resulting from elements of its structure, their mutual arrangements and interactions [3, 6]. The structural unit is muscle fibres and their thickness, quantity and type exert influence on the meat texture [10, 30]. Muscle fibres are among many different structure elements which are associated with ham quality [1]. Numerous researchers maintain that muscles characterized by larger muscle fibres are tougher [19]. The final product quality depends not only on the muscle structure but also on a number of such technological treatments as: injection with the curing brine, plasticization processes and pasteurization [5, 31,32, 33].

The aim of the presented investigations was to compare changes of structural elements of selected cattle muscles taking place following their injection with the curing brine, plasticization processes and pasteurization employing for this purpose the computer image analysis.

MATERIAL AND METHODS

Experimental material
The experimental material comprised the semi-membranous muscle (musculus semimembranosus) and the lumbar part of the longest muscle of the back (musculus longissimus lumborum) which derived from carcasses of mature cows 5 years old. After cutting them out from chilled carcasses, experimental muscles were divided into 4 portions. One of the portions was treated as the control. The remaining three parts were injected with the curing brine applying low-pressure (0.3 MPa) injection using for this purpose a multi-needle, two-head injector. The applied treatment allowed 30% weight increase of experimental samples. One part of the injected muscles was taken for analyses, while the remaining two parts were placed in a tightly sealed plastic bag and subjected to the plasticization process. The effective massaging time was 6 h and 20 min. Again, one of the two samples after massaging was taken for analyses, while the last one was placed in steel cans and pasteurized at the temperature of 72°C and then cooled.

Preparation of histological specimens
Cuboids measuring 10x10x30 were cut out from the collected muscle samples: the control, injected with the brine, massaged and pasteurized. Next, they were fixed in neutralised formalin to prevent tissue destruction. Fixed muscle samples were embedded in paraffin and cut into 10 ·m slices which were placed onto micro slide glass, dried, dewaxed and prepared for staining. A combined slice staining was used applying Delafield haematoxylin and eosin.

Computer image analysis
Investigations of the muscle tissue structure were carried out employing the system of computer image analysis [4, 22] with the assistance of the MultiScan program. An identical procedure of object identification and analysis was developed for all preparations. The preparation structure was studied at constant microscope magnification (x200) and 10 fields of constant area were analysed from each preparation. The characterization of the obtained images was conducted on the basis of the following parameters of muscle fibres: area, circumference, Feret’s diameter H and V, percentage proportion of muscle fibres and their quantity in the analysed field of view. The shape of fibres was determined on the basis of the ratio of H : V diameters. The closer was the value of the quotient to 1, the more regular was the shape of fibres.

Statistical analysis
The obtained numerical data were subjected to statistical analyses using for this purpose the STATISTICA program. The significance of differences was determined by the Fisher test at the level of significance p ≤ 0.05.

RESULTS AND DISCUSSION

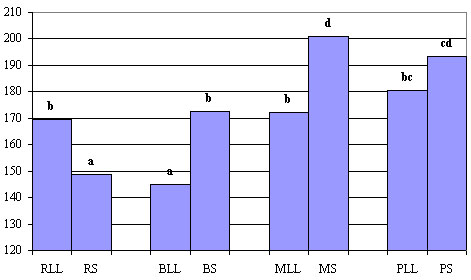

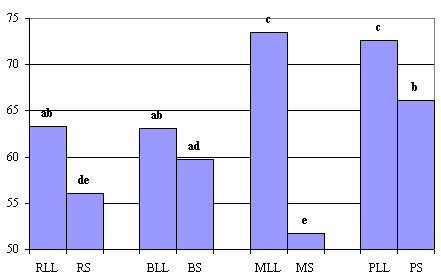

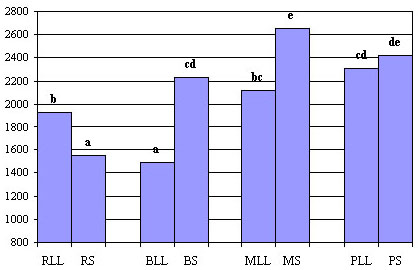

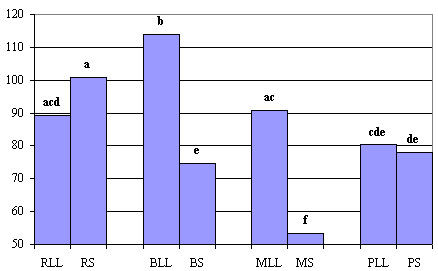

The results of analyses of changes in the structures of the experimental cattle muscles: musculus semimembranosus and musculus longissimus lumborum are presented in Figures 1-4, Photographs 1-4 and in Table 1. On the basis of the results obtained with the assistance of the applied visual system, it was found that changes in the bovine muscles: musculus semimembranosus and musculus longissimus lumborum depended on the muscle type. Differences in the meat histological structure depend, among others, on the animal species or the kind of the muscle [9, 21, 24]. Shackelford et al. showed that muscles from slaughtered animals differed with regard to their texture [27]. Numerous other researchers reported also differences in the muscle structure [12, 13, 17, 34], whereas still others showed that muscles differed with regard to their sensitivity to the plasticisation process [8, 23, 26]. According to Lachowicz and co-workers [19], each type of muscles requires other massaging parameters with the massaging time as the most common measure. Analysing microstructural parameters of Turkey muscles, Kłosowska et al. [13] concluded that the type of muscle fibres, their diameter and quantity may be responsible for the physicochemical differences between breast and thigh muscles.

The cells of the cattle semi-membranous muscle, both raw and injected, were characterised by a fairly regular shape (1.01 and 0.99) (Table 1). The process of injection with the curing brine as well as massaging resulted in the increase of the cell volume in the semi-membranous muscle in relation to the raw muscle (Photos 1, 2 and 3). This is clear from mean measurement results of the cross section area and circumference of muscle fibres carried out in the raw muscles as well as in the injected and massaged muscles between which statistically significant differences were found (Figs 1 and 2). Statistically significant differences were also observed between the amounts of muscle cells calculated in the field of view of the examined images. The increase of the area in the semi-membranous muscle resulted in a simultaneous decline in their quantity (Fig. 3). The applied pasteurization process resulted in muscle contraction (Photo 4).

In contrast to the semi-membranous muscle, cells of the longest muscle of the back underwent shrinkage as a result of the injection with the curing brine. On the other hand, massaging caused some increase of the area and circumference in relation to the raw muscles as well as decrease of their quantity (Fig. 3). This may indicate that the penetration of the majority of brine into the cells of the musculus semimembranosus took place already after its injection with the curing brine, while in the case of the musculus longissimus lumborum – only during the massaging process. During the absorption of the curing brine by the muscle fibres they become rounded and lose their multilateral form [35]. This is caused by increased swelling of proteins part of which passes into the solution of the curing brine [2, 28]. The remaining part of the brine located itself in cell spaces together with the extracted muscular proteins (Photo 3A).

Using the image analysis technique, Lachowicz et al. [17] showed differences in the PSE and normal meats [17]. They found that the PSE meat was characterised by fibres of larger area and diameter as well as smaller quantities of intramuscular fat. The same researcher and his co-workers (1998) applied the above-mentioned technique to show differences in structural properties of pork meat of different genotypes [16]. On the other hand, Sobczak et al. [29] reported differences in the muscle structure of pigs of Pietrain and Duroc breeds and wbp x pbz crossbreds. It was found that harder, more elastic, rubbery and sticky muscles were characterised by coarser connective tissue, greater area of the muscle fibre and smaller content of intramuscular fat.

Comparing the structure of smoked loin obtained from the PLW pork meat and meat of crossbreds of the Czech J_HYB breed and CVM using the computer image analysis it was found that the larger the fibre diameter and its area, the less intramuscular fat is found in the raw meat [20].

CONCLUSIONS

The performed investigations revealed that the semimembranosus muscle was characterised by a greater dynamics of changes of the structural elements on the process of injection and plasticisation than the longissimus lumborum muscle. It was found that processes of injection with the curing brine and massaging increased the volume of cells in the semimembranosus muscle. Cells of the longest muscle of the back underwent compression following their injection with the curing brine and it was only the massaging process which increased their area in comparison with the raw muscles. This may imply that in the case of the semimembranosus muscle, the brine penetrated inside cells already during the process of injection with the curing brine, while in the case of the musculus longissimus lumborum – only during the plasticization process.

REFERENCES

1. Aguilera J.M., 2005. Why food microstructure? J. Food Eng. 67, 3-11.

2. Cassidy R.D., Ockerman H.W., Krol B., Von Roon P.S., Plimpton R.F., Cahill V.R., 1978. Effect of tumbling method, phosphate level, and final cook temperature on the histological characteristic of tumbled porcine muscle tissue. J. Food Sci. 43, 1514.

3. Dolata W., 1993. Porównanie przydatnosci dwóch rodzajów mięsa scięgnistego do produkcji farszów i kiełbas drobno rozdrobnionych [Comparison of the suitability of two types of sinewy meat for the production of forcemeats and finely-ground sausages]. Rocz. AR XVIII, 101-107 [in Polish].

4. Dolata W., Krzywdzińska M., Cierniewska A., 1998. The length of collagen fibres as influenced by the chopping time. Pol. J. Food Nutr. Sci. 7/48, 2 (S), 189-191.

5. Dolata W., Krzywdzińska-Bartkowiak M., Wajdzik J., 2005. Technological effect of plastification on changes in the macrostructure of meat. EJPAU Food Sci.Technol. 8(3) www.ejpau.media.pl

6. Drobisz-Kopydłowska D., 1997. Elektroforetyczna charakterystyka składu białkowego lepiszcza masowanego mięsa wieprzowego [Electrophoretic characterisation of the protein composition of the binding agent of massaged meat]. 28 Sesja Nauk. Komitetu Technologii i Chemii Żywnosci PAN Łódz 155 [in Polish].

7. Fornal J., 1990. Aktualny stan metod badawczych w dziedzinie mikroskopii elektronowej. Postęp w analizie żywnosci. S. Tyszkiewicza [red.] [Current state of research methods in the field of electron microscopy. Progress in food analysis S. Tyszkiewicz [ed.]]. 147-156 [in Polish].

8. Gajewska-Szczerbal H., Krzywdzińska-Bartkowiak M., 2005. Changes in histological structure of porcine and bovine semimembranosus muscles under the influence of mechanical and thermal procedures. Ann. Anim. Sci. Suppl. 2, 25-29.

9. Gajowiecki L., Lachowicz K., Żych A., Sobczak M., Kotowicz M., Żochowska J., Kłos B., 2001. A comparative analysis of technological utility of selected chicken muscles In massaged product manufacture. Folia Univ. Agric. Stein. 220 Sci. Aliment. (1) 29-34.

10. Kłosowska D., 1973. Czerwone i białe włókna w mięsniach różnych ras swiń [Red and white fibres in muscles of different swine breeds]. Zesz. Probl. Post. Nauk Roln. 139, 199-205 [in Polish].

11. Kłosowska D., 1990. Histologiczne metody badania żywnosci. Postęp w analizie żywnosci. S. Tyszkiewicz [red.] [Histological methods of food research. Progress in food analysis S. Tyszkiewicz [ed.]]. 112-126 [in Polish].

12. Kłosowska D., Dankowski A., Kłosowski B., Belzerowska P., Stępka D., 1998. Microstructure of longissimus lumborum muscle and selected characteristics lamb carcass and meat quality. Pol. J. Food Nutr. Sci. 7/48, 3, 493-502.

13. Kłosowska D., Puchajda H., Elminowska-Wenda G., Walasik K., Rosiński A., Mroczkowski S., 2000. Microstructural parameters of the breast and thigh muscles, carcass and meat quality in the heavy type of turkey female. 46th ICoMST 2000, 12-13.

14. Krzywdzińska-Bartkowiak M., Dolata W., Piotrowska E. 2005. The effect of fat substitution with a potato fiber preparation on microstructure of batters and processed meat products. Acta Sci. Pol. Technol. Aliment. 4(2), 97-109.

15. Krzywdzińska-Bartkowiak M., Piotrowska E., Chlebowska M., Dolata W., 2002. Możliwosci zastosowania komputerowej analizy obrazu w technologii mięsa. [Possibilities of application of computer image analysis in meat technology]. COBRABID Apart. Bad. Dydakt. 1, 8-11 [in Polish].

16. Lachowicz K., Gajowiecki L., Dworak J., Czarnecki R., Oryl B., 1998. Texture and rheological properties of meat from pigs of different halothane genotypem. J. Sci. Food Agric. 77, 373-380.

17. Lachowicz K., Gajowiecki L., Klemie A., 1997. Effect of polyphosphate and soya protein on texture and rheological properties of smoked loin obtained from pale, soft, exudative (PSE)-meat. Pol. J. Food Nutr. Sci. 6/47, 4, 93-101.

18. Lachowicz K., Gajowiecki L., Oryl B., Czarnecki R., Dworak J., 1998. Comparison of structure, texture and rheological properties of smoked loin from meat of PLW porkers and their crosser with Czech breeds. Pol. J. Food Nutr. Sci. l7/48, 4, 645-654.

19. Lachowicz K., Sobczak M., Gajowiecki L., Żych A., 2003. Effects of massaging time on texture of three pork ham muscles. Meat Sci. 63, 225-233.

20. Lewicki P.P., 1995. Zastosowanie komputerowej analizy obrazu w technologii żywnosci [Application of computer image analysis in food technology]. Przem. Spoż. 5, 155-157 [in Polish].

21. Liu A., Nishimura T., Takahashi K., 1996. Relationship between structural properties of intramuscular cennective tissue and toughness of various chicken skeletal muscles. Meat Sci. 43(1), 93-96.

22. Lu J., Tan J., Shatadal P., Gerrard D.E., 2000. Evaluation of pork color by using computer vision. Meat Sci. 56, 57-60.

23. Motycka R.R., Bechtel P.J., 1983. Influence of pre-rigor processing, mechanical tenderization, tumbling method and processing time on the quality and yield of ham. J. Food Sci. 48, 1532-1536.

24. Oryl B., 2004. Structure and hardness of selected muscles in young bulls. Pol. J. Food Nutr. Sci. 13/54, 1, 57-63.

25. Sadowska M., 1992. Kolagen mięsa. Budowa, oznaczanie i własciwosci funkcjonalne. [Meat collagen. Structure, determination and functional properties]. Habilitation Diss. Faculty of Chemistry Gdańsk Polytechnic [in Polish].

26. Shackelford S.C., Reagan J.O., Mann T.F., Lyon C.E., Miller M.F., 1989. Effect of blade tenderization, vacuum massage time and salt level on chemical, textural and sensory characteristics of precooked chuck roast. J. Food Sci. 54, 843-845.

27. Shackelford S.D., Wheeler T.L., Kohmaraie M., 1995. Relationship between shear force and trained sensory panel tenderness ratings of 10 major muscles from Bos indicus and Bos taurus cattle. J. Anim. Sci. 73, 3333-3340.

28. Siegel D.G., Theno D.M., Schmidt G.R., 1978. Meat massaging: The effects of salt, phosphate and massaging on the presence of specific skeletal muscle proteins in the exudate of a sectioned and formed ham. J. Food Sci. 43, 327.

29. Sobczak M., Lachowicz K., Czarnecki R., Gajowiecki L., Klemke A., Łochowska J. 2004. Comparative analysis of the susceptibility of selected muscles of pietrain, duroc and polish large whitexpolish landrace pigs to massage-induced changes. Pol. J. Food Nutr. Sci. 13/54, 2, 179-184.

30. Swatland H.J., 1985. Early research on the fibrous microstructure of meat. Food Microstruct. 4, 73-82.

31. Tyszkiewicz I., 1991. Nowoczesne metody mechanicznego oddziaływania na mięsnie [Modern methods of mechanical treatment of muscles]. Gosp. Mięs. 4, 9-11 [in Polish].

32. Tyszkiewicz I., 1995. Technologiczna ingerencja w mikrostrukturę mięsa [Technological interference into the meat microstructure]. Gosp. Mięs. 7, 19 [in Polish].

33. Tyszkiewicz I., Jakubiec-Puka A., 1995. Ultrastructure of mechanically tenderised pork muscle. Meat Sci. 41, 273.

34. Wiklund E., Malmfors G., Lungström K., 1998. The effects of exercise on muscles fibre composition and oxidative capacity in eight bovine skeletal muscles. Sw. J. Agric. Res. 28, 111-116.

35. Xaragayo M., Freixante L., Lagares J., Fernandez E., De Jager-Ponet P., 1998. Wirkung der Vormassage bei der herstellung gegarter Fleischerzeugnisse aus ganzen Musk. Fleichwirtschaft 78, 953-995.

Accepted for print: 26.04.2007
