ESTIMATION OF SATURATED HYDRAULIC CONDUCTIVITY ON THE BASIS OF DRAINAGE POROSITY

Marek Spychalski¹, Cezary Kaźmierowski², Zbigniew Kaczmarek^3
1 Department of Soil Science and Land Reclamation, Agricultural University of Poznan, Poland
² Department of Soil Science and Remote Sensing of Soils, UAM, Poznan, Poland
³ Department of Soil Science, Agricultural University of Poznan, Poland

ABSTRACT

The paper presents relations between drainage porosity (n_d) and the saturated hydraulic conductivity (K_s). The undisturbed soil samples were characterised by the saturated hydraulic conductivity, water retention curve (WRC) and estimated sum of the soil macro and mesopores known as the drainage porosity. The latter sum was estimated from the pF curves as a difference between the total porosity (_t) and the field capacity (FC). Two equations describing these relationships were proposed and the coefficients of the power function of Ahuja et al. [1, 2] were modified. The equations proposed were tested on the original data set and on the independent selected UNSODA data set [23] and compared with other previously published pedotransfer functions (PTFs). The results of the comparative analysis have shown that for 0.03 < _d<0.30 m³ × m^-3, the equation proposed in this paper provides a more accurate assessment of the saturated hydraulic conductivity. It has been also shown that the relation derived is universal and does not depend on the soil texture.

Key words: saturated hydraulic conductivity, drainage porosity, pedotransfer function.

INTRODUCTION

The knowledge of saturated hydraulic conductivity of soil (K_s) is necessary for modelling the water flow in the soil, both in the saturated and unsaturated zone, and transportation of water-soluble pollutants in the soil. The knowledge of this conductivity is also needed in designing of the drainage of the area and in construction of earth dam and levee.

Direct measurements of the saturated hydraulic conductivity are time consuming [5], and a demand of their accuracy leads to a profound increase in their cost [28], therefore, much attention has been devoted to find out a reliable indirect method for estimation of this parameter. In early equations describing this parameter K_s was calculated on the basis of the soil texture – the equations proposed by Hazen, Selheim, USBR, after Wieczysty [41]. Sometimes along with the texture, other physical parameters describing the soil were used, such as the surface area or total porosity (the expression proposed by Krüger after Wieczysty [41]. Unfortunately, the expressions proposed by the above authors had limited applications and the final Ks value was charged with a significant error. In the last twenty years much progress has been made in indirect methods for estimation of different difficult to measure soil characteristics known as the pedotransfer function (PTF) [5]. In these solutions the hydraulic properties of the soil are determined on the basis of routinely, easily and cheaply measurable soil parameters. The pedotransfer function (PTF) has been most often given on the basis of the soil texture, total porosity and bulk density, sometimes along with other soil parameters using the method of multiple regression analysis [6, 9, 10, 14, 32] or the method of neural network analysis [28, 34].

The aim of the study reported was to test different relations between drainage porosity and the saturated hydraulic conductivity.

BACKGROUND

The soil is a porous medium with a developed network of pores. Its natural ability to form aggregates implies that the soil pore network forms structures of a few different pore sizes. The greatest pores are on the external margins of soil aggregates while the smallest form a network of micropores inside the aggregates [7, 8]. Water is much more mobile in the macro than in the micropore network, which is a consequence of the character and intensity of forces acting on the water molecule in these two types of network [13, 22].

The size and distribution of pores in the soil depend on the soil texture, structure and bulk density. Literature provides a number of relations between different texture characteristics and the saturated [4, 9, 10] or near-saturated hydraulic conductivity [16] and between the bulk density and the saturated hydraulic conductivity [42].

As follows from the results of [11, 12, 15, 21, 22, 24, 25, 27, 32] the most important factor determining the value of K_s is the distribution of soil pores, and in particular the total content of macro and mesopores, known as the drainage porosity (_d). This parameter is a difference between the total porosity (_t) and field capacity (FC), assumed as water content at different soil water matric potentials (5 kPa, 10 kPa or 33 kPa). The drainage porosity depends mainly on soil structure and bulk density.

The idea of the saturated hydraulic conductivity calculation on the basis of non-capillary porosity was introduced by Baver [3]. On the basis of the equation proposed by Kozeny [20] Ahuja et al. [1, 2] derived the following relation between Ks and the drainage porosity (n_d):

Ks = B(d)m

(1)

where (n_d) is the difference between the total porosity (n_t) and the field capacity (FC at 33 kPa), B is a constant depending on the type of soil and m is an empirical coefficient. The formula derived by Ahuja et al. [1, 2] was adapted by Suleiman and Ritchie [37], who determined Ks on the basis of the drainage porosity (n_d) and the relative drainage porosity (_dr), defined as _d/FC , where FC is measured in laboratory at 33 kPa or in the field after 2 or 3 days of drainage. Unfortunately, the analysis of the accuracy of the proposed dependencies Ks(_d) and Ks(_dr) proved large errors in the estimation of Ks.

Minasny and McBratney [28] have adapted the drainage porosity determined for FC at 10 kPa to the equation proposed by Ahuja et al. [1, 2] obtaining the highest accuracy of estimation of Ks on inhomogeneous validation data sets. From among the earlier PTFs (either without n_d or with _d defined in a different way) a comparably high accuracy of estimation was provided only by the model of Rosetta (35). This result is an indirect confirmation of the correctness of determination of _d for FC at 10 kPa.

Irrespective of the relationships proposed between the drainage porosity and saturated hydraulic conductivity, a number of models have been proposed in which Ks is estimated on the basis of the soil texture [9, 10, 33] or texture and bulk density [14, 34]. However, the hitherto proposed PTFs are not universal because, as shown by Minasny and McBratney [28] in particular textural groups (sandy, loamy and clayey) the highest accuracy of prediction was found for different earlier published multifactor dependencies in which drainage porosity was not taken into account: that by Dune and Puckett [10] for sandy soils, by Cosby et al. [9] for loamy soils and by Schaap et al. [34] for clayey soils.

MATERIALS AND METHODS

The relationships between selected physical properties and the saturated hydraulic conductivity in soil were studied on 35 samples of which 28 represented the natural soil horizons and 7 came from model studies. The soil profiles studied belonged to Glossaquic Hapludalfs and Typic Endoaquolls developed from glacial till of Würm glaciation, located in Kleczew near Konin (4 profiles), and in Złotniki near Poznań (4 profiles) [17]. From these soil profiles undisturbed soil samples (100 cm³) and disturbed monoliths samples of soil with an interrupted structure were taken from selected genetic horizons and parent material up to the depth of 2,7 m. In the model study the field capacity and saturated hydraulic conductivity were determined for 7 bulk density levels of eolian sand deposits near Wielowies Klasztorna.

In the disturbed samples the particle size distribution was determined on a hydrometer [31], organic C content was determined by the Walkley-Black method [30] and the particle density by a picnometer [36]. The saturated hydraulic conductivity was determined in laboratory by the constant head method [18], as a mean value of four measurements. The water retention curves (WRC) were determined as mean values of four replicates using 1 bar ceramic plate [19]. The bulk density of the soil was measured in all samples used for Ks and WRC measurements. The sum of macro and mesopores (diameter > 30µm), called henceforth the drainage porosity (_d) was found as the difference between the total porosity (_t) and water content at 10 kPa (field capacity – FC):

d = t – FC

(2)

The regression equations describing the relations between n_d and Ks were assessed by the statistical measures.

The coefficient of determination, R², was found from the classical equation (26):

(3)

where:
P_i – predicted value
O_i – observed value
µm₀, σ₀ – mean value and standard deviation of observed values
µm_p, σ_p – mean value and standard deviation of model predictions

The Akaike Information Criterion (AIC) in modification of Webster and McBratney [40] was used for intercomparison of equiparameter models and for selection of the best predictive soil hydraulic function:

(4)

where:
N – number of data points, np – number of PTF parameters, P_i – predicted value, O_i – observed value

Taking into account the log-tailed distribution of Ks, lognormal transformation was used. To compare the absolute accuracy of the proposed and existing PTFs the root mean square residual (RMSR in ln(µm×s^-1, eq. 5) was calculated as (28):

(5)

Following Titije and Hennings [38] the geometric mean of error ratio (GMER) and geometric standard deviation of the error ratio (GSDER) were calculated as:

(6)

(7)

where:
ε_i = P_i / O_i

GMER indicates an average factor, the predicted values is overestimated if GMER >1 or underestimated if GMER < 1. GSDER indicates the deviation around the mean (GMER) and PTF is exact only if GSDER is 1 [28, 38].

Comparative analysis was performed on the independent set of data being a selected UNSODA set [23]. Analysis of the methods of determinations of Ks and the characteristics describing the physical properties of soils from this data set has shown that the set is genetically inhomogeneous and should not be used as a validation data set in the studies. Therefore, the analysis was performed on the selected UNSODA data set [23]. We took into account only the mineral soil horizons for which Ks was determined by the constant head, failing head and steady flux methods, and for which the water retention curves and particle size distribution was analysed; with bulk density higher then 1 Mg × m^-3. We excluded also the soil horizons for which the volumetric water content was higher then total porosity. As a consequence we obtained a quasi-homogeneous validation data set consisting of 128 soil horizons, called henceforth the selected UNSODA data set [23].

RESULTS AND DISCUSSION

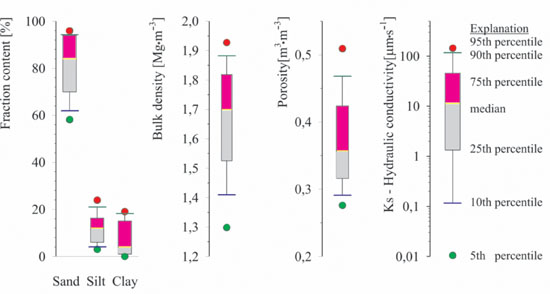

The training data set (N=35) consists mainly of sandy loams and loamy sands with particle density in the range 2.64 ÷ 2.66 Mg/m³, bulk density in the range 1.49 ÷ 2.0 Mg/m³, and total porosity in the range 0.25 ÷ 0.43 m³/m³. A comparison of our data with the reduced set UNSODA [23] reveals considerable differences in the parameters of histograms of the corresponding physical properties of the soils to which they refer (boxplots in Fig.1). For example in 75% of our samples (soil horizons) the silt content (50-2 µm) does not exceed 18%, while in the selection of UNSODA data set this content of silt is exceeded in 75 % of soil samples. Still greater differences are noted between the distributions of the soil bulk density and total porosity. In the selection of UNSODA set over 75 % of samples have dry bulk density ρ_d < 1.57 Mg × m^-3, while only 10% of our samples have bulk density in this range.

As a result of the analyses we propose the use of the modified parameters of Ahuja et al., [2] (equation 10) or the two original equations for Ks(_d) (eqn. 11 and 12; Table 1). Analysis of the accuracies of the Ks estimations obtained with the equations proposed (eqn. 10-12) and with the use of the hitherto published PTFs, on the current data set, has proved the advantage of the equations derived in this work (Table 2).

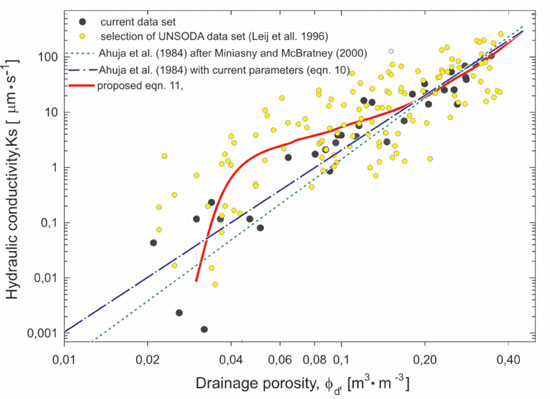

It is worth emphasising that the plot of the power dependence of K_s(_d) proposed by Ahuja et al. [2] is linear in the log-log coordinates and in the range of small drainage porosities it deviates significantly from the experimental data (Fig. 2). The results of measurements suggest a curvilinear character of the dependence K_s(_d) also in the logarithmic system of coordinates. The character of this dependence is determined by the changes in the character of water flow at extremely low and extremely high values of drainage porosity. A significant reduction in the saturated hydraulic conductivity in the range of minimum drainage porosity (_d< 0.03 m³ × m^-3) is a consequence of a decreased rate of water flow through the soil following from diminished water flow in the network of macro- and mesopores and its increased flow through the network of micropores [ < 30 µm]. In the range of high drainage porosity (_d > 0.2 m³ × m^-3) a small increase in this quantity corresponds to a great increase in the saturated hydraulic conductivity, which follows from the effect of increased diameter of capillaries on the rate of the water flow and from the change in the character of this flow from the laminar, through intermediate to turbulent. In view of the above, the proposed curvilinear equations [11 and 12] seem more adequate for description of the dependence K_s(_d). The use of the equations proposed is limited for (_d > 0.033 m³ × m^-3), but in the range of their applicability they provide estimation of Ks to a significantly better accuracy [RMSR = 0.73 ln(µm × s^-1), table 2].

A recent analysis of the accuracy of Ks estimations according to different PTFs by Minasny and McBratney (28) has shown that on an independent data set the highest accuracy of Ks estimation (RMSR = 2.09 ln(µm × s^-1) provided the model of Ahuja et al. (1984) with the parameters proposed by Minasny and McBratney [28], and for the model Rosetta 1.2/2 [35].

When applied to the current data set, the solution proposed by Minasny and McBratney [28] provides the best accuracy of Ks estimation [(RMSR = 1.07 ln(µm × s^-1), Table 2] and along with the model of Rosetta 1.2/3 (35) gives the best value of the geometric mean of error ratio (GMER = 0.73 and 1.3; respectively). However, still these accuracies are worse than those achieved with the equations proposed in this work (eqn. 11 and 12, Table 3).

It should be noted that a comparative study has been performed only for those PTFs, whose quality has been established in earlier analyses [28, 34, 38]. The exception is the model proposed by Jabro [14], hitherto not verified, but used in the model study Vieira et al. [39].

The hitherto proposed PTFs have been also tested on the independent selection of UNSODA data set [23], and the corresponding measures of the goodness-of-fit are given in Table 3.

The results of analogous analyses performed on the current data set (Table 2) proved a higher accuracy of Ks estimation with equation 12, while the accuracy of predictions with equation 12 was somewhat lower. The accuracy of Ks estimation by both these equations on an independent data set clearly points to a higher goodness-of-fit of equation 12 (Table 3). The fact that the best fits were obtained with the use of equation 11 suggests its universal character, however, under the above-mentioned limitations of its use.

The model Rosetta 1.2/3 [35], developed on UNSODA data set, gives in fact the highest coefficient of determinations (R² = 0.499, Table 3), however, the absolute error of this model is 36 % higher than that of equation 12 (RMSR = 1.55 and 1.25 ln(µm × s^-), respectively; Table 3).

In general, the models taking into account only the soil texture, bulk density and total porosity [9, 35, 14, 10] provide predictions with poor accuracy (Tables 2 and 3). These models have been developed on large data sets (Table 2) and their low accuracy is related to the fact that they use only parameters indirectly related to Ks. According to the data shown in Fig. 1 the distributions of Ks in both data sets analysed are similar in spite of significantly different distributions of the soil texture, bulk density and total porosity. The absolute error of the above-given models on both data sets (RMSR in Tables 2 and 3) clearly shows that their accuracy of Ks estimation is lower than that of PTFs using the drainage porosity concept Ahuja et al. [2] and proposed eqn. 11 and 12. The only exception is the model Rosetta, developed on the basis of physical parameters of the soil by the method of neural network analysis. This model is recommended when the drainage porosity data are not available or when the values of this parameter are beyond the range of the equation applicability.

Analysis of the accuracies of predictions by different PTF, on the current and the validation data sets (Tables 2 and 3) indicates that for the soils of high density (the current data set) the majority of PTF overestimate Ks (GMER>1, Table 3), except that proposed by Minasny and McBratney [28]. For the soils of smaller densities (selection of UNSODA data set) [23] only the models proposed by Saxton et al. [33] and Jabro [14] overestimate the value of Ks. This comparative analysis also shows (Table 3) that for the soils of intermediate bulk densities eqn. 11 proposed in this work provides the best accuracy of predictions [RMSR = 1.25 ln(µm × s^-1) table 3], negligible error ratio (GMER = 1.03) and the lowest geometric deviation of error ratio (GSDER = 3,50), whereas for the soils of high densities more accurate estimation of Ks is provided by eqn. 12 (RMSR = 1.33 ln(µm  ×  s^-1), GMER = 0.808 and GSDER = 3.71; Table 3).

The practical application of the equations presented is only determined by the knowledge of FC at 10 kPa, the parameter necessary for estimation of the drainage porosity. The availability of these data is often limited. The procedure of determination of FC is time consuming and needs special equipment and undisturbed soil samples, which is a significant drawback in the use of the relations proposed. Hence, a natural continuation of the study will be the search for a possibility of indirect assessment of Ks and FC on the basis of the standard analytical data. It seems that an increase in the accuracy of Ks estimation by PTFs can be achieved by analysis of Ks(_d) relationships on large and genetically homogeneous data sets or by applying the ANN method for this data sets.

CONCLUSIONS

1. The results presented have fully confirmed the thesis that the drainage porosity has determining effect on the saturated hydraulic conductivity of water in soil. Therefore, the drainage porosity can be treated as a universal parameter describing the physical soil condition, its relative with soil compaction and soil structure.

2. The relation K_s= f(_d) has been described by the equation proposed by Ahuja et al. (2), which, in the light of the results reported in this work, is insufficient and not fully correct as it assumes a linear character of this relation in the log-log system of coordinates. The relation proposed in this paper (K_s = a + b _d^1.5 + c _d^2.5 + d _d³ where: a = -2.52; b = 581.598; c = 6966.14; d = 11693.78) curvilinear in the log-log system of coordinates, has enhanced the accuracy of estimation of Ks. The proposed K_s(_d) relations has been derived on the basis of a relatively small data set (N = 35), however, their verification on the independent validation data set indicates accurate estimation of Ks(_d).

ACKNOWLEDGEMENTS

Financial support from the state budget under project No 2 PO4G 094 28 is gratefully acknowledged.

REFERENCES

1. Ahuja L.R., Naney J.W., Green R.E., Nielsen D.R.; 1984. Macroporosity to characterize spatial variability of hydraulic conductivity and effects of land management. Soil Sci. Soc. Am. J.; 48: 699-702.

2. Ahuja L.R., Cassel D.K., Bruce R.R., Barnes B.B.; 1989. Evaluation of spatial distribution of hydraulic conductivity using effective porosity data. Soil Sc.; 148: 404-41.

3. Baver L.D., 1938. Soil permability in relation to non-capilary porosity. Soil Sci. Soc. Am. J.; 3: 52-56.

4. Bloemen W., 1980. Calculation of hydraulic conductivities of soils from texture and organic matter content. Z. Pflanzenernäh. Bodenkd.; 43: 581-605.

5. Bouma J., van Lanen J.A.J.; 1987. Transfer functions and treshold values: from soil characteristics to land quqlities. In: Beek, K.J. et al. (Eds.), Quantified Land Evolution Procedures. International Institut Aerospace Surv. and Earth Sci., ITC Publication; Enschede; 6: 106-110; The Nederlands.

6. Brakensiek D.L., Rawls W.J., Stephenson G.R.; 1984. Modifying SCS hydrologic soil groups and curve numbers for rangeland soils. ASAE paper no. PNR-84-203; St. Joseph / MI.

7. Brewer R.; 1964. Fabric and Mineral Analysis of Soils. John Wiley & Sons, New Yorc.

8. Brewer, R.; 1976. Fabric and Mineral Analysis of Soils. 2^nd print. Kreiger Publ. Co. Huntington, New York.

9. Cosby B.J., Hornberger G.M., Clapp R.B., Ginn, T.R.; 1984. A statistical exploration of soil moisture characteristics to the physical properties of soils. Water Res. Res.; 20: 682-690.

10. Dane J.H., Puckett W.; 1994. Field soil hydraulic properties based on physical and mineralogical information. W Genuchten at al. (red): Proceednings of the International Workshop on Indirect Method for Estimation Hydraulic Properties of Usaturated Soils, Univ. of California, Riverside, CA; 389-403.

11. Espeby B.; 1990. An analysis of saturated hydraulic conductivity in a forested glacial till slope. Soil Science 150; 2: 485-494.

12. Felton G.K., Ali M.; 1992. Hydraulic parameter response to incorporated organic matter in the B-horizon. Transactions of the ASAE, 34; 4: 1153-1160.

13. Gerke H.H., van Genuchten M.Th.; 1993. A dual porosity model for simulating the preferential movement of water and solutes in structured porous media. Water Res. Res.; 21: 990-996.

14. Jabro J.D.; 1992. Estimation of saturated hydraulic conductivity of soils from particle size distribution and bulk density data. Trans. ASAE 35; 2: 557-560.

15. Jarvis N.J.,. Jansson P.E., Dik P.E., Messing I.; 1991. Modeling water and solute transport in makroporous soil. I. Model description and sensivity analysis. J. Soil Sci.; 42: 59-70.

16. Jarvis N.J., Zavattaro L., Rajkai K., Reynolds W.D., Olsen P.A., McGechan M., Mecke M., Mohanty B., Leeds-Harrison P.B., Jacques D.; 2002. Indirect estimation of near-saturated hydraulic conductivity from readily available soil information. Geoderma; 108: 1-17.

17. Kaczmarek Z., Owczarzak W., Mocek A.; 2000. Własciwosci fizyczne i wodne gleb płowych i czarnych ziem położonych w bezposrednim sšsiedztwie odkrywki Kazimierz KWB Konin. [Physical and water properties of soil lessives and black earths situated in the direct neighbourhood of the Kazimierz open cast mine of KWB “KONIN”]. Rocz. AR Poznań 56: 265-276; [in Polish].

18. Klute A., Dirksen, C.; 1986. Hydraulic conducticity and difusivity: laboratory methods. In: Klute A. (Ed.). Methods of Soil Analysis; Part 1: Physical and Mineralogical Methods. 2^nd edn. Agron. Monogr. 9 ASA and SSSA, Madison, Wi.

19. Klute A.; 1986. Water retention: Laboratory methods. In: Klute A. (Ed.). Methods of Soil Analysis; Part 1: Physical and Mineralogical Methods. 2^nd edn. Agron. Monogr. 9 ASA and SSSA, Madison, Wi.

20. Kozeny J.; 1933. Theorie und berechnung der brunnen. [Theorie and calculation of a well] Wasserkroft W. Wasser Wirtschoft, 29 [in Deutch].

21. Kutilek M., Nielsen D.R.; 1994. Soil hydrology. GeoEcology textbook. Catena Verlag; Cremlingen-Destedt. Germany.

22. Lebron I., Schaap M.G., Suarez D.L.; 1999. Saturated hydraulic conductivity as affected by pore size and pore geometry in soils with variable chemical composition. Water Resources Research 35; 10: 3149-3158.

23. Leij F.J., Alves W.J., van Genuchten M.Th.; 1996. The UNSODA unsaturated soil hydraulic database, version 1.0. Riverside, Calif.:U.S. Salinity Lab., U.S. Dep. Of Agriculture.

24. Lin H.S., McInnes K.J., Wilding L.P., Hallmark C.T.; 1999. Effects of soil morphology on hydraulic properties: II Hydraulic Pedotransfer Functions. Soil Sci. Am. J.; 63: 955-961.

25. Mbagwu J.S.C., Lal R., Scott T.W.; 1984. Effect of artificial desurfacing on Alfisols and Ultisols in southern Nigeria: II. Changes in soil physical properties. Soil Sci. Soc. Am. J.; 48: 834- 838.

26. McClave J.T., Dietrich F.H.; 1988. Statistics. Forth edition. Dellen Publishing Company, USA.

27. Messing I.; 1989. Estimation of the saturated hydraulic conductivity in clay soils from soil moisture retention data. Soil Sci. Soc. Am. J.; 53: 665-668.

28. Minasny B., McBratney A.B.; 2000. Evaluation and development of hydraulic conductivity pedotransfer functions for Australien soil. Aust. J. Soil Res.; 38: 905- 926.

29. Minasny B., McBratney A.B.; 2002. The efficiency of varous approaches to obtaining estimates of soil hydraulic properties. Geoderma; 107: 55-70.

30. Nelson D.W., Sommers, L.E.; 1982. Total carbon, and organic matter. Methods of soil analysis, Part 2. Chemical and microbiological properties. Agronomy Monograph no. 9 (2nd edition), S. Segor (Ed.), ASA-SSSA, Madison, USA.

31. Polski Komitet Normalizacyjny; 1998. PN-R-04032: Gleba i utwory mineralne. Pobieranie próbek i oznaczanie składu granulometrycznego. [Soil and mineral soil materials. Sampling and determination of particle size distribution]. Warszawa, Poland, 12 p. [in Polish].

32. Rawls W.J., Gimenez D., Grossman R.; 1998. Use of texture, bulk density, and slopeof the water retention curve to predict saturated hydraulic conductivity. Trans. ASAE 41; 4: 983-988.

33. Saxton K.F., Rawls W.J., Romberger J.S., Papendick R.I.; 1986. Estimating generalized soil water characteristics from soil texture. Soil Sci. Soc. Am. J.; 50: 1031-1036.

34. Schaap M.G., Leij F.J., van Genuchten M. Th., 1998. Neural network analysis for hierarchical prediction of soil hydraulic properties. Soil Sci. Soc. Am. J.; 62: 847-855.

35. Schaap, M.G., 2000. Rosetta. Version 1.2. U.S. Salinity laboratory USDA, ARS, Riverside, California. Available at http.://www.ussl.arsusda.gov

36. Soil Conservation Service; 1992. Soil Survey laboratory methods manual. Soil Survey. Invest. Raport No. 42., U. S. Dept. Agric., Washington, DC.

37. Suleiman A.A, Ritchie J.R.; 2001. Estimating saturated hydraulic conductivity from soil porosity. Transactions of the ASAE 44; 2: 235-339.

38. Tietje O., Hennings V.; 1996. Accurancy of satureted hydraulic conductivity prediction by pedotransfer functions compared to the variability within FAO textural classes. Geoderma; 69: 71-84.

39. Vieira S.R., Reynolds W.D., de Jong R., Topp G.C., Clemente R.; 1997. Mapping groundwater pollution risk with an agricultural watershed using modeling, Geostatistics and GIS. International Institute for Aerospace Survey and Earth Sciences (ITC) Journal. Special Congress Issue (on CD-ROM), 21p.

40. Webster R., McBratney A.B.; 1989. On the Akaike information criterion for choosing models for variograms of soil properties. J Soil Sci.; 40: 493-496.

41. Wieczysty A.; 1982. Hydrogeologia inżynierska. [Engineering hydrogeology]. 2^nd edn. PWN, Warszawa, [in Polish].

42. Xu D., Mermoud A.; 2001. Topsoil properties as affected by tillage practices in North China. Soil Till. Res.; 60: 11-19.
