FIELD PERFORMACE OF ‘SENGA SENGANA’ STRAWBERRY PLANTS (FRAGARIA × ANANASSA DUCH.) OBTAINED BY RUNNERS AND IN VITRO THROUGH AXILLARY AND ADVENTITIOUS SHOOTS

Wojciech Litwińczuk

ABSTRACT

Strawberry plants of ‘Senga Sengana’ cv. obtained in vitro from axillary (K-V0) and adventitious (P-V0) shoots were compared with their runner progeny (K-V1 and P-V1, respectively) and with standard runner (S, control) plants under field conditions. No differences were found in leaf shape and colour. In the planting year, in vitro obtained plants, both ‘K-V0’ and ‘P-V0’, developed significantly more crowns and runners while compared to other groups. Such differences, especially in runners’ number were not observed in the next two years. Flowering behaviour was appreciably influenced by propagation method. In the planting year, all in vitro propagated plants and about 80% their runner progeny flowered contrary to control (the only 3% plants). Every year ‘V0’ plants developed significantly more inflorescences than other studied groups. Plants obtained in vitro produced bigger fruits and higher yield than other groups in the first two years. However, a

Key words: field performance, micropropagation, strawberry, axillary shoots, adventitious shoots, runners, culture in vitro.

INTRODUCTION

The method of micropropagation of strawberry was elaborated about thirty years ago Boxus [2]. However, there are still some problems with it. Adventitious shoots occur spontaneously and are common in strawberry cultures in vitro [2, 4, 9, 10, 11, 28]. Adventitious cultures of many species are suspected to be the main source of somaclonal variation [5]. Although many successful studies were carried out to improve adventitious buds initiation from callus [17, 24, 25, 30, 38, 39], leaves [28, 29, 31, 39], leaf petioles or stipules [4, 9, 10, 11, 12, 22, 25, 28] and roots [30] of strawberry, the adverse method of adventitious shoots’ suppression without retardation of axillary shoots’ growth is still not elaborated. On the other hand the micropropagation of strawberry by adventitious shoots should be more effective, easier and cheaper than by auxillary ones as the rate of multiplication of such shoots is often much higher [9, 10]. Numerous studies on field performance of micropropagated and standard (runner) strawberry plants were carried out. However, there exists little knowledge of the field behaviour of strawberries obtained in vitro from adventitious shoots. Swartz and Lindstrom [34], Marcotrigiano et al. [20], Boxus [2], Jemmali et al. [9] concluded that plants of adventitious origin produce more stolons and flowers. It was confirmed by Janečkova et al. [8] in the case of ‘Senga Sengana’ somaclones obtained from leaf discs. Some authors reported that hyperflowering may be reduced even by single propagation of TC plants by runners [1, 15, 19, 34]. Micropropagated strawberry plantlets readily develop runners even at the end of adaptation stage especially under long-day photoperiod. Thus, standard method of strawberry propagation (by runners) may be applied very early, in the glasshouse. It should be interesting to reveal whether such plants are more similar to plants obtained by runners in the field nurseries or to those obtained in vitro. The aim of the study was to find o ut whether growth and fruiting habit of strawberry plants are affected by propagation method.

MATERIALS AND METHODS

The experiment was carried out in years 1999-2001 on five groups of ‘Senga Sengana’ strawberry plants (Fragaria × ananassa Duch.) obtained by runners and by micropropagation (tab. 1). Cultures in vitro were established in the Research Institute of Floriculture and Pomology in Skierniewice. Then they were grown in Department of Plant Production of Cracow Agricultural University (currently Department of Plant Production of Rzeszów University). The medium recommended by Boxus [2] supplemented with 6-benzylaminopurine (BA, 0.5 mg dm^-3), gibberellic acid (GA₃, 0.1 mg dm^-3), indole-3-butyric acid (IBA, 0.1 mg dm^-3), glucose (40.0 g dm^-3) and Bacto-Difco agar (6.4 g dm^-3) was applied. Two kinds of explants were used: rosettes and leaf petioles (with stipules) to obtain axillary (K) and adventitious (P) shoots. Afterwards shoots were multiplied and sub sequently rooted in vitro on Boxus medium without BA and GA₃. Obtained plants (V0) were transplanted to mixture of peat, perlite and Groadan (6:2:2 v/v, pH = 5.5) fertilised with ‘Peters Professional Plant Starter^TM’ in the end of October 1998. They have been grown for 3 weeks at high air humidity in 16h/8h day/night photoperiod under sodium light at 64.4 ľmolˇm^-2ˇs^-1 PPFD and 21ą3°C temperature. In mid December 1998 plants were replanted to 0.2 dm^-3 pots. During adaptation plants developed runners which were used to obtain next generation (V1). Control (S) strawberry plants came from the Fruit Experimental Station Research Institute of Floriculture and Pomology Brzezna Ltd. The were digged up from field nursery in the spring. Both ‘V1’ and ‘S’ plants were also transferred to 0.2 dm^-3 pots filled with the same medium as that for ‘V0’ plants in mid April 1999. All plant were sprayed every 2 weeks with solution of ‘Floro vit^TM’ fertilizer (1%) and fungicides, like: Previcure^TM (0.15%), Topsin M^TM (0.1%), Rovral^TM (0.2%) or Euparen^TM (0.2%). Before planting to the field plants have been hardened for 1 month. A randomised block design (5 blocks × 6 plants in block for every of 5 propagation methods) was established in May 1999. Plants were placed at 0.4 m × 0.35 m distance on 1 m wide raised bed covered with black ‘Neotex^TM’ fabric in loess brown soil (pH 5.6) fertilised with 75 kg N ha^-1, 100 kg K₂O ha^-1 and 50 kg P₂O₅ ha^-1. Plants were watered immediately after planting. Thereafter they were not irrigated. Plant were sprayed about 4 times per year with solution of fungicides: Topsin M^TM (0.1%) and Rovral^TM (0.2%) or Euparen^TM (0.2%) and fertilizers: ‘Florovit^TM’ (1%) or ‘Nowokont^TM’ (1%). Other pesticides an d fertilizers were not applied. Every year in autumn all runners were removed. Aditionally, in 2000, all leaves were cut off after fruit harvest.

Every year the following traits were recorded: angle of terminal leaflet base (on 3 typical leaves), number of crowns, runners, inflorescences per plant, number of flowers (on 3 typical inflorescences). In 1999 colours of leaf blades and stipules were evaluated and berry size was scored (1 – φ < 1 cm; 5 – φ > 4 cm). During the period 2000-2001 the size and weight of 3 ripe fruits per plant was recorded. This was done in 12 pickings (6/year) every 3 days. The total number of ripe fruits per plant was also noted in every picking. Collected data were submitted to ANOVA, LSD mean separation test at p = 0.05 significance level and cluster analysis according to Ward’s method using Statgraphics 4.2 and Statistica 5.1 computer software.

RESULTS

No differences among examined plants were found in colour of leaves and stipules. The shape of terminal leaflet as well as the angle of its base remained unchanged also (tab. 2).

In the planting year, in vitro obtained plants, both ‘K-V0’ and ‘P-V0’, developed significantly more crowns while compared to other groups (tab. 3). In the second year such differences were significant among ‘V0’ plants and their progeny (V1) whereas in the third year the only ‘P-V0’ plants produced significantly more crowns. The variation of all examined groups of plants was similar (tab. 3).

Differences among studied groups in plant runnering were visible in the first year only (tab. 4). Micropropagated plants developed significantly more stolons and were more uniform than their progeny (V1) and control plants (S). Such differences were not observed in the next two years (tab. 4).

Plant runnering was most intense in second year whereas was strongly inhibited in third year after planting. The behaviour of all tested groups was similar (tab. 4).

Flowering of plants was appreciably influenced by propagation method. In the planting year, all in vitro obtained plants and majority of their runner progeny (78% and 82% for ‘K-V1’ and ‘P-V1’, respectively) flowered, contrary to control (only 3% plants). The differences among ‘V0’, ‘V1’ and ‘S’ groups were significant. All examined plants bloomed in the next two years. Every year micropropagated plants formed significantly more inflorescences than other studied groups (tab. 5). The only in the first year the number of inflorescences determined for plants of adventitious origin ‘P-V0’ was higher than that for plants multiplied by axillary shoots ‘K-V0’. The ‘V0’ plants were more uniform than their progeny (V1). The differences among plants propagated by runners (‘V1’ and ‘S’) were not found in 1999 and 2001. However, in 2000 the ‘P-V1’ plants developed more inflorescences than ‘S’ and ‘K-V1’ ones.

Some differences among studied plants were found while the number of flowers in inflorescence was considered. However, they were not year-stable. The control plants formed less complex inflorescences in the first two years than other groups (tab. 6). Such difference was not proved in 2001. At that year the ‘P-V1’ plants developed less flowers in inflorescence. Other differences were not statistically proved (tab. 6). The variation of all studied groups was similar.

The plants obtained in vitro (V0) produced significantly more fruits than other groups both in 2000 and 2001 (tab. 7). It was observed also that the ‘P-V1’ plants gave more berries than ‘S’ and ‘K-V1’ ones in 2000. All studied groups of plants bore more fruits in 2000 than in 2001. However, stronger reduction in fruit number was noted in case of ‘V0’ plants (-69% and-65% for ‘P-V0’ and ‘K-V0’, respectively) than for their progeny and control (-61%, -53%, -39% for ‘P-V1’, ‘K-V1’ and ‘S’, respectively). The ‘V0’ plants were more uniform in number of harvested fruits than their progeny in 2000. The variation of all studied groups in 2001 was similar (tab. 7).

Visible differences in plant yielding were observed in the first two years while the ‘V0’ groups yielded significantly better than other groups (tab. 8). (The fruit yield for 1999 was not determined. However, it should be much higher for ‘V0’ plants as they developed significantly more inflorescences than other groups). In general the highest yield of fruits was obtained in 2000. In the following year a drastic reduction in plant yielding was observed in the case of ‘V0’ plants (-58% and -48% for ‘P-V0’ and ‘K-V0’, respectively). It was not so strong for their progeny (-42% and -19% for ‘P-V1’ and ‘K-V1’, respectively) and was not noted for the control plants where yield of fruits even increased (+12%). Despite of it, the differences among studied groups in plant yielding were not confirmed in 2001 (tab. 8). The ‘V0’ plants were more uniform in fruit harvest than their progeny and control in 2000. The variation of all studied groups in 2001 was si milar (tab. 8).

The fruit size and weight were affected by propagation method and year of harvest (tab. 9-12). In general, fruits collected from ‘V0’ plants were slightly bigger in comparison to those gathered from ‘V1’ plants in first two years contrary to control berries which were significantly smaller in 2000. Such phenomena had diametrically changed in the last year of harvest while berries picked from ‘V0’ plants were smaller in contrast to fruits collected from other plants, both ‘S’ and ‘V1’ (tab. 10-12).

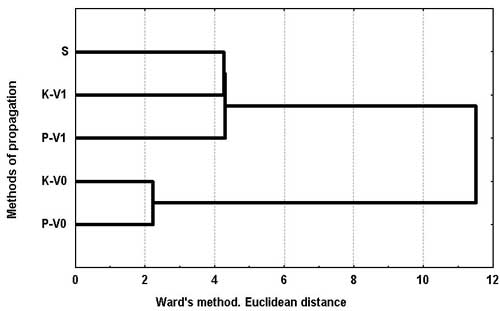

Clustering analysis, based on traits for which significant differences among studied plants were found, revealed two separated groups of plants, one propagated by runners: ‘S’ – ‘K-V1’ – ‘P-V1’ and second obtained directly in vitro: ‘K-V0’ – ‘P-V0’ (fig. 1).

DISCUSSION

Numerous studies have been published regarding field behaviour of micropropagated strawberry. Such plants more or less often exhibit characteristics, like: dwarfism, chlorosis or white striking of leaves, stem fasciations, intensified vigour, hyperrunnering and abnormal flowering (hyperflowering) accompanied by increased production of smaller fruits. Some of them were confirmed in the presented study on micropropagated ‘Senga Sengana’ strawberry plants and their progeny. Any alterations were not found in leaf colour and shape. Distinct differences in number of crowns and stolons among micropropagated and control plants were found in the first year only. They could be explained both by well-known increased vigour of TC plants as well as by diminished stress of ‘V0’ plants which were set into soil with undamaged roots contrary to ‘S’ plants. The most visible and stable aftermath of micropropagation were: readiness of ‘V0’ plants to bloom in the year of planting and hyperflowering caused by i ncreased number of inflorescences. It should be emphasised that in the first two years ‘V0’ plants produced higher yield and bigger fruits in comparison to conventionally propagated plants. Similar results (at least the same yield and fruit quality of ‘V0’ and control plants) were obtained by [3, 16, 18, 23]. Such phenomena would be beneficial to the fruit growers. Nevertheless, it should be also underlined that more authors reported deterioration of fruit quality in the case of micropropagated plants [7, 13, 14, 15, 21, 31, 33, 36, 37]. In the presented study a sharp decrease in yielding and relative smaller fruits of ‘V0’ plants were observed in the third year after planting. Such phenomena could be explained by: exhausting of ‘V0’ plants by abundant yielding in the previous year, depletion of nutrients in the soil caused by intensive growth and cropping, stronger plant competition, etc. Similar conclusion was drawn by Nehra et al. [23] who suggested that differences in fruit production and quality m ay have been due to overcrowding of ‘V0’ plants. Szczygieł and Borkowska [35] found different reaction of micropropagated and control plants on various levels of fertilisation. Thus it is very probably that requirements of micropropagated plants are quite different from those of traditionally propagated plants. Therefore a specific agro-technique for ‘V0’ strawberry plants should be elaborated.

Presented study revealed very close similarity ‘V0’ plants obtained from axillary (K-V0) and adventitious (P-V0) shoots. In general significant differences between such plants (except for number of crowns in 2001 and number of inflorescences in 1999) were not found. More abundant flowering and often bigger fruit size of ‘Senga Sengana’ somaclones obtained from leaf discs against meristem plants was noted by Janečkova et al. [8]. They also found differences among studied somaclones. Unfortunately they published only 1-year results and there is no information whether such alterations were stable in following years. Contrary to report of Janečkova et al. [8] in presented study plants of adventitious origin obtained from leaf stipules were as uniform as plants developed from axillary shoots. May be the reason is the different type of explant used (leaf discs versus leaf stipules). Therefore, adventitious shoots which readily and spontaneously occur in strawberry cultures in vit ro are not the only reason of distinctness of ‘V0’ plants. However, it is also possible that changes which lead to hyperflovering take place during culture initiation and stabilisation and have not constant but one-step character.

Some authors revealed that hyperflowering was appreciable reduced in first generation of micropropagated plants obtained traditionally, by runners [1, 15, 19, 34]. Such observation was confirmed in the presented study. Strawberry plants (V1) obtained by runners from very young micropropagated plants (V0) at the end of adaptation stage bore stronger resemblance to control (S) plants than to mother ones (V0). It creates opportunity to join micropropagation with ‘soiless’ method of strawberry propagation [6, 26, 27] to obtain nursery plantlets of high quality.

CONCLUSIONS

1. The most visible and year-stable aftermath of micropropagation was hyperflowering caused by increased number of inflorescences. Such phenomena was not correlated with deterioration of fruit quality.

2. Very close similarity ‘V0’ plants obtained in vitro from axillary (K-V0) and adventitious (P-V0) shoots was revealed.

3. Strawberry plants (V1) obtained by runners from very young micropropagated plants (V0) at the end of adaptation stage bore stronger resemblance to control (S) plants than to mother ones (V0).

1. Beech M. G., Crisp C. M., Simpson S. E., Atkinson D., 1988. The effect of in vitro cytokinin concentration on the fruiting and growth of conventionally propagated strawberry runner progeny. J. Hort. Sci. 49, 77-81.

2. Boxus P., 1999. Micropropagation of strawberry via axillary shoot proliferation. In: Plant Cell Culture Protocols. Methods in Molecular Biology. Part III. Plant Propagation In Vitro. Hall R. D. (ed.) Humana Press Inc., Totowa NJ, 111, 103-114.

3. Damiano C., 1980. Strawberry micropropagation. In: Proceedings of the conference on nursery production of fruit plants through tissue culture: Application and feasibility. Beltsville, Maryland, USA, 93-101.

4. Damiano C., Monticelli S., Corazza L., 1997. Somaclonal varaibility and in vitro regeneration of strawberry. Acta Hort. 447, 87-93.

5. De Klerk G. J., 1990. How to measure somaclonal variation. Acta Bot. Neerl. 39(2), 129-144.

6. Dijkstra J., Maas J. L. (Ed.), Galletta G. J., 1993. Development of alternative methods for healthy propagation of strawberry plants using cuttings. Second international strawberry symposium, Beltsville, Maryland, USA, 13-18 Sep. 1992. Acta Hort. 348, 234-236.

7. Hennerty M. J., Hunter S. A., Foxe M. J., 1987. Field performance of tissue cultured strawberry plants. [In:] In vitro culture of strawberry plants. Report Comm. of the Eur. Communities EUR 10871.

8. Janečkova M., Myslivečkova J., Havrankova I., Čapkova D., 1993. Srovnani jednoletych vysledku sklizne somaklonu jahodniku (Fragaria ananassa Duch.) ziskanych in vitro regeneračni technikou listovyvh disku a meristemovou kulturou [Comparison of one-year somaclone yields of strawberry (Fragaria ananassa Duch.) obtained in vitro by the regeneration technique from leaf discs and by meristem culture]. Zahradnictvi 20, 3, 153-162 [in Czech].

9. Jemmali A., Boxus P., Dekegel D., Van Heule G., 1994a. Occurrence of spontaneous shoot regeneration on leaf stipules in relation to hyperflowering response in micropropagated strawberry plantlets. In Vitro Plant Cellular and Developmental Biology. 309, 192-195.

10. Jemmali A., Boxus P., Kevers C., Gaspar T., 1994b. Flowering abundance of strawberry on dependence of the number of subcultures in vitro. Relationship with growth, rooting and peroxidase activity. Physiology, Growth and Development of Plants in Culture. P.J. Lumsden, J.R. Nicholas, W.J. Davies eds., Kluwer Acad. Publ. Dordrecht, 356-362.

11. Jemmali A., Boxus P., Kinet J. M., Hayashi M. (ed.)., Kano A. (ed.), Goto E., 1992. Are strawberry plantlets arising from adventitious stipule buds also true to type? Acta Hort. 319, 171-176.

12. Jones O. P., Waller B. J., Beech M. G., 1988. The production of strawberry plants from callus cultures. Plant Cell, Tissue and Organ Cult. 12, 235-241.

13. Kinet J. M., Parmentier A., 1989. The flowering behaviour of micropropagated strawberry plants cv. ‘Gorella’: the influence of the number of sub-cultures on the multiplication medium. Acta Hort. 265, 327-334.

14. Lieten F., Baets W., 1990. Strawberry culture: First-generation meristem plants suitable for production purposes? Fruitteelt 3, 5, 49-53.

15. Lis E. K., 1997. Przyczyny drobnienia owoców u mikrorozmnażanych roślin truskawki [The reasons of the fruit lessening of the micropropagated strawberries]. Ogrodnictwo 4, 17-18 [in Polish].

16. Lis E., Sowik I., Chlebowska D., 1995. Mikrorozmnażanie truskawki – wpływ warunków in vitro na wzrost roślin w glebie. Materiały Ogólnopolskiej Konferencji Naukowej ‘Nauka Praktyce Ogrodniczej’ z okazji XXV-lecia Wydzialu Ogrodniczego Akademii Rolniczej w Lublinie [Micropropagation of strawberries – effect of in vitro conditions on their field performance], 207-210. [in Polish]

17. Liu Z. R., Sanford J. C., 1988. Plant regeneration by organogenesis from strawberry leaf and runner culture. HortScience 23, 1056-1059.

18. Lopez-Aranda J. M., Medina J. J., Barcelo M., Lopez-Medina J., Pliego-Alfaro F., 1997. Field behaviour of micropropagated strawberry plants. Proc. Third Int. Strawberry Symp. van der Scheer H. A. T., Lieten F., Dijkstra J. (eds) Acta Hort. 439, 353-357.

19. Lopez-Aranda J. M., Pliego-Alfaro F., Lopez-Navidad I., Barcelo-Munoz M., 1994. Micropropagation of strawberry (Fragaria × ananassa Duch.). Effect of mineral salts, benzyladenine levels and number of subcultures on in vitro and field behaviour of the obtained microplants and the fruiting capacity of their progeny. The J. Hort. Sci. 69 (4), 625-637.

20. Marcotrigiano M., Morgan P. A., Swartz H. J., Ruth J., 1987. Histogenic Instability in Tissue Culture-proliferated Strawberry Plants. J. Americ. Soc. Hort. Sci. 112 (3), 583-587.

21. Merkle S., 1993. Yield and other quantitative characters of strawberry plants micropropagated with different phytohormone contents. Acta Hort. Strawberry II, 348, 403-413.

22. Monticelli S., Damiano C., Gallelli A., 1995. Regeneration from strawberry stipules. Med. Fac. Landbouww. Univ. Gent. 60/4a, 1679-1682.

23. Nehra N. S., Kartha K. K., Stushnoff C., Giles K. L., 1994. Effect of in vitro propagation methods on field performance of two strawberry cultivars. Euphytica 76, 107-115.

24. Nehra N. S., Stushnoff C., Kartha K. K., 1990. Regeneration of plants from immature leaf-derived callus of strawberry (Fragaria × ananassa). Plant Sci. 66, 119-126.

25. Popescu A. N., Isac V. S, Coman M. S., Radulescu M. S., Van Der Scheer H. A. T (ed.), Lieten F. (ed.), Dijkstra J., 1997. Somaclonal variation in plants regenerated by organogenesis from callus culture of strawberry (Fragaria × ananassa). Proceedings of the third international strawberry symposium, Veldhoven, Netherlands, 29 April-4 May 1996. Acta Hort. 439, 89-96.

26. Robbe A., 1997. La multiplication hors sol des plants de fraisier. Fruit Belge. 65 (466), 62-68.

27. Robbe A., 1999. Technique de multiplication hors sol de pieds-meres et de plants sains de fraisier a partir de plants micropropages. Fruit Belge. 481, 162-165.

28. Rugini E., Orlando R., 1992. High efficiency shoot regeneration from calluses of strawberry (Fragaria × ananassa Duch.) stipules of in vitro cultures. J. Hort. Sci. 67 (4), 577-582.

29. Sorvari S., Ulvinen S., Hietaranta T., Hiirsalmi H., 1993. Preculture medium promotes direct shoot regeneration from micropropagated strawberry leaf disks. HortScience 28 (1), 55-57.

30. Stanys V., 1992. Cellular genome stability and variability of plants in vitro. Proceedings of the 1st genetical congress of the Baltic states (Estonia, Latvia, Lithuania). Eksperimentine Biologija 3-4, 52.

31. Sutter E. G., Ahmadi H., Labavitch J. M. Altman A. (ed.), Ziv M., 1997. Direct regeneration of strawberry (Fragaria × ananassa Duch.) from leaf disks. Proceedings of the third international ISHS symposium on in vitro culture and horticultural breeding, Jerusalem, Israel, 16-21 June, 1996. Acta Hort. 447, 243-245.

32. Swartz H. J., 1991. Post culture behaviour: genetic and epigenetic effects and related problems. In: Debergh P. C. and Zimmerman R. H. (eds.): Micropropagation. Technology and Application. Kluwer Acad. Publ., Dordrecht, 95-121.

33. Swartz H. J., Galleta G. J., Zimmerman R. H., 1981. Field performance and phenotypic stability of tissue culture-propagated strawberries. J. Am. Soc. Hort. Sci. 106, 667-673.

34. Swartz H. J., Lindstrom J. T., 1986. Small fruit and grape tissue culture from 1980 to 1985: commercialization of the technique. [In:] Zimmerman R. H., Greisbach R. J., Hammerschlag F. A., Lawson R. H. (eds) Tissue culture as a plant production system for horticultural crops. Martinus Nijhoff Publishers, Dordrecht, The Nederlands, 201-220.

35. Szczygieł A., Borkowska B., Van Der Scheer H. A. T. (ed.), Lieten F. (ed.), Dijkstra J., 1997. Field evaluation of micropropagated strawberry plants as related to different rooting and nutritional methods. Proceedings of the third international strawberry symposium, Veldhoven, Netherlands, 29 April-4 May, 1996. Acta Hort. 439 (1), 347-351.

36. Szczygieł A., Pierzga K., Borkowska B., 2000. Przydatność roślin truskawek z mikrorozmnażania do produkcji sadzonek i owoców [Suitablity of micropropagated strawberry plants for production plantlets and fruits]. Ogrodnictwo 4, 6-8 [in Polish].

37. Theiler-Hedtrich R., Wolfensberger H., 1987. Comparison of plant and yield characters of in vitro and normal propagated strawberry plants. Acta Hort. 212, 445-48.

38. Toyoda H., Shimabayashi M., Horikoshi K., Kami C., Tajiri J., Ouchi S., 1993. Selection of high quality fruit line of strawberry from callus-derived regenerants and their runner plants. Bulletin of the Institute for Comprehensive Agricultural Sciences, Kinki University, 1, 27-36.

39. Wawrzynczak D., Sowik I., Michalczuk L., 2000. Agrobacterium-mediated transformation of five strawberry genotypes. J. Fruit and Ornamental Plant Res. 8 (1), 1-8.
