Kłódka D. , Nowak J. 2004. INFLUENCE OF COMBINED FUNGICIDES AND ADJUVANTS APPLICATION ON ENZYMATIC ACTIVITY AND ATP CONTENT IN SOIL, EJPAU 7(1), #01.
Available Online: http://www.ejpau.media.pl/volume7/issue1/environment/art-01.html

INFLUENCE OF COMBINED FUNGICIDES AND ADJUVANTS APPLICATION ON ENZYMATIC ACTIVITY AND ATP CONTENT IN SOIL

Dariusz Kłódka, Janina Nowak



ABSTRACT

In laboratory experiment the influence of different dosages of fungicides on the activity of acid and alkaline phosphatase, dehydrogenase, urease, b-glucosidase and ATP content in loamy clay soil was determined. The fungicides were applied alone and with additions of an adiuvants applied at field rate and 10-fold and 100-fold higher. The following combinations were used: Miedzian 50 WP (a.i. copper oxychloride), Miedzian 350 extra SC (Miedzian 50 WP + Polybutene emulsion) and Miedzian 50 WP applied together with Rapol 90 EC. The soil sample was submitted to analysis in 1, 3, 7, 14, 28, 56 and 112 days after the pesticides treatment. The investigations showed that soil enzymes activity after use pesticides with adiuvants was lower from activities these enzymes in soil after use of fungicides without adiuvants, it was especially visible in case of dehydrogenase and b-glucosidase. Also ATP content in soil with addition all of three

Key words: fungicide, adjuvant, enzymatic activity, ATP, soil.

INTRODUCTION

One of many agricultural practices is plants protection by pesticides use. However, due to progressing degradation of the natural environment and rapid growth of pollutants in air, water and soil, to reduction pesticide use to an admissible minimum has become highly recommended. Among pro-ecological methods, aimed to reduce pesticide application, are of genetically resistant varieties, biological measures, allelopatic interaction and integrated systems for plant protection [16, 18]. On the other hand, negative results of agriculture chemicalisation are to be mitigated by new highly efficient and selective chemicals, characterised by a quick and environmentally friendly decomposition, such as the newest photodynamical products [21]. Nevertheless, the high application cost of such modern chemicals in conjunction with a relatively inefficient non-chemical treatment, stimulates the search for other solutions [24]. A wide range of adjuvants, surface-active compounds, mineral or plant oil in char acter, as well as silicon chemicals that at the same time, increase pesticides efficiency and reduce the required amount of a biologically active agent, can provide such a solution.

Activity measurements of enzymes responsible for both, the direction and intensity of specific biochemical transformations in soil can serve as a tool to evaluate changes in the soil environment induced by chemicals [7]. Similarly, ATP content that was shown to be strongly correlated with selected soil enzymes activities, can be interpreted in terms of interface between various metabolic processes in a soil environment, provides valuable information on trends in pesticides transformations in soils [6].

Negative impact of pesticides on soil hydrolases and oxidoreductases activities has been widely reported in the literature [5, 8, 17, 23]. However, the knowledge on influence of adjuvants combined with pesticides on metabolic processes in soil are limited [14]. Although adjuvants are belived to be neutral for the soil environment, they are capable of slowing the pace and trends of pesticides degradation in the soil [19]. Hence, it seems worth considering whether a combined usage of adjuvants and pesticides can affect activities of selected enzymes, namely acid and alkaline phosphatase, dehydrogenase, urease and b-glucosidase, as well as ATP content in soils. The presented research focuses on such considerations.

MATERIALS AND METHODS

Laboratory studies performed on samples collected from arable-humus horizon (0 - 30 cm) of black earth at Gumieniecka Plain. The soils grain composition is typical for light silty clays of low organic carbon content (1.2-1.8%) and slightly acid or neutral reaction, highly abundant in available phosphor and medium to high abundance of available magnesium and sodium. They are classified as groups II, III a and III b of a bonitation class for arable lands. To sallow parts of the prepared soil material water solutions of the following compounds:

  1. Miedzian 50 WP, i.e. a fungicide containing 50% of copper oxichloride,

  2. Miedzian 350 Extra SC, i.e. a fungicide containing 350 g of copper oxichloride per 1 dm3 with admixture of Polibutene emulsion (patent PL 175693) as adjuvant,

  3. Miedzian 50 WP combined with Rapol 90 EC an adjuvant containing 90% of plant oil and 10% of non ionic surface-active substances,

were added in doses recommended by the manufacturer, ten times higher and hundred times higher. Field doses were calculated for the amount to be applied for 1 kg of soil; the data are presented in Table 1.

Table 1. Doses of specimen applied in the experiment

No.

specimen

applied doses

dm3·ha-1

kg·ha-1

mm3·kg-1

mg·kg-1

I

II

III

I

II

III

1.

Miedzian 50 WP

5

50

500

6.52

65.2

652

2.

Miedzian 350 extra SC

5

50

500

6.52

65.2

652

3.

Miedzian 50WP
Rapol 90 EC

5
1.5

50
15

500
150

6.52
1.96

65.2
19.6

652
196

4.

Polibutene emulsion

0.8

8

80

1.04

10.4

104

Having applied the emulsion, soil moisture was balanced at 60% maximum water capacity, the soil was thoroughly mixed and stored in tight polyethylene containers at optimal temperature of 20°C. Soil to which no investigated compounds were added served as a reference sample (control). At few days intervals at fist, and few weeks intervals later on (on days 1., 3., 7., 14., 28., 56. and 112.) the measurements of soil enzyme activities were performed with suitable methods and equipment. Namely, for acid and alkaline phosphatase a Lambda Bio spectrophotometer manufactured by Perkin Elmer and the methods of Tabatabai and Bremner [22] as well as Eivazi and Tabatabai [3] modified by Margesin [11] were employed; for dehydrogenase Malkomes’s [9] method was applied, whereas for urease and b -glucosidase measurements methods of Bonmati at al. [2] and Hoffman and Dedecen’s [4] were used, respectively.

In addition on days 1., 30., 60., and 90. of the experiment measurements of ATP content in the soil contaminated with various concentrations of Miedzian 50 WP, Miedzian 350 extra SC and Polibutene emulsion were made with a Lumat LB 9507 luminometer manufactured by Berthold according to Margesin’s method [12] that employs an enzymatic luciferin/lucifarase system.

The obtained data have been processed statistically. The smallest significant differences were calculated according to Tukey's test at the significance level a = 0.05.

RESULTS

The results of the conducted research are presented as surface plots illustrating differences in enzymes activities in soil induced by applied respectively with Miedzian 50 WP and Miedzian 350 extra SC, and finally with Miedzian 50 WP mixed with Rapol 90 EC. Real activity was recalculated and quoted as percentage of the enzyme activity in the control soil, whose activity was assumed as 100%. Differences greater than zero are marked on the plots with green. It indicates beneficial influence of the applied fungicides that have been investigated with reference to Miedzian 50 WP. Red colour corresponds to the reverse relationship, i.e. a negative influence of Miedzian 350 extra SC and Miedzian 50 WP combined with Rapol 90 EC when related to fungicide with no adjuvant, that is Miedzian 50 WP.

ATP content in soil after applying various concentrations of Miedzian 50 WP, Miedzian 350 extra SC combined with a Polibutene emulsion are given as µg ATP·g-1d.m. of soil and presented as bar charts.

Disadvantageous influence of the applied adjuvants upon acid phosphatase activity in soil was particularly visible after application Miedzian 350 extra SC in concentrations II and III, and all three concentrations of Miedzian 50 WP combined with Rapol 90 EC (Fig. 1A and 2A). The biggest differences in the activity of that enzyme reaching even –50% were observed for concentration II and III of Miedzian 50 WP - Rapol 90 EC combination applied on day 28, while a medium differences at the level of –20% were recorded over the first month of the experiment for all three Miedzian 350 extra SC concentrations applied. In the final stage of the experiment the observed differences in activities were small and amounted to more few percent.

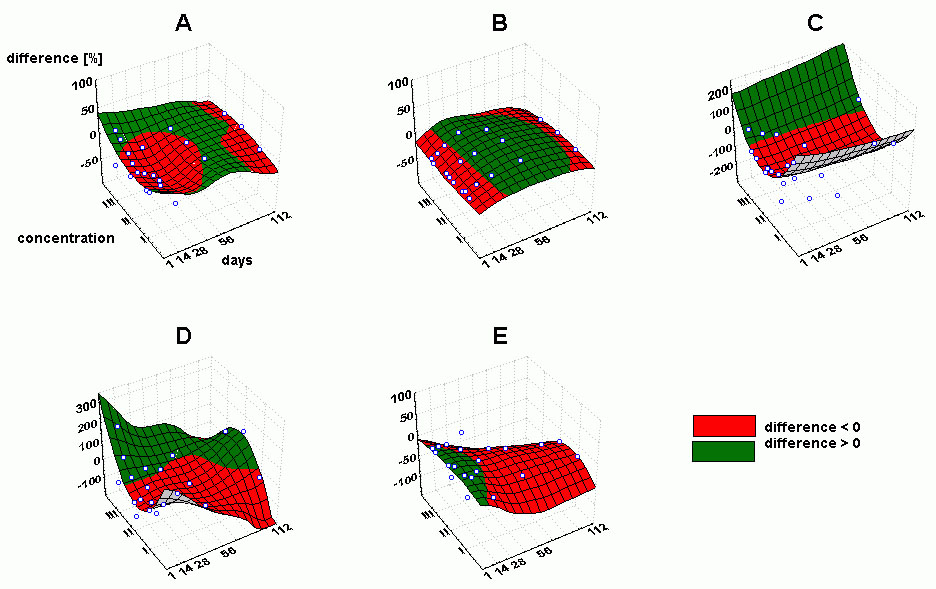

Fig. 1. Percentage differentions of activity: A – acid phosphatase, B – alkaline phosphatase, C – dehydrogenase, D – urease, E - b-glucosidase, after applied of Miedzian 50 WP and Miedzian 50 WP with Rapol 90 EC

Alkaline phosphatase activities in soil were quite different in character (Fig. 1B and 2B). At the beginning and final stages of the experiment after all concentrations of Miedzian 50 WP - Rapol 90 EC combination applied, activity of that enzyme was lower than after application of Miedzian 50 WP alone. In the analysed period differences in the enzyme activities reached nearly –30%. For the rest of the experiment time scale admixture of Rapol 90 EC into Miedzian 50 WP caused an insignificant activation of alkaline phosphatase with activity differences not higher than 10%. Yet another trend in the enzyme activity was noted after Miedzian 350 extra SC was applied. Activity lowered by about 10% was recorded only over the first week that followed fungicide – adjuvant combined application in concentrations I and II, when compared to the one after application of Miedzian 50 WP alone. At all the other times polibutene emulsion admixture to Miedzian 50 WP cau sed the enzyme to be slightly activated.

Practically, all the applied doses of Miedzian 50 WP - Rapol 90 EC combination detrimentally affected soil dehydrogenase activity throughout the entire duration of the experiment (Fig. 1C). The most pronounced differences that reached –200% were noted in the first half of the experiment after concentrations II and III had been applied, whereas in the second half of the experiment the concerned differences diminished. Similar dependencies were found after application of Miedzian 350 extra SC, though at the highest concentration applied the agent influence was definitely more beneficial when compared to Miedzian 50 WP (Fig. 2C).

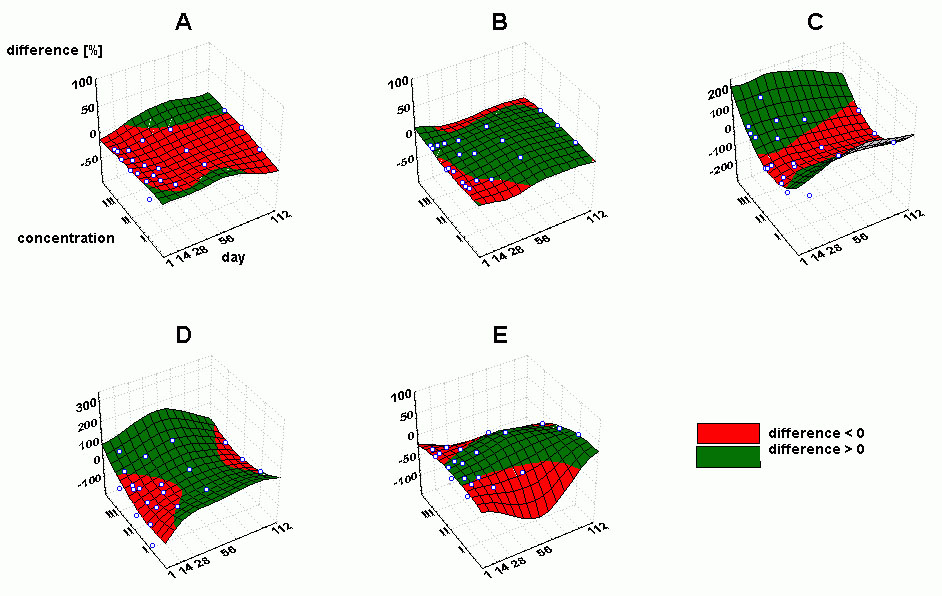

Fig. 2. Percentage differentions of activity: A – acid phosphatase, B – alkaline phosphatase, C – dehydrogenase, D – urease, E - b-glucosidase, after applied of Miedzian 50 WP and Miedzian 350 extra SC

For the first 28 days of the experiment following application of Miedzian 350 extra SC in concentrations I and II, soil urease activity was lower than the enzyme activity in the soil to which respective concentrations of Miedzian 50 WP were added (Fig. 2D). Registered activity differences in that period reached –190% at the beginning of the experiment, to drop down steadily as time passed to reach –20% after a month. During last days of the experiment all three concentrations of Miedzian 350 extra SC yield less beneficial effects than Miedzian 50 WP applied on its own. Throughout the entire experiment duration a disadvantageous influence of Rapol 90 EC admixture to Miedzian 50 WP was observed for the applied concentrations I and II; registered activity changes varied from –30% to –70% (Fig. 1D).

Great differences in b-glucosidase activity were noted after application of Miedzian 50 WP and Miedzian 50 WP used with Rapol 90 EC (Fig. 1E). From day 28 on, all the applied concentrations of the concerned fungicide-adjuvant combination affected the enzymes activity more detrimentally that application of Miedzian 50 WP alone. In particular, differences in activity reached nearly –80% after the highest dose application. In fact, when compared to Miedzian 50 WP, Miedzian 350 extra SC had less detrimental effect on b-glucosidase activity over the entire time span of the experiment solely for concentration III, whereas concentration I was less detrimental in the first half of it. Nevertheless, activity differences were small and reached merely –20% (Fig. 2E).

Over the entire experiment ATP content in the control soil remained stable at the level of 1 µg, with the exception of day 30 when its content reached 2.4 µg. On the first day of the experiment after application of both Miedzian 50 WP and Miedzian 350 extra SC, ATP content in the soil was similar to the one in the control soil (Fig. 3a and 3B). Also on days 60 and 90 after applying Miedzian 50 WP in concentrations I and II, ATP content was higher than in the control soil. After Miedzian 350 extra SC application in all concentrations ATP content in soil on day 60 was at the level of 1 µg, but on day 90 it was found to rise rapidly up to 5.7 µg ATP with the output dose. After applying all the concentrations of Polibutene emulsion a significant increase in ATP content was observed on the first day of the experiment, notably from 2.5 µg for concentration I to 5.3 µg after application of the highest dose (Fig. 3C). With time, ATP content in the soil with the concerned adjuvant tended to decrease to reach the value of 1-2 µg ATP on the day 90 of the experiment.

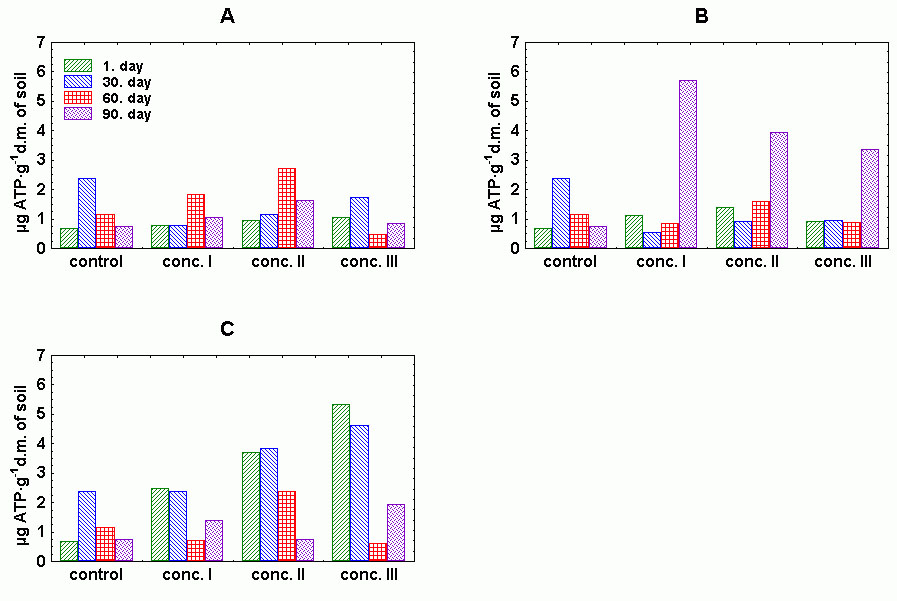

Fig. 3. Influence of Miedzian 50 WP (A), Miedzian 350 extra SC (B) and Polibutene emulsion (C) on ATP content in soil

On the basis of NIR values calculated with Tukey’s test for a one-factor experimental setup, observed differences in the activity of the studied enzymes after application of fungicide without and with an adjuvant, were in most cases found significant. Insignificant differences occurred sporadically and usually were close to the limit values.

DISCUSSION

Human activities have been always accompanied by emission of compounds that naturally do not occur in the environment. Pesticides can be included into the group of such compounds. In literature on the subject numerous contradictory statements related to their influence on the biological activity of soil, and in particular on enzymatic activity and ATP content, are reported. Hence, it is quite likely to find papers on negative pesticides influence upon enzymatic activity of soil [5, 8, 17, 23], though research results claiming that no such influence occurs, or even that soil enzymes activity and ATP content are raised by chemical plants protection agents [13, 20]. Such a wide discrepancy of published results may result from pesticides multifunctionality as well as from diversity and numerous stages of the processes taking place in soil that are frequently overlapped [1, 10]. Usually undesirable interactions were observed after overdosed application of pesticides, significantly higher than re commended by the manufacturer. The results we obtained indicate great diversification in intensity of processes catalysed by the studied enzymes after chemical protection plant agents introduced into soil. Detrimental impact of adjuvants to pesticides admixture confirm the scarcely reported research in that field [14, 15]. Unfavourable influence of combined fungicides-adjuvants use was customarily intensified after the highest dose application, though they were also observed for standard field doses. With such a view to the subject, Malkomes’s [10] suggestion to include research on adjuvant impact upon soil ecosystem into the canon of toxicological environmental surveys gains gravity and significance.

CONCLUSIONS

  1. The biggest differences in soil enzymatic activities after application of fungicides combined with adjuvants were found for dehydrogenase; the studied hydrolases exhibited smaller respective differences.

  2. Combined fungicides and adjuvants usage can significantly contribute to reducing activity of some soil enzymes, particularly when doses considerably exceed the recommended ones.

  3. A substantiated necessity to monitor adjuvants influence on the natural environment has been identified and reported.

  4. After longer deposition of preparation with adjuvant – Miedzian 350 extra SC in soil, caused increase in ATP content in soil, but increase of fungicide concentration caused decrease in ATP content.


REFERENCES

  1. Balicka N., 1983. Różne formy wzajemnego oddziaływania drobnoustrojów z herbicydami [Various forms of interrelationship between microorganisms and herbicides]. Postępy Mikrobiol. XXII, 3/4, 291-299 [in Polish].

  2. Bonmati M., Coccanti B., Nannipieri P., 1991. Spatial variability of phosphatase, urease, protease, organic carbon and total nitrogen in soil. Soil Biol. Biochem. 4, 391-396.

  3. Eivazi F., Tabatabai M.A., 1977. Phosphatases in soil. Soil Biol. Biochem. 9, 167-192.

  4. Hoffman G., Dedecen M., 1965. Eine Methode zur colorimetrischen Bestimmung der b-glucosidase – Aktivität im Boden [Method of colorimetric assay of b-glucosidase activity in soil]. Zeitschrift für Pflanzenernähg, Düngung bodenkunde. 108 Band, Heft. 3, 193-198 [in German].

  5. Ismail B.S., Yapp K.F., Omar O., 1998. Effects of metsulfuron-methyl on amylase, urease, and protease activities in two soils. Australian Journal of Soil Research 36, 3, 449-456.

  6. Kanazawa S., Filip Z., 1986. Distribution of microorganisms, total biomass, and enzyme activities in different particles of brown soil. Microb. Ecol. 12, 205-215.

  7. Kucharski J., Jastrzębska E., Wyszkowska J., Hłasko A., 2000. Wpływ zanieczyszczenia gleby olejem napędowym i benzyn± ołowiow± na jej aktywno¶ć enzymatyczn± [Effect of pollution with diesel oil and leaded petrol on enzymatic activity of the soil]. Zesz. Probl. Postęp. Nauk. Rol. 472, 457-464 [in Polish].

  8. Malkomes H.-P., 1989. Einfluß der Lagerung von Bodenproben auf den Nachweis von Herbizid-Effekten auf mikrobielle Aktivität [Identification of herbicide effectson microbial activities in soil samples after storage]. Zentralbl. Mikrobiol. 144, 389-398 [in German].

  9. Malkomes H.-P., 1993. Eine modifizierte Methode zur Erfassung der Dehydrogenase – Aktivität (TTC – reduction) im Boden nach Herbizidenwendung [A modified method to examine the dehydrogenase activity (TTC reduction) in soil after herbicide treatments]. Nachrichtenbl. Deut. Pflanzenschultzd. 45(9), 180 [in German].

  10. Malkomes H.-P., 1997. Applications of ecotoxicity tests to assess side effects of pesticides in soils. Soil Ecotoxicology. CRC Press, 319-343.

  11. Margesin R., 1996. Acid and alkaline Phosphomooesterase Activity with the Substrate p-Nitrophenyl Phosphate. In: Method in soil Biology. Eds. F. Schinner, R. Öhlinger, E. Kandeler, R. Margesin, Springer, Berlin, 213-217.

  12. Margesin R., 1996. ATP by Sulfuric Acid Extraction Technique. In: Method in soil Biology. Eds. F. Schinner, R. Öhlinger, E. Kandeler, R. Margesin, Springer, Berlin, 260-265.

  13. Megharaj M., Boul H.L., Thiele J.H., 1999. Effects of DDT and its metabolites on soil algae and enzymatic activity. Biol Fertil Soils 29, 130-134.

  14. Nowak J., Nowak A., Lech B., Turos-Biernacka M., 1998. Auswirkung von Betanal 160 EC in kombination mit Zusatzstoffen auf die biologische aktivität des Boden. Teil. II. Einfluß auf die Aktivität von Bodenenzymen [Effect of Betanal EC 160 in combination with adjuvants on the biological activity of the soil. Part II: Effect on soil enzyme activity]. PflKrankh. PflSchutz. XVI, 771-778 [in German].

  15. Nowak J., Nowak A., Kłódka D., Turos-Biernacka M., 2000. Einfluss der gemeinsamen und getrennten Applikation von Herbiziden und Zusatzstoffen auf die Aktivität von Dehydrogenase und Phosphatase im Boden [Influence of different herbicide dosages on the phosphatase and dehydrogenase activity in soil]. PflKrankh. PflSchutz. XVII, 769-774 [in German].

  16. Paryluk D., 1997. Możliwo¶ci ograniczenia zużycia pestycydów w rolnictwie [Possibilities of limitation use of pesticides in agriculture]. Aura 1, 13-15 [in Polish].

  17. Perucci P., Scarponi L.,1994. Effects of the herbicide imazethapyr on soil microbial biomass and various soil enzyme activities. Biol Fertil Soils 17, 237-240.

  18. Ptaszkowska J., Bakuniak E., Maliński Z.T., 1996. Podsumowanie badań łanowych z zastosowaniem Siarkolu K 1000 SC i zaprawy nasiennej Funaben T 450 FS w ochronie zbóż [Summary of field reaserches with Siarkol K 1000 SC and seed dressing Funaben T 450 FS used in cereals protection]. Postępy Ochr. Ro¶l. 36(2), 247-249 [in Polish].

  19. Rola J., Rola H., 1998. Efektywno¶ć biologiczno-ekonomiczna “wspomagaczy” a stosowanie herbicydów [Biological-economical efficiency of adjuvants versus herbicides applying]. Mat. XXVIII Sesji Nauk. IOR, Cz. II – Postery, Poznań, 364-367 [in Polish].

  20. Shukla A.K., 1997 Effect of herbicides butachlor, fluchloralin, 2,4-D and oxyfluorfen on microbial population and enzyme activities of rice field soil. Indian Journal of Ecology 24, 2, 189-192.

  21. Sobótka W., 1999. Herbicydy – wczoraj i dzi¶ [Herbicides – yesterday and today]. Postępy Ochr. Ro¶l. 39(1), 218-223 [in Polish].

  22. Tabatabai M.A., Bremner J.M., 1969. Use of nitrophenylophosphate for assay of soil phosphatase activity. Soil Biol. Biochem. 19, 281-287.

  23. Tu C.M., 1992. Effect of some herbicides on activities of microogranisms and enzymes in soil. J. Environ. Sci. Health B27(6), 695-709.

  24. Węgorek W., 1994. Badania wpływu pestycydów na ¶rodowisko rolnicze [Investigations of influence of pesticides on agricultural environment]. Postępy Nauk. Rol. 2, 59-63 [in Polish].


Dariusz Kłódka, Janina Nowak
Department of Biochemistry
Agriculture University of Szczecin
ul. Słowackiego 17, 71-434 Szczecin, Poland
e-mail: dklodka@agro.ar.szczecin.pl
