Gotkowska-Płachta A. , Niewolak S. , Korzeniewska E. 2003. VERTICAL DISTRIBUTION AND SEASONAL CHANGES IN THE NUMBER OF BACTERIOPLANKTON IN THE WATER OF LAKE HAŃCZA, PARTICULARLY IN THE PERIOD OF RESERVOIR SUMMER STRATIFICATION, EJPAU 6(2), #10.
Available Online: http://www.ejpau.media.pl/volume6/issue2/environment/art-10.html

VERTICAL DISTRIBUTION AND SEASONAL CHANGES IN THE NUMBER OF BACTERIOPLANKTON IN THE WATER OF LAKE HAŃCZA, PARTICULARLY IN THE PERIOD OF RESERVOIR SUMMER STRATIFICATION

Anna Gotkowska-Płachta, Stanisław Niewolak, Ewa Korzeniewska



ABSTRACT

The paper presents the results of the study on seasonal changes in the number of bacterioplankton, its vertical distribution and morphological composition in the waters of the deepest Polish lake, Lake Hańcza (108.5 m deep). The research was performed from 1997 till 2000. Water samples were collected at a research station placed at a location where the lake depth was maximum, at monthly intervals from May to October. Water was sampled along the following depth profile: from 0-1 cm layer, at 0.3 m and at the depth of 1m, 2m, 5m, 10m, deeper down at 10m intervals towards the bottom. Bacteriological analyses were completed with measurements of selected physico-chemical parameters such as temperature, pH, oxygen, nitrogen and phosphorus contents. Obtained results with regards both to the number of bacterioplankton and its morphological structure, namely 68% for cylindrical rods forms, and physico-chemical assays confirmed the purity of Lake Hańcza. The vertical distribution of bacterioplankton

Key words: Bacterioplankton, lake, physico-chemical parameters..

INTRODUCTION

In natural, undisturbed water ecosystems it is natural to find stable groups of interrelated microorganisms. Any imbalance introduced into such systems by external factors triggers immediate reaction of the microorganisms. Qualitative and quantitative fluctuations in bacterioplankton biomass provide a very sensitive indicator of changes occurring in reservoirs [24]. The major parameters regulating the number and distribution of planktonic bacteria biomass are availability of organic nutrient substrates [11,16], particularly in oligotrophic reservoirs, predation that is most pronounced in eutrophic waters [8,22], concentration of mineral compounds, pH [18], and temperature [23]. In lake waters the number of bacterioplankton is also affected by inorganic nitrogen, phosphorus, and organic carbon content, as well as by the bacteria-phytoplankton correlation [27]. Usually, the highest number of bacterioplankton is reported when phytoplankton produces nutrients, namely in the spring, late summer, and early autumn [4,10]. The type of lake is also of significant importance. A complex analysis of lakes with different trophy levels confirmed that the number of bacteria in oligotrophic lakes is considerably lower than in contaminated eutrophic ones [14,16]. Quantitative distribution of micro-organisms is also determined by natural and climatic conditions, as well as by the season. It applies particularly to lakes of mild climates, where thermal layers occur and are inhabited by populations of various microorganisms. Both vertical and spatial distribution in lake waters is of significant importance for determining the current state of a lake and forecasting the direction of changes occurring therein.

The aim of the study was to determine vertical distribution, seasonal changes in the number of bacterioplankton and its qualitative composition in the waters of Lake Hańcza.

MATERIAL AND METHODS

Lake Hańcza. Lake Hańcza is the deepest (108.5 m deep) gutter reservoir not only in Poland but also in the central part of European Depression. It has been recorded on the list of the purest lakes in Poland [2]. The lake surface area accounts for 311.4 ha. It has a volume of 120 364,100 m3, while the maximum length and width correspond to 4525 m and 1175 m, respectively (see Table 1 for detailed morphometric and limnologic data). The reservoir is characterised by high banks of very steep slopes reaching the depth of 10 m. The lake is located far away from any industrial plants or buildings. It does not provide any water intakes. Direct sources of water pollution [2] have not been reported. High thickness of hypolimnion compared to epilimnion was reported for lake Hańcza. The water is greenish-blue and transparent up to 9 m [29]. The lake is known for high oxygen balance in the deeper layers. Due to its extraordinary natural, geographical, geologi cal, and limnological value, the lake Hańcza has been established a protected reserve in 1963.

Table 1. Some morphometric data on Lake Hańcza, according to the Institute of Inland Fisheries after Ruhee-Stangenberg

Altitude a.s.l.

229.0 m

Latitude

54° 16’

Longitude

22° 49’

Basin

Czarna Hańcza. Niemen. Bałtyk

Water surface area

311.4 ha

Maximum depth

108.5 m

Mean depth

38.7 m

Volume

120364.1 thoudands m3

Maximum length

4525 m

Maximum width

1175 m

Effective length

4050 m

Effective width

1175 m

Total coastline

11750 m

Total basin surface

39.7 km2

Samples Collection. Water samples were collected at monthly intervals from May to October from 1997 till 2000. The samples were collected at the research station located at the deepest site of the lake (108.5 m, station 1 in Fig. 1). Collecting water samples followed a regular vertical pattern: 0-1 cm layer, the depth of 0.3 m, 1m, 2m, 5m, 10m, and finally at systematic 10m intervals down to the bottom. Demersal samples were collected ca. 20-30 cm above the bottom. Surface water samples (0-1 cm) were collected directly to sterile glass containers (V=300 cm3) with a ground cork. The samples from deeper layers were collected with a Ruttner apparatus and placed in the glass containers of same type. The apparatus had to be used due to necessity of parallel water sampling for chemical analyses. While collecting water samples water temperature measurements with a mercurial thermometer fixed to a Ruttner apparatus were performed, as well as oxygen saturation, pH and visibility by means of a Secchi disk determined. The location of the measurement-control station had been determined as approximation of geographical position measurements by means of ScoutMaster GPS. After collecting the samples were transported in containers kept at 4-6°C to the laboratory where they were immediately analysed. The interval between collecting the samples and performing their analyses never lasted longer than 12 h.

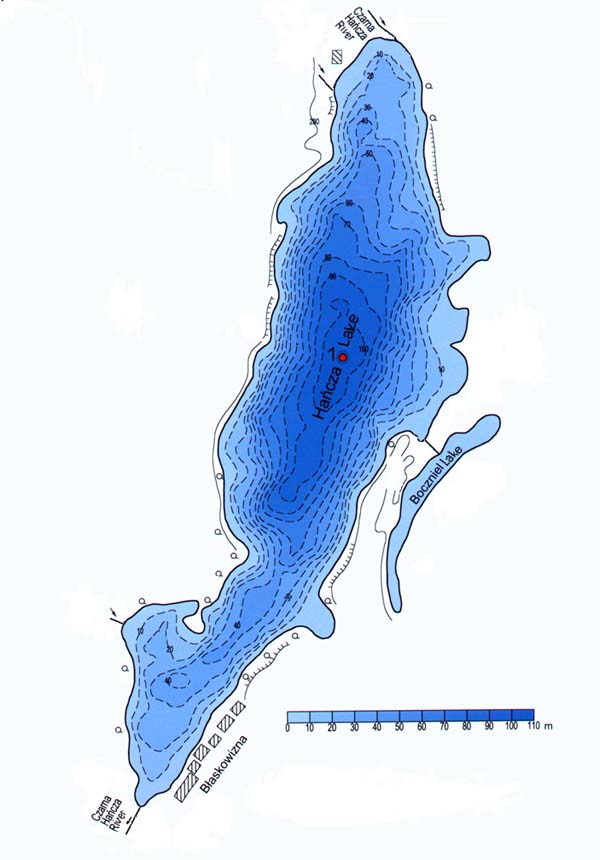

Figure 1. Location of Hańcza Lake (1-water sampling site)

Microbiological analyses. Microbiological analyses consisted in determination of the number of planktonic bacteria by direct counting under a microscope. Membrane SYNPOR filters with pore diameter of 0.6 µm (Chemapol, Prague, Czech Republic) were used for the analyses. Microscopic samples on the membrane filters were prepared according to the technique described by Rodina (1968). Bacteria on the filters were counted in 30 visual fields of the microscope, at 12.5·100 magnification. All morphological forms were counted separately. The results were then recalculated into 1 cm3 of water. The total number of planktonic bacteria in the investigated samples was calculated according to the formula described by Rodina (1968), i.e.:

where, the letters stand for:
S –filter working surface (µm2);
s – surface of visual field of a microscope (µm2);
N – mean number of bacterial cells in 1 visual field;
V – volume of water filtered (cm3).

Physicochemical assays of Lake Hańcza water included determination of the following compound and elements content: ammonium nitrogen (mgN-NH4/dm3), nitrite nitrogen (mgN-NO2/dm3), nitrate nitrogen (mgN-NO3/dm3), organic nitrogen (mgNorg/dm3), total nitrogen (mgNtot/dm3), mineral phosphorus (mgP-PO4/dm3), organic phosphorus (mgPorg/dm3), total phosphorus (mgPtot/dm3), oxygen (mgO2/dm3), and last but not least water pH value. The measurements, compliant with Polish standards, were performed at the Institute of Environmental Protection, Suwałki, and at the Department of Water and Waste Technology of the University of Warmia and Mazury in Olsztyn.

RESULTS

Vertical and seasonal distribution of bacterioplankton (Tables 2,3, Figs. 2,3). In 1997, in Lake Hańcza pelagial waters (at station 1), the number of bacterioplankton ranged from 1.44·106 cells/1cm3 in May at the depth of 108 m up to 8.44·106 cells/1cm3 in July at the depth of 5 m. On average, for the whole aquifer, the lowest number of planktonic bacteria was reported for September, while the highest for July and August and amounted to 2.984·106, 4.212·106 and 4.151·106 of cells/1 cm3, respectively.

Table 2. Total number of planktonic bacteria in the water of Lake Hańcza in 1997 at station 1 (in thousands of cells/cm3)

Site

Depth [m]

1997

Mean value

1



V

VI

VII

VIII

IX



0

-

2377

4034

4056

4666

-

0.3

5953

5124

3969

4557

4056

-

1

4579

6236

3576

3903

4470

-

2

5691

5844

3096

8003

2333

-

5

3838

5103

8440

5430

3925

-

10

3380

5909

6476

3947

4099

-

20

3096

5168

4775

5364

3380

-

30

2202

4666

4274

3118

2813

-

40

-

2638

-

4536

2704

-

50

2529

2464

3772

2638

2660

-

60

2137

2508

4841

4056

2399

-

70

2529

3009

3445

2813

2355

-

80

1744

3009

3729

4928

2529

-

90

1941

1788

2529

3467

1657

-

100

1461

1832

-

3380

2006

-

108

1440

2028

2006

2224

1697

-

Mean value

3037

3731

4212

4151

2984

3340

Table 3. Total number of some morphological forms of planktonic bacteria in the water of Lake Hańcza in the years 1998-2000 at station 1 (in thousands of cells/cm3). (C-cocci, R-rods, B-bacilli, T-total)



1998

Depth [m]

V

VI

VII

VIII

IX

X



C

R

B

T

C

R

B

T

C

R

B

T

C

R

B

T

C

R

B

T

C

R

B

T

0

2555

1642

0

4197

1095

1095

182

2372

1460

1277

0

2737

2010

1825

0

3835

2007

1825

0

3832

2190

1830

365

4385

0.3

2920

2190

182

5292

1277

1095

182

2554

1825

1460

182

3467

2190

2007

365

4562

2007

1825

182

4014

1825

2007

182

4014

1

1825

2007

365

4197

2007

3103

365

5475

2737

2007

365

5109

1825

3650

547

6022

1642

3103

365

5110

2177

1825

182

4184

2

1277

2555

365

4197

1825

2920

182

4927

2555

2920

365

5840

1642

2190

182

4014

1460

2555

182

4197

1095

1642

0

2737

5

912

1825

182

2919

1460

2372

0

3832

1460

2007

0

3467

1277

1825

0

3102

912

1825

0

2737

912

1277

0

2189

10

730

1825

0

2555

912

1825

0

2737

1095

1825

0

2920

912

1642

0

2554

730

1277

0

2007

912

1095

182

2189

50

730

1277

0

2007

547

1277

0

1824

730

1095

0

1825

547

1095

0

1642

365

912

0

1277

365

730

0

1095

108

365

547

365

1277

365

547

365

1277

365

364

182

911

182

365

365

912

182

365

547

1094

0

547

365

912

Mean value

1414

1734

182

3330

1186

1779

160

3125

1528

1619

137

3285

1323

1825

182

3330

1163

1711

160

3034

1185

1369

160

2713

%

42

52

6

100

38

57

5

100

47

49

4

100

40

55

5

100

38

57

5

100

44

50

6

100



1999

0

910

217

58

1185

621

347

0

968

1344

318

9

1671

3251

2587

43

5881

2110

405

58

2573

636

1055

304

1995

0.3

1170

633

116

1919

882

2847

43

3772

549

621

29

1199

188

231

15

434

1922

217

15

2154

1460

694

202

2356

1

390

1228

4

1622

910

1402

29

2341

737

434

29

1200

838

5722

275

6835

853

405

29

1287

607

1050

173

1830

2

376

1633

29

2038

694

665

29

1388

535

535

29

1099

376

4855

101

5332

1113

246

43

1402

593

1228

86

1907

5

1662

462

58

2182

506

672

15

1193

361

87

0

448

419

737

72

1228

448

406

29

883

434

2009

145

2588

10

795

708

87

1590

549

1382

0

1931

506

260

9

775

983

1705

58

2746

1113

4248

867

6228

896

390

58

1344

50

1893

882

116

2891

621

723

0

1344

607

145

29

781

665

448

72

1185

751

462

29

1242

607

1358

87

2052

108

332

838

29

1199

737

882

15

1634

332

145

15

492

491

535

29

1055

1315

361

188

1864

376

305

101

782

Mean value

941

825

62

1828

690

1115

16

1821

621

318

19

958

901

2103

83

3087

1203

844

157

2204

701

1011

145

1857

%

52

45

3

100

38

61

1

100

65

33

2

100

29

68

3

100

55

38

7

100

38

54

8

100



2000

0.3

378

850

15

1243

667

697

71

1435

2185

3119

76

5380

1184

1401

98

2683

1942

1826

82

3850

1102

1324

26

2452

1

929

1044

18

1991

826

823

68

1717

1749

1899

161

3809

1362

1396

87

2845

2234

1891

68

4193

1422

1434

34

2890

2

994

767

23

1784

956

777

56

1789

1731

2789

101

4621

1332

1524

109

2965

2747

2806

30

5583

1064

1142

30

2236

5

1235

1278

15

2528

638

505

64

1207

2426

2158

94

4678

1467

1430

60

2957

1930

1928

53

3911

1894

1924

30

3848

10

769

815

37

1621

773

726

60

1559

2022

2256

101

4379

1362

1692

79

3133

2067

2320

82

4469

1187

1300

34

2521

30

616

627

34

1277

1578

1521

45

3144

1786

1599

108

3493

1395

1104

49

2548

1882

2070

48

4000

2206

2085

30

4321

50

399

768

48

1215

1262

1352

68

2682

1630

2326

192

4148

1391

1359

60

2810

1702

1699

82

3483

1199

1303

30

2532

70

550

675

26

1251

-

-

-

-

1882

1856

79

3817

1319

2085

64

3468

2447

2468

60

4975

1446

1454

30

2930

108

929

1055

30

2014

1195

1352

40

2587

992

1364

94

2450

1301

1328

26

2655

2698

2572

94

5364

1271

1377

37

2685

Mean value

755

875

27

1658

987

969

59

2015

1823

2152

112

4086

1346

1480

70

2896

2183

2176

67

4425

1421

1483

31

2935

%

45

53

2

100

50

46

4

100

44

53

3

100

47

51

2

100

49

49

2

100

48

51

1

100

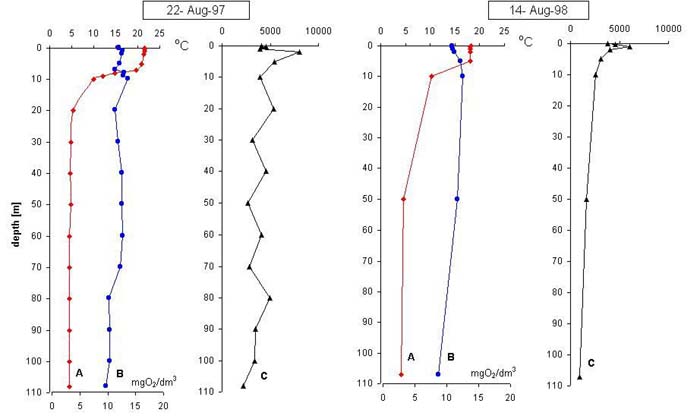

Figure 2. Vertical changes of temperature, oxygen saturation and number of planktonic bacteria (thousands of cells/ 1 cm3 of water) in the water of Lake Hańcza (at station 1) during summer stratification of the lake in 1997 and 1998. A – temperature, B – oxygen, C – planktonic bacteria

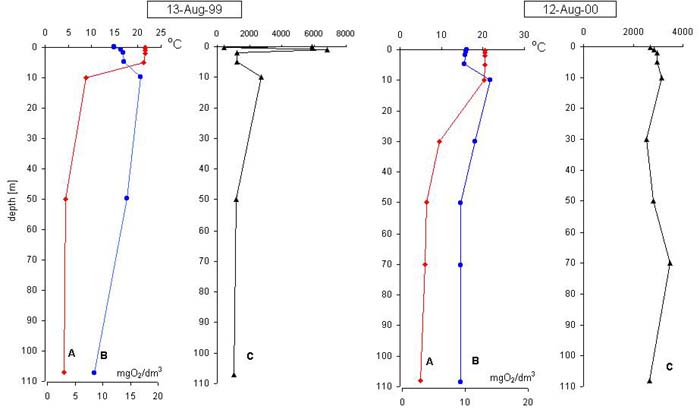

Figure 3. Vertical changes of temperature, oxygen saturation and number of planktonic bacteria (thousands of cells/ 1 cm3 of water) in the water of Lake Hańcza (at station 1) during summer stratification of the lake in the years 1999 and 2000. A – temperature, B – oxygen, C – planktonic bacteria

During summer stratification, a characteristic vertical distribution of bacterioplankton was observed, characterised by higher numbers identified respectively in the upper and lower layer of epilimnion where it was smaller than 8.00·107, and 5.5·107 cells/1 cm3. With depth, rapid changes in the number of such bacteria were observed within the hypolimnion layer (10-100 m), with a descending tendency at the bottom.

In the years 1998-2000 the number of planktonic bacteria varied from 4.34·105 of cells/1 cm3 to 6.835·106 of cells/1 cm3. Their lowest number was reported in August 1999 at the depth of 0.3 m, while the highest one was found the same month at the depth of 1 m. On average, the lowest number of these bacteria was reported in 1999, while the highest one in 1998 when it amounted to 1.959·106 and 3.136·106 of cells/1 cm3, respectively.

In the period of summer stratification, the maximum number of bacterioplankton was noted at a depth of 1 m in 1998 and 1999 (6022 and 6835 of cells/1cm3, respectively), and in the hypolimnion layer at 70 m in 2000 (3468 of cells/1cm3). From May to September 1998, the mean number of planktonic bacteria slightly varied from 3.034·106 to 3.330·106 cells/1 cm3. A higher fall in their number below 2713 cells/1 cm3 was reported not sooner than in October. In 1999, the lowest mean number of bacterioplankton in the entire aquifer was observed in July and the highest in August (9.58·105 and 3.087·106 cells/1 cm3); while in 2000 the respective values were reported in May (lowest) and in July and September (highest) when they reached 1.658·106,4.086·106 and 4.425·106 cells/1 cm3, respectively. In the years 1998 and 1999 surface water (0-1 cm) were us ually less abundant in these bacteria, while at the depths of 03-1.0 and 2.0 m their number increased several times. In 2000, a vertical stratification of bacterioplankton was more of a micro-zonal character, though the number of these bacteria was also lower in the surface water than at the depth of 0.3 m. Only in July their number was higher in the layer of surface water. Occasionally, a higher number of bacterioplankton was reported in the near bottom waters.

Qualitative composition of bacterioplankton (Table 3). Qualitative composition of bacterioplankton was determined in the years 1998-2000. Three morphological forms of such micro-organisms were identified: cocci, rods, and bacilli. Cylindrical rods forms prevailed and constituted from 33 % to 68 % of the total bacterioplankton number in July 1999 and August 1999, respectively. The cocci ranged from 29 % to 65 % (August 1999 and July 1999), while the bacilli – from 1 % to 7-8 % of the total planktonic bacteria number in June 1999 and October 2000 and in September and October 1999, respectively. Neither a correlation was found between the number of particular morphological forms of these bacteria and the season, nor any regularity in their vertical concentration was observed in particular months of the experimental period. Occasionally, a higher number of bacilli was reported in near bottom water.

Thermal-oxygen relations (Figs. 2, 3). In the summers of the experimental period, a clear thermal stratification of the lake was observed. In August of 1997, 1998 and 2000, warm epilimnion reached 5 m, and in 1999 it went down to 7 m. The temperature fluctuated in this water layer and the following values were recorded in middle-August of the 3 consecutive years 1997, 1998, 1999: 21.6-19.6°C (22nd August), 18.1°C (14th August), and 21.6-21.3°C (13th August). Below a metalimnion layer of a thickness of several meters and mean temperature gradient of ca. 3°C/m occurred. In the cold hypolimnion temperature decreased gradually from 8.3°C, 8.0°C, and 9.5°C at the respective depths of 12 m , 11 m and 10 m (1997 and 1998, 1999 and 2000), to 4.3°C in the near bottom water. Spring circulation was reported to begin in April or May, while autumn circulation in September, October or November . Measurements of oxygen saturation at the depth of 50 m yielded 6.5 mg and 16.1 mg O2/dm3 in October 2000 and spring 1999, respectively. In spring and autumn the oxygen saturation was approximately equal at all analysed depths, with a descending tendency at the bottom at (depth of 107 m (Figs. 2,3). During summer stagnation, the oxygen saturation in epilimnion did not fall below 8.5 mg/dm3. Moreover, a higher concentration of this element equal to 12.5/dm3 and 16.9 mg/dm3, dated to 14th August 1998 and 13th August 1999, respectively, was reported in the lower part of thermal jump, i.e. in the water layer from 10 m depth.

The content of hydrogen ions (Table 4). The reaction of Lake Hańcza water was neutral or slightly alkaline and its pH ranged from 7.35 to 8.70. A higher pH in the upper layers was reported. Values of this parameter decreased with depth.

Table 4. Some physico-chemical data on the water of Lake Hańcza in 1997, 1999, and 2000

Season of the year

SPRING

SUMMER

AUTUMN

Site - depth

Lake

1-0.3

1-5

1-10

1-50

1-108

1-0.3

1-5

1-10

1-50

1-108

1-0.3

1-5

1-10

1-50

1-108



1997

Temperature °C

9.6

8.8

7.4

4.7

4.3

21.6

20.8

10.0

4.9

4.4

15.2

15.1

12.5

4.9

4.3

Oxygen mg O2/dm3

10.8

11.3

10.6

11.0

10.8

9.5

9.6

10.1

10.3

9.7

9.4

9.8

9.5

9.4

9.0

pH

7.45

7.35

7.35

7.35

-

8.65

8.7

8.4

7.75

-

8.4

8.55

8.25

7.75

-



1999

Ammonium nitrogen mgN-NH4/dm3

0.010

0.01

0.0

0.0

0.040

0.0

0.007

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.01

Nitrite nitrogen mgN-NO2/dm3

0.007

0.010

0.020

0.010

0.070

0.010

0.020

0.092

0.010

0.010

0.005

0.002

0.0

0.002

0.002

Nitrate nitrogen mgN-NO3/dm3

0.021

0.110

0.250

0.300

0.301

0.060

0.050

0.004

0.240

0.318

0.014

0.018

0.025

0.035

0.041

Organic nitrogen mg/dm3

0.220

0.230

0.220

0.250

0.300

1.010

0.800

0.750

0.900

0.840

0.616

0.615

0.502

0.448

0.448

Total nitrogen mg/dm3

0.248

0.36

0.49

0.56

0.711

1.08

0.877

0.846

1.15

1.168

0.635

0.635

0.527

0.485

0.501

Mineral phosphorus mg P-PO4/dm3

0.002

0.002

0.002

0.005

0.008

0.03

0.04

0.044

0.033

0.046

0.018

0.012

0.024

0.022

0.028

Organic phosphorus mg/dm3

0.025

0.033

0.032

0.022

0.04

0.033

0.028

0.045

0.033

0.024

0.032

0.02

0.015

0.048

0.029

Total phosphorus mg/dm3

0.027

0.035

0.034

0.027

0.048

0.063

0.068

0.089

0.066

0.07

0.05

0.032

0.039

0.07

0.057

Temperature °C

4.7

4.1

3.9

3.8

4.0

21.6

21.3

4.4

4.4

4.1

9.4

9.4

9.4

4.8

4.4

Oxygen mgO2/dm3

9.8

13.4

13.2

16.1

14.3

12.1

13.8

16.9

14.4

8.3

10.72

9.9

9.9

8.48

6.72



2000

Ammonium nitrogen mgN-NH4/dm3

0.01

0.01

0.0

0.0

0.03

0.0

0.008

0.0

0.02

0.0

0.0

0.0

0.0

0.0

0.0

Nitrite nitrogen mgN-NO2/dm3

0.008

0.01

0.01

0.01

0.008

0.002

0.003

0.0006

0.001

0.0

0.0

0.0

0.0

0.0

0.0

Nitrate nitrogen mgN-NO3/dm3

0.222

0.331

0.61

0.349

0.352

0.206

0.091

0.222

0.109

0.325

0.064

0.076

0.058

0.307

0.273

Organic nitrogen mg/dm3

0.55

0.55

0.56

0.45

0.42

0.56

0.66

0.56

0.6

0.67

0.56

0.56

0.504

0.392

0.448

Total nitrogen mg/dm3

0.79

0.901

1.18

0.809

0.81

0.768

0.762

0.7826

0.73

0.995

0.624

0.636

0.562

0.699

0.721

Mineral phosphorus mg P-PO4/dm3

0.004

0.003

0.003

0.003

0.001

0.009

0.058

0.01

0.018

0.025

0.018

0.028

0.03

0.016

0.03

Organic phosphorus mg/dm3

0.029

0.06

0.057

0.036

0.044

0.066

0.032

0.068

0.045

0.038

0.027

0.02

0.018

0.014

0.012

Total phosphorus mg/dm3

0.033

0.063

0.06

0.039

0.045

0.075

0.09

0.078

0.063

0.063

0.045

0.048

0.048

0.03

0.042

Temperature °C

15.8

15.3

6.2

4.0

4.2

20.5

20.3

20.2

6.4

4.9

10.2

10.1

10.3

4.2

4.3

Oxygen mg O2/dm3

10.9

11.63

12.08

11.74

11.46

10.24

9.92

13.92

9.92

9.28

10.72

10.88

10.88

10.72

6.56

The content of ammonia, nitrite, nitrate, and total nitrogen (Table 4). The content of ammonia nitrogen changed within the values limited by the detectable limit, i.e. less than 0.001 mg N-NH4/dm3, and the value of 0.040 mg N-NH4/dm3. Such values were found in most of samples in all experimental seasons of 1999 and 2000, and in spring for 108-m deep water, respectively. The content of nitrite nitrogen ranged from the detectable threshold value of 0.001 mg N-NO2/dm3 recorded in the 10-m water layer in October 1999, regardless the depths in autumn, and in water at the depth of 50 and 108 m in August 2000, to the maximum of 0.092 mg N-NO2/dm3 measured in water at 10 m depth in August 1999. The content of nitrate nitrogen varied from 0.004 mg N-NO3/dm3 in 10 m deep water, in August 2000, up to 0.352 mg N-NO3/dm3 at the depth of 108 m in spring 2000, whereas the total nitrogen content changed between 0.248 mg Ntot/dm3 at a depth of 0.3 m (April 1999) to 1.168 mg Ntot /dm3 at the depth of 108 m in summer 1999. In spring and winter 1999 and 2000, higher concentrations of ammonia nitrogen were found in the near bottom water, while in summer – at 5 m depth. The contents of nitrite and nitrate nitrogen in the examined samples of Lake Hańcza waters demonstrated regularity neither in the vertical, nor in the seasonal distribution, though the total nitrogen content tended to increase with depth.

The content of mineral and total phosphorus (Table 4). Over the research period the mineral phosphorus content ranged from 0.001 mg P-PO4/dm3 (108 m depth in spring) up to 0.046 mg P-PO4/dm3 in August 1999. The content of organic phosphorus varied between 0.012 mg Porg/dm3 at the depth of 108 m in autumn 2000, up to 0.068 mg Porg/dm3 at the 10 m depth in August 2000. Total phosphorus content varied between 0.027 mg Ptot/dm3 found at 0.3 and 50 m depth in spring 1999, to 0.089 Pog/dm3 at 10 m depth in August 1999. Slightly higher concentrations of the examined forms of phosphorus were reported regularly for demersal layers of water, and occasionally, depending on the season and year of the study, also for the surface layers.

Statistical analysis of the results (Table 5) of bacterioplankton and water temperature points to a high or even very high correlation for the samples collected in 1997 (rxy=0.549) and 1998 (rxy=0.857). A weak positive correlation was also observed between the number of planktonic bacteria and oxygen saturation in the waters of Lake Hańcza during summer lake stratification in 1996 (rxy= 0.228) and 1998 (rxy= 0.184). What is more, a negative correlation was found between the number of bacterioplankton and depth, namely rxy= -0.545, rxy= -0.792 and rxy=-0.362 in 1997, 1998, and 1999, respectively. It may be explained by lower oxygen saturation, lower temperature and usually lower content of easily-available organic matter inhibiting development of micro-organisms in the deeper layers of water.

Table 5. Correlation coefficient between temperature (X1), oxygen saturation (X2), and depth (X3) versus the number of bacterioplankton for the examined habitat of Lake Hańcza

X

Site-1

Numer of bacteria (y)

Year

1997

1998

1999

2000

Temperature, X1

Dissolved oxygen, X2

Depth, X3

0.549

0.228

-0.546

0.857

0.184

-0.792

0.344

0.092

-0.362

0.028

0.043

0.023

DISCUSSION

The obtained results of physico-chemical analyses for Lake Hańcza waters proved that all the investigated water samples meet the standards specified in the Directive of Minister for Environmental Protection, Natural Resources and Forestry dated November 5, 1999 (on classification of waters and requirements to be met by waste introduced into water and soil regarding N-NH4, N-NO2, N-NO3, N mineral phosphorus, total phosphorus and oxygen contents) and correspond to I class purity waters. The number of bacterioplankton differed highly both with regards to water and individual months of the experimental period.

The total number of planktonic bacteria in Lake Hańcza, namely 4.34·105-8.44·106 cells/1 cm3, was found to be slightly lower in comparison to other lakes of a similar trophic status [9,11,17,28]. Throughout the experimental period (1997-2000) a remarkable variability was observed in the number of such bacteria occurring in the lake; it seems typical for pure waters as other research supports [6,17]. A significant impact on the number, structure and variability of bacterioplankton has been ascribed to the content and availability of organic matter [3,8,21,27]. In the pure, protected Lake Hańcza, surface flows from the basin or products of other micro-organism metabolism provide the main source of biogenes. In lakes with a low trophy, algae and associated numerous zooplankton [13] are considered to be the main reservoir of organic matter [19], especially in the blooming period [7,21]. Bacteriocytic organisms [8,14,16] can be also responsible fo r modifying the number of planktonic bacteria.

The enumerated factors may, to a high extent, evoke an influence on considerable quantitative and qualitative diversity of bacterioplankton reported for particular research seasons, as well as its vertical distribution in the water of Lake Hańcza. Usually, throughout the experimental period, lower numbers of bacterioplankton were reported in the surface water layer (0-0.3 m) that could be related to bactericidal activity of UV radiation [14,17]. In the period of summer stratification of the lake, higher concentrations of these bacteria were usually noted at depths of 2, 5 or 10 m. An increase in the planktonic bacteria content observed in the lower layer of warm trophogenic zone, is typical for lake stratification due to an increase in water density gradient, water temperature, and accumulation of organic matter in this part of a lake. ¦wi±tecki [25] has reported that with a temperature increased by 10°C, the number of planktonic bacteria doubles, on average. Higher number of bacteriopl ankton in summer months at specific depths and the whole capacity of Lake Hańcza may also be related to development and atrophy of phyto- and zooplankton that provides nutrients to bacterioplankton [12,17]. Well-documented decrease in bacterioplankton number down the depth of Lake Hańcza, is characteristic for oligotrophic lakes [9]. Similar regularity was reported by Niewolak and Kaczor [17] in oligotrophic Lake Wuk¶niki, where such a phenomenon was observed and explained by the lack of higher concentration of detritus in these water layers. In other lakes [9,15], higher concentrations of bacteria are usually reported in the over-sediment layer of water. In Lake Hańcza, the phenomenon was reported to occur a few times, namely in June 1997, June and September 1999, and May and September 2000.

In the experimental seasons, a higher number of bacterioplankton was reported in spring, which most likely resulted from the surface flows to the lake, and in summer that was attributed to the increased availability of organic matter content due to development and atrophy of other groups of organisms. The distinctive decrease in the number of planktonic bacteria in autumn can be explained by decreasing temperature and content of available organic matter, and/or by the pressure of bacteriocytic organisms [8,12,13,24]. Factors that determine the number of bacterioplankton also affect its morphological composition. The size of bacteria may provide a good indicator for the state of an ecosystem [1]. Lake Hańcza is dominated by a form of cylindrical rods which constitute from 33% to 68% of total bacterioplankton. A similar structure of these bacteria occurs in other Mazurian Lakeland [25,26,8]. The percentage of cocci, ranging between 29 and 69%, was also of significant importance. According to Godlewska-Lipowa [5], spherical forms of bacteria dominate in lakes with a low trophy, and the number of cylindrical bacteria tends to increase with an increased trophy. Lakes were less abundant in cylindrical forms of bacilli, which demonstrated insignificant concentration (lower than 8%) only at the bottom of the aquifer.

CONCLUSIONS

  1. The results of physico-chemical analyses proved purity of the waters of Lake Hańcza.

  2. The determined number of bacterioplankton, as well as its morphological structure, namely prevailing content of cylindrical rod forms, also support water purity in Lake Hańcza.

  3. Over the experimental period vertical distribution of planktonic bacteria usually demonstated micro-zonal character indicating a ‘focal’ distribution of organic and mineral matter.

  4. Higher number of bacterioplankton was reported in surface or near bottom water of the lake, which may be attributed to organic matter of auto- or allochtonic origin accumulating in the zones.


REFERENCES

  1. Cole J.J., Pace M.L., Caraco N.F., Steinhart G.S., 1993. Bacterial biomass and cell size distribution in lakes-mare larger cells in anoxic waters. Limnol. Oceanogr.; 38: 1627-1632.

  2. Cydzik D., Kudelska D., Soszka H., 1988. Atlas stanu czysto¶ci jezior Polski badanych w latach 1979-1983. [Polish Lakes Purity Atlas. Investigations dated 1979-1983]. Inst. Ochr. ¦rod. Wyd. Geol.; Warszawa [in Polish].

  3. Donderski W., 1983. Tlenowe bakterie heterotroficzne jezior o różnej trofii. [Heterotrophic (aerobik) bacteria in lakes of different trophy]. Wyd. UMK Toruń; 1 – 105; [in Polish].

  4. Donderski W., 1986. Number, generation time and biomass production by bacteria in the water of different trophy. AUNC Toruń, Nauki mat-przyr z.61, Prace Limnol.; 15: 75-86.

  5. Godlewska–Lipowa W., 1976. Bacteria as indicators of the degree of eutrophication and degradation of lakes. Pol. Arch. Hydrobiol.; 23: 341-356.

  6. Güde H., Haibel B., Muller H., 1985. Development of planktonic bacteria populations in Lake Constance (Bodensee-Obersee). Arch. Hydrobiol.; 105: 59-77.

  7. Kamjunke N., Boing W., Voigt H., 1997. Bacterial and primary production under hypertrophic conditions. Aquatic Microb. Ecol.; 13: 29-35.

  8. Koton-Czarnecka M., Chróst R., 2001. Konsumpcja bakterii przez pierwotniaki w ekosystemach wodnych. [Grazing of bacteria by protozoan in water ecosystems]. Post. Mikrobiol.; 40: 219-240; [in Polish].

  9. Kuznecov S. I., 1970. Mikroflora ozer i jeje geochimičeskaja dejatelnost. [Mikroflora of lakes and their geochemical activity]. Izd. “Nauka”, Leningrad [in Russian].

  10. Lalke-Porczyk E., 1999. Występowanie, rozwój i aktywno¶ć metaboliczna bakterii epifitycznych makrofitów. [Occurence, growing and metabolic activity of epiphitic bacteria inhabitet macrophytes]. PhD Thesis; UMK – Toruń [in Polish].

  11. Marchlik D. W., ¦wi±tecki A., Rydzyńska K., 2001. Struktura i funkcja bakterioplanktonu jeziora Wigry. [Structure and function of bacterioplankton of Wigry Lake]. Słupskie Prace Przyrodnicze; 1: 75-83; [in Polish].

  12. Mudryk Z., 1994. Bakterie heterotroficzne w procesach transformacji materii organicznej w jeziorach estuariowych. [Heterotrophic bacteria in organic matter transformation in estuarine lakes]. Pedagogical Academy Publishing House [Wydawnictwo WSP], Słupsk [in Polish].

  13. Nagata T., Okamoto K., 1993. Production rate of planktonic bacteria in the north basin of Lake Biva. Ecol. Res.; 1: 207-221.

  14. Niewolak S. 1989. Badania mikrobiologiczne Jeziora Niegocin. [Microbiological investigations of Lake Niegocin]. Rocz. Nauk Roln; 102 -H-1; 109-130; [in Polish].

  15. Niewolak S., 1974. Vertical distribution of bacterioplankton and thermal-oxygen relations in the water of the Iława Lakes. Acta Hybrobiol. (Kraków); 16: 173-187.

  16. Niewolak S., 2001. Liczebno¶ć i biomasa bakterioplanktonu w wodzie jeziora sztucznie destratyfikowanego. [Number and biomass of planctonic bacteria in artificial destrafied lake water]. Słupskie Prace Przyrodnicze; 1: 107-117; [in Polish].

  17. Niewolak S., Kaczor E., 1988. Badania mikrobiologiczne oligotroficznego Jeziora Wuk¶niki. [Microbiological studies in an oligotrophic Lake Wuk¶niki]. Olsztyn AR-T University Progress Reports of [Zeszyty Naukowe AR-T w Olsztynie]; 16: 212-220; [in Polish].

  18. Pace M.L., Cole J.J., 1996. Regulation of bacteria by resources tested in whole-lake experiments. Limnol. Oceanogr.; 41: 1148-1460.

  19. Petit M., Alves G.P., Lavandier P., 1999. Phytoplanktonic exudation, bacterial reassimilation and production for three diel cyclesin different trophic conditions. Arch. Hydrobiol.; 146: 285-309.

  20. Rodina A., 1968. Mikrobiologiczne metody badania wód. [Microbiological methods of water investigations]. PWR i L Warszawa, [in Polish].

  21. Rosenstock B., Simon M., 1993. Use of dissolved combined and free amino acids by planktonic bacteria in Lake Constance. Limnol. Oceanogr.; 38: 1521-1531.

  22. Sanders R.W.,Caron D.A., Berninger U.G., 1992. Relationship between bacteria and heterotrophic nanoplankton in marine and fresh waters: an inter – ecosystem comparision. Mar. Ecol. Prog. Ser.; 86: 1-14.

  23. Shiah F.K., Ducklow H.W., 1994. Temperature regulation of heterotrophic bacterioplankton abundance, production, and specific growth rate in Chesapeake Bay. Limnol. Oceanogr.; 39, 1243 – 1258.

  24. ¦wi±tecki A., 1997. Zastosowanie wskaĽników bakteriologicznych w ocenie jako¶ci wód powierzchniowych. [Bacteriological indicators applied to quality of surface water evaluation]. WSP Olsztyn [in Polish].

  25. ¦wi±tecki A., Górniak D., 1997. Bakterioplankton systemu rzeczno – jeziornego Czarnej Hańczy i jego rola w procesach samooczyszczania wód. [Bacterioplankton of Czarna Hańcza river-lake system and its role in self purification of water]. Stacja bazowa Wigry. Wigierski Park Narodowy. Zintegrowany Monitoring ¦rodowiska Przyrodniczego. [Wigry Base station. Wigry National Park. Integrated Natural Environment Monitoring]. Warsaw; PIO¦; 48-57; [in].

  26. ¦wi±tecki A., Górniak D., 1999. Mikroorganizmy wodne jeziora Hańcza. [Water microorganisms of Lake Hańcza]. Funkcjonowanie i ochrona zbiorników wodnych na obszarach chronionych. Eds. B. Zdanowki, A. Kamieński and A. Martyniak. (in:) Functionality and protection of water reservoirs in protected areas Eds. B. Zdanowki, A. Kamieński and A. Martyniak]. Olsztyn, IRS; 48-57; [in Polish].

  27. Wang L., Priscu J.C., 1994. Influence of phytoplankton on the response of bacterioplankton growth to nutrient enrichment. Freshwater Biology; 31: 183-190.

  28. Wcisło R., Chróst J., 1997. Selected Enzymatic Properties of Bacterioplankton in Lakes of Various Degrees of Eutrophication. Acta. Microb. Pol.; 2: 203-218.

  29. Zdanowski B., Hutorowicz A., 1997. Charakterystyka hydrochemiczna Czarnej Hańczy i wpływ tej rzeki na wody jezior Hańcza i Wigry. [Hydrochemical characteristics of Czarna Hańcza River and their influence on Hańcza and Wigry Lakes]. Zintegrowany monitoring ¶rodowiska przyrodniczego. Stacja Bazowa Wigry (Wigierski Park Narodowy). (in:) Integrated Natural Environment Monitoring. Wigry Base station. Wigry National Park. Biblioteka Monitoringu ¦rodowiska; Warszawa [in Polish].


Anna Gotkowska-Płachta
Department of Environmental Microbiology
University of Warmia and Mazury in Olsztyn
Prawocheńskiego 1, 10-957 Olsztyn-Kortowo, Poland
tel. (089) 523-37-52
e-mail: aniagp@moskit.uwm.edu.pl

Responses to this article, comments are invited and should be submitted within three months of the publication of the article. If accepted for publication, they will be published in the chapter headed ‘Discussions’ in each series and hyperlinked to the article.


[BACK] [MAIN] [HOW TO SUBMIT] [ISSUES] [SUBSCRIPTION]
