Electronic Journal of Polish Agricultural Universities (EJPAU) founded by all Polish Agriculture Universities presents original papers and review articles relevant to all aspects of agricultural sciences. It is target for persons working both in science and industry,regulatory agencies or teaching in agricultural sector. Covered by IFIS Publishing (Food Science and Technology Abstracts), ELSEVIER Science - Food Science and Technology Program, CAS USA (Chemical Abstracts), CABI Publishing UK and ALPSP (Association of Learned and Professional Society Publisher - full membership). Presented in the Master List of Thomson ISI.
Volume 6
Issue 1
Food Science and Technology
Available Online: http://www.ejpau.media.pl/volume6/issue1/food/art-01.html


Antoni Golachowski



The number of linkages to acetyl groups decreased with the increasing contents of SO2 in starch milk. Acetylation degree affected pasting temperatures and viscosities of the pastes obtained from acetylated starch. The changes in potato starch properties observed during acetylation by acetic anhydride at alkaline pH resulted not only from linkages to acetyl groups, but also from ion exchange.

Key words: acetylated starch, SO2-treated starch milk, physico-chemical properties


The process of starch acetylation has been known for over ninety years. Acetylated starch is widely used in food, textile and paper industry.

In Poland acetylated starch with a low degree of substitution, used for a variety of industrial applications, is obtained from potato starch. Starch milk collected at the section of refining is the raw material for producing acetylated starch with a low degree of substitution during starch campaign. The majority of starch processing plants make acetylated starch after the starch campaign is over, using dried starch, either stored in bulk in silos or in bags. The latter is preferred from organizational and economic points of view (prolonged employment and use of equipment and facilities). In the case of wet modified starches (e.g. acetylated starch with a low degree of substitution, starch syrups) the first stage requires starch milk production, therefore, the after-campaign manufacturing is more costly as it is more energy consuming, which is connected with some additional operations, such as starch drying, followed by storage and next mixing with water in order to obtain starch milk. The u se of energy can be reduced provided that starch milk is stored instead of dried starch. The data in the literature [3, 4] show that prolonged storage of starch milk with no quantitative losses of starch is possible when starch has been pre-treated with some preserving agents. However, pre-treatment may affect the process of modification and the quality of the resultant product.

The aim of the present study was to determine the effects of SO2-treatment on starch milk, the process of starch acetylation and properties of acetylated starch.


The material taken for the study consisted of potato starch “Superior”. Starch milk was obtained by mixing 200 g of starch (converted to dry weight) with 200 g of distilled water. Next, a solution of NaHSO3 was added and the total weight of the suspension (starch + NaHSO3 solution + water) was brought up to 560 g by the addition of water. The concentrations of NaHSO3 expressed as mg SO2 per 1 000 g of starch milk were as follows: 0; 37; 75; 150; 300; 600; 1 250; 2 500; 5 000 and 10 000. The mixture was blended and kept for approx. 30 min.

Production of acetylated starch with a low degree of substitution

Acetylation was carried out by the methods used in Polish starch processing plants [6].

The starch milk was blended with acetic anhydride (26.2 cm3), at a constant rate of 1 cm3/min, and 3% NaOH solution until the pH was adjusted to 8-9. After the whole amount of the acetic anhydride had been added, the resulting mixture was acidified with 10% HCl to adjust the pH to 5.2-5.6. The acetylated starch was separated on a funnel and washed with distilled water, so as to remove the residues of the reagents. Starch was dried at temperature lower than 30°C and screened. The analyses were made for 7-14 days after production of the acetylated starch.


The measurements of starch milk and acetylated starch included:

The acetylation degree was calculated according to the method of Wurzburg [8]:


x - amount of 0.5 M HCl used for titration of a sample,
a - weight of starch (in conversion to dry weight).

The data were analyzed statistically (one-way analysis of variance, linear analysis of regression) using Statgraphics v.5.0 [2].


The properties of acetylated starches depend on the kind and type of starch, pretreatment of the starch, acetylation process (amount and kind of reagents and catalysts). The present study was performed with one raw material and under standardized conditions of reactions, therefore, the properties of acetylated starch were likely to have been affected by SO2-treatment of the starch milk.

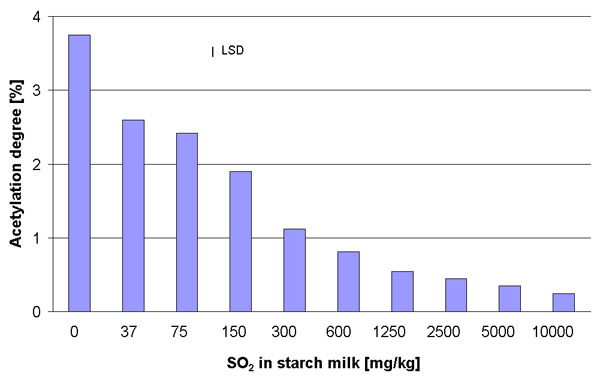

As can be seen in Figure 1, SO2 decreased the degree of starch acetylation. SO2 concentrations within the range of 37-75 mg/kg reduced the acetylation rate by approx. 30% (from 3.75% to ca. 2.5%). Acetylated starch obtained from SO2-treated starch milk (³150 mg/kg) produced the acetylation rate lower than 2%, therefore, the concentrate did not meet the requirements of Polish starch processing plants.

The decrease in the acetylation rate due to SO2-treatment corresponded with changes in the temperatures of starch pasting and viscosity of 4% pastes produced from acetylated starch.

Fig. 1. Acetylation degrees of starch obtained from SO2-treated starch milk

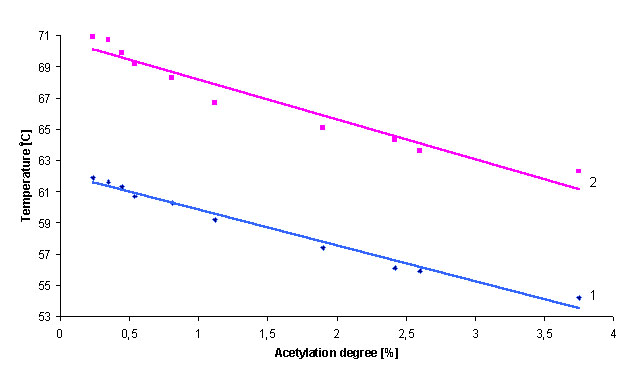

Fig. 2. Starting temperature of pasting (1) and temperature of max. viscosity (2) of acetylated

Figure 2 shows that the degree of acetylation affected the starting temperature of pasting and max. temperature of viscosity of the acetylated starch. The relationship between the degree of acetylation and pasting temperatures was strong correlated and the correlation coefficients were: r = - 0.99 (starting temp. of pasting) and r = - 0.97 (temp. of max. viscosity).

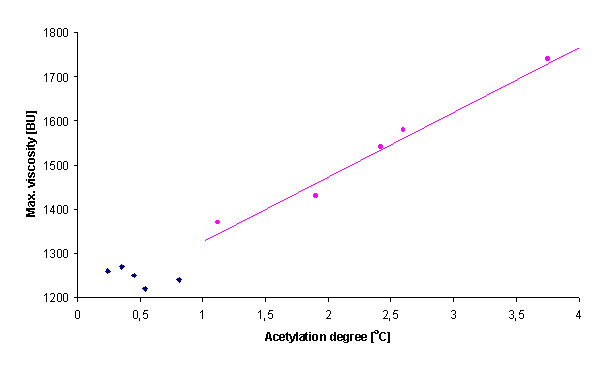

Figure 3 shows the relationship between the degree of acetylation and max. viscosity of 4% starch pastes. As can be seen in Fig. 3 the acetylation degree lower than 1% did not affect the max. viscosity of pastes; these values were correlated at higher degrees of acetylation (r = 0.98).

Fig. 3. Max. viscosity of 4% pastes obtained from acetylated starch vs. acetylation degree

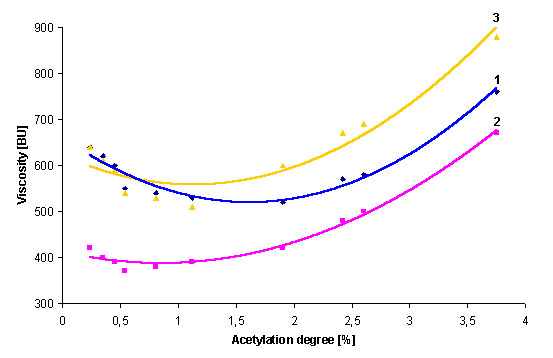

Fig. 4. The relationships between viscosity of 4% pastes and acetylation degree (1) - viscosity at 94°C; (2) - viscosity at 94°C - end holding period; (3) - viscosity at

The viscosities of 4% pastes measured at 94°C, after 10 min of storage at 94°C and 30°C were also affected by the degree of starch acetylation. As can be seen in Figure 4, the viscosities found within the range of 0.24% - 0.88% were decreasing with the increased degree of acetylation, while those within the range from 1.12% to 3.75% increased with the increasing acetylation degree. Relationships between acetylation degree and temperatures of starch pasting and paste viscosities were also reported by other authors [1, 5].

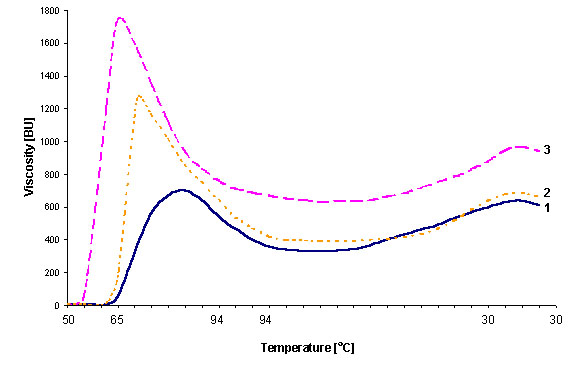

As can be seen in Figure 5, the differences in pasting temperatures and viscosities of 4% pastes between native starch and starch with a low degree of acetylation (A = 0.24%) were greater than those between starches with different degrees of acetylation (A = 0.24%; A = 3.75%). It seems unlikely that the linkage of few acetyl groups to starch (acetylation degree A = 0.24%) could have decreased the temperature of max. starch viscosity by ca. 7°C and increased max. viscosity of 4% pastes by ca. 550 BU as compared to native starch. It is quite likely that during acetylation, apart from esterification, the phosphoric acid present in starch is saturated with sodium ions present in the NaOH solution used for adjusting the pH to 8-9.

Fig. 5. Pasting characteristics of native (1), and acetylated starches: (2) - acetylation degree 0.24%; (3) - acetylation degree 3.75%

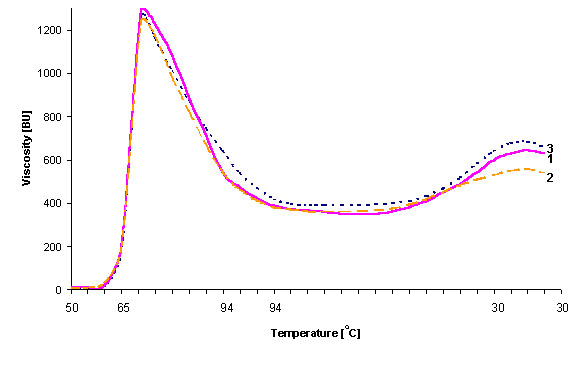

In order to determine the changes due to ion exchange, the starch was washed with NaCl solution, and next several times with distilled water, so that ”sodium” starch was obtained. The pasting temperature of this kind of starch was lower than that of native starch, whereas the viscosity of pastes was higher, typical of ”sodium” starch [7]. The curve characterizing ”sodium” starch pasting was similar to that of acetylated starch containing 0.24-0.81% acetyl (Fig. 6). It can, therefore, be concluded that the differences between native and acetylated starch were mainly due to the exchange of ions; the effect of linkage of the acetyl groups occurs at higher than 1% amounts of acetyl residues in starch.

Fig. 6. Pasting characteristics of sodium (1), and acetylated starches: (2) - acetylation degree 0.24%; (3) - acetylation degree 0.81%

In further series of the experiments, acetylated starches were made from starch milk pretreated with 10 000 mg of SO2/kg, in which Na2SO3 and Na2S2O5 were the sources of SO2. As Table 1 shows there are no significant differences between the properties of the resultant acetylated starches (acetylation degree, pasting temperatures, viscosity of 4% pastes) and acetylated starch obtained from starch milk with the same dose of SO2 added in the form of NaHSO3. This accounts for specific impact of SO2 on acetylation, irrespective of the compound used.

Tab. 1 Properties of acetylated starches produced with 1% addition SO2 in the various form

Form of SO2

Properties of acetylated starches


starting temperature of pasting

temperature of max. Viscosity

max. viscosity





1 260





1 290





1 280

The impact of SO2 on acetylation degree and the properties of acetylated starch should be taken into account by industrial manufacturers of acetylated starch with a low degree of substitution. SO2 is added during technological processes of starch processing plants, therefore, it is important to know SO2 contents of the starch milk destined for acetylation. Starch milk treated with SO2 probably contains a relative big amount of SO2 so it should be washed with water in order to reduce its SO2 contents prior to acetylation.


  1. SO2 treatment of starch milk (irrespective of chemical compound used) decreased the acetylation degree and also affected pasting temperatures and viscosity of 4% starch pastes.

  2. Changes in the properties of acetylated starches as compared to native starch (non-acetylated) were both due to the exchange of ions saturating phosphoric acid into sodium ions as well as the linkage of acetyl to hydroxy groups during acetylation.

  3. Too high contents of SO2 in starch milk destined for acetylated starch concentrate manufacturing is likely to reduce the quality of the subsequent product.


  1. Agbola S.O., Akingbala J.O., Oguntimein G.B., 1991, Physicochemical and functional properties of low DS cassava starch acetates and citrates. Starch/Staerke 43: 62-66.

  2. Dąbrowski A., Gnot S., Michalski A., Srzednicka J., 1993, Statystyka. 15 godzin z pakietem Statgraphics [Statistics. 15 hours with Statgraphics]. Wyd. AR Wrocław [in Polish].

  3. Drożdż W., 2002, Zmiany właściwości skrobi zachodzące podczas zamrażania i rozmrażania zakonserwowanego mleczka skrobiowego [Changes of starch occurring during freezing and defrost of preserved starch milk]. Żywność Nauka Technologia Jakość, in press [in Polish].

  4. Golachowski A., 1985, Zmiany właściwości skrobi zachodzące podczas przechowywania surowca, półproduktów i produktów przemysłu krochmalniczego [Influence of storage conditions of potato starch semi-products on the properties of starch]. Zesz. Nauk. AR Wrocław, Dissertations, 279, [in Polish].

  5. Liu H., Ramsden L., Corke H., 1997, Phisical properties and enzymatic digestability of acetylated ae, wx, and normal maize starch. Carbohydr. Polym. 34: 283-289.

  6. Mężyński L., 1972, Acetylowanie skrobi [Starch acetylation]. Przem. Chem. 51/5: 289-290, [in Polish].

  7. Winkler S., 1971, Die Staerke als Ionenaustauscher. Parey Verlag, Berlin and Hamburg.

  8. Wurzburg O.B., 1964, Starch derivates and modification. Methods in Carbohydrate Chemistry IV, ed, Whisler R.L., Acad. Press, New York, 286-288.

Antoni Golachowski
Departament of Food Storage and Technology
Agricultural University of Wroclaw
Norwida 25, 50-375 Wrocław, Poland
Ph. (+48 71) 320 52 21
