SELECTED BIOTECHNOLOGICAL FEATURES OF HYBRIDS OF SACCHAROMYCES CEREVISIAE AND YAMADAZYMA STIPITIS

Joanna Chmielewska

ABSTRACT

The aim of the research was to investigate the possibility of the use of interspecific hybrids of yeast in ethanol fermentation of media containing xylose. Distilling yeast Saccharomyces cerevisiae D43, xylose fermenting yeast Yamadazyma stipitis ATCC 58376 and their hybrids: YD43-4, YD43-6, YD43-11 and YD43-12 were used as biological material. The parental strain Yamadazyma stipitis ATCC 58376 produced 0.389 g ethanol from 1 g xylose. The hybrids YD43-6 and YD43-11 did not statistically differ from Yamadazyma stipitis in respect to efficiency of ethanol from xylose, but produced less xylitol. In the model medium, with the ratio of glucose to xylose (7:3) corresponding to lignocellulitic hydrolysates, the hybrid YD43-6 produced the most ethanol (0.377 g/g).

Key words: distilling, distilling yeast, protoplast fusion, xylose fermentation.

INTRODUCTION

In recent years, the interest in alternative sources of energy, including ethanol, has been growing. To make the price of ethanol competitive as compared to the price of fossil fuels, it is necessary to apply modern technological solutions and cheaper components in its production [5, 29]. The use of lignocellulitic materials, including plant biomass, agricultural, industrial and municipal wastes or forestry residues for commercial production of ethanol, is especially interesting [16, 35, 37, 46]. The use of microorganisms which effectively utilize all carbohydrates present in lignocellulitic hydrolysates is a major problem. The biggest problems are observed in economic conversion of pentoses, esp. xylose, present in large amounts. Saccharomyces cerevisiae, yeast commonly used in distilling industry, do not ferment xylose. Such yeasts as Pichia (Yamadazyma) stipitis, Candida shehatae and Pachysolen tannophilus are characterised by the best ability to produce ethan ol from D-xylose [8, 13, 33]. However, their use for fermentation of complex lignocellulitic hydrolysates is not very economic, especially due to a long time of fermentation, low ethanol yield, difficult optimization of physico-chemical parameters of the process and weaker tolerance for numerous inhibitors present in the media [28].

The results obtained in numerous studies seem to confirm the significance of protoplast fusion as a method of improving industrial yeast strains, despite difficulties in introducing specific genes and low stability of recombinants, esp. of taxonomically different species [27, 43].

The objective of the present study was to use protoplast fusion to obtain new strains of yeasts characterized by high fermentative ability, good tolerance of ethanol and unfavourable media factors and ability to ferment D-xylose. As a result of protoplast fusion in polyethylene glycol, 13 hybrids of Saccharomyces cerevisiae D43 and Yamadazyma stipitis ATCC 58376 were obtained, one of them – although characterised by the ability to grow on xylose - did not ferment xylose. Moreover, three other hybrids lost the features gained from the partners in fusion during storage. The remaining hybrids were tested, their fermentative ability in media with glucose and xylose was assessed and the recombination of genetic material was confirmed through the analysis of homology of DNA of parental strains and the hybrids in polymerase chain reaction using microsatellite primer (GTG)₅. In case of two hybrids: YD43-6 and YD43-11, genes XYL1 and XYL2, present also in Ya madazyma stipitis ATCC 58376 – a parent fermenting xylose – were observed [2]. Xylose reductase and xylitol dehydrogenase, enzymes coded by genes XYL1 and XYL2 and also bacterial xylose isomeraze, coded by gene XYLA [25, 31], are indispensable in the process of D-xylose fermentation.

In the present study, potential technological applications of the obtained hybrids were tested. For the assessment of selected biotechnological features, out of 7 stable, xylose fermenting hybrids, the hybrids with confirmed presence of genes XYL1 and XYL2 – YD43-6 and YD43-11 and hybrids YD43-4 and YD43-12, characterised in selection tests by fermentative activity similar to that of hybrids YD43-6 and YD42-11 were chosen.

THE AIM OF THE RESEARCH

The aim of the research was to assess the possibility of the use of interspecific hybrids of distilling and xylose fermenting yeasts in ethanol fermentation of substrates containing xylose.

Selected biotechnological features (growth rate, dynamics of fermenting glucose and xylose, yield of ethanol from glucose and xylose, yield of xylitol from xylose, physiological condition of yeast cells after the process of fermentation) of parental stains and hybrids were assessed in the study.

MATERIALS AND METHODS

Biological material

Distilling yeast Saccharomyces cerevisiae D43 from the Collection of Cultures of the Department of Food Storage and Technology (Agricultural University of Wroclaw), xylose fermenting yeasts Yamadazyma stipitis ATCC 58376 and their hybrids: YD43-4, YD43-6, YD43-11 and YD43-12, obtained through protoplast fusion in polyethylene glycol [2], were used in the present study.

Growth dynamics

For each culture of strains a curve of the relation of absorbance of the cell suspension to the concentration of dry mass A=f (dry mass of yeast) was determined. Dry mass of yeast was marked using dryer-weight method. For dilutions of suspension of cells from 48 h culture in YM medium, absorbance (l=560 nm) was measured using a BECKMAN DU-650 spectrophotometer. 10 cm³ of suspension of cells with known absorbance were transferred to tared weighing bottles with sea sand and dried at 105°C until dry mass was obtained. In the next stage, absorbance (l=560 nm) was measured from the 3^rd to the 30^th hour of culture in YM medium. Based on the standard curves A=f (dry mass of yeast), growth curves were determined as a relation of the concentration of biomass to the duration of culture: dry mass of yeast = f (t). The phase of logarithmic growth was determined based on the growth curves. The gro wth rate ľ was calculated using the following formula:

where x₁ - density of cells [dry mass g/dm³] at time t₂, x₀ - density of cells [dry mass g/dm³] at time t₁ , t₁ and t₂ – beginning and end of the phase of logarithmic growth [38], respectively.

Dynamics and results of ethanol fermentation

The dynamics and results of ethanol fermentation were assessed at 30°C in media with glucose (100 g/dm³), xylose (100 g/dm³) and a mixture of both carbohydrates (70 g/dm³ glucose and 30 g/dm³ xylose) enriched with mineral salts (0.5 g/dm³ MgSO₄^.7H₂O, 2 g/dm³ (NH₄)₂SO₄ and 5 g/dm³ KH₂PO₄) and yeast extract (5 g/dm³), inoculated with yeast at the amount of 2 g dry mass yeast/dm³. Standardisation of inoculum was performed based on standard curves A=f (dry mass yeast). During fermentation, the media with xylose and mixture of glucose and xylose were shaked (150 rpm).

The mass of CO₂ [g] produced after 20, 72 and 168 hours of fermentation in % of total CO₂ [g] produced during fermentation was used as a criterion of the assessment of the dynamics of the process.

After the fermentation, the samples were distilled. The content of ethanol [g/dm³] in the distillate was marked picnometrically and the yield of ethanol Y_et/g, Y_et/k or Y_et/g+k was calculated as the ratio of ethanol content [g] to the initial content of, respectively, glucose, xylose or the mixture of glucose and xylose [g] in the fermentation samples.

Glucose content [g/dm³] in the samples before fermentation and in the decoctions after distilling was marked using the Nizovkin and Yemielianova method in Soczynski modification [36]. The degree of glucose consumption DG [%] was calculated.

Xylose content [g/dm³] in the samples before fermentation and in the decoctions was marked spectrophotometrically as described by Hashimoto et al. [10]. Absorbance at light wavelength l=670 nm was measured using a BECKMAN DU-650 spectrophotometer. The degree of xylose consumption DK [%] was calculated.

After fermentation, the content of xylitol in the samples with xylose and in those with glucose and xylose was marked. Enzymatic method with BOEHRINGER MANNHEIM (No. 670057) tests was used for the analysis. Absorbance at light wavelength l=492 nm was measured using a BECKMAN DU-650 spectrophotometer. Xylitol yield Y_ksylit/k as a ratio of xylitol content [g] to initial content of xylose [g] in fermentation sample was calculated.

The physiological condition of yeast cells [% inactive and budding cells in relation to total of yeast cells] was assessed using a survival preparation coloured with methylene blue (inactive cells take blue colour) from post-fermentation medium. Yeast cells were calculated in a haemocytometric camera (Thoma system) using a Biolar 2308 microscope.

Statistical analysis

In order to define the relevance of differences between the results obtained in the experiments, one-way analysis of variance in a STATOGRAPHICS Plus Version 6.0 was used.

RESULTS

Growth dynamics of parental strains and hybrids

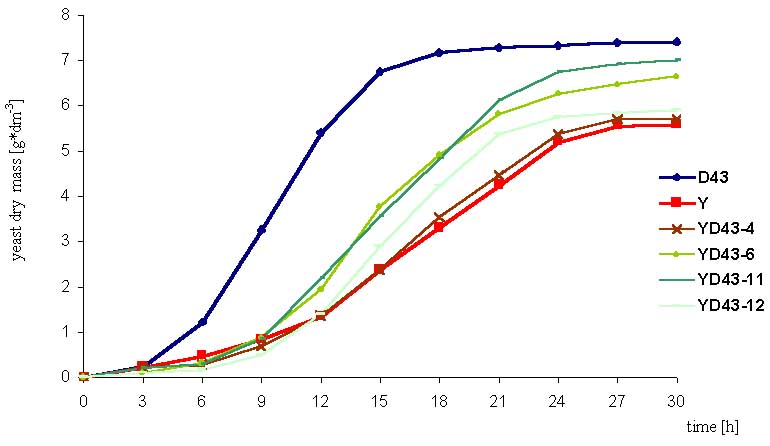

Parental strains Saccharomyces cerevisiae D43 and Yamadazyma stipitis ATCC 58376 were characterised by different growth dynamics (Fig. 1). The distilling yeasts had a better growth rate than Yamadazyma stipitis ATCC 58376. All hybrids used in the experiment were characterised by moderate growth dynamics, better than the strain fermenting xylose, but not as good as Saccharomyces cerevisiae D43. Both the parental strain Yamadazyma stipitis ATCC 58376 and the hybrids were characterised by longer adaptation phase (9-12 h), whereas in the parental strain Saccharomyces cerevisiae D43, the phase of logarithmic growth started in the 6^th hour of cultivation. The xylose fermenting stains reached their phase of stationary growth after about 24-27 h of growth and Saccharomyces cerevisiae D43 reached the phase after ca. 18 hours.

During the phase of logarithmic growth, the specific growth rate (Table 1) of parental strains Saccharomyces cerevisiae D43, Yamadazyma stipitis ATCC 58376 and their hybrids was significantly different from the lowest rate of 0.11h^-1 in Yamadazyma stipitis ATCC 58376 to 0.23h^-1 in YD43-6. The growth rate of parental strains was different. The strain Yamadazyma stipitis ATCC 58376 grew almost two times slower than Saccharomyces cerevisiae D43 (0.21h^-1). Two of the hybrids discussed in the present study, YD43-6 and YD43-12, inherited from their parental strain Saccharomyces cerevisiae D43 the ability to grow fast. The specific growth rate of these hybrids was ca. 0.2h^-1. The specific growth rate of the yeast Yamadazyma stipitis ATCC 58376 and the hybrid YD43-4 and YD43-11 was 0.11h^-1.

Both the parental strain Yamadazyma stipitis ATCC 58376 and the hybrids were characterised by longer phase of adaptation to the conditions of media, later moment of reaching the phase of stationary growth and lower biomass yield than Saccharomyces cerevisiae D43. Moreover, their growth rate in logarithmic phase, excluding YD43-6 and YD43-12, was lower. The above facts confirm low growth dynamics of strains fermenting xylose.

Fermentative ability of strains in media containing various carbon sources

In the next stage, the dynamics of fermentation, ethanol yield, degree of sugar consumption from the medium and physiological condition of yeast cells were assessed. Glucose, xylose and glucose with xylose were used as the only sources of carbon. Moreover, in fermentation of substrates with xylose, the ability of parental strains and hybrids to concentrate in xylitol media was also assessed.

The ability of strains to ferment glucose

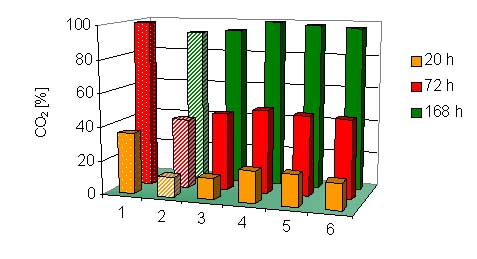

The parental strain of the yeast fermenting xylose which was used in the study showed much lower dynamics of fermenting glucose as compared with industrial distilling yeasts (Fig. 2). The yeast Saccharomyces cerevisiae D43 fully fermented glucose in 72 hours whereas, after 72 hours, the strain Yamadazyma stipitis ATCC 58376 produced only 41.8% of total mass of CO₂. After 168h it produced 92.9%. It should be noted that all the hybrids of Saccharomyces cerevisiae D43 and Yamadazyma stipitis ATCC 58376 (Fig. 2) were characterised by a higher rate of fermenting glucose than the weaker of the parental strains. The highest rate of fermenting glucose was observed in samples with hybrid YD43-6 in which glucose was fully fermented after 168h.

The strains discussed in the present study significantly differed in the amount of ethanol (presented as practical yield in Table 2) produced by them. The strain Saccharomyces cerevisiae D43 was characterised by the highest yield of ethanol from glucose, whereas the strain Yamadazyma stipitis ATCC 58376 produced 0.369 g ethanol from 1 g glucose. The yield was significantly statistically lower than in case of distilling yeast – 0.432g/g. The hybrid YD43-6 had the highest yield of ethanol (0.397 g/g), which even exceeded the yield in case of parental strain Yamadazyma stipitis ATCC 58376. The hybrid YD42-11 was also characterised by yield of ethanol higher than that of the weaker partner in fusion (0.385 g/g). In the hybrid YD42-12, the feature was not significantly statistically different than in partner Yamadazyma stipitis ATCC 58376. The yield of ethanol was slightly different in samples with hybrid YD43-4 (0.350 g/g).

The highest consumption of glucose in the process of fermentation was observed in case of Saccharomyces cerevisiae D43 (93.2%) and in samples with hybrids YD43-6 and YD43-11. The yeast Yamadazyma stipitis ATCC 58376 consumed 81.3% of glucose and the hybrid YD43-12, producing the same amount of ethanol, consumed only 80.8% of glucose.

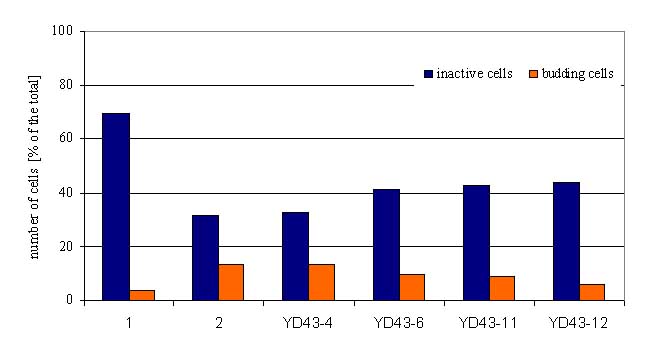

The physiological condition of yeast cells after the end of ethanol fermentation was different (Fig. 3). The biggest number of inactive cells was observed in samples with Saccharomyces cerevisiae D43 (69.3%). In the samples with hybrid YD43-4, the number of cells coloured by methylene blue was the lowest when compared with samples containing the other hybrids.

The highest percentage of budding cells after the end of glucose fermentation was observed in samples with strain Yamadazyma stipitis ATCC 58376 (13.6%), the lowest percentage was observed in samples with Saccharomyces cerevisiae D43 (3.8%). The hybrid YD43-4 was characterised by the biggest percentage of budding cells after the end of the process (13.3%).

It may be concluded that traditional distilling yeast Saccharomyces cerevisiae D43 produced ethanol from glucose most effectively. The yield was 0.432 g/g after 72 hours. Yamadazyma stipitis ATCC 58376, the strain fermenting xylose, produced 0.369 g/g ethanol during 168 hours. The hybrids YD43-6 and YD43-11 synthesised ethanol more efficiently than the weaker parent, Yamadazyma stipitis ATCC 58376.

The ability of strains to ferment xylose

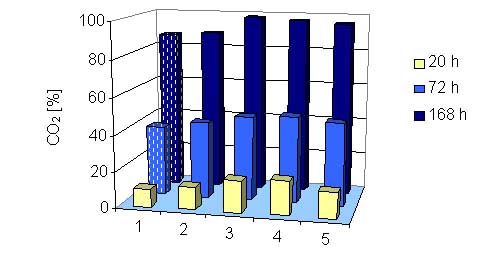

When comparing the hybrids from YD43 group (Fig. 4), it was observed that all of them fermented xylose more dynamically than the parental strain Yamadazyma stipitis ATCC 58376. The most outstanding hybrids were YD43-6 and YD43-11. In the 168^th hour of the process the amount of CO₂ produced by them was ca. 98%.

The best yield of ethanol from xylose (Table 3.) was obtained from the strain Yamadazyma stipitis ATCC 58376 (0.389 g/g). In case of strains YD43-6 and YD43-11, the differences were not statistically significant. The two remaining hybrids, YD43-12 and YD43-4, produced significantly less ethanol from xylose, 0.355 and 0.314 g/g xylose, respectively.

The degree of xylose consumption (DK) is presented in Table 3. The highest consumption of xylose was observed during fermentation with the best ethanol producers – hybrids YD43-11 and YD43-6 (86.7% and 85.3%, respectively) and the strain Yamadazyma stipitis ATCC 58376 (84.4%).

The strains used in the study significantly differed in the amount of xylitol, a by-product produced from xylose. The highest amounts were observed in the samples fermented by the parental strain Yamadazyma stipitis ATCC 58376 (0.037 g/g). The hybrids differed significantly in their ability to produce this by-product, it was not, however, related to confirmed presence of gene XYL1 in their genome, as the strains YD43-6 and YD43-11 with this gene produced significantly less xylitol, both when compared with initial strains and with YD43-12, a hybrid from the same group, which produced the biggest amount of xylitol (0.039 g/g). The fact that the hybrids YD32-4, YD43-6 and YD43-11 produced significantly less xylitol (0.012 g/g, 0.022 g/g and 0.023 g/g, respectively) than the parental strain Yamadazyma stipitis ATCC 58376 is worth noting. It indicates a significant improvement of the features of the parental strain, especially as the hybrids YD43-6 and YD43-11 were character ised by the highest yield of ethanol from xylose.

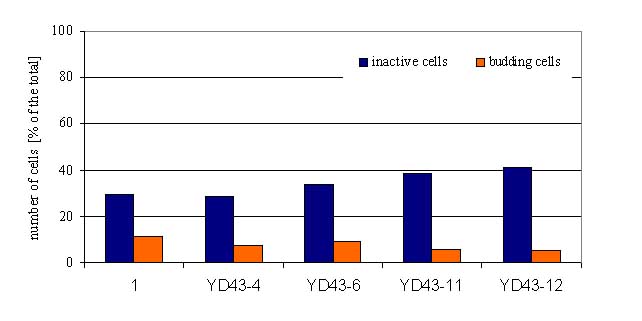

The physiological condition of yeast cells after the end of xylose fermentation is presented in Fig. 5. The lowest number of inactive cells was observed in hybrid YD43-4 and strain Yamadazyma stipitis ATCC 58376 (below 30%). The highest number of budding cells was observed in Yamadazyma stipitis ATCC 58376 (11.2%).

Fermentative ability of strains in the presence of glucose and xylose

The key issue in the assessment of usefulness of the recombined strains to consume xylose in a medium where glucose dominates, as it is the case in processes of fermentation of hydrolysed lignocellulitic materials. The parental strains and hybrids were tested in model media characterised by an arrangement of carbohydrates similar to that in lignocellulitic hydrolysates where the ratio of glucose to xylose was 7:3.

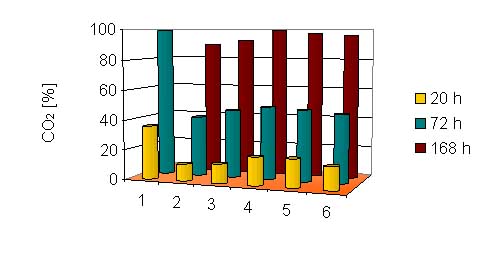

In the model medium with a mixture of sugars, the yeast Saccharomyces cerevisiae D43 was characterised by the best fermentation dynamics and the process was completed after 72 hours. The other parental strain was less dynamic and, after 168 h, it produced only 89.7% of total CO₂ mass. The hybrids YD43-4, YD43-6, YD43-11 and YD43-12 were characterised by better fermentation dynamics than Yamadazyma stipitis ATCC 58376, the weaker partner in the fusion. The hybrids YD43-6 and YD43-11 fermented the mixture of sugars most effectively and the process was completed after 168 hours (Fig. 6).

The dynamics of fermentation was reflected in the yield of ethanol (Table 4). The biggest yield of ethanol from the mixture of glucose and xylose was observed in the hybrid YD43-6 – 0.377 g/g. The other hybrids produced ethanol less effectively than Yamadazyma stipitis ATCC 58376 (0.372 g/g). It should be noted that the hybrids YD43, able to ferment xylose, were characterised by a better yield of ethanol than Saccharomyces cerevisiae D43.

Consumption of glucose (Table 4) in a medium with a mixture of sugars was very good in case of all strains, including those able to ferment xylose (from 98.8% in case of the strain YD43-6 to 97.2% in case of parental strain Yamadazyma stipitis). Saccharomyces cerevisiae D43 consumed glucose in 94.9% (as compared to 93.2% during fermentation of glucose as the sole carbon source). The degree of xylose consumption was, however, low – from 25.4% in case of YD43-4 to 41.8% in case of YD43-6.

The strains used in the present study produced more xylitol in the medium. The yield of this by-product was from 0.025 g/g in case of the hybrid YD43-4 to 0.078 g/g in case of the parental strain. Similarly, as in the process of fermentation of xylose, for similar yield of ethanol and the degree of xylose consumption, the yield of xylitol was significantly different. It should be noted that the amount of xylitol produced in the medium with glucose and xylose (7:3) was two times higher as compared to the medium with xylose only and the degree of xylose consumption was 44 – 51 % lower (Table 5).

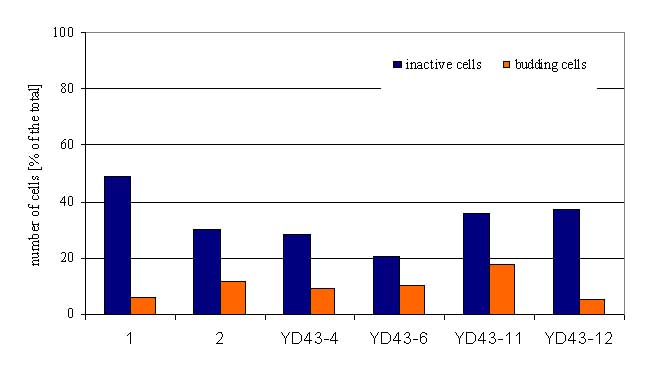

Hybrids YD43-6, YD43-4 and the parental strain Yamadazyma stipitis ATCC 58376 were characterised by the best physiological condition after fermenting the mixture of glucose and xylose. The biggest amount of inactive cells (48.9%) was observed in Saccharomyces cerevisiae D43 (Fig. 7).

The highest yield of ethanol from the mixture of glucose and xylose was obtained using hybrid YD43-6 – 0.377 g/g, which also produced xylitol (0.038 g/g), and was much less than in case of the parental strain Yamadazyma stipitis ATCC 58376 (0.078 g/g). The other hybrids produced ethanol less effectively than Yamadazyma stipitis ATCC 58376 and, with the exception of the hybrid YD43-12, produced less amounts of the by-product.

Based on the presented results, the hybrid YD43-6 was selected as a strain with potential possibility to be used for conversion of xylose to ethanol.

DISCUSSION

In recent years there have been numerous attempts, using protoplast fusion and such novel recombination techniques as gene cloning, at constructing strains that effectively ferment D-xylose. After protoplast fusion Heluane et al. [11] obtained hybrids of Saccharomyces cerevisiae and Pachysolen tannophilus which morphologically resembled Saccharomyces cerevisiae and, as both parental strains, had the ability to assimilate sugars. These hybrids, however, did not assimilate D-xylose. Johannsen et al. [14] fused cells of the same strain and obtained polyploids Candida shehatae CBS 2779 which produced ethanol from D-xylose slightly faster. The fusion of protoplasts of the strain Saccharomyces cerevisiae with mutants Candida shehatae and Pichia stipitis induced by Gupthar [7] resulted in creation of mononucleic fusants which, however, were not stable.

In 1991 the gene coding reductase of XYL1 xylose from the yeast Pichia stipitis was cloned for the first time. Its fusion with Saccharomyces cerevisiae did not, however, bring the expected results – the yeast Saccharomyces did not ferment xylose to ethanol. Higher activity of reductase or expression of XYL1 gene in the recombinants Saccharomyces cerevisiae resulted in better yield of xylitol [1, 4, 9, 17, 22, 39]. It should be noted that xylitol, due to its physical and chemical qualities, is frequently used as a sweetener in production of diet food, spreads and pills [32]. Nevertheless, biosynthesis of xylitol during alcohol fermentation of xylose reduces the yield of ethanol.

Gene XYL2, coding the NAD-dependant xylitol dehydrogenase in Pichia stipitis, was also transformed to the genome of Saccharomyces cerevisiae [40, 47] and Walfridsson et al. [41] introduced to Saccharomyces cerevisiae a bacteria gene XYLA from Thermus thermophilus, coding isomerase of xylose. Fermentation was conducted at 85°C and the main products were xylitol and acetic acid.

To obtain transformants effectively producing ethanol from xylose, not only genes XYL1 and XYL2 were cloned, but also sequences coding kinase of xylulose – an enzyme catalysing phosphorilation of xylose to xylulose-5-phosphoran [12, 18, 26] and also genes coding the enzymes of the pentose phosphate pathway and glycolysis [15, 20, 21, 24], e.g. transketolase (TKL1) [23] and transaldolase (TAL1) [42], dihydroorotate dehydrogenase (URA1) [34], orotidine-5’-phosphate decarboxylase (URA3) [45] or alcoholic dehydrogenase [3, 30]. Although sequencing and cloning a gene is, nowadays, not very difficult, selecting a proper vector for transformation and invoking a desirable expression of gene in the host cell is still problematic.

The interspecific hybrids of Saccharomyces cerevisiae D43 and Yamadazyma stipitis ATCC 58376: YD43-6 and YD43-11 with a confirmed presence of genes coding xylose reductase and xylitol dehydrogenase presented in the present study deserve, in the context of scientific publications, special attention. They produced ethanol from xylose giving a yield corresponding to that of the parental strain Yamadazyma stipitis ATCC 58376 (0.389 g/g) and the yield of xylitol was over 40% lower than in case of the parent. Improved dynamics of xylose fermentation resulting from fusion of protoplasts and the strain of distilling yeast, making it possible to shorten the fermentation period from 10 to 7 days, was observed. In model media with a mixture of glucose and xylose (7:3), the hybrid YD43-6 was characterised by the best features and during 7 days its ethanol yield was 0.377 g/g and xylitol yield was 0.038 g/g.

Further research should be devoted to improvement of the process of fermentation of lignocellulitic hydrolysates whose complex composition may have various influences on the fermentative activity and physiological condition of the hybrids. In sugar mixtures, with a composition corresponding to that of lignocellulitic hydrolysates, there takes place sequence assimilation of sugars in which hexoses are preferentially fermented before D-xylose [44]. Such model of fermentation results mainly from glucose catabolite repression [6], hence xylose is consumed only when there is little glucose in the medium. Lowered degree of consumption of xylose from a model fermentative medium containing glycosis and xylose (7:3) as compared to the consumption of xylose during fermentation in a medium containing only xylose was observed in the present study as well.

Although numerous research teams have been recently working on effective bioconversion of lignocellulitic materials to ethanol, it still remains a very important task for biotechnology. Positive results will be valuable not only for economy but for ecology as well.

CONCLUSIONS

1. The strains of xylose fermenting yeasts, both Yamadazyma stipitis ATCC 58376 and their hybrids, were characterised by lower growth dynamics and slower cultivation of biomass as compared to the strain Saccharomyces cerevisiae D43.

2. In media with glucose as the sole carbon source, the strains of yeasts able to ferment xylose – parental strain and hybrids – were characterised by lower dynamics of fermentation and lower yield of ethanol as compared to Saccharomyces cerevisiae D43. The physiological condition of cells of those strains after the end of the process was, however, better than that of the cells of Saccharomyces cerevisiae D43.

3. From among the hybrids used in the present study, the hybrids YD43-6 and YD43-11 (with a confirmed presence of genes XYL1 and XYL2) fermented glucose and xylose most dynamically, were characterised by the highest yield of both glucose and xylose. Their yield of ethanol from xylose did not statistically differ from that obtained by Yamadazyma stipitis but the yield of xylitol was lower.

4. The hybrid YD43-6, when compared to the parental strain Yamadazyma stipitis ATCC 58376 and other hybrids from group YD43, produced ethanol most effectively in the medium with a ratio of glucose to xylose corresponding to that of lignocellulitic hydrolysates (7:3). When compared to Yamadazyma stipitis ATCC 58376, it also produced less xylitol, but after fermentation its cells were characterised by a worse physiological condition than the cells of the parental strain.

ACKNOWLEDGEMENTS

I wish thank prof. dr hab. inż. Ewelina Dziuba, the Promoter of my doctoral thesis, and the Reviewers - prof. dr. hab. inż. Maria Wojtatowicz and prof. dr. hab. inż. Włodzimierz Bednarski for their help and valuable directions I received from them while preparing the study for print.

REFERENCES

1. Chen Z., Ho N.W.Y., 1993. Cloning and improving the expression of Pichia stipitis xylose reductase gene in Saccharomyces cerevisiae, Appl. Biochem. Biotechnol., 39/40, 135-147.

2. Chmielewska J., 2000. Praca doktorska, Otrzymywanie i własności biotechnologiczne fuzantów drożdży gorzelniczych i drożdży fermentujących ksylozę [Doctoral thesis, The obtaining and biotechnological features of the fusants of distillery and xylose-fermenting yeast], Wrocław [in Polish].

3. Cho J.Y., Jeffries T., 1998. Pichia stipitis genes for alcohol dehydrogenase with fermentative and respiratory functions, Appl. Environ. Microbiol., 64(4), 1350-1358.

4. Dahn K.M., Davis B.P., Pittman P.E., Kemealy W.R., Jeffries T.W., 1996. Increased xylose reductase activity in the xylose-fermenting yeast Pichia stipitis by overexpression of XYL1, Appl. Biochem. Biotechnol., 57-58, 267-276.

5. Dominguez J.M., Cao N., Cheng S.G., Tsao G.T., 2000. Ethanol production from xylose with the yeast Pichia stipitis and simultaneous product recovery by gas stripping using a gas-lift loop fermentor with attached side-arm (GLSA), Biotechnol. Bioeng., 67 (3), 336-343.

6. Dynesen J., Smits H.P., Olsson L., Nielsen J., 1998. Carbon catabolite repression of invertase during batch cultivations of Saccharomyces cerevisiae: the role of glucose, fructose, and mannose, Appl. Microbiol. Biotechnol., 50, 579-582.

7. Gupthar A.S., 1992. Segregation of altered parental properties in fusions between Saccharomyces cerevisiae and D-xylose fermenting yeasts Candida shehatae and Pichia stipitis, Can. J. Microbiol., 38, 1233-1237.

8. Hahn-Hägerdal B., Jeppsson H., Skoog K., Prior B.A., 1994. Biochemistry and physiology of xylose fermentation by yeasts. Enzyme Microb. Technol., 16, 933-943.

9. Hallborn J., Gorwa M.-F., Meinander N., Penttilä M., Keränen S., Hahn-Hägerdal B., 1994. The influence of cosubstrate and aeration on xylitol formation by recombinant Saccharomyces cerevisiae expressing the XYL1 gene, Appl. Microbiol. Biotechnol., 42, 326-333.

10. Hashimoto S., Shogren M.D., Pomeranz Y., 1987. Cereal pentosans: their estimation and significance. I. Pentosans in wheat and milled wheat products, Cereal Chem., 64(1), 30-34.

11. Heluane H., Spencer J. F. T., Spencer D.M., de Figueroa L., Callieri D. A. S., 1993. Characterization of hybrids obtained by protoplast fusion, between Pachysolen tannophilus and Saccharomyces cerevisiae, Appl. Microbiol. Biotechnol., 40, 98-100.

12. Ho N.W.Y., Chen Z., Brainard A.P., 1998. Genetically engineered Saccharomyces yeast capable of effective cofermentation of glucose and xylose. Appl. Environ. Microbiol., 64(5), 1852-1859.

13. Jeffries T.W., Kurtzman C.P., 1994. Strain selection, taxonomy, and genetics of xylose-fermenting yeasts. Enzyme Microb. Technol., 16, 922-932.

14. Johannsen E., Eagle L., Bredenhann G., 1985. Protoplast fusion used for the construction of presumptive polyploids of the D-xylose fermenting yeast Candida shehatae, Curr. Genetics, 9, 313-319.

15. Juhnke H., Krems B., Kotter P., Entian K.-D., 1996. Mutants that show increased sensitivity to hydrogen peroxide reveal an important role for the pentose phosphate pathway in protection of yeast against oxidative stress, Mol. Gen Genet., 252, 456-464.

16. Kadam K.L., Schmidt S.L., 1997. Evaluation of Candida acidothermophilum in ethanol production from lignocellulosic biomass, Appl. Microbiol. Biotechnol., 48, 709-713.

17. Kim Y.S., Kim S.Y., Kim J.H., Kim S.C., 1999. Xylitol production using recombinant Saccharomyces cerevisiae containing multiple xylose reductase genes at chromosomal d-sequences, J. Biotechnol., 67, 159-171.

18. Krishnan M.S., Ho N.W.Y., Tsao G.T., 1999. Fermentation kinetics of ethanol productions from glucose and xylose by recombinant Saccharomyces 1400(pLNH33), Appl. Biochem. Biotechnol., 77-79, 373-388.

19. Lidén G., Walfridsson M., Ansell R., Anderlund M., Adler L., Hahn-Hägerdal B., 1996. A glycerol-3-phosphate dehydrogenase-deficient mutant of Saccharomyces cerevisiae expressing the heterologous XYL1 gene, Appl. Environ. Microbiol., 62(10), 3894-3896.

20. Lu P., Davis B.P., Hendrick J., Jeffries T.W., 1998a. Cloning and disruption of the b-isopopylmalate dehydrogenase gene (LEU2) of Pichia stipitis with URA3 and recovery of the double auxotroph, Appl. Microbiol. Biotechnol., 49, 141-146.

21. Lu P., Davis B.P., Jeffries T.W., 1998b. Cloning and characterization of two pyruvate decarboxylase genes from Pichia stipitis CBS 6054, Appl. Environ. Microbiol., 64 (1), 94-97.

22. Meinander N.Q., Hahn-Hägerdal B., 1997. Influence of cosubstrate concentration on xylose conversion by recombinant, XYL1-expressing Saccharomyces cerevisiae: a comparison of different sugars and ethanol as cosubstrates, Appl. Environ. Microbiol., 63(5), 1959-1964.

23. Metzger M.H., Hollenberg C.P., 1994. Isolation and characterization of the Pichia stipitis transketolase gene and expression in a xylose-utilising Saccharomyces cerevisiae transformant, Appl. Microbiol. Biotechnol., 42, 319-325.

24. Miosga T., Zimmerman F.K., 1996. Cloning and characterisation of the first two genes of the non-oxidative part of the Saccharomyces cerevisiae pentose-phosphate pathway, Curr. Genet., 30, 404-409.

25. Mohagheghi A., Evans K., Finkelstein M., Zhang M., 1998. Cofermentation of glucose, xylose, and arabinose by mixed cultures of two genetically engineered Zymomonas mobilis strains, Appl. Biochem. Biotechnol., 70-72, 285-299.

26. Moniruzzaman M., Dien B.S., Skory C.D., Chen Z.D., Hespell R.B., Ho N.W.Y., Dale B.E., Bothast R.J., 1997. Fermentation of corn fibre sugars by an engineered xylose utilizing Saccharomyces strain, World J. Microbiol. Biotechnol., 13, 341-346.

27. Muralidhar R.V., Panda T., 2000. Fungal protoplast fusion – a revisit. Bioprocess Engineering, 22, 429-431.

28. Olsson L., Hahn-Hägerdal B., 1996. Fermentation of lignocellulosic hydrolysates for ethanol production. Enzyme Microb. Technol., 18, 312-331.

29. Palmqvist E., Galbe M., Hahn-Hägerdal B., 1998. Evaluation of cell recycling in continuous fermentation of enzymatic hydrolysates of spruce with Saccharomyces cerevisiae and on-line monitoring of glucose and ethanol, Appl. Microbiol. Biotechnol., 50, 545-551.

30. Passoth V., Schäfer B., Liebel B., Weierstall T., Klinner U., 1998. Molecular cloning of alcohol dehydrogenase genes of the yeast Pichia stipitis and identification of the fermentative ADH, Yeast, 14, 1311-1325.

31. Piontek M., Hagedorn J., Hollenberg C.P., Gellissen G., Strasser A.W.M., 1998. Two novel gene expression systems based on the yeasts Schwanniomyces occidentalis and Pichia stipitis, Appl. Microbiol. Biotechnol., 50, 331-338.

32. Roberto I.C., de Mancilha I.M., Sato S., 1999. Influence of k_La on bioconversion of rice straw hemicellulose hydrolysate to xylitol, Bioprocess Engin., 21, 505-508.

33. Sánchez S., Bravo V., Castro E., Moya A.J., Camacho F., 1999. Comparative study of the fermentation of D-glucose/D-xylose mixtures with Pachysolen tannophilus and Candida shehatae, Bioprocess Engin., 21, 525-532.

34. Shi N.Q., Jeffries T.W., 1998. Anaerobic growth and improved fermentation of Pichia stipitis bearing a URA1 gene from Saccharomyces cerevisiae, Appl. Microbiol. Biotechnol., 50, 339-345.

35. Smith M.T., Cameron D.R., Duff S.J.B., 1997. Comparison of industrial yeast strains for fermentation of spent sulphite pulping liquor fortified with wood hydrolysate, J. Ind. Microbiol. Biotechnol., 18, 18-21.

36. Sobkowicz G., Dziuba E., Aniołowski K., 1988. Przewodnik do ćwiczeń z technologii fermentacji, Skrypt AR we Wrocławiu.

37. Stenberg K., Tengborg C., Galbe M., Zacchi G., Palmqvist E., Hahn-Hägerdal B., 1998. Recycling of process streams in ethanol production from softwoods based on enzymatic hydrolysis, Appl. Biochem. Biotechnol., 70/72, 697-708.

38. Stobińska H., Kręgiel D., Oberman H., 1991. Improvement of Schwanniomyces occidentalis yeast strains by mutation and regeneration of protoplasts, Acta Alim. Polon, XVII / XLI, (2), 145-158.

39. Thestrup H.N., Hahn-Hägerdal B., 1995. Xylitol formation and reduction equivalent generation during anaerobic xylose conversion with glucose as cosubstrate in recombinant Saccharomyces cerevisiae expressing the XYL1 gene, Appl. Environ. Microbiol., 61(5), 2043-2045.

40. Walfridsson M., Anderlund M., Bao X., Hahn-Hägerdal B., 1997. Expression of different levels of enzymes from the Pichia stipitis XYL1 and XYL2 genes in Saccharomyces cerevisiae and its effects on product formation during xylose utilisation, Appl. Microbiol. Biotechnol., 48, 218-224.

41. Walfridsson M., Bao X., Anderlund M., Lilius G., Bulow L., Hahn-Hägerdal B., 1996. Ethanolic fermentation of xylose with Saccharomyces cerevisiae harboring the Thermus thermophilus XYLA gene, which expresses an active xylose (glucose) isomerase, Appl. Environ. Microbiol., 62(12), 4648-4651.

42. Walfridsson M., Hallborn J., Penttilä M., Keränen S., Hahn-Hägerdal B., 1995. Xylose-metabolizing Saccharomyces cerevisiae strains overexpressing the TKL1 and TAL1 genes encoding the pentose phpsphate pathway enzymes transketolase and transaldolase, Appl. Environ. Microbiol., 61 (12), 4184-4190.

43. Wojtatowicz M., Dziuba E., Stempniewicz R., 1994. Stan obecny i perspektywy ulepszania drożdży przemysłowych metodą fuzji protoplastów, [The present state and perspective of industrial yeasts improvement by protoplasts fusion method], Post. Mikrobiol., 2, 229 -245 [in Polish].

44. Yang V.W., Jeffries T.W., 1997. Regulation of phospohotransferases in glucose- and xylose-fermenting yeasts, Appl. Biochem. Biotechnol., 63-65, 97-108.

45. Yang V.W., Marks J.A., Davis B.P., Jeffries T.W., 1994. High-efficiency transformation of Pichia stipitis based on its URA3 gene and a homologous autonomous replication sequence, ARS2, Appl. Environ. Microbiol., 60(12), 4245-4254.

46. Zaldivar J., Nielsen J., Olsson L., 2001. Fuel ethanol production from lignocellulose: a challenge for metabolic engineering and process integration. Appl. Microbiol. Bioechnol., 56, 17-34.

47. van Zyl W.H., Eliasson A., Hobley T., Hahn-Hägerdal B., 1999. Xylose utilisation by recombinant strains of Saccharomyces cerevisiae on different carbon sources, Appl. Microbiol. Biotechnol., 52, 829-833.
