THE ROLE OF RHIZOSPHERE ANTAGONISTIC MICROORGANISMS IN LIMITING THE INFECTION OF UNDERGROUND PARTS OF SPRING WHEAT

Elżbieta Patkowska

ABSTRACT

The studies were conducted in 1998-2000 on an experimental field at Czesławice near Nałęczów. The field was sown with spring wheat, ‘Sigma’ cv. The purpose of the studies was to establish the species composition of fungi living on the underground parts of spring wheat, and to establish the quantity and quality composition of microorganisms developing in the rhizosphere of this plant. Besides, the studies established the effect of rhizosphere antagonistic bacteria and fungi on some pathogenic soil-borne fungi.

Key words: spring wheat, rhizosphere, pathogenic fungi, antagonistic microorganisms.

INTRODUCTION

One of the most frequently cultivated cereals in Poland is spring wheat. The habitat of this plant as a link in crop rotation is widely known. On the other hand, the information on the microbiological activity of bacteria and fungi formed in spring wheat rhizosphere is scarce. The dynamics of the population of microorganisms in the soil environment is related to the amount of crop residue. According to Pałys [24], the amount of root mass remaining after the harvest of this plant species was about 1 t ha^-1, depending on rainfalls and soil type.

It follows from the bibliography that rhizosphere soil is characterized by the highest biological activity. The quantitative and qualitative composition of microorganisms in the root zone undergoes constant changes under the effect of root exudates and compounds formed from the decomposition of shelling root cells [6, 28]. The substances including aminoacids, sugars soluble in water, elements and phenols exudated by the roots to the rhizosphere serve as the basic source of carbon and nitrogen for microorganisms [10, 13]. Differentiation of the chemical composition of root exudates is related to the genus, species, cultivar, age of the plant and a lot of biotic and abiotic factors [22, 25, 29].

A big role in limiting the occurrence of the population of pathogenic soil-borne fungi is played by microorganisms antagonistic towards phytopathogens. Such properties are exposed above all by bacteria from the genera of Bacillus and Pseudomonas and by fungi Gliocladium spp. and Trichoderma spp. [1, 5, 8, 11, 21]. Bacteria and antagonistic fungi considerably limit the number of phytopathogens through the exudated antibiotics or siderophores with fungistatic or fungicidal properties [4, 5, 7, 15].

The purpose of the studies was to establish the species composition of fungi occurring on underground parts of spring wheat and to determine the quantitative and qualitative composition of microorganisms developing in the rhizosphere of this plant. Besides, the effect of rhizosphere bacteria and antagonistic fungi on some pathogenic soil-borne fungi was determined.

MATERIALS AND METHODS

The studies were conducted in the years 1998-2000 on an experimental field at Czesławice near Nałęczów. The field was sown with spring wheat, ‘Sigma’ cv. During anthesis, the plants of the analysed species were sampled for mycological analysis, which was conducted according to the method described by Łacicowa and Pięta [14]. The procedure related to the fungi colonies grown around the fragments of the plant material was like in the studies concerning bean root diseases [26]. At that time the rhizosphere soil of spring wheat was also sampled in order to carry out a microbiological analysis in accordance with the method described by Martyniuk et al. [20].

The total number of bacteria in 1 g of dry weight of the examined soil was established on the medium “Nutrient agar”, using the soil solutions in the dilutions of 10^-5, 10^-6 and 10^-7. In the case of bacteria from the genus of Bacillus the medium “Tryptic soy agar” and the dilutions of 10^-4, 10^-5 and 10^-6 were applied, while for Pseudomonas spp. the studies used the medium “Pseudomonas agar F” and the dilutions of 10^-2, 10^-3 and 10^-4. The total number of fungi in 1 g of dry weight of rhizosphere soil was established on the medium of Martin [19] with the dilutions of the soil solution 10^-2, 10^-3 and 10^-4.

In each year of the studies the obtained bacteria isolates (100 isolates of Bacillus spp. and 100 isolates from Pseudomonas spp.) and the isolates of saprophytic fungi obtained from the rhizosphere of the analyzed plant were used to determine their antagonistic effect on such pathogenic fungi as Fusarium culmorum, F. oxysporum, F. solani, Pythium irregulare and Rhizoctonia solani. A five-degree scale described by Martyniuk et al. [20] and the degrees of growth inhibition described by Pięta [27] were used to determine the antagonistic effect of bacteria on pathogenic fungi. The effect of saprophytic fungi on the studied pathogenic fungi was determined using the method of biotic rows [16, 18], and the individual antagonistic effect was established on the basis of the scale provided by Mańka and Kowalski [17].

RESULTS

286 fungi isolates were achieved as a result of the mycological analysis of the infected roots and the stem base of spring wheat (tab. 1). In each year of the studies almost five times as many fungi were isolated from the stem base as compared with the roots. Fusarium spp. was most frequently isolated; their proportion was 68.2% of all the fungi. This genus was represented by F. avenaceum, F. culmorum, F. equiseti, F. graminearum, F. oxysporum, F. solani and F. sporotrichioides. The first four of the enumerated fungi species as well as F.solani were isolated both from the roots and the stem base, and their proportion was 10.4%, 34.9%, 3.8%, 2.8% and 2.8% of all the fungi, respectively. On the other hand, F. oxysporum and F. sporotrichioides were isolated much more rarely and only from the infected stem base. The proportion of F. oxysporum in the infection of the analyzed plant was 10.5% (tab. 1).

Rhizoctonia solani, whose isolates constituted 13.3% of all the isolates, also occurred within the pathogenic fungi obtained from the analyzed parts of spring wheat. On the other hand, the species from the genera of Acremonium, Epicoccum, Gliocladium and Trichoderma were isolated out of the saprophytic fungi (tab. 1).

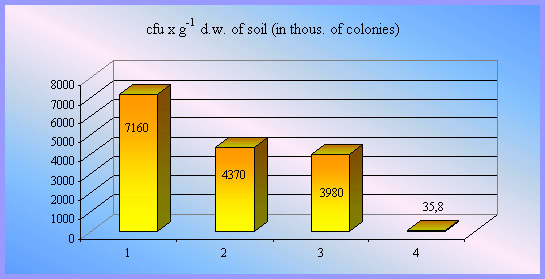

The microbiological analysis of spring wheat rhizosphere soil showed that in each year of the studies the total quantity of bacteria, the total quantity of fungi and the quantity of Bacillus spp. and Pseudomonas spp. in 1 g of dry weight were similar; hence, fig. 1 contains mean results from the three studied years. The greatest number of bacteria totally (on average, 7.16ˇ10⁶ colonies) was obtained out of the analyzed samples of rhizosphere soil. The number of Bacillus spp. was slightly lower and it was 4.37ˇ10⁶ colonies, while Pseudomonas spp. constituted 3.98ˇ10⁶ colonies, on average. The total number of fungi was 35.8ˇ10³ colonies (fig. 1).

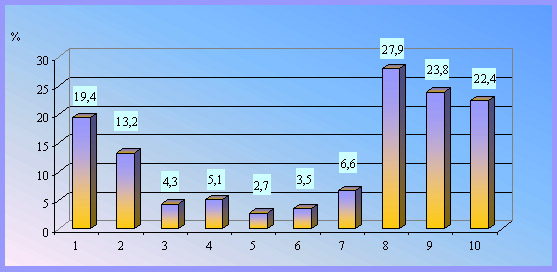

The proportion of pathogenic fungi obtained from the rhizosphere of spring wheat was 19.3% (fig. 2). Fusarium spp. and Rhizoctonia solani dominated within pathogenic fungi. Fusarium spp. was mostly represented by F. culmorum and F. oxysporum, whose proportion was 4.3% and 5.1% of all the fungi, respectively. Penicillium spp. (27.9%) and Trichoderma spp. (23.8%) dominated within the group of saprophytic fungi, while Gliocladium spp. was isolated much less frequently. The proportion of the remaining species of saprophytic fungi obtained from spring wheat rhizosphere was 22.4% (fig. 2).

There were 88 isolates of Bacillus spp. and 158 isolates of Pseudomonas spp. in the group of bacteria isolated from spring wheat rhizosphere which were distinguished by their antagonistic effect towards the studied pathogenic fungi (tab. 2). Those bacteria were poor antagonists towards F. culmorum and R. solani; the value of the antagonistic effect of the three studied years was +156 and +51, respectively. On the other hand, the analyzed bacteria were most effective in limiting the growth and development of P. irregulare and F. solani, since the value of the antagonistic effect was totally +950.5 and +633, respectively. F. oxysporum was limited in varying degrees, and the value of the antagonistic effect ranged from +83 to +191.5 (tab. 2).

Within the saprophytic fungi isolated from the rhizosphere soil of spring wheat, 242 isolates of different species of fungi were separated (Gliocladium spp. – 22, Penicillium spp. – 117, Trichoderma spp. – 75 colonies and Acremonium kiliense -1, Torula herbarum – 5 and Verticillium tenerum – 1 colony). They were distinguished by their antagonistic effect towards the studied phytopathogens (tab. 3). Such an effect of the enumerated fungi was the weakest in the case of R. solani (+554), and the strongest for F. solani (+1389) and F. oxysporum (+1219 – the total antagonistic effect). A little lower value was found out for F. culmorum and P. irregulare (tab. 3).

DISCUSSION

The studies showed that the main cause of the occurrence of necrotic signs on the roots and the stem base of spring wheat were the fungi of Rhizoctonia solani and Fusarium spp., and first of all the species of F. avenaceum, F. culmorum and F. oxysporum. Information from the bibliography also points out that spring wheat is widely infected by these species [2, 3, 9]. In the case of R. solani, necrosis of the underground parts can take place under the effect of phytotoxic compounds released by this fungus such as m-hydroxyphenylacetic and m-methoxyphenylacetic acids [23].

In the presented studies the infection of the analyzed plant by R. solani was relatively small. It can be supposed that the populations of bacteria and saprophytic fungi having antagonistic properties and numerously occurring in the root zone could have an inhibiting effect on the development of pathogenic fungi. The on-going microbiological studies of rhizosphere point out to this.

The microbiological analysis of the examined soil suggests a stimulating effect of spring wheat on the development of bacteria, especially Pseudomonas spp., which have an antagonistic effect on pathogenic fungi. Besides, the proportion of pathogenic fungi, mainly Fusarium spp., was smaller in the rhizosphere of the analyzed plant than the proportion of antagonistic Penicillium spp. and Trichoderma spp. An ability of fast growth and development of antagonistic fungi in the rhizosphere of plants has a positive effect on the healthiness of the underground parts. Shihuang et al. [30] proved that the fungi species from the genus of Trichoderma are effective in protecting it from pathogens through a very intensive growth around the root top.

It should be supposed that a considerable number of antagonistic isolates Pseudomonas spp., Trichoderma spp. and Penicillium spp. could have affect the smaller numbers of phytopathogens in the rhizosphere of spring wheat in a significant manner. According to Księżniak and Kobus [12], siderophores created by fluorescent Pseudomonas clearly inhibit the development of pathogenic fungi in the soil. Besides, such an effect of siderophores on the development of wheat pathogens was confirmed in the studies by Manwar et al. [15].

Abundant information from bibliography and the results obtained in the presented studies emphasize a great role of bacteria and antagonistic fungi in limiting the development of soil-borne phytopathogens.

REFERENCES

1. Ahmed A. S., Sánchez C., Candela E. M., 2000. Evaluation of induction of systemic resistance in pepper plants (Capsicum annuum) of Phytophthora capsici using Trichoderma harzianum and its relation with capsidiol accumulation. European Journal of Plant Pathology 106, 9, 817-824.

2. Czajka W., Kurowski T., Cwalina B., Jackowski M., 1994. Wpływ płodozmianu i monokultury na zdrowotność podstawy źdźbła pszenicy jarej. [The effect of crop rotation and monoculture on the healthiness of the stem base of spring wheat]. Zesz. Nauk. ART Olsztyn, 59, 91-96 [in Polish].

3. Czajka W., Kurowski T., Zawiślak K., 1992. Zdrowotność pszenicy jarej uprawianej na Żuławach w świetle badań płodozmianowych. [Healthiness of spring wheat cultivated in Żuławy area in the light of studies on crop rotation]. Zesz. Nauk. ART Olsztyn, 54, 245-251 [in Polish].

4. El-Tarabily K. A., Soliman M. H., Nassar A. H., Al.-Hassani H. A., Sivasithamparam K., Mc Kenna F., Hardy G. E. ST. J., 2000. Biological control of Sclerotinia minor using a chitinolitic bacterium and actinomycetes. Plant Pathol. 49, 5, 573-583.

5. Fiddman P. J., O’Neill T. M., Rossall S., 2000. Screaning of bacteria for the suppression of Botrytis cinerea and Rhizoctonia solani on lettuce (Lactuca sativa) using leaf disc bioassays. Annals of Applied Biology 137, 3, 223-235.

6. Funck-Jensen D., Hockenhull J., 1984. Root exudation, rhizosphere microorganisms and disease control. Växtshyddsnotiser 48, 3-4, 49-54.

7. Goel A. K., Sindhu S. S., Dadarwal K. R., 2000. Pigment diverse mutant of Pseudomonas sp. ihibition of fungal growth and stimulation of growth of Cicer arietinum. Biologia Plantarum 43, 4, 563-569.

8. Hag I, Khan S. M., 2000. Antagonistic reaction of ten fungal isolates from root rot affected cotton plants. Pakistan Journal of Phytopathology 12, 2, 109-111.

9. Korbas M., Remlein D., 1996. Wpływ wybranych czynników agrotechniczno-przyrodniczych na występowanie chorób podstawy źdźbła w Polsce. [The effect of selected agricultural and natural factors on the occurrence of stem base diseases in Poland]. Prog. Plant Protection/Post. Ochr. Roślin 36, 2, 199-201 [in Polish].

10. Kraffczyk I., Trolldenier G., Berlinger H., 1984. Soluble root exudates of maize: Influence of potassium supply and rhizosphere microorganisms. Soil Biol. Biochem. 16, 315-322.

11. Kredics L. D., Dóczi I., Antol Z., Manczinger L., 2000. Effect of heavy metals on growth and extracellular enzyme activities of mycoparasitic Trichoderma strains. Biulletin of Environmental Contamination and Toxicology 66, 2, 249-252.

12. Księżniak A., Kobus J., 1993. Udział drobnoustrojów ryzosfery pszenicy, jęczmienia i owsa w produkcji sideroforów. [The proportion of microorganisms of the rhizosphere of wheat, barley and oat in the production of siderophores]. Pam. Puławski – Prace IUNG, 102, 77-90 [in Polish].

13. Lilieroth E., Baath E., Mariasson I., Ludborg T., 1990. Root exudation and rizosphere bacterial abudance of barley (Hordeum vulgare L.) in relation to nitrogen fertilization and root growth. Plant Soil 127, 81-89.

14. Łacicowa B., Pięta D., 1998. Evaluation of spring barley (Hordeum vulgare L.) varieties in the field infested with pathogens of the stem and root diseases. Ann. of Agricul. Sci., s. E, 27, ½, 17-25.

15. Manwar A. V., Vaiganker P. D., Bhonge L. S., Chincholkar S. B., 2000. In vitro suppression of plant pathogens by siderophores of fluorescent pseudomonas. Indian Journal of Microbiology 40, 2, 109-112.

16. Mańka K., 1974. Zbiorowiska grzybów jako kryterium oceny wpływu środowiska na choroby roślin. [Fungi communities as a criterion of estimating the effect of the environment on plant diseases]. Zesz. Probl. Post. Nauk Roln. 160, 9-23 [in Polish].

17. Mańka K., Kowalski S., 1968. Wpływ zespołów grzybów glebowych z dwu szkółek leśnych (sosnowej i jesionowej) na rozwój grzyba zgorzelowego Fusarium oxysporum Schl. [The effect of soil fungi associations from two forest nurseries (of pine and ash trees) on the growth of necrotic fungus Fusarium oxysporum Schl]. Pozn. Tow. Przyj. Nauk 25, 197-205 [in Polish].

18. Mańka K., Mańka M., 1992. A new method for evaluating interaction between soil inhibiting fungi and plant pathogen. Bull. OILB/SROP XV, 73-77.

19. Martin J. P., 1950. Use of acid, rose bengal and streptopmycin in the plate method for estimating soil fungi. Soil Sci. 38, 215-220.

20. Martyniuk S., Masiak D., Stachyra A., Myśków W., 1991. Populacje drobnoustrojów strefy korzeniowej różnych traw i ich antagonizm w stosunku do Gaeumannomyces graminis var. tritici.[Populations of microorganisms of the root zone of different grasses and their antagonism towards Gaeumannomyces graminis var. tritici]. Pam. Puł. Pr. IUNG, 98, 139-144 [in Polish].

21. McQuilken M. P., Gemmell J., Lahdenpera M. L., 2001. Gliocladium catenulatum as a potential biological control agent of damping off in bedding plants. Journal of Phytopathology 149, 3/4, 171-178.

22. Odham G., Tunlid A., Valeur A., Sundin P., White D. C., 1986. Model system for studies of microbial dynamics at exuding surfaces such as the rhizosphere. Appl. Environ. Microbiol. 52, 191-196.

23. Orellana R. G., Mandava N. B., 1983. M-hydroxyphenylacetic and m-methoxyphenylacetic acids of Rhizoctonia solani: their effect on specific root – nodule activity and histopathology in soybean. Phytopathol. 107, 159-167.

24. Pałys E., 1980. Masa korzeniowa zbóż jarych na glebie płowej wytworzonej z lessów. Część I. Dynamika masy korzeniowej. [The root weight of spring cereals in grey brown podsolic soil formed from loesses. Part I. Dynamics of the root mass]. Annales UMCS, s. E, vol. XXXV/XXXVI, z. 9, 59-68 [in Polish].

25. Parke J. L., 1990. Root colonization by indigenous and introduced microorganisms. In: The Rhizosphere and Plant Growth. D. L. Keister & P. B. Gregan, eds. Kluwer Academic Publishers, Durdrecht, The Netherlands, 33-42.

26. Pięta D., 1988. Mikozy występujące w uprawach fasoli (Phaseolus vulgaris L.) i podatność różnych odmian na porażenie przez niektóre grzyby. [Mycoses occurring in bean (Phaseolus vulgaris L.) cultivations and the susceptibility of different cultivars to infection by some fungi]. Seria Wydawnicza – Rozpr. Nauk. AR Lublin [in Polish].

27. Pięta D., 1999. Initial studies of populations of fungi and bacteria in the soil under influence of the cultivation of spring wheat and winter wheat in a growth chamber. Acta Agrobot. 52, 1-2, 161-166.

28. Schoruvitz R., Zeigler H., 1989. Interaction of maize roots and rhizosphere microorganisms. Z. Pflanzenkranch. Bodenh. 152, 217-222.

29. Schroth M. N., Weinhold A. R., 1986. Root-colonizing bacteria and plant health. Hort. Sci. 21, 6, 1295-1298.

30. Sinhuang Y., ShiPing W., DeQing L., ShiYi L., 2000. Effects of triadimefon on competitive rhizosphere colonization of Trichoderma harzianum. Acta Phytopathologica Sinica 30, 3, 266-270.
