THE ESTIMATION OF GENETIC VARIATION WITHIN AND BETWEEN POLISH PROVENANCES OF NORWAY SPRUCE (PICEA ABIES (L.) KARST.) ON THE BASIS OF RAPD POLYMORPHISM
Wojciech Kraj
In order to determine the genetic variation of Norway spruce (Picea abies (L.) Karst.) investigations on the polymorphism of the genomic DNA were conducted. The DNA was extracted from needles of trees belonging to 20 Polish provenances of Norway spruce. For the analysis of DNA the RAPD method with four 10- and 11-nucleotide primers was employed. In the pilot study the optimal concentration of magnesium ions used for the PCR reaction was determined. That allowed for obtaining a restricted right number of discrete and easily identifiable bands. In total, 45 products of amplification were obtained; they were further used for determining the variation of the analysed provenances. The usefulness of RAPD method for determining the inter- and intrapopulation genetic variation in Norway spruce was demonstrated. In this study the characteristic for each population monomorphic bands, allowing to identify each population, were obtained. The similarities of individuals within population (based on the Jaccard's coe
Key words:
Picea abies, genetic markers, RAPD, genetic diversity, identification.
INTRODUCTION
Norway spruce (Picea abies (L.) Karst.) is the second - after the Scots pine (Pinus sylvestris L.) - important forest tree species in Poland. Spruce forests cover 5.9% of the total forest area in Poland, while its share in montane and submontane regions (Sudety, Beskidy) is over 30% of forest area. Norway spruce plays an important role in forestry in Poland, both because of its economic and ecological importance.
The genetic structure of Norway spruce in Poland is still far from being well-known. There are several valuable ecotypes of Norway spruce, e.g. the Istebna ecotype. Because of their supreme quality, these ecotypes have been studied for many years by researchers dealing with tree genetics and selection, both in Poland and abroad [13, 15, 29].
Norway spruce, among other Pinaceae species, belongs to the group of very highly polymorphic forest trees. In studies on genetic variation and on identifying individuals and provenances the most efficient and most accurate are the DNA markers (among them, also the RAPD markers). Results of the analysis employing these markers should in principle not to be biased by the influence of such causes as: the environmental factors, the phase of ontogenic development of analysed individuals, the kind of tissue used for the analysis, and the regulation of genes activity as well as modifications taking place after transcription and translation. The RAPD method is currently widely used for identifying species or clones of forest trees, among the others white spruce (Picea glauca) [23], the Engelmann spruce (Picea engelmanni) and their putative hybrids [23], Norway spruce (Picea abies) [19, 5, 6] and black spruce (Picea mariana) [31]. This paper aims at determin
ing the inter- and intra-population genetic diversity in Norway spruce and at determining the possibility of identifying provenances of Norway spruce on the basis of the occurrence of characteristic RAPD markers.
MATERIAL AND METHODS

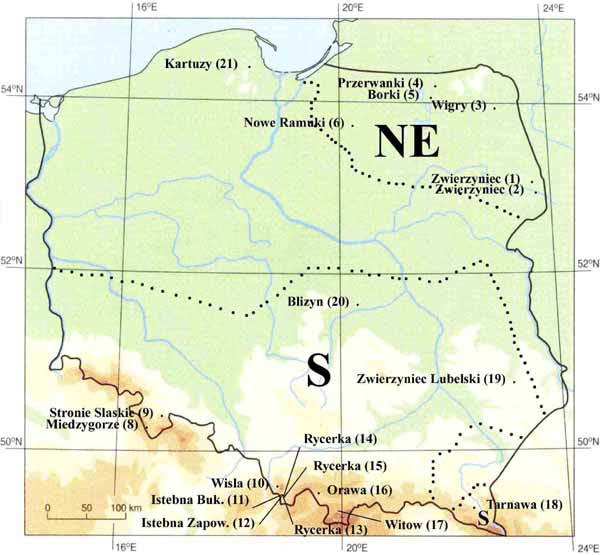

The material was collected in the experimental plantation of the Institute of Dendrology in Kórnik, belonging to the Polish Academy of Sciences. That plantation is a part of an international project called the "IUFRO 1972 NS Provenance Experiment". During that project 20 Polish provenances of Norway spruce have been planted in 28 locations in Europe and in 4 in Canada [14, 24]. The list of provenances and their geographic characteristics are given in Table 1 and in Figure 5.
Table 1. List of analysed provenances of Picea abies (L.) Karst. [24]. |
Name of provenance |
Number according to IUFRO |
Latitude |
Longitude |
Altitude (m) |
Region |
Zwierzyniec |
1 |
52°48' |
23°47' |
160 |
NE |
Zwierzyniec |
2 |
52°42' |
23°46' |
180 |
NE |
Wigry |
3 |
54°03' |
23°03' |
170 |
NE |
Przerwanki |
4 |
54°10' |
22°05' |
180 |
NE |
Borki |
5 |
54°'06' |
22°04' |
180 |
NE |
Nowe Ramuki |
6 |
53°41' |
20°34' |
160 |
NE |
Miedzygorze |
8 |
50°13' |
16°45' |
580 |
S |
Stronie Slaskie |
9 |
50°14' |
16°50' |
820 |
S |
Wisla |
10 |
49°38' |
18°58' |
710 |
S |
Istebna Bukowiec |
11 |
49°34' |
18°53' |
630 |
S |
Istebna Zapowiedz |
12 |
49°32' |
18°57' |
600 |
S |
Rycerka |
13 |
49°31' |
19°01' |
620 |
S |
Rycerka |
14 |
49°29' |
19°00' |
700 |
S |
Rycerka |
15 |
49°'29' |
19°00' |
950 |
S |
Orawa |
16 |
49°34' |
19°33' |
1050 |
S |
Witow (Tatra Mountains) |
17 |
49°13' |
19°48' |
1420 |
S |
Tarnawa |
18 |
49°05' |
22°52' |
750 |
S |
Zwierzyniec Lubelski |
19 |
50°34' |
22°58' |
260 |
S |
Blizyn |
20 |
51°04' |
20°41' |
310 |
S |
Kartuzy |
21 |
54°23' |
18°08' |
200 |
O |
NE - north-east region, S - south region, O - outside natural range |
The number of trees for investigation was defined on the basis of the initial experiment which demonstrated that the increase of the tree number over 15 does not result in the increase of the number of bands in the electrophoretic pictures. What is more in such a case (increase of the tree number over 15] the bands previously detected occur with almost the same frequency (data not shown).
When the shoot growth was completed the current year shoots were collected from 15 random trees from each provenance. Needles were cut, frozen in liquid nitrogen, and stored at the temperature -70°C until the DNA extraction was completed.
Extraction of DNA
The genomic DNA was extracted using the CTAB method [4]. About 100 mg of frozen needles were ground in a mortar. The pulverised tissue was put into 1.5 ml sterile Eppendorf test-tubes; the tissue was than mixed with 1000 µl of a buffer containing: 2% CTAB (Hexadecyltrimethylammonium bromide) (Sigma), 1.4 M NaCl, 100 mM Tris-HCl (pH 8.0), 20 mM EDTA, 1% of polyvinylpyrrolidine (PVP), 0.2% mercaptoethanol. After stirring the test-tubes were placed in a water bath at the temperature of 60°C for two hours. Then the solution was centrifuged for 10 minutes at the speed of 10000 rpm. The aqueous phase was transferred to another test-tube, mixed with 500 µl of a mixture of chloroform and isoamyl alcohol in proportion 25:1 and centrifuged for ten minutes at 13000 rpm. The whole procedure was repeated twice. After collecting the aqueous phase 400 µl of cooled isopropanol were added in order to DNA precipitate. That process was conducted at the temperature of 20°C for more t han 10 hours. After that time the test-tubes were centrifuged for 15 minutes at the speed of 13000 rpm. The obtained in such a way pellet of DNA was rinsed with 70% ethanol and dried in ambient temperature.
DNA amplification
The polymorphism of genomic DNA was determined using the RAPD (Random Amplified Polymorphic DNAs) method [37, 38]. For the amplification of DNA four 10- and 11-nucleotide primers were used; all of them have been previously used in analyses involving other species from the genus Picea. These primers were: MMUL 118 with the sequence of nucleotides CGTGGTAAACT [21], FCP 1 - GCTTACCACC, FCP 3 - CCATTCACCG [7], MOS 116 TACGATGACG [27]. The amplification was conducted in sterile 0.5 ml Eppendorf's test-tubes in 25 µl of reaction mixture containing: PCR buffer (200 mM Tris-HCl pH 8.4, 500 mM KCl) (GibcoBRL), MgCl2 (concentration of which was adjusted to the results obtained in the pilot study), 200 µM of each dATP, dCTP, dGTP, dTTP, 0.25 µM of primer, approximately 25 ng DNA, 0.75 U of polymerase DNA Taq (GibcoBRL). That mixture was covered with 30 µl of the mineral oil (Sigma). The process of amplification was conducted in a Thermocycler (Biometra). The t emplate DNA was denatured at the temperature of 95°C for 5 minutes. The parameters of amplification were given in Table 2.
Table 2. Conditions of amplification in analysed provenances of Norway spruce |
primer |
reference |
number of cycles |
denaturation |
annealing |
elongation* |
|||
temp. (°C) |
time (s) |
temp. (°C) |
time (s) |
temp. (°C) |
time (s) |
|||
MMUL 118 |
[21] |
45 |
94 |
60 |
37 |
60 |
72 |
120 |
FCP 1, |
[28] |
45 |
95 |
5 |
35 |
60 |
72 |
120 |
MOS 116 |
[27] |
42 |
94 |
45 |
37 |
60 |
72 |
90 |
* - while working with the primer MMUL 118, the time of elongation of the last 25 cycles was prolonged by 5 seconds per one cycle. After completing the last cycle for each primer test-tubes were kept at the temperature of 72°C for ten minutes to make sure, that the synthesis of DNA was completed. Then the test-tubes were cooled down to 4°C |
For each DNA sample the amplification was conducted twice in order to estimate the repeatability of the results and to eliminate possible mistakes. As a negative control, the mixture without DNA was used.

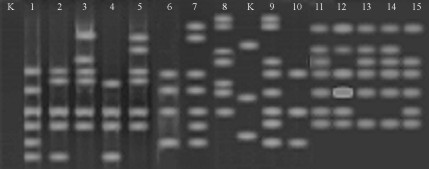

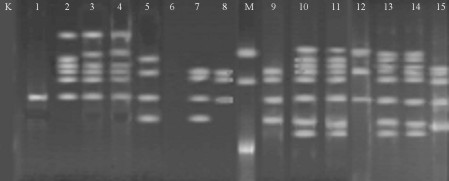

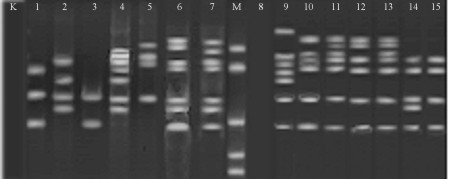

The amplification products were separated electrophoretically in a 2% agarose gel (Sigma) immersed in TAE buffer. 0.2 µg × ml-1 of ethidium bromide was added to the gel for bands visualization. For the electrophoresis - depending on the primer and on the analysed provenance - 2-6 µl of the reacting mixture with the loading buffer was used. The electrophoresis was conducted at the voltage of 60 V for 3-4 hours; then photographs were made in the UV light. The picture was than analysed using computer software.
For preparing the DNA size markers for the amplification products the Bluescript II SK(+) plasmid was used. The DNA of the plasmid was extracted from the bacteria E. coli XL-1 Blue, employing the alkaline lysis. 50 µg of the plasmid was digested overnight at the temperature of 37°C separately with each of the following enzymes: Bgl I and Hpa II. As a result of digestion the bands were formed: their sizes were: Bgl I - 1931, 1027, HPa II - 710, 489, 404, 346, 242, 190, 157, 147, 110, 67, 57, 34, 26. For the electrophoresis 6 µl of marker (150 ng) were put per each path.
In order to determine the optimum concentration of Mg++ for the primers used in analyses a series of pilot experiments was conducted. Three trees from different provenances (Blizyn, Witow, Wisla) were chosen, and the PCR reaction was conducted. As a negative control a sample without DNA was used. For separate primers three or more concentrations of Mg++ were used: MMUL 118 - 1.5 mM, 3.0 mM, 6.0 mM; FCP 1 - 1.5 mM, 3.0 mM, 6.0 mM, FCP 3 - 1.5 mM, 3.0 mM, 6.0 mM, 9.0 mM, 12 mM; MOS 116 - 1.5 mM, 3.0 mM, 6,0 mM. Then the electrophoresis was conducted and the photographs of gels in the UV light were taken. The best concentrations of magnesium ions for further analyses were selected on the basis of number, sharpness and intensity of bands obtained in introductory experiment.
Analysis of data
The length of obtained fragments of DNA making bands on the gel was determined using the computer program developed by the AAB (Advanced American Biotechnology). For each band one of two states was ascribed: 1 - the band present, 0 - the band absent. The frequency of occurrence of certain bands (A) in populations and the degree of polymorphism of bands (B) were calculated according to the formulas:
![]() |
![]() |
The bands were divided into two groups in relation to their frequency: the bands with the frequency equal or greater than 0.87 and those of frequency less than 0.87. For bands of the first group the frequentness of the recessive homozygote (aa) in the particular provenances has been counted on the basis of the parameter A (Table 5). Both above mentioned measures were used as estimators of the genetic diversity of individuals within population. Next, for each population coefficient of similarity of pairs of trees on the basis of the Jaccards coefficient [18, 22] were calculated. The genetic distances among populations were calculated employing the City Block coefficient. The cluster analysis was conducted using the UPGMA method, similarity among analysed populations were presented graphically in a form of a dendrogram.

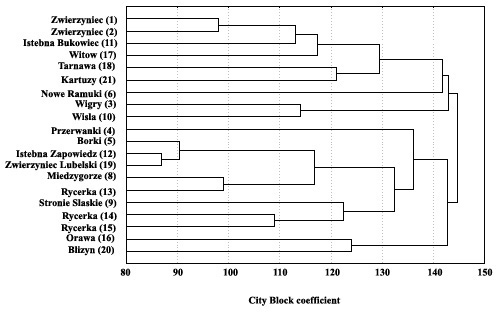

All examined populations were described with basic statistical measures like: the arithmetic average of Jaccards coefficient, variance, range and coefficient of variance. These data are presented in the table 6. The proportional relation between intra- and interpopulative variability was calculated on the basis of the previously determined statistical parameters.
RESULTS AND DISCUSSION
Optimisation of the Mg++ concentrations
To obtain clear and discrete bands on gels while using the RAPD method one needs to perform an initial optimisations of the circumstances of conducting the PCR reaction. This refers mainly to the choice of proper Mg++ concentrations, which differ among both primers and plant species [1, 4, 7, 10]. In order to obtain the proper concentrations for conducting the PCR reactions, trials were conducted for certain primers using the genomic DNA extracted from three specimens of spruce. Magnesium ions concentration, at which it were obtained streaks either without clear bands or with hardly visible bands, were considered sub-optimal. The obtained results suggest, that for the primers employed in the experiment it is quite easy to choose such a concentration of magnesium ions, at which bands are clear, easy to read and suitable for further analysis. The best results for the FCP I primer were obtained using a concentration of 1.5 mM, for MOS 116 - 6 mM, while for the MMUL 118 it was necess ary to choose medium concentrations between 3 and 6 mM, and for FCP 3 between 6 and 9 mM (Table 3).
Table 3. Comparison of Mg++ concentrations for DNA amplification in Norway spruce (present study) and for other species of the genus Picea |
primer |
Optimum concentration of Mg++ in mM for |
||
Picea abies * |
other species of the genus Picea |
||
MMUL 118 |
4.0 |
Picea mariana [21, 32] |
1.5 |
FCP 1 |
1.5 |
Picea glauca [7] |
1.9 |
FCP3 |
7.5 |
Picea glauca [7] |
1.9 |
MOS 116 |
6.0 |
Picea mariana, Picea glauca [27] |
1.5 |
* - present study |
As shown by these experiments, for Picea abies the optimal magnesium ions concentration was close to that used by the other authors only for the FCP 1 primer, while for other primers it was several times higher (Table 3). It cannot be excluded, that this difference was due to employing in this study the polymerase produced by the GibcoBRL firm, while in the researches of the above mentioned authors the enzyme produced by the Promega Corp. or Perkin Elmer Cetus was used.
Numerous authors described the problem of optimisation of Mg++ ions in the reaction mixture. BOSQUET et al. [4] suggested that choosing the proper concentrations of Mg++ permits to minimise the errors caused by the polymerase Taq in the PCR reaction. Devos and Gale [10] determined the optimal magnesium ions concentration for ten primers in wheat (Triticum aestivum), BARCACCIA [1] in Medicago sativa , HOWARD at al. [20] in Plasmodium falciparum, SKOV [35] in Picea abies. The optimisation of magnesium ions concentration in Picea glauca using several primers FCP was carried out by CARLSON et al. [7]. They found, that while using too high magnesium ions concentration in a gel appeared a streak resulting from the production during the PCR reaction of the fragments of DNA with differences in length too small to permit their separation during electrophoresis. Too low concentration of Mg++ results in occurrence on the gel bands which are hardly visible. The choice of proper magnesium ions concentration is therefore of utmost importance for obtaining proper and easy to interpret electrophoretic pictures.
Identification of provenances
The RAPD method allowed for determining characteristic for each provenance bands occurring with a frequency of at least 0.87, which can be used for identification of trees belonging to that provenance (Table 4). For each provenance one can determine a group of characteristic bands, which permits - with a reasonably high probability - to tell them apart from the other populations of spruce. Using four primers did not allow to find for each provenance bands which were fully monomorphic (in 100 %). That refers especially to those populations, which yield a small amount of products of DNA amplification. This group is represented by both populations from Zwierzyniec and population from Witow. Other provenances - like Przerwanki, Miedzygorze, Stronie Slaskie, Wisla, Rycerka can be identified on the basis of bands which do occur in all trees belonging to that provenance. Considering the fact that numerous bands are formed relatively often (frequency >= 0.87), it is also po ssible to identify other provenances with relatively high probability It was also shown, that for certain primers no bands with high frequency were produced by some provenances. That refers to the populations from Rycerka, for which no such bands were found for the primer MOS 116. Similar result was found using the same primer for the population from Zwierzyniec; that population was characterised by a small number of DNA fragments being produced during the PCR reaction. Both populations did not yield any bands with high frequency for the FCP 1 primer (Table 4).
Table 4. Comparison of sizes of bands occurring with a frequency of at least 0.87 for analysed populations of Norway spruce |
Provenance (number according to IUFRO) |
Name of the primer |
|||
MMUL 118 |
FCP 1 |
FCP 3 |
MOS 116 |
|
sizes of DNA fragments making the monomorphic band |
||||
Zwierzyniec (1) |
887c |
1406c, 941b |
||
Zwierzyniec (2) |
887c |
941b, 595c |
||
Wigry (3) |
1051b, 797b |
1264c, 814a, 695c, 475c |
941a |
1164c, 802c |
Przerwanki (4) |
1874c, 1363c, 1051b, 887a |
1082c, 814b, 695c, 475c |
1406a, 1208b, 941b, 728b, 595b |
802b |
Borki (5) |
887b |
814c |
1406b, 941b |
1164a, 802b |
Nowe Ramuki (6) |
887c |
358b |
1208a, 941b |
802c |
Miedzygorze (8) |
887b |
1082c, 814c, 475c |
1406b, 1208a, 941a, 728b |
1509c, 1164a, 802a |
Stronie Slaskie (9) |
1051b, |
952b, 814b, 695b, 475b |
1406c |
863b, 802c |
Wisla (10) |
1051b, 887b |
1264c, 814a, 695c, 475c, 358b |
1326b, 1208b, 941b, |
|
Istebna Bukowiec (11) |
887b |
1264b, 814b, 358c |
941b |
1164a, 802c |
Istebna Zapowiedz (12) |
1363c, 887c |
1406b, 1326c, 1208b, |
1164a, 802b |
|
Rycerka (13) |
1555c |
814a, 475b |
1208a, 941a |
1164c |
Rycerka (14) |
1051c |
1082c, 814c, 695b |
1326a, 941a |
|
Rycerka (15) |
887b, |
814c |
1406b, 1208a, 941c |
1164c |
Orawa (16) |
797b, |
1406c, 1208a, 941a |
1509b, 1164a, 863b |
|
Witow (Tatra Mountains) (17) |
941b, 665c |
1164b, 802b |
||
Tarnawa (18) |
887a |
1406c, 1208c, 941a, 595b |
1164b, 863a, 802a |
|
Zwierzyniec Lubelski (19) |
1363c, 887b |
475c |
1406b, 1208a, 941a |
1509c, 1164b, 802b |
Blizyn (20) |
1051c, 797c |
1208b |
1164c, 640c |
|
Kartuzy (21) |
814c |
1406b, 1326c, 1208c, 941b |
1164b |
a - bands occurring in all analysed trees b - bands occurring in 93% of analysed trees c - bands occurring in 87% of analysed trees |
Table 5. Frequences of recessive homozygote (aa) in the investigated provenances (for bands which occur with frequency of at least 0.87) |
Provenances ® |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
Primer (Size of DNA fragment) |
||||||||||||||||||||
MMUL118 (797) |
0.67 |
0.80 |
0.07 |
0.53 |
0.33 |
0.33 |
0.33 |
0.40 |
0.40 |
1.00 |
0.20 |
0.40 |
0.67 |
0.40 |
0.07 |
0.47 |
0.60 |
0.47 |
0.13 |
0.27 |
MMUL118 (887) |
0.13 |
0.13 |
0.73 |
0.00 |
0.07 |
0.13 |
0.07 |
0.33 |
0.07 |
0.07 |
0.13 |
0.20 |
0.20 |
0.07 |
0.60 |
0.47 |
0.00 |
0.07 |
0.60 |
0.33 |
MMUL118 (1051) |
0.33 |
0.33 |
0.07 |
0.07 |
0.60 |
0.33 |
0.27 |
0.07 |
0.07 |
0.53 |
0.33 |
0.27 |
0.13 |
0.20 |
0.40 |
0.40 |
0.53 |
0.33 |
0.13 |
0.47 |
MMUL118 (1363) |
0.33 |
0.40 |
0.40 |
0.13 |
0.33 |
0.53 |
0.40 |
0.27 |
0.20 |
0.67 |
0.13 |
0.40 |
0.47 |
0.20 |
0.27 |
0.67 |
0.40 |
0.13 |
0.53 |
0.20 |
MMUL118 (1555) |
0.73 |
0.40 |
0.33 |
0.33 |
0.53 |
0.53 |
0.87 |
0.47 |
0.33 |
0.53 |
0.53 |
0.13 |
0.60 |
0.73 |
0.60 |
0.53 |
0.67 |
0.47 |
0.60 |
0.60 |
MMUL118 (1874) |
0.67 |
0.93 |
0.60 |
0.13 |
1.00 |
0.67 |
0.60 |
0.67 |
0.60 |
0.93 |
0.93 |
0.67 |
0.73 |
0.80 |
0.73 |
0.87 |
0.87 |
0.87 |
1.00 |
0.60 |
FCP1 (358) |
0.53 |
0.80 |
0.20 |
0.33 |
0.60 |
0.07 |
0.60 |
0.40 |
0.07 |
0.13 |
0.80 |
0.40 |
0.33 |
0.20 |
0.27 |
1.00 |
0.20 |
0.67 |
0.47 |
0.33 |
FCP1 (475) |
0.53 |
0.47 |
0.13 |
0.13 |
0.33 |
0.40 |
0.13 |
0.07 |
0.13 |
0.13 |
0.67 |
0.07 |
0.20 |
0.20 |
0.47 |
0.93 |
0.33 |
0.13 |
0.47 |
0.33 |
FCP1 (695) |
0.40 |
0.33 |
0.13 |
0.13 |
0.27 |
0.53 |
0.20 |
0.07 |
0.13 |
0.27 |
0.47 |
0.27 |
0.07 |
0.20 |
0.27 |
0.60 |
0.53 |
0.20 |
0.40 |
0.40 |
FCP1 (814) |
0.40 |
0.40 |
0.00 |
0.07 |
0.13 |
0.20 |
0.13 |
0.07 |
0.00 |
0.07 |
0.27 |
0.00 |
0.13 |
0.13 |
0.27 |
0.33 |
0.33 |
0.33 |
0.40 |
0.13 |
FCP1 (952) |
0.93 |
0.33 |
0.93 |
0.33 |
0.87 |
0.87 |
0.40 |
0.07 |
1.00 |
0.93 |
0.40 |
0.80 |
0.27 |
0.20 |
0.33 |
1.00 |
0.93 |
0.27 |
0.20 |
0.73 |
FCP1 (1082) |
0.60 |
0.73 |
0.27 |
0.13 |
0.27 |
0.47 |
0.13 |
0.33 |
0.40 |
0.67 |
0.47 |
0.27 |
0.13 |
0.33 |
1.00 |
0.60 |
0.33 |
0.27 |
0.40 |
0.47 |
FCP1 (1264) |
0.80 |
0.47 |
0.13 |
0.93 |
0.40 |
0.47 |
0.60 |
0.40 |
0.13 |
0.27 |
0.60 |
0.40 |
0.20 |
0.33 |
0.33 |
0.40 |
0.53 |
0.60 |
0.80 |
0.40 |
FCP3 (595) |
0.53 |
0.13 |
0.20 |
0.07 |
0.20 |
0.47 |
0.20 |
0.80 |
0.47 |
0.20 |
0.40 |
0.40 |
0.93 |
0.40 |
0.33 |
0.33 |
0.07 |
0.20 |
0.40 |
0.20 |
FCP3 (665) |
0.47 |
0.20 |
0.27 |
1.00 |
0.47 |
0.87 |
0.33 |
0.53 |
0.20 |
0.20 |
0.73 |
0.40 |
0.60 |
0.40 |
0.47 |
0.13 |
0.27 |
0.87 |
0.33 |
0.27 |
FCP3 (728) |
0.67 |
0.40 |
0.47 |
0.07 |
0.20 |
0.33 |
0.07 |
0.60 |
0.60 |
0.20 |
0.27 |
0.27 |
0.67 |
0.47 |
0.93 |
0.67 |
0.60 |
0.20 |
0.53 |
0.60 |
FCP3 (941) |
0.07 |
0.07 |
0.00 |
0.07 |
0.07 |
0.07 |
0.00 |
0.20 |
0.07 |
0.13 |
0.80 |
0.00 |
0.00 |
0.13 |
0.00 |
0.13 |
0.00 |
0.00 |
0.33 |
0.07 |
FCP3 (1208) |
0.53 |
0.53 |
0.20 |
0.07 |
0.20 |
0.00 |
0.00 |
0.80 |
0.07 |
0.33 |
0.07 |
0.00 |
0.47 |
0.00 |
0.00 |
0.33 |
0.13 |
0.00 |
0.07 |
0.13 |
FCP3 (1326) |
0.33 |
0.47 |
0.27 |
0.27 |
0.27 |
1.00 |
1.00 |
0.27 |
0.07 |
0.27 |
0.13 |
0.33 |
0.00 |
0.27 |
0.73 |
0.20 |
0.60 |
0.20 |
0.67 |
0.13 |
FCP3 (1406) |
0.13 |
0.47 |
0.40 |
0.00 |
0.07 |
0.20 |
0.07 |
0.13 |
0.20 |
0.67 |
0.07 |
0.33 |
0.47 |
0.07 |
0.13 |
0.40 |
0.13 |
0.07 |
0.20 |
0.07 |
MOS116 (640) |
0.53 |
0.93 |
0.27 |
0.60 |
0.67 |
0.87 |
0.33 |
0.73 |
0.67 |
0.47 |
0.33 |
0.27 |
0.40 |
0.80 |
0.27 |
0.40 |
0.53 |
0.67 |
0.13 |
1.00 |
MOS116 (802) |
0.20 |
0.33 |
0.13 |
0.07 |
0.07 |
0.13 |
0.00 |
0.13 |
0.33 |
0.13 |
0.07 |
0.53 |
0.47 |
0.47 |
0.20 |
0.07 |
0.00 |
0.07 |
0.20 |
0.27 |
MOS116 (863) |
0.67 |
0.40 |
0.20 |
0.20 |
0.33 |
0.87 |
0.33 |
0.07 |
0.60 |
0.27 |
0.40 |
0.40 |
0.27 |
0.20 |
0.07 |
0.40 |
0.00 |
0.60 |
0.33 |
0.27 |
MOS116 (1164) |
0.20 |
0.40 |
0.13 |
0.27 |
0.00 |
0.20 |
0.00 |
0.20 |
0.20 |
0.00 |
0.00 |
0.13 |
0.33 |
0.13 |
0.00 |
0.07 |
0.07 |
0.07 |
0.13 |
0.07 |
MOS116 (1509) |
0.40 |
0.47 |
0.47 |
0.33 |
0.27 |
0.47 |
0.13 |
0.33 |
0.67 |
0.47 |
0.27 |
0.20 |
0.40 |
0.60 |
0.07 |
0.47 |
0.73 |
0.13 |
0.33 |
0.40 |
The investigations showed, that none of the obtained DNA fragments is monomorphic for all analysed spruce provenances (Table 4). The most frequent are two bands: 941 bases (for the FCP 3 primer) and 1164 bases (for the MOS 116 primer); for those bands the mean frequency in all analysed provenances is 0.89 and 0.87, respectively. Conducting similar research employing other primers would allow obtaining a higher number of RAPD markers for the Norway spruce; that would result in a more precise recognition of provenances.
The problem of identification of clones and individuals of forest trees, as well as using that in taxonomy and in forestry, was discussed by numerous authors; that referred especially to the species important from the economic point of view, like Norway spruce. For example, Yeh and Arnott [39] in their paper concerning Picea sitchensis, Picea glauca and their hybrids suggested, that the wrong identification of tree species causes problems in nurseries, especially in respect to choosing proper conditions for seedling productions. Therefore it is essential to identify tree species or their hybrids in order to collect seed from the right tree stands and to optimise the conditions of growing seedlings in nurseries. The morphological and phenological indicators, which have been used traditionally, are controlled by numerous genes and to a large extent they depend upon the environmental factors and upon the phase of ontogenetical development of a given specimen [26, 34, 36]. Moreove r, the large and frequently continuous variability of plant traits makes it difficult to draw clear conclusions [9]. Using morphological traits as indicators it is almost hopeless to solve problems associated with identifying the especially valuable clones of forest trees, cases of out-crossing or avoiding doubling of genotypes in gene banks [8].
Determining intra- and interpopulation polymorphism in provenances of spruce
To evaluate the intrapopulation variability the Jaccard's coefficient was employed; for evaluating interpopulation variability the City Block distance method was used. While conducting the PCR reactions in analysed spruce populations 45 products of amplification were obtained in total; the number of DNA fragments differed depending upon the employed primer and upon analysed population. Typical electrophoretic pictures obtained in analyses for the MMUL 118 primer are presented in Figures 1, 2 and 3. The degree of polymorphism for separate primers and for the whole analysis was given in Table 7, whereas the statistical characteristic of intrapopulative variability is presented in Table 6.
Figure 1. The banding pattern obtained as a result of amplification of DNA using the MMUL 118 primer for 15 trees of the provenance Istebna Zapowiedz (12). K - control sample, M - marker, 1-15 - numbers of analysed trees |
![]() |
Figure 2. The banding pattern obtained as a result of amplification of DNA using the MMUL 118 primer for 15 trees of the provenance Zwierzyniec Lubelski (19). K - control sample, M - marker, 1-15 - numbers of analysed trees |
![]() |
Figure 3. The banding pattern obtained as result of amplification of DNA using the MMUL 118 primer for 15 trees of the provenance Zwierzyniec (1). K - control sample, M - marker, 1-15 - numbers of analysed trees |
![]() |
The investigations showed that Polish provenances of Norway spruce differ substantially in respect to the degree of intra-population variability. That was supported by a wide range of the mean values of Jaccard's coefficient of similarity, varying from 0.39 for the provenance number 8 from Miedzygorze to 0.58 for the provenance number 15 from Rycerka (Table 6, 7). No significant relationship between the level of intrapopulation variability and the geographical location (as well as altitude) of certain populations was found for the whole sample; however, such relationships occurred locally. The results of investigation show that Jaccards coefficient of similarity is 0.50 for the mountain provenances (southern part of Poland) and 0.48 for the lowland provenances (north east part of Poland). It was shown, that both analysed populations from Istebna, occurring at similar altitudes (600 and 630 m above sea level) had similar level of intra-populatio n similarity (0.55), while three populations from Rycerka, occurring at various altitudes (from 620 to 950 m above sea level) display the degree of similarity declining with increasing altitude. Also in the spruce populations from Miedzygorze in the Sudety Mountains (580 m above sea level) displays greater variability (lower value of the Jaccard's coefficient of similarity - 0.39) than the other population from the Sudety mountains, namely from Stronie Slaskie (820 m above sea level), where the Jaccard's coefficient amounted to 0.55. According to some authors, there is a positive relationship between the altitude and the level of intra-population variability [12, 24]. The ascertained in this study much lower level of intra-population variability in spruce from higher altitudes as compared with lower altitudes in Rycerka and in Sudety Mountains can be a result of much stronger selection due to more severe climatic conditions. This seems to support the results of Barzdajn [2], who found that populations of spru ce from higher elevations in Rycerka and Sudety Mountains were characterised by a lower coefficient of variability of tree heights, lower variability in annual height increments and in tree diameters; that suggested that they were more homogeneous than the populations from lower elevations.
Table 6. Statistical characteristics of variance of investigated provenances of Norway spruce |
Provenance (number according to IUFRO) |
Region |
Average Jaccards Coefficient |
Variance |
Range |
Coefficient of variance |
Zwierzyniec (1) |
NE |
0.50 |
0.0511 |
0.93 |
0.45 |
Zwierzyniec (2) |
NE |
0.47 |
0.0270 |
0.81 |
0.35 |
Wigry (3) |
NE |
0.49 |
0.0452 |
0.92 |
0.43 |
Przerwanki (4) |
NE |
0.57 |
0.0412 |
0.81 |
0.36 |
Borki (5) |
NE |
0.45 |
0.0303 |
0.91 |
0.39 |
Nowe Ramuki (6) |
NE |
0.41 |
0.0495 |
0.92 |
0.54 |
Average for region NE |
0.48 |
||||
Miedzygorze (8) |
S |
0.39 |
0.0130 |
0.68 |
0.29 |
Stronie Slaskie (9) |
S |
0.55 |
0.0416 |
0.85 |
0.37 |
Wisla (10) |
S |
0.53 |
0.0323 |
0.93 |
0.34 |
Istebna Bukowiec (11) |
S |
0.55 |
0.0367 |
0.91 |
0.35 |
Istebna Zapowiedz (12) |
S |
0.55 |
0.0619 |
0.96 |
0.45 |
Rycerka (13) |
S |
0.45 |
0.0304 |
0.79 |
0.39 |
Rycerka (14) |
S |
0.50 |
0.0641 |
0.96 |
0.50 |
Rycerka (15) |
S |
0.58 |
0.0411 |
0.92 |
0.35 |
Orawa (16) |
S |
0.47 |
0.0646 |
0.97 |
0.54 |
Witow (Tatra Mountains) (17) |
S |
0.47 |
0.0486 |
0.94 |
0.47 |
Tarnawa (18) |
S |
0.48 |
0.0338 |
0.88 |
0.38 |
Zwierzyniec Lubelski (19) |
S |
0.47 |
0.0369 |
0.89 |
0.40 |
Blizyn (20) |
S |
0.52 |
0.0437 |
0.95 |
0.40 |
Average for region S |
0.50 |
||||
Kartuzy (21) |
O |
0.42 |
0.0259 |
0.75 |
0.39 |
NE north-east region, S south region, O outside natural range |
Table 7. The mean Jaccard's coefficient and the degree of polymorphism for Polish provenances of Norway spruce as determined using primers: MMUL 118, FCP 1, FCP 3, MOS 116 |
Provenance (number according to IUFRO) |
Mean Jaccards coefficient |
degree of polymorphism for a primer |
Entire study |
|||
MMUL 118 |
FCP 1 |
FCP 3 |
MOS 116 |
|||
Zwierzyniec (1) |
0.50 |
0.93 |
1.00 |
0.80 |
1.00 |
0.93 |
Zwierzyniec (2) |
0.47 |
0.93 |
1.00 |
0.8 |
1.00 |
0.93 |
Wigry (3) |
0.49 |
0.87 |
0.56 |
0.90 |
0.82 |
0.80 |
Przerwanki (4) |
0.57 |
0.73 |
0.56 |
0.50 |
0.91 |
0.69 |
Borki (5) |
0.45 |
0.93 |
0.89 |
0.80 |
0.82 |
0.87 |
Nowe Ramuki (6) |
0.41 |
0.93 |
0.89 |
0.80 |
0.91 |
0.89 |
Miedzygorze (8) |
0.39 |
0.93 |
0.67 |
0.60 |
0.73 |
0.76 |
Stronie Slaskie (9) |
0.55 |
0.93 |
0.56 |
0.90 |
0.82 |
0.82 |
Wisla (10) |
0.53 |
0.87 |
0.44 |
0.70 |
1.00 |
0.78 |
Istebna Bukowiec (11) |
0.55 |
0.93 |
0.67 |
0.90 |
0.82 |
0.87 |
Istebna Zapowiedz (12) |
0.55 |
0.87 |
1.00 |
0.80 |
0.82 |
0.84 |
Rycerka (13) |
0.45 |
0.93 |
0.78 |
0.80 |
0.91 |
0.91 |
Rycerka (14) |
0.50 |
0.93 |
0.67 |
0.80 |
1.00 |
0.87 |
Rycerka (15) |
0.58 |
0.93 |
0.89 |
0.70 |
0.91 |
0.89 |
Orawa (16) |
0.47 |
0.93 |
1.00 |
0.70 |
0.73 |
0.84 |
Witow (Tatra Mountains) (17) |
0.47 |
1.00 |
1.00 |
0.80 |
0.82 |
0.91 |
Tarnawa (18) |
0.48 |
0.93 |
1.00 |
0.60 |
0.73 |
0.84 |
Zwierzyniec Lubelski (19) |
0.47 |
0.87 |
0.89 |
0.70 |
0.73 |
0.80 |
Blizyn (20) |
0.52 |
0.87 |
1.00 |
0.90 |
0.82 |
0.89 |
Kartuzy (21) |
0.42 |
1.00 |
0.89 |
0.60 |
0.91 |
0.89 |
Number of amplification products obtained |
15 |
9 |
10 |
11 |
45 |
The genetic distances between the analysed populations were determined employing the City Block method. The obtained matrix of genetic distances between pairs of populations was than used to conduct analysis using the cluster analysis (UPGMA method); the results were presented graphically in a form of a dendrogram (Figure 4).
The obtained results allow to state, that the genetic distance between populations expressed by the means of the City Block coefficient ranged from 87 (for the pair Istebna Zapowiedz and Zwierzyniec Lubelski) to 220 (for the pair Witow and Przerwanki); that supported the hypothesis, that analysed populations were very diverse. On the basis of City Block coefficient and the resulting dendrogram it was found, that analysed populations of Norway spruce display a tendency to form two large clusters (Figure 4). One of those clusters includes populations from the north-eastern Poland, representing the Nordic-Baltic range of spruce distribution. The second cluster includes mainly populations from southern Poland, from the so called Harz-Sudety-Carpathians range. However, there are some exceptions; populations from Przerwanki and from Borki were included in the second group, though they belong to the Nordic-Baltic range of distribution. Populations from Istebna Bukowiec, Wisla, Witow and Tarnawa were included in the first cluster, though they belong to the southern range. The likely cause of those discrepancies in classification was the fact, that the RAPD analysis was restricted to four primers; all of them gave numerous bands, but that was probably not enough to classify those populations in a proper way. Another fact to be kept in mind is that the geographical distance could be not the main reason for their genetic diversity. This diversity could be also affected by climatic factors and by the former human activity. It could be suggested, that further researches, employing more primers, would allow to obtain additional RAPD markers, which would permit to classify and identify the populations in a more precise way.
Similarly, two clusters of populations were obtained by Scheepers [33]; one of those clusters was made of populations from the Nordic-Baltic region (provenances from Sweden and from White Russia), the second was made of the populations coming from France, Austria, Germany and Belgium.
Figure 4. The dendrogram for 20 Polish provenances of Norway spruce (Picea abies (L.) Karst.) obtained employing the UPGMA method |
![]() |
Figure 5. Localization of Norway spruce (Picea abies (Karst.) L.) provenances |
![]() |
The research showed, that in Polish populations of Norway spruce 93.63 % of total variability was the intra-population variation, while the inter-population variation accounts for 6.37 % of the total variability. That agrees with the results of studies conducted on Norway spruce using the isoenzyme method [11, 16, 17, 30, 25]. In those researches the intra-population variation accounted for 95% of total variability. In conifers - like in other angiosperms - the level of genetic variation is usually high, and most of that is the intra-population variation. This is due to the fact, that they are generally wind-pollinated, what results in a high level of gene flow. What is also important, most of conifers of northern latitudes display continuous geographical distribution, which positively influences the gene flow [3].
CONCLUSIONS
The RAPD method was proved to be a useful tool to identify Polish provenances of Norway spruce (Picea abies (L.) Karst.) and for determining the level of their intra- and inter-population genetical variation.
In the research there were found numerous bands for certain polish provenances of spruce (Table 4) which can be useful for identification ecotypes of that species.
ACKNOWLEDGEMENTS
I would like to express my grateful thanks to prof. Maciej Giertych of the Institute of Dendrology of Polish Academy of Sciences in Kornik for giving the access to plant material used in this work.
This study was founded by Agricultural University in Cracow.
REFERENCES
Barcaccia, G., 1994. Development - comparability and potential applications of RAPD [Random Amplified Polymorphic DNAs markers in the genus Medicago.] J Genet. Breed. 48(2), 161-168. Barzdajn, W., 1982. Przyrostowa i morfologiczna charakterystyka krajowych populacji świerka pospolitego (Picea abies (L.) Karst.) na uprawie porównawczej w Nadleśnictwie Doświadczalnym Laski. [Growth and morphological characteristics of polish Norway Spruce (Picea abies /L./ Karst.) growth on comparative culture in experimental forest district Laski]. Rocz. Akad. Roln. Poznan 19, 17-49 [in Polish]. Beaulieu, J. Simon, J. P. 1994. Genetic structure and variability in Pinus strobus in Quebec. Can. J. For. Res. 24(8), 1726-1733. Bousquet, J., Simon, L. & Lalonde, M. 1990. DNA amplification from vegetative and sexual tissues of trees using polyemerase chain reaction. Can. J. For. Res. 20, 254-257. Bucci, G., Menozzi, P. 1995. Genetic variation of RAPD markers in a Picea abies Karst. population. Heredity 75, 2, 188-197. Carlson, J. E., Tulsieram, L. K., Glaubitz, J. C., Luk, V. W. K., Kauffeldt, C., Rutledge, R. 1991. Segregation of random amplified DNA markers in F1 progeny of conifers. Theor. Appl. Genet. 83(2), 194-200. Castiglione, S., Wang, G., Damiani, G., Bandi, C., Bisoffi, S., Sala, F. 1993. RAPD fingerprints for identification and for taxonomic studies of elite poplar (Populus spp.) clones. Theor. Appl. Genet. 87(1-2), 54-59. Chylarecki, H., Giertych, M. 1969. Variability of Picea abies (L.) Karst. cones in Poland. Arbor. Kórnickie 14, 39-71. Devos, K.M., Gale, M. D. 1992. The use of random amplified polymorphic DNA markers in wheat. Theor. Appl. Genet. 84(5-6), 567-572. Giannini, R., Morgante, M., Vendramin, G. G. 1991. Allozyme variation in Italian populations of Picea abies (L.) Karst. Silvae Genet. 40(3-4), 160-166. Genetyka. w: Świerk pospolity (Picea abies (L.) Karst.). [Genetics. In: Norway spruce (Picea abies (L.) Karst.)]. Warszawa Poznań, pp. 287-331 [in Polish]. Giertych, M. 1984. Świerk istebniański w świetle międzynarodowych doświadczeń proweniencyjnych. [Istebna spruce in the light of international provenance trials]. Sylwan 128(12), 27-42 [in Polish]. Giertych, M. 1989. Zmienność proweniencyjna świerka (Picea abies (L.) Karst.) z polskich drzewostanów nasiennych na powierzchni doświadczalnej w Kórniku. [Provenance variation of spruce (Picea abies (L.) Karst.) from polish seed stands on the Kórnik experimental area]. Sylwan 133(11-12), 1-5 [in Polish]. Giertych, M. 1996. Genetyczna wartość świerka istebniańskiego. [Genetic value of Istebna spruce]. Sylwan 140(3), 29-37 (in Polish). Gömöry, D., Paule, L. 1993. Isozyme polymorphism in Norway spruce (Picea abies Karst.) from slovak carpathians. In: Norway spruce provenances and breeding. Proceedings of the IUFRO S2.2-11 Symposium, Latvia, Riga 1993 pp. 60-67. Goncharenko, G.G., Zadeika, I.V., Birgelis, J.J. 1995. Genetic structure, diversity and differentiation of Norway spruce (Picea abies (L.) Karst.) in natural populations of Latvia. For. Ecol. Manage. 72(1), 31-38. Gower, J. C. 1985. Measures of similarity, dissimilarity and distance. In: Encyclopedia of Statistical Sciences, (ed. S. Klotz and N. L. Johnson). Wiley, New York. pp. 397-405 Heinze, B., Schmidt, J., Cassells, A. C. & Jones, P. W. 1995. Monitoring genetic fidelity vs. somaclonal variation in Norway spruce (Picea abies) somatic embryogenesis by RAPD analysis. Eucarpia Genetic Manipulation in Plant Breeding 85(1-3), 341-345. Howard, J., Carlton, J. M. R., Walliker, D., Jensen, J. B. 1996. Use of random amplified polymorphic DNA (RAPD) technique in inheritance studies of Plasmodium falciparum. J. Parasit. 82(6), 941-946. Isabel, N., Tremblay, L., Michaud, M., Tremblay, F. M., Bousquet, J. 1993. RAPDs as an aid to evaluate the genetic integrity of somatic embryogenesis-derived populations of Picea mariana (Mill.) B.S.P. Theor. Appl. Genet. 86(1), 81-87. Jackson, D. A., Somers, K. M., Harvey, H. H. 1989. Similarity coefficients: measures of co-occurrence and association or simply measures of occurrence? Amer. Nat. 133, 436-453. Khasa, P. D., Dancik, B. P. 1996. Rapid identification of white-Engelmann spruce species by RAPD markers. Theor. Appl. Genet. 92(1), 46-52. Lacaze, J. F., Kocięcki, S. 1979. Zmienność populacji polskiego świerka na powierzchni we Francji i w Polsce. [Variation in Polish spruce population on areas in France and in Poland]. Sylwan 123(6), 1-21 [in Polish]. Lagercrantz, U., Ryman, N. 1990. Genetic structure of Norway spruce (Picea abies): concordance of morphological and allozymic variation. Evolution 44(1), 38-53. Liu, Z., Furnier, G. R. 1993. Comparison of allozyme, RFLP, and RAPD markers for revealing genetic variation within and between trembling aspen and bigtooth aspen. Theor. Appl. Genet. 87(1-2), 97-105. Mosseler, A., Egger, K. N., Hughes, G. A. 1992. Low levels of genetic diversity in red pine confirmed by random amplified polymorphic DNA markers. Can. J. For. Res. 22(9), 1332-1337. Nelson, C. D., Nance, W. L. & Doudrick, R. L. 1993. A partial genetic linkage map of slash pine (Pinus elliottii Engelm. var. elliottii) based on random amplified polymorphic DNAs. Theor. Appl. Genet. 87(1-2), 145-151. Paule, L. 1988. Polskie proweniencje świerka pospolitego (Picea abies Karst.) w czechosłowackich doświadczeniach proweniencyjnych. [Polish provenances of Norway spruce (Picea abies Karst.) in Czechoslovak provenance experiments]. Sylwan 132(9), 25-35 (in Polish). Paule, L., Szmidt, A. E., Yazdani, R. 1990. Isozyme polymorphism of Norway spruce (Picea abies Karst.) in Slovakia. I. Genetic structure of adjacent populations. Acta Facultatis Forestalis Zvolen 32, 57-70. Perron, M., Gordon, A. G., Bousquet, J. 1995. Species-specific RAPD fingerprints for the closely related Picea mariana and P. rubens. Theor. Appl. Genet. 91(1), 142-149. Roy, A., Frascaria, N., Mackay, J., Bousquet, J. 1992. Segregating random amplified polymorphic DNAs in Betula alleghaniensis. Theor. Appl. Genet. 85, 173-180. Scheepers, D., Eloy, M. C., Briquet, M. 1997. Use of RAPD patterns for clone verification and in studying provenance relationships in Norway spruce (Picea abies). Theor. Appl. Genet. 94(3-4), 480-485. Sigurgeirsson, A., Szmidt, A. 1988. Chloroplast DNA variation among north-american Picea species, and its phylogenetic implications. In: Molecular Genetics of Forest Trees. Department of Forest Genetics and Plant Physiology, Umea pp. 49-65. Skov, E. 1998. Mendelian inheritance and tissue expression of RAPD-markers in Picea abies (L.) Karst. Silvae Genetica 47(5-6), 262-270. Strauss, S. H., Bousquet, J., Hipkins, V. D., Hong, Y. P. 1992. Biochemical and molecular genetic markers in biosystematic studies of forest trees. New Forests 6, 125-158. Tingey, S. V., Del Tufo, J. P. 1993. Genetic analysis with Random Amplified Polymorphic DNA markers. Plant Physiol. 101, 349-352. Williams, J. G. K., Kubelik, A. R., Livak, K. J., Rafalski, J.A., Tingey, S. V. 1990. DNA polymorphisms amplified by arbitrary primers are useful as genetic markers. Nucleic Acids Res. 18(22), 6531-6535. Yeh, F. C. & Arnott, J. T. 1986. Electrophoretic and morphological differentiation of Picea sitchensis, Picea glauca, and their hybrids. Can. J. For. Res. 16(4), 791-798.
Wojciech Kraj
Department of Forest Tree Physiology
Agricultural University, 31-425 Cracow, Poland
tel: 12-4119144 ext. 524
e-mail: rlkraj@cyf-kr.edu.pl
Responses to this article, comments are invited and should be submitted within three months of the publication of the article. If accepted for publication, they will be published in the chapter headed Discussions in each series and hyperlinked to the article.
