CYANIDE DETOXIFYING ENZYMES OF BIRD CHERRY OAT APHID

Anna Urbańska, Bogumił Leszczyński, Henryk Matok, Anthony F.G. Dixon

ABSTRACT

The activity of beta-cyanoalanine synthase and rhodanese within the tissues of the three generations of the bird cherry-oat aphid that are specialized to feed on the cyanogenic spring foliage of bird cherry was assessed. The order of beta-cyanoalanine synthase activity in the three aphid generations was: generation 1> generation 2> generation 3; whereas that of rhodanese was: generation 3> generation 1>generation 2. The possible role of the bird cherry – oat aphid enzymes in metabolizing dietary cyanide is discussed.

Key words: beta-cyanoalanine synthase, rhodanese, cyanide detoxication, bird cherry-oat aphid, Rhopalosiphum padi, bird cherry, Prunus padus.

INTRODUCTION

Herbivorous insects may induce cyanogenesis while feeding on cyanogenic plants and as a consequence are exposed to the toxic effects of the released cyanide [8, 15]. One such insect is the bird cherry-oat aphid, Rhopalosiphum padi L., which feeds in spring on the highly cyanogenic leaves and young shoots of bird cherry, Prunus padus L, its primary (winter) host-plant. Cyanide is toxic for many herbivorous insects, but there are specialists that can feed on highly cyanogenic plants.

Some herbivorous insects, including aphids, e.g., Therioaphis trifoli, are tolerant of cyanide and even prefer cyanogenic plants [7, 11, 18]. These insects use enzymes to metabolize cyanide. One such enzyme, rhodanese (thiosulphate: cyanide sulphur transferase; EC 2.8.1.1) converts cyanide into the less toxic thiocyanate. As a consequence, the rhodanese activity in insects that feed on cyanogenic plants has been widely studied [2, 8, 10, 12, 13, 14, 16]. The conclusion is that although rhodanese may be involved in the tolerance of cyanide its primary role is not the detoxification of cyanide in these insects. Insensitivity of insects to cyanide is attributed to another enzyme, beta-cyanoalanine synthase (beta-CAS; EC 4.4.1.9), although not many data were provided in this aspect [1, 5]. This enzyme is thought to ‘transfer’ cyanide into the amino acid pool by catalyzing the first in a series of reactions. Another enzyme, beta-cyanoalanine hydratase (EC 4.2.1.65) participates in this p rocess and the sequential action of these two enzymes constitutes an effective mechanism for detoxifying HCN [6, 20].

In this paper we report on the activity of rhodanese and beta-cyanoalanine synthase in the tissues of the first three generations of the bird cherry-oat aphid, which feed on the highly cyanogenic spring foliage of bird cherry.

MATERIALS AND METHODS

Aphids. The overwintering eggs that the bird cherry-oat aphid lays in autumn hatch in spring and give rise to three parthenogentic generations of aphids on bird cherry. The third generation individuals are winged and on completing their development fly off and colonize a variety of grasses, which are the secondary host plants of this host-alternating aphid. The first generation individuals are green in colour, those of the second generation are mainly black and lack wings and those of the third generation are similar in colour but have wings. Aphids were collected weekly, beginning in late April and ending in the second third of May. The spring migrants that colonize cereals and other grasses were caught in suction traps in the second third of May. Immediately after collection, the aphids were homogenized in an appropriate buffer and enzymes were prepared.

Rhodanese assay. Activity of rhodanese was determined according to Sörbo [19]. The aphids were homogenized in 200 mM ice-cold Na-phosphate buffer, pH 7.5 and centrifuged at 600g for 15 minutes. The supernatant was collected and used to determine enzyme activity. The incubation mixture contained: 1.0 ml of the enzyme extract, 1.0 ml of buffered 125 mM potassium cyanide and 1.0 ml of 125 mM sodium thiosulphate. After 30 minutes of incubation at 30°C, the reaction was stopped by addition of 0.5 ml of 37% formaldehyde followed by 2.5 ml of ferric nitrate reagent. Next, the reaction mixture was centrifuged at 1050g for 15 minutes, and then absorbance at 460 nm was measured against a control containing formaldehyde. Sodium thiocyanate was used as a standard and activity of the rhodanese was expressed in nmol of thiocyanate/min^-1/mg^-1 protein.

beta-cyanoalanine synthase assay. The beta-CAS activity was determined using a slightly modified method of Blumenthal et al. [3]. The aphids were homogenized in ice-cold 50 mM Tris-HCl buffer, pH 8.5. The crude homogenate was centrifuged at 600g for 15 minutes and the supernatant was used as the enzyme source. The reaction mixture contained: 1.0 ml of the enzyme extract, 0.5 ml of 50 mM NaCN and 0.5 ml of 10 mM L-cysteine, both buffered in 100 mM Tris-HCl buffer, pH 8.5. This mixture was incubated in a closed vessel for 30 minutes at 30°C. The reaction was stopped by the addition of 0.5 ml of 20 mM N, N-dimethyl-p-phenylenediamine sulphate and 0.5 ml of 30 mM ferric chloride. The mixture was centrifuged at 1000g for 15 minutes and the absorbance at 650 nm was measured using a Hewlett Packard 8452 A spectrophotometer. Sodium sulfide was used as a standard and activity of the beta-cyanoalanine synthase was expressed in nmol H₂S/min-1/mg^-1 protein. Three independent replicates of each assay were performed, and the enzyme analyses were carried out at a temperature 0-4°C. Protein content in the enzyme extracts was determined using Bradford method [4] and bovine serum albumin as a standard.

Statistics. Differences in activity of the enzymes in the three aphid generations were analyzed by an analysis of variance followed by Duncan’s test. In addition, Pearson’s correlation coefficients between enzyme activity and cyanogenesis potential were also calculated.

RESULTS AND DISCUSSION

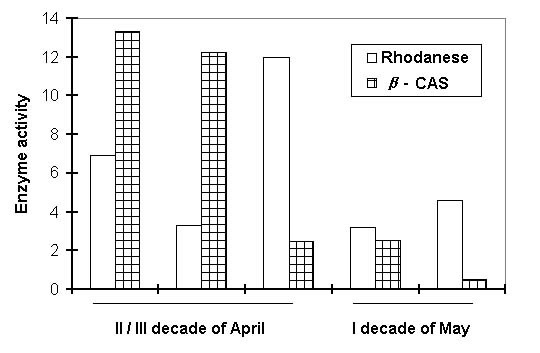

The homogenates of the three generations of the bird cherry-oat aphid contained both rhodanese and beta-cyanoalanine synthase. The order of the rhodanese activity in the three generations was: generation 3 > generation 1 > generation 2. Significantly higher activity of beta-CAS was recorded in homogenates of first generation individuals compared with other generations (Table 1). Generally, the activity of beta-cyanoalanine synthase in the tissues of first generation individuals was about 2-times greater than that of rhodanese. In contrast, the activity of rhodanese was much higher in tissues of individuals of the third generation, which is less exposed to cyanide. Over the spring period while feeding on the primary host the aphid shows fluctuations in the activity of rhodanese and a constant decrease in the activity of beta-cyanoalanine synthase (Fig. 1).

The results indicate that the generations of R. padi that fed on the foliage of bird cherry in spring show both rhodanese and beta-CAS activity, and thus are able to convert HCN into less toxic thiocyanate and/or to include it into the amino acid pool. Rhodanese activity has been widely reported from a variety of herbivorous insects, including the aphids Aphis loti and Acyrthosiphon loti, which are known to feed on cyanogenic plants [2]. beta-CAS activity has also been found for numerous arthropods including: polydesmoid millipedes, Oxidius gracilis and Harpaphe haydeniana, larvae of the noctuid moths, Heliothis zea and Spodoptera exiqua, and adults of the lygaeid bug Oncopeltus fasciatus feeding on cyanogenic plants [12].

The results presented here indicate that rhodanese activity in R. padi is not directly associated with the cyanogenesis potential of bird cherry foliage (unpublished data). First generation individuals of the bird cherry-oat aphid that fed on the highly cyanogenic youngest leaves of bird cherry did not show an increased rhodanese activity. Thus, similarly to [16], we conclude that rhodanese is not R. padi sole defense against dietary cyanide. The primary role of the rhodanese in cyanide detoxication, assumed in earlier studies, has not be supported by subsequent studies on a wide range of herbivorous insects including Coleoptera, Lepidoptera and also Homoptera that feed on cyanogenic Lotus corniculatus and Vicia sativa [2]. According to Jones [14] other sulphurtransferases such as 3-mercaptopyruvate sulphurtransferase (EC 2.8.1.2) and thiosulphate: thiol transferase (EC 2.8.1.3.) are involved in HCN-detoxication.

Our results indicate that dietary cyanide may have induced the high activity of beta-CAS in the bird cherry-oat aphid tissues. First generation individuals have the highest beta-CAS activity and fed on the youngest leaves that have the highest cyanogenesis potential (unpublished data). This suggests that beta-cyanoalanine synthase is an important enzyme in the detoxication of dietary cyanide in R. padi. Larvae of Heliconius melpomene fed on cyanogenic plants show beta-CAS activity, but not those fed on non cyanogenic plants [9]. In addition beta-CAS activity was much higher in Synanthedon exitiosa insensitive to amygdalin in their diet than in S. pictipes, which is sensitive to this cyanogenic glycoside [17]. According to Brattsten [6] it is possible that beta-CAS is an important enzyme protecting insects from prolonged exposure to low concentrations of cyanide.

In conclusion, the bird cherry-oat aphid is adapted to detoxify the cyanide produced by the leaves of its primary host-plant. However, beta-cyanoalanine synthase plays a major role in the metabolism of cyanide in the bird cherry-oat aphid.

REFERENCES

1. Ahmad S., Brattsten L.B., Mullin C.A., Yu S.J., 1986, Enzymes involved in the metabolism of plant allelochemicals. Molecular Aspects of Insect – Plant Associations, In: (eds. Brattsten L.B., Ahmad S.),  Plenum Press, New York, 73-152.

2. Beesley S.G., Compton S.G., David A.J., 1985, Rhodanese in insects. J. Chem. Ecol., 11, 45-50.

3. Blumenthal S.G., Hendrickson Y. P. A., Conn E.E., 1968, Cyanide metabolism in higher plants III. The biosynthesis of beta-cyanoalanine. J. Biol. Chem., 243, 5302-5307.

4. Bradford M.M., 1976, A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein dye binding. Anal. Biochem., 72, 248-254.

5. Brattsten L.B., 1986, Fate of ingested plant allelochemicals in herbivorous insects. In: Molecular Aspects of Insect – Plant Associations, (eds. Brattsten L.B., Ahmad S.), Plenum Press, New York, 211-219.

6. Brattsten L.B., 1992, Metabolic defenses against plant allelochemicals. In: Herbivores: Their Interactions with Secondary Plant Metabolites, (eds. Rosenthal G.A., Janzen D.), Academic Press, London, 175-242.

7. Brattsten L.B., Samuelian J.H., Long K.Y., Kincaid S.A., Evans C.K., 1983, Cyanide as a feeding stimulant for the southern armyworm Spodoptera eridiana. Ecol. Entomol., 8, 125-132.

8. Conn E.E., 1979, Cyanide and cyanogenic glycosides. In: Herbivores: Their Interaction with Secondary Plant Metabolites, (eds. Rosenthal G.A., Janzen D.H.), Academic Press, New York, 387-412.

9. Davis R.H., Nahrstedt A., 1985, Cyanogenesis in insects. In: Comprehensive Insect Physiology, Biochemistry and Pharmacology, (eds. Kerkut G.A., Gilbert L.I.), Pergamon Press, New York, 635-657.

10. Dowd P.F., Smith C.M., Sparks T.C., 1983, Detoxification of plant toxins by insects. Insect Biochem., 13, 453-468.

11. Dritschilo W., Krummel J., Nafus D., Pimentel O., 1979, Herbivorous insects colonising cyanogenic and acyanogenic Trifolium repens. Heredity, 42, 49-56.

12. Duffey S.S., 1981, Cyanide and arthropods. In: Cyanide in Biology, (eds. Vennesland B., Conn E.E., Knowles C.J., Westley J., Wissing F.), Academic Press, New York, 385-414.

13. Jones D.A., 1972, Cyanogenic glycosides and their function. In: Phytochemical Ecology. (ed. Harborne J.B.), Academic Press, New York, 103-124.

14. Jones D.A., 1998, Why are so many food plants cyanogenic? Phytochemistry, 47, 155-162.

15. Lindroth R.L., 1991, Differential toxicity of plant allelochemicals to insects: roles of enzymatic detoxication systems. In: Insect-Plant Interactions, (ed. Bernays E. ), CRC Press, Boca Ranton, 1-33.

16. Long K.Y., Brattsten, L.B., 1982, Is rhodanese important in the detoxification of dietary cyanide in southern armyworm (Spodoptera eridania CRAMER) larvae? Insect Biochem., 12, 367-375.

17. Reilly C.C., Gentry C.R., McKay J.R., 1987, Biochemical evidence for resistance of root stocks to the peach tree borer and species separation of peach tree borer and lesser peach tree borer (Lepidoptera: Sesiidae) on peach trees. J. Econ. Entomol., 80, 338-343.

18. Seigler D.S., 1991, Cyanide and cyanogenic glycosides. In: Herbivores: Their Interactions with Secondary Plant Metabolites. (eds. Rosenthal G.A., Berenbaum M.R.) Academic Press, San Diego, 35-77.

19. Sörbo B.J., 1955, Rhodanese. Methods Enzymol., 2, 334-337.

20. Wurtele E.S., Nikolau B.J., Conn E.E., 1984, Tissue distribution of beta-cyanoalanine synthase in leaves. Plant Physiol., 75, 979-982.

Anthony F.G.Dixon
School of Biological Sciences
University of East Anglia, Norwich NR4 7TJ, UK
