ETHANOL PRODUCTION ON THE MEDIA CONTAINING GLUCOSE AND XYLOSE BY COCULTURE OF PICHIA STIPITIS CCY 39501 AND RESPIRATORY DEFICIENT MUTANT OF SACCHAROMYCES CEREVISIAE V³⁰

Monika Kordowska-Wiater, Zdzisław Targoński

ABSTRACT

Coculture of xylose-fermenting yeast P. stipitis CCY 39501 and respiratory deficient mutant of S. cerevisiae V₃₀ designated as V₃₀ I 40 was used for ethanol fermentation on a medium containing glucose and xylose mixture and compared to P. stipitis monoculture or coculture of P. stipitis and S. cerevisiae V₃₀. Batch fermentations were carried out on a model medium or on a medium containing both sugars derived from direct saccharification of either wheat straw or birch sawdust. The yields obtained were 0.38 g/g, 0.34 g/g and 0.4 g/g for model medium, wheat straw and birch sawdust hydrolysates respectively, after cofermentation of P. stipitis with RD mutant V₃₀ I 40. The results confirmed the application of this coculture for ethanol fermentation of sugars derived from lignocellulosic hydrolysates.

Key words: ethanol fermentation, xylose, lignocellulose, SSF, coculture, respiratory deficient mutant of S. cerevisiae, P. stipitis.

INTRODUCTION

Plant biomass represents abundant and renewable source of carbohydrates, e.g. glucose and xylose. Ethanol obtained as a result of fermentation of these sugars is used for petrol aims as agent, which increases the octane amount of petrol or component of gasohol [21]. Efficient fermentation of sugars derived from lignocellulosic biomass by hydrolysis is one of the key processes influencing on industrial application of this process. Effective fermentation of pentoses, especially xylose by appropriate microorganisms is a problem. Among yeast strains Pichia stipitis, Candida shehatae and Pachysolen tannophilus have the ability to ferment xylose with low yields and productivities, and they are quite sensitive to ethanol concentration in the medium [20, 7, 18]. S. cerevisiae, a known yeast used for efficient fermentation of glucose from the ages, which shows resistance to high ethanol concentrations in the medium, is unable to ferment xylose. Coculture process, which asso ciates fast and efficient glucose fermenting yeast (S. cerevisiae) with xylose fermenting yeast (P. stipitis) is good method to resolving this problem [12, 13]. Yeast used for xylose fermentation needs oxygen, therefore good results may be obtained by cofermentation with respiratory deficient mutant of S. cerevisiae which doesn’t require oxygen in the medium. In such cultivation, glucose is the first sugar, which is assimilated by RD mutants of S. cerevisiae and after reduction of its repressing action on xylose fermentation, this pentose is assimilated by the appropriate yeast. The main reason limiting the yield during fermentation of sugar mixtures in this coculture process is the low ethanol tolerance of the xylose fermenting strains [16]. In different types of coculture process the yields obtained were in the range of 0.38 – 0.45 g of ethanol / g of consumed sugars depending on culture conditions [11, 14, 15, 16, 23]. The aim of this work was to determine whether RD mutant S. cerevisiae designated as V₃₀I 40 is useful for coculture with P. stipitis CCY 39501. Both RD mutant of S. cerevisiae and P. stipitis strain have been reported in the earlier work [9]. The applicability of these strains to ferment glucose and xylose mixture in the model medium or wheat straw and birch sawdust hydrolysates, which are the two popular waste substrates in Poland, was examined.

MATERIALS AND METHODS

Strains: S. cerevisiae V₃₀ was obtained from the Institute of Agricultural and Food Biotechnology in Warsaw and its respiratory deficient (RD) mutant V₃₀I 40 was selected after ethidium bromide mutagenisation at the Dep. of Food Technology and Storage, Agricultural University in Lublin [10]. P. stipitis CCY 39501 was obtained from the Slovakia Culture Collection of Yeast. These strains were stored at 4°C on YPG or YPX agar slants, respectively.

Media
Inoculation medium used for S. cerevisiaee V₃₀ and its RD mutant V₃₀I 40 - YPG contained (g/dm³) yeast extract (10.0), peptone (10.0) and D-glucose (20.0), pH 5,0.

Inoculation medium for P. stipitis-YPX contained (g/dm³) yeast extract (10.0), peptone (10.0) and D-xylose (20.0), pH 5,0.

Fermentation medium (F3) (according to Laplace et al. [14] after modification) contained (g/dm³) yeast extract (3.0), malt extract (3.0), D-xylose (15.0), D-glucose (35.0), (NH₄)₂SO₄ (5.0), KH₂P0₄ (3.0), pH 5,5.

Fermentation medium (F4) - like above but without sugars, it was added to lignocellulosic hydrolysates.

Fermentation of glucose and xylose on synthetic F3 medium
Inocula of yeasts were grown in test tubes with an appropriate medium at 28°C on a rotary shaker at 150 rpm for 24 h. Batch fermentations of glucose and xylose mixture were carried out in Erlenmeyer flasks containing 150 cm³ of F3 medium and inoculated with 2% V/V of yeasts (1% v/v of either S. cerevisiae V₃₀ (8.05±1.65 x 10⁷ cells/cm³) or RD mutant V₃₀I 40 (7.1± 0.8 x 10⁷ cells/cm³) and 1% v/v of P. stipitis culture (4.05±0.6 x 10⁷ cells/cm³) or 2% v/v of P. stipitis alone). Cultures were run at 28°C on a rotary shaker at 150 rpm for 4 days. Samples of fermentation broth were collected for analysis everyday and pH was controlled and sterilely regulated to 5.5 value using 15 % NaOH. This experiment was carried out twice.

Pretreatment of lignocellulosic materials
Wheat straw and birch sawdust were used in this experiment. Straw was cut to about 1 - 2 cm fragments and milled. 30 cm³ of 1% HCI was added to 12 g of each biomass sample. After 18 h these samples were heat-treated in a 250 cm³ capacity stainless steel reactor with a thermostated oil bath heater at 185°C for 8 min and 200°C for 10 min for wheat straw and birch sawdust, respectively. After hydrolysis the reactor was cooled and the biomass was steamed for 12 min (straw) or 15 min (sawdust) in order to detoxicate the samples. Each biomass was transferred to an Erlenmeyer flasks, then 50 cm³ of sterilized F4 medium was added and the pH was adjusted to 5.0 by 30% NaOH.

Simultaneous saccharification and fermentation (SSF) of lignocellulose
2 cm³ of cellulolytic enzymes (Celluclast, Novo Nordisk), 0.2 cm³ of beta-glucozydase (Novozyme 188, Novo Nordisk) and yeast inoculum in a total amount of 10 % v/v (5% v/v of RD mutant V₃₀I 40 and 5% v/v of P. stipitis) were added on F4 medium containing plant hydrolysates. The control culture of P. stipitis was also prepared. Control experiment for the degree of saccharification was run without yeasts (instead of microorganisms sterile distilled water was added to the medium). Simultaneous saccharification and fermentation process was carried out on a rotary shaker at 150 rpm at 28°C for 4 days. Samples for analysis were taken before incubation and after 1, 4, 24, 48, 72 and 96 h of cultivation. The pH was controlled and corrected using 15 % NaOH. These cultures were carried out twice.

Analytical methods
Concentrations of D-glucose, D-xylose and xylitol in fermentation broth were determined by HPLC on a column Supelco (Supelconsil^TM) LC-NH₂ (length 25 cm) using acetonitrile: distillate water solution (80:20) as liquid phase and refractometer detection (Knauer). Ethanol was analysed according to Kellermann [8]. Yeast's biomass was monitored gravimetrically: 5 cm³ of fermentation samples were centrifuged, washed with distilled water and dried at 104°C to a constant weight. All analyses were doubled and arithmetic averages were estimated on the measurements.

RESULTS

Ethanol production on the synthetic medium

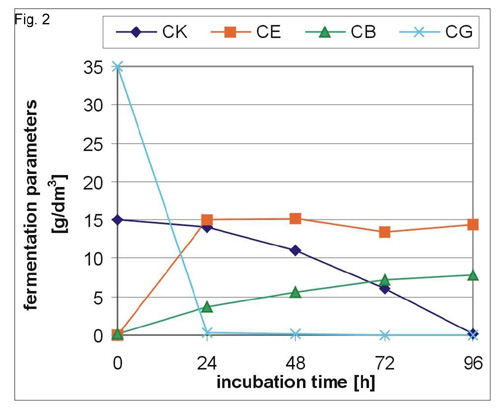

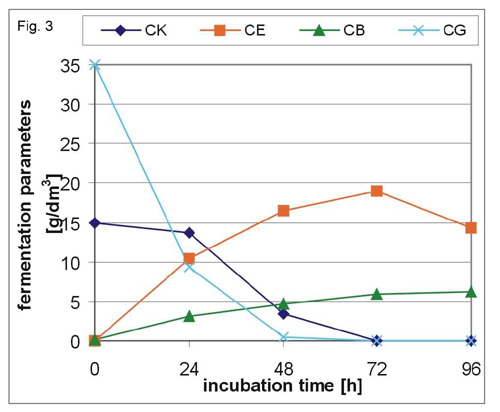

The results obtained are presented in Figures 1, 2 and 3 and Table 1. In the control of coculture process glucose was totally consumed after 1 day, whereas xylose utilisation by P. stipitis continued for 4 days. In the coculture process of P. stipitis with RD mutant S. cerevisiae V₃₀ the assimilation of glucose was somewhat slower, but xylose was utilised 3 - 4 -fold faster than in the control. In the coculture fermentation of control strains, maximum concentration of ethanol was obtained after 48 h and in this case glucose was consumed completely with only 26.5% of consumed xylose. In the presence of RD mutant V₃₀, P. stipitis fermented xylose to ethanol because its concentration increased after complete glucose depletion. A maximum value of 18.8 g/dm³ ethanol was assayed, which was higher by 3.55 g/dm³, when compared with the co ntrol coculture. Xylose was used by yeast of control culture mainly for biomass production, which was higher than in coculture of P. stipitis and RD mutant S. cerevisiae V₃₀ by 2 g/dm³. Xylitol was detected in the fermentation broths only in trace amounts from 0 to 1.5 g/dm³. But higher yields and productivities of fermentation were obtained for culture of P. stipitis and S. cerevisiae V₃₀ because ethanol was produced mainly from glucose. It was reported that this hexose fermentation by S. cerevisiae monoculture gave higher ethanol yield when compared to glucose and xylose cofermentation by xylose fermenting yeast [4]. Also lower results of ethanol were obtained in glucose and xylose cofermentation by P. stipitis monoculture (Fig.1, Tab.1). This process was run for 4 days, but the concentration of ethanol obtained was lower than in coculture with RD mutant V ₃₀I 40 by 5.33 g/dm³ (28.3%), and higher amount of biomass was observed.

Simultaneous saccharification and fermentation (SSF) of lignocellulose

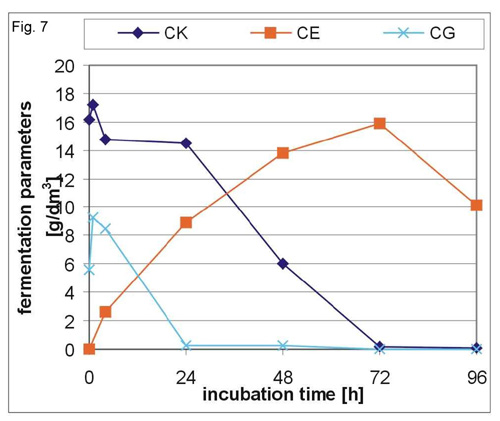

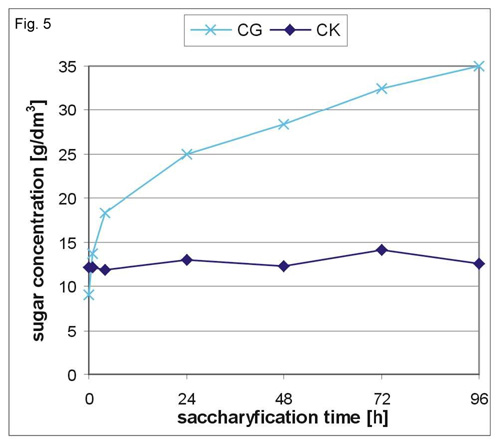

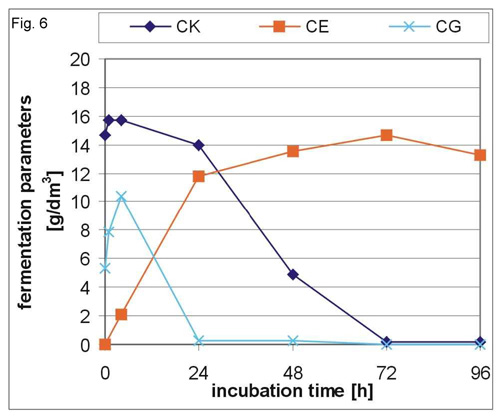

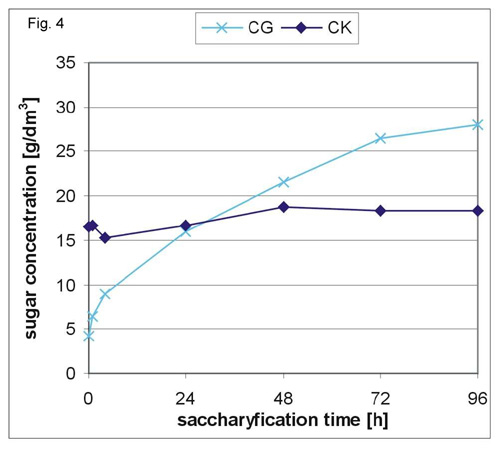

Wheat straw and birch sawdust were selected on the basis of their abundance, availability and high concentration of xylose. Straw after pretreatment contained an average of 15 g/drn³ of xylose and 4.3 g/dm³ of glucose whereas sawdust had an average concentrations of 12.3 g/dm³ and 8.8 g/dm³ for xylose and glucose, respectively (Fig. 4 and 5). Control saccharification process was run with cellulases and beta-glucozydase for 4 days. During this process without yeasts 18.3 g/dm³ of xylose and 28.0 g/dm³ of glucose was determined in wheat straw medium (Fig. 4). The result of birch sawdust saccharification gave 14.1 g/dm³ of xylose and 35.0 g/dm³ of glucose (Fig. 5). During SSF process of wheat straw, the utilisation of glucose by both P. stipitis monoculture and coculture of this yeast with RD mutant V₃₀I 40 was fast with little o r no trace amount of residual hexose in spite of continuous releasing of molecules of this sugar by enzymes (Fig. 6 and 7). After 24 h of incubation, xylose-fermenting yeast started to assimilate pentose and this continued for 3 days. The increase of ethanol concentration during the time of incubation was an evidence of xylose fermentation. In the coculture of yeasts, ethanol concentration obtained was 15.88 g/dm³, which was higher than in P. stipitis culture alone by 8.1 %. The yields and productivities were also higher for coculture than for P. stipitis monoculture and amounted to 0.34 and 0.32 g/g, and 0.221 and 0.204 g/dm³ x h, respectively (Table 2). It is difficult to determine what part of xylose was fermented to ethanol, because a little of it was transformed to xylitol, which was present in the fermentation broth in conc. 5 g/dm³ and also used for new cells. Biomass concentration wasn't assaye d because of heterogenic character of the medium.

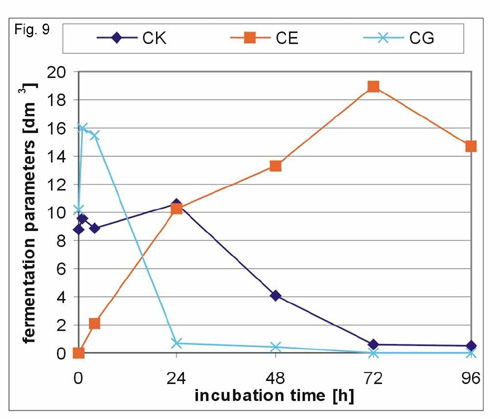

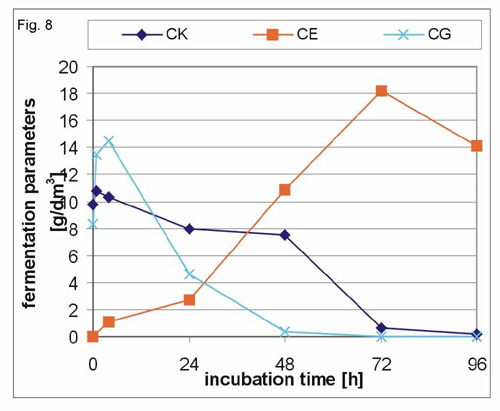

Fermentation of glucose in the medium containing birch sawdust hydrolysate was slower than in the medium with wheat straw and about 2 –2.5-fold higher residual concentration of this sugar was observed in the broth. Glucose released by cellulolytic enzymes was continuously assimilated and didn't repress xylose utilization by P.stipitis (Fig. 8 and 9). The profile of xylose assimilation by coculture was similar to utilization of this sugar by P. stipitis alone. Maximum ethanol concentration in the coculture (18.69 g/dm³) was higher than in the monoculture of P. stipitis only by 0.52 g/dm³. The parameters of birch sawdust fermentation are shown in Table 3.

DISCUSSION

A good method, which improves yield of ethanol fermentation of glucose and xylose mixture is coculture of yeasts involving the association of a good producer of ethanol from glucose (e.g. S. cerevisiae) or its respiratory deficient mutant with xylose fermenting yeast (e.g. P. stipitis; C. shehatae) [4, 11, 14, 15, 16, 2, 5, 3, 23]. These yeasts may be coincubated if they don't produce killer toxins [11]. The yeasts used in this experiment were investigated for killer toxin production but no antagonistic action was observed [10]. There was no change in the concentration of ethanol during xylose fermentation by the control coculture. Similar results were obtained by Grootjen st al. [4], when a small amount of xylose was used by yeast but ethanol concentration didn't change. However, Taniguchi et al. [23] obtained only 3 g/dm³ of ethanol during xylose fermentation by such coculture. Similar observation was made by Laplace et al. [14] during batch c oculture, when P. stipitis produced little amount of ethanol or didn't ferment xylose at all but the biomass concentration increased. There were three reasons for this behaviour by xylose fermenting yeast: lack of oxygen was indispensable for xylose fermentation [13, 14], toxic effect generated by ethanol on P. stipitis due to glucose fermentation and lack of nutritive substances in the fermentation broth [19, 2]. An effective method for improving such coculture is the use of RD mutants of S. cerevisiae, which is disable to use dissolved oxygen in the medium. In the coculture of RD mutant V₃₀I 40 and P. stipitis, xylose assimilation was run for 3 days (Fig. 3) and a little amount of ethanol was produced by yeast from this pentose. An increased biomass formation was also observed in this culture, so ethanol yields were lower than yields observed for control culture. Similar ethanol concentrations (19.0 and 19.5 g/dm³) were obtained in cultures of P. stipitis NRRL Y11545 with RD mutant S. cerevisiae CBS 1200 and P. stipitis NRRL 7124 with RD mutant S. diastaticus NCYC 625, respectively, but in this process higher yields in the range of 0.42 and 0.44 g/g were obtained, respectively [14, 15].

Simultaneous saccharification and fermentation (SSF) of lignocellulose
This process offers some benefits compared to the conventional two-step method based on separate hydrolysis and fermentation, because one reaction medium is used, the time of this process is considerably shortened, the presence of ethanol in the fermentation broth reduces the possibility of microbial contamination and end product inhibition of cellulases is substantially diminished because glucose is continuously used by yeast. The disadvantages of such a process include different temperature and pH optima for the action of enzymes and ethanol-producing yeast, the competition between enzymes and fermenting cells and the possible inhibitory effect of ethanol on cellulases, which were shown to be significantly inhibited in medium containing above 2% w/v of ethanol [22, 17]. During the saccharification process (control), the glucose concentration increased and were 23.7 g/dm³and 26.2 g/dm³ for wheat straw and birch sawdust, respectively. Xylose concentration grew up by 2.4 and 1.8 g/dm ³, respectively. Generally, the composition of total sugars during control saccharification consisted of 60.5% glucose and 39.5% xylose for wheat straw whereas for birch sawdust had 71.3% glucose and 28.7% xylose. During saccharification of wheat straw, Zayed and Meyer [24] obtained 66.2% of glucose and 33.8% of xylose and for birch sawdust Ishihara et al. [6] obtained hydrolysates which contained glucose and xylose in average of 69.67% and 5.1%, respectively. The differences in the composition of total sugars were due to variable methods used for pretreatment and saccharification of plant biomass. Application of coculture for the fermentation of released sugars during saccharification gave better results when compared to monoculture of xylose fermenting yeast and gave higher concentration of ethanol, higher yield and productivity (Tab. 2). Coculture of S. cerevisiae and P. stipitis, as reported by Awafo et al. [1], fermented sugars derived from simultaneous hydrolysis of wheat straw with yields in the range of 0.24 –0.46 g/g, whereas ethanol yields obtained by monoculture of P. stipitis were in the range of 0.31- 0.49 g/g, depending on the concentration of substrate, total amount of sugar and cellulase concentration, The above mentioned author observed that RD mutant application decided about total xylose conversion in the coculture of yeasts. During continuous fermentation on non-simultaneous hydrolysis of aspen chips by coculture of P. stipitis NRRL Y7124 with RD mutant of S. diastaticus, Delgenes et al. [3] obtained an ethanol concentration of 11.5 – 13.5 g/dm³ and yields in the range of 0.22 – 0.25 g/g with volumetric productivities of about 0.4 – 1.6 g/dm³ x h depending on oxygen dilution rate. These observations are in good agreement with the results obtained for coculture of P. stipitis CCY 39501 with RD mutant V₃₀ I40 cultivated on a model medium where total sugar utilization was o bserved in contrast to the control coculture and P. stipitis monoculture, with only 26.67% and 44% xylose consumption, respectively (Tab. 1). On the model medium the phenomenon of glucose catabolite repression on xylose by yeast was observed, whereas on SSF process, such repression wasn't noticed because of low concentration of glucose caused by its gradual enzymatic release. In the broth of medium containing birch sawdust, higher ethanol concentrations were obtained than in the wheat straw medium, because of higher glucose concentration after the saccharification. The results obtained in this study confirm the possibility of utilizing coculture of P. stipitis with RD mutant of S. cerevisiae for ethanol fermentation of lignocellulosic hydrolysates.

CONCLUSIONS

The fermentation of glucose and xylose mixture by the coculture of P. stipitis CCY 39501 with RD mutant of S. cerevisiae V₃₀I40 was advantageous because higher ethanol concentration by 18.9%, higher xylose assimilation by 27.76% and decrease of the fermentation time by 1 day were obtained when compared with the control coculture. Mixed culture of P. stipitis CCY 39501 with RD mutant signed V₃₀I40 also effectively fermented glucose and xylose derived from lignocellulosic hydrolysates to ethanol giving the results similar to the model medium. This suggests suitable process of the raw material pretreatment and the selection of appropriate yeasts and conditions of the ethanol fermentation.

REFERENCES

1. Awafo V.A., Chahal D.S., Simpson B.K., 1998, Optimization of ethanol production by Saccharomyces cerevisiae ATCC 60868 and Pichia stipitis Y-7124: a responce surface model for simultaneous hydrolysis and fermentation of wheat straw. J. Food Biochem.22: 489-509.

2. Delgenes J.P., Moletta R., Preziosi-Belloy L., Navarro J.M., 1995, Alcoholic cofermentation of lignocellulosic sugars using a membrane recycle bioreactor. In: Proc. of the 8th European Biomass Conf., 2. Pergamon, Oxford: 1350-1355.

3. Delgenes J.P., Laplace J.M., Moletta R., Navarro J.M., 1996, Comparative study of separated fermentations and cofermentation process to produce ethanol from hardwood derived hydrolysates. Biomass Bioeng. 11: 353-360.

4. Grootjen R.D.J., Jansen M.L., van der Lans R.G.J.M., Luyben K.Ch.A.M., 1991, Reactors in series for the complete conversion of glucose/xylose mixtures by Pichia stipitis and Saccharomyces cerevisiae. Enzyme Microb. Technol. 13: 828-833.

5. Hinfray C., Jouenne T., Junter G.A., 1995, Simultaneous fermentation of glucose and xylose by Saccharomyces cerevisiae and Candida shehatae coimmobilized in a double-chambered bioreactor. In: Proceedings of the 8^th European Biomass Conference, vol 2. Pergamon, Oxford, 1291-1302.

6. Ishihara M., Uemura S., Hayashi N., Shimizu K., 1991, Semicontinuous enzymatic hydrolysis of lignocelluloses. Biotechnol. Bioeng. 37: 948-954.

7. Jeffries T.W., Kurtzman C.P., 1994, Strain selection, taxonomy, and genetics of xylose-fermenting yeasts. Enzyme Microb. Technol. 16: 922-932.

8. Kellermann E., 1960, Quick method for determination of alcohol in solutions and mashes. Kvas. Prum. 1: 11-12 [in Czech].

9. Kordowska-Wiater M., 2000, Ph.D. Thesis, Maria Curie – Skłodowska University, Lublin, Poland.

10. Kordowska-Wiater M., Targoński Z., 1997, Using of respiratory deficient mutants of Saccharomyces cerevisiae to glucose and xylose cofermentation with Pichia stipitis. Biotechnologia 4: 94-102 [in Polish].

11. Laplace J.M., Delgenes J.P., Moletta R., 1992, Alcoholic glucose and xylose fermentations by the coculture process: compatibility and typing of associated strains. Can. J. Microbiol. 38: 654-658.

12. Laplace J.M., Delgenes J.P., Moletta R., Navarro J.M., 1991, Alcoholic fermentation of glucose and xylose by Pichia stipitis, Candida shehatae, Saccharomyces cerevisiae and Zymomonas mobilis: oxygen requirement as a key factor. Appl. Microbiol. Biotechnol. 36: 158-162.

13. Laplace J.M., Delgenes J.P., Moletta R., Navarro J.M., 1991, Combined alcoholic fermentation of D-xylose and D-glucose by four selected microbial strains: process considerations in relation to ethanol tolerance. Biotechnol. Lett. 13: 445-450.

14. Laplace J.M., Delgenes J.P., Moletta R., Navarro J.M., [1993] Cofermentation of glucose and xylose to ethanol by a respiratory-deficient mutant of Saccharomyces cerevisiae co-cultivated with a xylose-fermenting yeast. J. Ferment. Bioeng. 75: 207-212.

15. Laplace J.M., Delgenes J.P., Moletta R., Navarro J.M., 1993, Effects of culture conditions on the co-fermentation of glucose and xylose mixture to ethanol by a mutant of Saccharomyces diastaticus associated with Pichia stipitis. Appl. Microbiol. Biotechnol. 39: 760-763.

16. Laplace J.M., Delgenes J.P., Moletta R., Navarro J.M., 1993c, Ethanol production from glucose and xylose by separated and coculture process using high cell density systems. Process Biochem. 28: 519-525.

17. Moritz J.W., Duff S.J.B., 1996, Simultaneous saccharification and extractive fermentation of cellulosic substrates. Biotechnol. Bioeng. 49: 504-511.

18. Picataggio S.K., Zhang M., Finkelstein M., 1994, Development of genetically engineered microorganisms for ethanol production. In: Enzymatic Conversion of biomass for fuels production. Am. Chem. Soc., Washington: 343-362.

19. Preez du J.C., Bosch M., Prior B.A., 1987, Temperature profiles of growth and ethanol tolerance of the xylose-fermenting yeasts Candida shehatae and Pichia stipitis. Appl. Microbiol. Biotechnol. 25: 521-525.

20. Preez du J.C., Prior B.A., 1985, A quantitative screening of some xylose-fermenting yeast isolates. Biotechnol. Lett. 7: 241-246.

21. Szczodrak J., Fiedurek J., 1996, Technology for conversion of lignocellulosic biomass to ethanol. Biomass Bioeng. 10: 367-375.

22. Szczodrak J., Targoński Z., [1989], Simultaneous saccharification and fermentation of cellulose: effect of ethanol and cellulases on particular stages. Acta Biotechnol. 9: 555-564.

23. Taniguchi M., Tohma T., Itaya T., Fujii M., 1997, Ethanol production from a mixture of glucose and xylose by co-culture of Pichia stipitis and a respiratory-deficient mutant of Saccharomyces cerevisiae. J. Ferment. Bioeng. 83: 364-370.

24. Zayed G., Meyer O., 1996, The single-batch bioconversion of wheat straw to ethanol emploing the fungus Trichiderma viride and the yeast Pachysolen tannophylus. Appl. Microbiol. Biotechnol. 45: 551-555.
