IMPACT OF KIESERITE AND NITROGEN FERTILISATION ON THE YIELD AND SEED CHEMICAL COMPOSITION OF NARROW-LEAFED LUPIN
Przemysław Barłóg, Witold Grzebisz
A three-year field experiment researched the impact of 60 kg-Mg×
Key words:
narrow-leafed lupin cultivars, kieserite, nitrogen fertilisers – nitrogen form, seed yield, yield structure, macroelement content..
INTRODUCTION
Not only does the narrow-leafed lupin show a capability to fix atmospheric nitrogen, but it also assimilates nitrogen from soil [20]; the optimum content of that element in soil enhances lupin yielding [16]. However the literary coverage does not answer fully and unanimously whether or not it is justifiable to apply a nitrogen fertiliser at all or, if so, at which doses, which may be due to a much-varied mineral nitrogen content in soil and often considerably exceeds the commonly applied pre-sowing dose [4]. One should also bear in mind that nitrogen is present in soil in two basic forms, N-NO3 and N-NH4, which show a different impact on plant growth and development. In the wild there are species with their individual preferences for one of the forms or show a maximum development whenever the two forms are available [1,6].
The narrow-leafed lupin requires the crop-rotation position rich in available magnesium [7]. Fertilisation with kieserite at ‘regeneration’ dose (60-150 kg × ha-1 of Mg) aims not only at supplying the plant with an adequate amount of magnesium but, first of all, enhancing the soil fertility [17]. A high dose of magnesium can cause an antagonism and synergy of ions due to which Mg2+ will have a negative effect on the uptake of N-NH4 and a positive effect on the uptake of N-NO3 [9]. Magnesium fertilisation can also enhance the uptake of certain nitrogen forms due to the effect on lupin nodulation processes as well as on the metabolism of nitrogen compounds [11].
The present research presents a hypothesis that due to the interaction of magnesium and different nitrogen forms, there emerge differences in yielding and chemical composition of narrow-leafed lupin seeds.
MATERIALS AND METHODS
The field experiments were conducted over 1994-1996 at the Swadzim Agricultural Experiment Station of the Poznań Agricultural University, on lessive soil of the IVb soil valuation class and a good rye soil suitability complex, of a slight acid reaction, a high content of available potassium and phosphorus and an average of magnesium. The content of mineral nitrogen in early spring in the layer of 0-40 cm ranged from 19 to 26 kg . ha-1 of N-NO3 and from 4.5 to 6.0 kg × ha-1 of N-NH4.
The field experiment was set as a split-split-plot design.
The factors researched included:
- two doses of magnesium fertilisation: non-fertilised and kieserite-fertilised (MgSO4· H2O) at 60 kg×ha-1 of Mg;
- three narrow-leafed lupin cultivars (Lupinus angustifolius L.) – high-alkaloid ‘Mirela’ and two low-alkaloid cultivars, ‘Emir’ and ‘Sur’;
- nitrogen forms: Ca(NO3)2, (NH4)2SO4, NH4NO3, CO(NH2)2 at the dose of 75 kg× ha-1 of N.
The experiment was carried out in 4 replications on plots, 20 m2 each.
Lupin was sown onto the after-corn position, for a list of basic agronomic practices and their timing, see Table 1. The dose of phosphorus and potassium fertilisers amounted to 60 kg× ha-1 of P2O5 and 80 kg×ha-1 of K2O, respectively. The amount of the sowing material was adjusted to the post-emergence plant density planned, 90 plants per sq. m, at the 15 cm row spacing at the sowing depth of 3 cm. Prior to sowing, the seeds were treated with Bradyrhizobium lupini and dressed with Funaben T (thiram, 200 g.100 kg-1 of seeds).
|
|
Timing |
1994 |
1995 |
1996 |
Fertiliser application |
March, 31 |
March, 23 |
April, 13 |
Pre-sowing cultivation |
March, 31 |
March, 23 |
April, 13 |
Seeding and harrowing |
April, 1 |
March, 24 |
April, 15 |
Soil-applied herbicide (Azotop, 1.25 kg× ha-1) |
April, 2 |
March, 25 |
April, 16 |
Couch-grass spraying (Fusilade Super, 1.5 l.ha-1) |
May-June |
May-June |
June, 5 |
Desiccation (Reglone, 4 kg× ha-1) |
July, 17 |
July, 14 |
M* August, 5 |
Seed harvest |
July, 22 |
July, 21 |
M August, 20 |
*Cultivars: M - ‘Mirela’, E - ‘Emir’, S – ‘Sur’ |
The total and protein nitrogen, having been precipitated with the 2.5% trichloroacetic acid was defined with the Kjeldahl method, while phosphorus with the calorimetric vanadate-molybdate method. The other macroelements were defined with the AAS method, the material having been mineralised at 450°C and ash having been solved in 3M HCl solution.
The data was analysed with the ANVAR software designed by Toboła, Poznań Agricultural University.
RESULTS
Over 1994-1995 lupin maturity stages, weather conditions were similar; high air temperature and low rainfall, while the July of 1996 rainfall was very high and amounted to 216.2 mm (Table 2).
Magnesium fertilisation did not show a significant effect on the narrow-leafed lupin straw and seed yields (Table 3). The cross-cultivar differences depended, most of all, on the weather conditions over the vegetation period. In 1994 significant differences were observed in straw yield, only. ‘Emir’ lupin plants gave a higher straw yield than the other cultivars. In 1995 the straw yields of ‘Emir’ and ‘Mirela’ was significantly higher than that of ‘Sur’. That year all the three cultivars gave different seed yields; ‘Mirela’ gave the highest yield, 8% and 11% higher than the respective values obtained for Emir and ‘Sur’. Similarly its total protein yield was significantly higher, as compared with ‘Sur’. The high 1996 rainfall at the beginning of the maturity stage led to an excessive growth of the sweet-cultivar vegetative mass, hence a significantly higher straw yield at the expense of generative yield. Only ‘Mirela’ yielded similarly as in 1994 and 1995; a 3-year-mean seed yield amounted to 2.5 t×ha-1. Despite some yielding variability over years, the average highest seed yield was observed for ‘Mirela’, and the lowest for ‘Sur’.
|
|
1994 |
1995 |
1996 |
Temperature
|
Rainfall
|
Temperature
|
Rainfall mm |
Temperature
|
Rainfall
|
April |
9.1 |
47.5 |
7.6 |
12.0 |
8.3 |
13.8 |
May |
12.0 |
66.4 |
13.1 |
77.6 |
12.7 |
74.2 |
June |
15.9 |
34.3 |
16.4 |
89.1 |
16.4 |
33.8 |
July/1 |
18.8 |
63.1 |
20.0 |
0.2 |
15.9 |
134.4 |
July/2 |
21.8 |
0.4 |
21.4 |
9.6 |
14.8 |
29.3 |
July/3 |
24.8 |
0.0 |
21.5 |
6.5 |
16.3 |
52.5 |
August |
17.9 |
54.2 |
17.5 |
60.6 |
18.5 |
48.7 |
September |
13.3 |
55.1 |
13.4 |
83.3 |
11.3 |
56.6 |

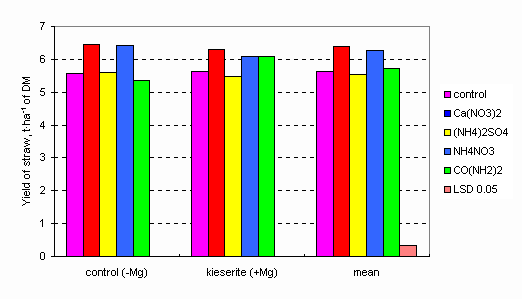

Nitrogen fertilisation showed a higher impact on straw yield than on the seed yield. Lupin fertilised with NH4NO3 and Ca(NO3)2 produced a higher straw yield, as compared with the control, and as compared with (NH4)2SO4 and CO(NH2)2 fertilisation (Fig. 1). The highest seed yield was obtained fertilising lupin also with the NH4NO3 and Ca (NO3)2 (Fig. 2). However, the yields did not differ significantly from those obtained for the control. As compared with all the above-specified objects, fertilising with (NH4)2 SO4 decreased the seed yield. The research did not reveal a significant correlation of nitrogen and magnesium forms, yet there was observed such a trend. The object without kieserite yielded highest with NH4NO3 having been applied, while the object wit h kieserite – Ca(NO3)2. Magnesium fertilisation did not decrease the seed yield whenever Ca(NO3)2 was applied (Fig. 2). Narrow-leafed lupin fertilisation with NH4NO3 and Ca(NO3)2 increased digestible protein yield significantly (Fig. 3).
|
Magnesium fertilisation |
1994 |
1995 |
1996 |
Mirela |
Emir |
Sur |
LSD |
Mirela |
Emir |
Sur |
LSD |
Mirela |
Emir |
Sur |
LSD |
Straw yield, t.ha-1 |
- Mg |
4.1 |
5.1 |
4.4 |
|
5.7 |
6.0 |
4.8 |
|
5.9 |
8.0 |
9.7 |
|
+ Mg |
4.2 |
5.9 |
4.5 |
5.4 |
5.0 |
4.3 |
5.6 |
8.0 |
9.5 |
|||
Mean |
4.2 |
5.5 |
4.4 |
0.8 |
5.6 |
5.5 |
4.6 |
0.4 |
5.8 |
8.0 |
9.6 |
1.4 |
Seed yield, t.ha-1 |
- Mg |
2.64 |
2.42 |
2.43 |
|
2.69 |
2.51 |
2.40 |
|
2.41 |
1.22 |
1.08 |
|
+ Mg |
2.58 |
2.59 |
2.49 |
2.54 |
2.31 |
2.29 |
2.55 |
0.98 |
1.13 |
|||
Mean |
2.61 |
2.51 |
2.46 |
n.s. |
2.61 |
2.41 |
2.34 |
0.20 |
2.48 |
1.10 |
1.10 |
0.21 |
Digestible protein yield, kg.ha-1 |
- Mg |
691 |
645 |
669 |
|
716 |
686 |
664 |
. |
765 |
367 |
354 |
|
+ Mg |
660 |
686 |
682 |
732 |
660 |
607 |
851 |
292 |
356 |
|||
Mean |
675 |
665 |
676 |
n.s. |
724 |
672 |
636 |
56 |
808 |
330 |
355 |
66 |
n.s. - non-significant difference |
|
![]() |
|
![]() |
|
![]() |
The value of HI calculated for Ca (NO3)2-fertilised object was significantly lower, as compared with the control and the carbamide-fertilised object. (NH4)2 SO4 fertilisation decreased the number of seeds per pod, however it increased the number of pods per plant. The non-Mg fertilised object showed that the fertiliser significantly decreased the weight of 1000 seeds as compared with the values obtained for Ca (NO3)2, NH4NO3 and the control. In the object fertilised with Mg, (NH4)2SO4 acted similarly to Ca (NO3)2 (Table 5).
The seeds of the cultivars differed, first of all, in their contents of phosphorus and potassium (Table 6). The seeds of the sweet cultivars, ‘Emir’ and ‘Sur’, showed their much higher contents than ‘Mirela’. The seeds of these cultivars were also noted to have slightly higher contents of Mg and Ca. The sweet cultivar, ‘Sur’ showed the highest content of total nitrogen, while the bitter cultivar, ‘Mirela’, the highest percentage of protein nitrogen in the total nitrogen content. kieserite fertilisation slightly increased the contents of total nitrogen and its content of protein nitrogen in the seeds of the cultivars, ‘Emir’ and ‘Mirela’ as well as slightly decreased the concentration of the other elements. Nitrogen fertilisation showed a considerable impact on the content of the total nitrogen (Table 7). The highest content of the total nitrogen was observed as a result of lupin fertilisation with carbamide followed by NH4NO3 fertilisation. The difference between the values obtained for the objects and the control amounted to 0.14% and 0.10%, respectively. The content of nitrogen in the seeds of lupin fertilised with (NH4)2SO4 was similar to the value obtained for the control. The application of NH4NO3 increased slightly the share of protein nitrogen in the total nitrogen content.
Year |
Cultivar |
Harvest |
Weight of 1000 seeds g |
Number of pods per plant |
Number of seeds per pod |
Number of seeds per plant |
1994 |
Mirela |
36.46 |
126.8 |
8.75 |
5.10 |
44.8 |
Emir |
31.62 |
131.2 |
9.98 |
2.56 |
25.4 |
Sur |
30.88 |
120.2 |
9.48 |
2.88 |
27.0 |
LSD0.01 |
1.31 |
1.27 |
n.s. |
1.14 |
8.8 |
1995 |
Mirela |
31.51 |
112.1 |
4.38 |
5.68 |
25.1 |
Emir |
31.28 |
107.4 |
6.95 |
3.54 |
24.9 |
Sur |
34.52 |
111.3 |
5.53 |
4.32 |
24.4 |
LSD0.01 |
n.s. |
n.s. |
0.98 |
0.78 |
n.s. |
1996 |
Mirela |
30.76 |
159.4 |
8.11 |
3.78 |
29.6 |
Emir |
12.65 |
146.4 |
4.75 |
3.61 |
17.2 |
Sur |
10.82 |
140.8 |
4.94 |
3.11 |
15.4 |
LSD0.01 |
2.12 |
5.98 |
1.28 |
0.41 |
4.6 |
n.s.- non-significant difference |
|
Nitrogen
|
Harvest
|
Number of pods per plant |
Number of seeds per pod |
Number of seeds per plant |
Weight of 1000 seeds, g |
-Mg |
+Mg |
Control |
28.8 |
6.8 |
3.82 |
26.1 |
127.9 |
129.3 |
Ca(NO3)2 |
26.5 |
7.1 |
3.88 |
27.2 |
129.1 |
129.9 |
(NH4)2SO4 |
27.6 |
7.3 |
3.55 |
25.9 |
125.9 |
129.9 |
NH4NO3 |
27.7 |
7.0 |
4.04 |
27.7 |
128.8 |
128.9 |
CO(NH2)2 |
28.7 |
6.9 |
3.89 |
26.8 |
127.6 |
127.4 |
LSD0.05 |
1.9 |
n.s. |
0.29 |
n.s. |
1.86 |
n.s. - non-significant difference |
content, % of d.m. |
Macronutrient |
Cultivar |
Mirela |
Emir |
Sur |
- Mg |
+ Mg |
Mean |
- Mg |
+ Mg |
Mean |
- Mg |
+ Mg |
Mean |
Total N |
5.20 |
5.36 |
5.28 |
5.23 |
5.31 |
5.27 |
5.46 |
5.41 |
5.44 |
% of protein N |
88.8 |
90.0 |
89.4 |
87.8 |
88.2 |
88.0 |
88.5 |
88.3 |
88.4 |
P |
0.508 |
0.504 |
0.506 |
0.580 |
0.567 |
0.574 |
0.577 |
0.559 |
0.568 |
K |
0.917 |
0.870 |
0.894 |
1.135 |
1.132 |
1.134 |
1.105 |
1.060 |
1.083 |
Ca |
0.301 |
0.296 |
0.299 |
0.311 |
0.322 |
0.317 |
0.318 |
0.307 |
0.313 |
Mg |
0.141 |
0.136 |
0.139 |
0.153 |
0.151 |
0.152 |
0.153 |
0.149 |
0.151 |
Nitrogen forms |
Macronutrient |
Total N |
% of protein N |
P |
K |
Ca |
Mg |
Control |
5.27 |
88.6 |
0.561 |
1.041 |
0.309 |
0.149 |
Ca(NO3)2 |
5.34 |
88.6 |
0.542 |
1.024 |
0.312 |
0.147 |
(NH4)2SO4 |
5.27 |
88.2 |
0.544 |
1.040 |
0.314 |
0.146 |
NH4NO3 |
5.37 |
88.9 |
0.548 |
1.046 |
0.309 |
0.147 |
CO(NH2)2 |
5.41 |
88.6 |
0.551 |
1.032 |
0.300 |
0.147 |
Narrow-leafed lupin seed yield under average soil and climatic conditions amounts to 1.5-2.5 t×ha-1 [8]. As reported by the Research Centre for Cultivars (COBORU), the seed yield of ‘Mirela’, ‘Emir’ and ‘Sur’ over 1987 - 1990 amounted to 2.32; 2.30 and 2.06 t×ha-1, respectively [14], while narrow-leafed lupin straw yield from 3 to 6 t×ha-1 [3,18] and the present results obtained fall into the category of ‘average values’. The exception was 1996 when the straw yield of sweet cultivars exceeded the average values at a very low seed yield. 1994 lupin maturing phase coincided with very high temperature and no rainfall; hence no cross-cultivar differences in yielding. Similar weather conditions were observed in 1995, while in 1996 heavy rainfall at the beginning of pod maturing caused an excessive growth of the vegetative mass in ‘Emir’ and ‘Sur’ at the expense of seed yield. As known from literature, a regular lupin development can be disturbed whenever the pre-maturity period is accompanied by a heavy rainfall which can trigger the vegetation and production of 3rd - and 4th -layer branching. Over the moisten years, narrow-leafed lupin can seed-yield 50% lower [12,13]. In 1996 ‘Mirela’ completed plant flowering three days earlier as compared with the plants of ‘Emir’ and ‘Sur’ which could have been one of the main reasons for such considerable cross-cultivar differences.
The present attempt to evaluate the impact of kieserite fertilisation did not allow us to conclude that the fertiliser enhances the seed yield of narrow-leafed lupin. A tendency observed towards decreasing the seed yield in kieserite-fertilised objects could have been due to a negative impact on the soil reaction [11], which is indirectly confirmed by higher seed yields of lupin fertilised with Ca(NO3)2 in the kieserite-fertilised object.
Numerous research show that an increased intake of nitrogen, either as a result of an enhanced assimilation or an increase in the content of its available forms in soil enhances the production of lupin vegetative mass [5]. The present research confirmed earlier observations, yet it should be stressed that the impact of nitrogen depended on the fertiliser chemical form. The mineral nitrogen forms researched singled out the N-NO3 form which showed the greatest impact on the straw yield, while the lowest - N-NH4. A negative effect of nitrogen fertilisation with N-NH4 is explained differently, e.g. by triggering shortages of potassium or calcium or causing a photosynthesis slow-down due to changes in chlorophyll activity [10]. The latest hypotheses show that the root intake of N-NH4 ions disturbs energy conversion processes considerably. A high root demand for assimilates leads to a decrease in the over-the-ground plant mass [6]. According to Ruszkows
ka et al. [1986] the differences in the activity of nitrogen forms are mostly due to their varied impact on the soil pH. Researching the impact of different nitrogen forms on the bean growth showed in objects fertilised with N-NO3 – an increase in the rhisosphere reaction by 0.4 units and with N-NH4 – a decrease by 0.6 [19]. A decrease in the soil pH can limit the availability of molybdenum which is part of nitrogenase as well as lupin nodulation [2,5]. Differently that carbamide, a negative impact of (NH4)2 SO4 on lupin plants could have been also due to the antagonistic effect of SO4-2 on MoO4-2 intake. The optimum mineral nitrogen content in soil at the beginning of nodule formation accelerates the formation of photosynthetic organs of an adequate size. The area of photosynthesis at the same time enhances the potential for the production of assimilates and the seed yield. According to Szukała [1994], on the s
oils of very good and good rye suitability complexes, the optimum pre-sowing dose of nitrogen in the form of ammonium nitrate applied for narrow-leafed and white lupins amounted to 32-34 kg×ha-1 of N. A further increase in the nitrogen dose (up to 60 kg×ha-1 of N) showed a positive effect on the straw yield only. Similarly the present research shows that a high nitrogen dose enhanced the yield of vegetative mass only. However the literary coverage includes reports on the increase in seed yield due to fertilisation, exceeding 30 kg×ha-1 of N; e.g. a narrow-leafed lupin seed yield increase by 0.2 t×ha-1 at 70 kg×ha-1 of N [5]. One shall bear in mind that the plants on the (NH4)2SO4 – fertilised object seed-yielded lower as compared with the objects fertilised with n
itrates and the control, which could have been due to a negative impact of the fertiliser on the vegetative mass and a lower mobility of assimilates into seeds as compared with the control.
CONCLUSIONS
Cross-cultivar narrow-leafed yielding differences depended on the weather conditions over the vegetation period. The high-alkaloid cultivar, ‘Mirela’, seed-yielded higher and more stable over the research years than the low-alkaloid cultivars, ‘Emir’ and ‘Sur’.
A high Mg dose in kieserite did not increase the narrow-leafed lupin seed and protein yields.
Fertilisation with Ca (NO3)2 and NH4NO3 at 75 kg.ha-1 of N enhanced the vegetative mass as well as the yield of digestible protein yet it did not show an impact on the narrow-leafed lupin seed yield.
REFERENCES
Borkowski E., 1986. Współdziałanie form soli azotu i potasu w kształtowaniu równowagi jonowej u wybranych ro¶lin pastewnych. AR Lublin, Rozpr. habil. 97. Czuba R., Szukalski H., 1973. Mikronawozy i ich stosowanie. PWRiL Warszawa. Debely G., Derbensky V., Grishina E., 1997. Narrow-leafed lupin (Lupinus angustifolius L.) cultivation and its prospects in the central part of non-black soil zone in Russia. Lupin in modern agriculture “Lupin-Protein-Ecology”. Mat. konf. Olsztyn-Kortowo 1, 215-220. Fotyma E., 1990. Badania nad wykorzystaniem testu N-min. w Polsce. Fragm. Agron. 1/25, 5-21. Gatualina G., 1990. Symbiotic and mineral nitrogen in lupin nutrition. Proc. 6th Int. Lupin Conf. Temuco-Pucon, Chile, 180-191. Gerendás J., Sattelmacher B., 1994. Einfluß des Ammoniumangebotes auf Wachstum. Mineralstoff - und Polyamingehalt junger Maispflanzen. Z. Pflanzenernährung. Bodenk. 158, 299-305. Gromadziński A., 1994. Technologie uprawy ro¶lin. Łubin w±skolistny. Zalecenia agrotechniczne 15, IUNG Puławy. Jasińska Z., Kotecki A., 1993. Ro¶liny str±czkowe. PWN Warszawa. Lehmann K., 1974. Interaction o f potassium, magnesium and calcium concentrations and forms of nitrogen in the medium on cation contents of plants. Proc. 10th Congress of the Inter. Potash Institute, Budapest, 117-129. Magelhaes J.R., Huber D.M., 1989. Ammonium assimilation in different plant species as affected by nitrogen form and pH control in solution culture. Fertiliser Research 21, 1-6. Magnicki K., 1970. Nawozy magnezowe. PWRiL Warszawa. Mikołajczyk J., 1974. Nasiona ro¶lin str±czkowych Ľródłem białka (praca zbiorowa). PWRiL. Poznań. Mikołajczyk J., 1982. Technologia uprawy nowych odmian łubinu w±skolistnego ‘Emir’, ‘Kazan’, ‘Remik’ i ‘Mirela’. IHAR Radzików. P±gowska E., 1990. Łubin żółty. Łubin w±skolistny. Łubin biały. Synteza do¶wiadczeń odmianowych COBORU, 901. Ruszkowska M., Myszka A., Kukurenda H., 1986. Pobieranie i rola składników mineralnych w ro¶linach w warunkach intensywnego nawożenia. Synteza badań przeprowadzonych w latach 1971-1980. IUNG Puławy. Schiling G., 1989. Pflanzenernährung und Düngung. Teil II - Düngung. VEB Deutscher Landwiertschaftsverlag. Berlin. Schulz A., 1988. Ratgeber für die Landwirtschaft. Kali und Salz AG, Heft 8. Szukała J., 1994. Wpływ czynników agrotechnicznych na plon, skład chemiczny i warto¶ć siewn± nasion trzech gatunków łubinu ze szczególnym uwzględnieniem łubinu białego. Roczn. AR Poznań, Rozp. Nauk. 245. Thomson C.J., Marschner H., Römheld V., 1993. Effect of nitrogen fertiliser on pH of the bulk soil and rhizosphere and on the growth phosphorus micronutrient uptake of bean. J. Plant Nutrition 16 (3), 493-506. Unkovich M.J., Pate J.S., Hamblin J., 1994. The nitrogen economy of broadacre lupin in southwestern Australia. Aust. J. Agric. Res. 45, 149-164.
Submited:
Przemysław Barlog, Witold Grzebisz
Department of Agricultural Chemistry
Agricultural University
Wojska Polskiego 71F, 61-625 Poznan, Poland
Responses to this article, comments are invited and should be submitted within three months of the publication of the article. If accepted for publication, they will be published in the chapter headed ‘Discussions’ in each series and hyperlinked to the article.
